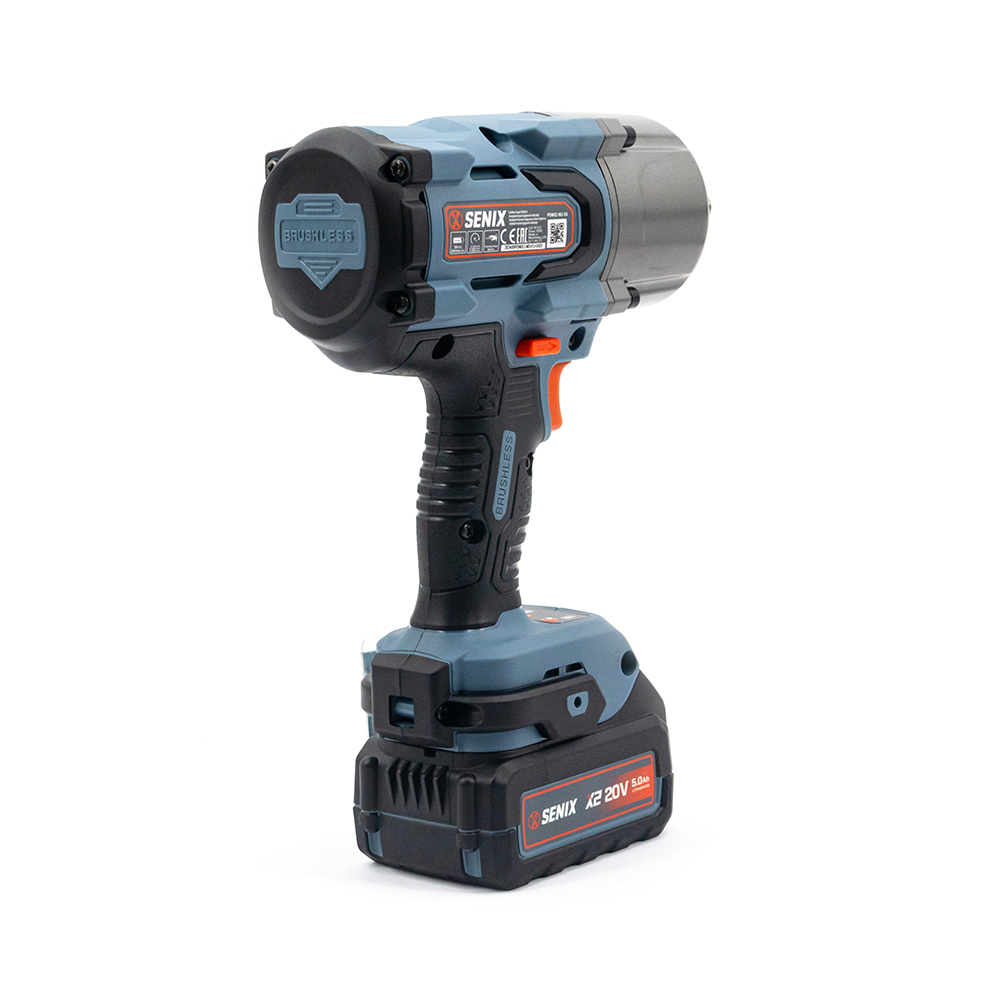

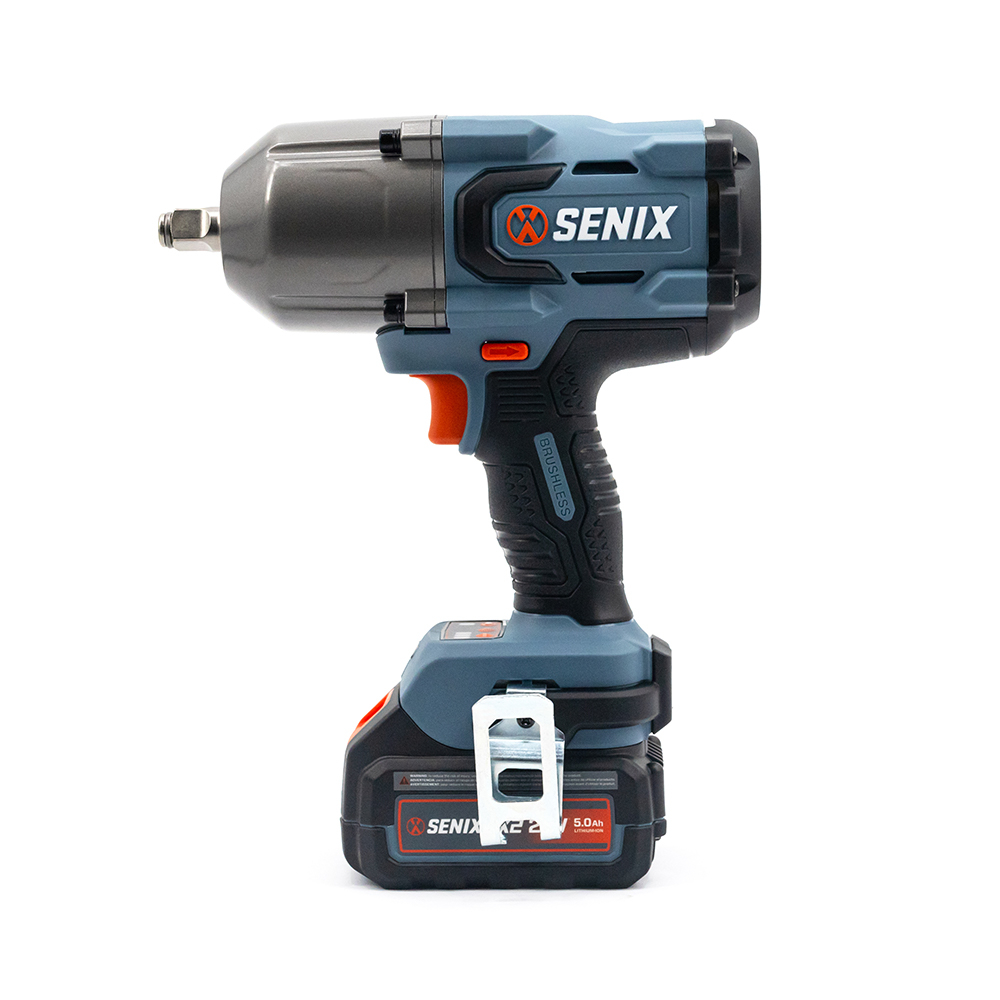

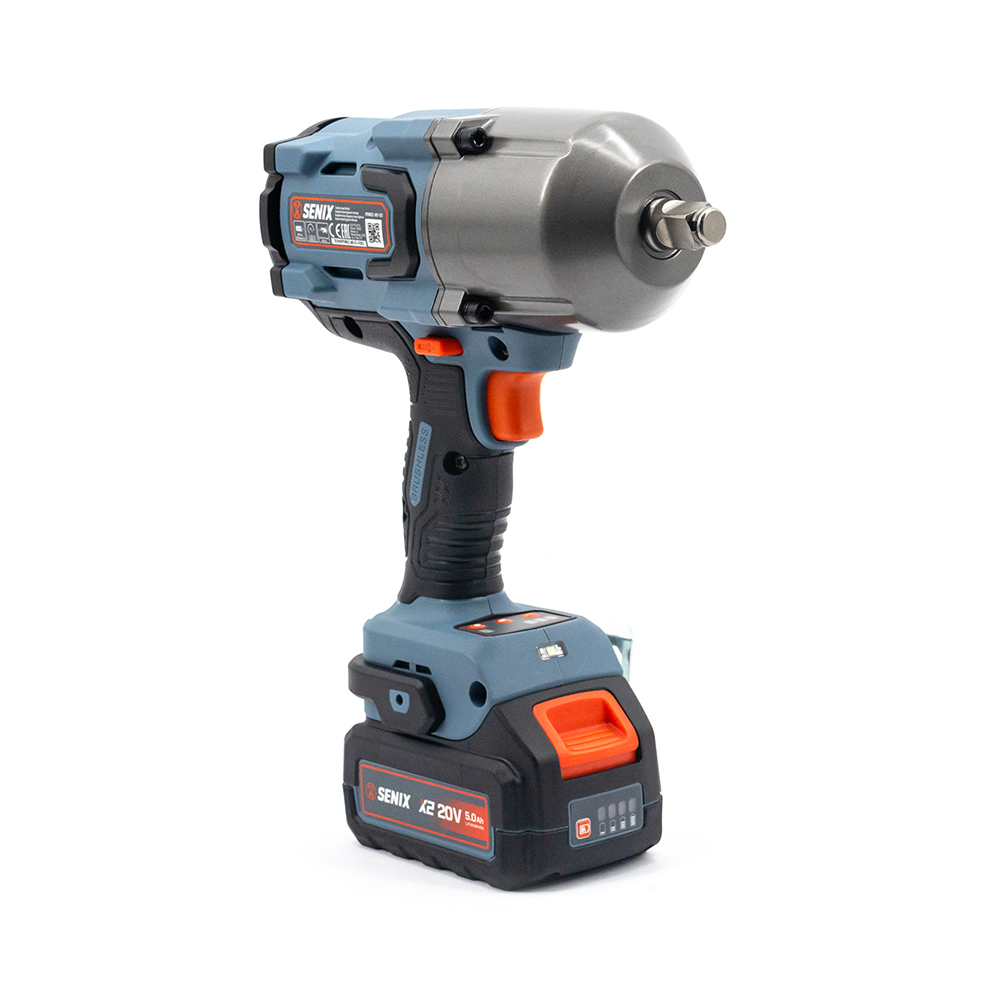

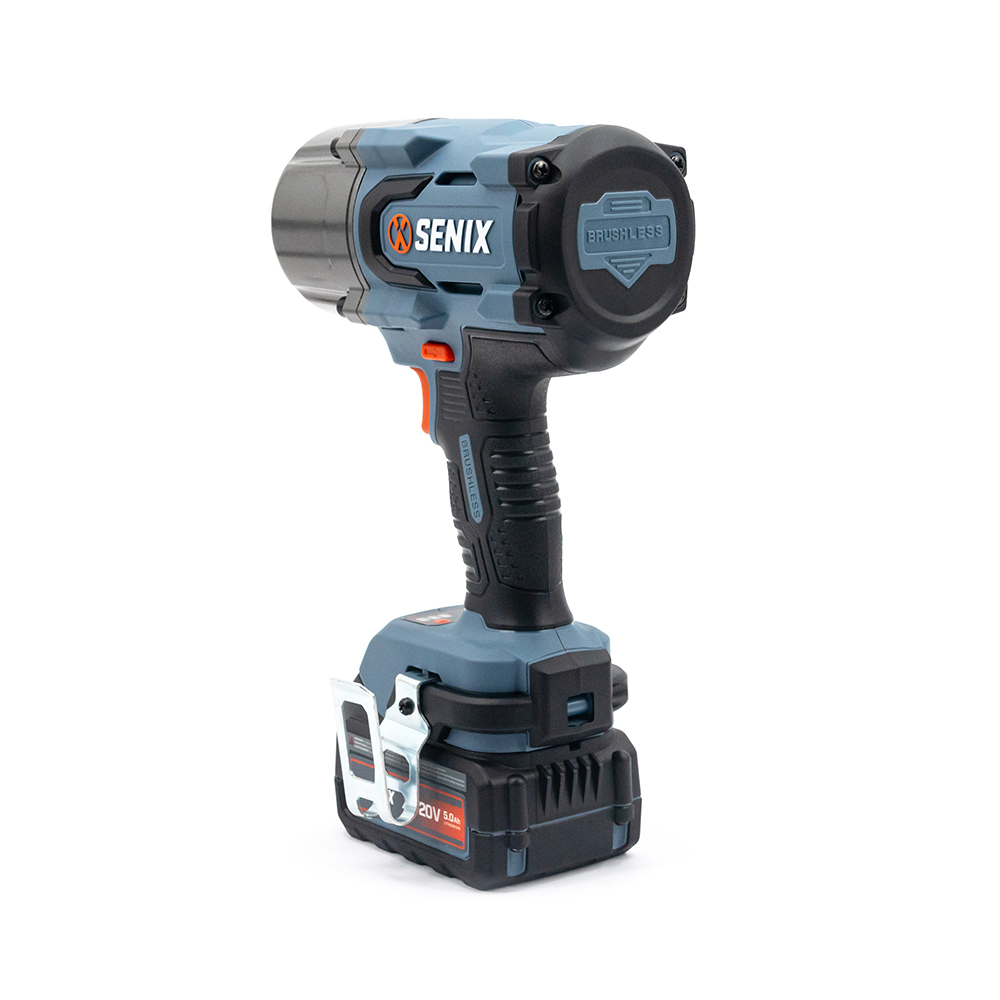

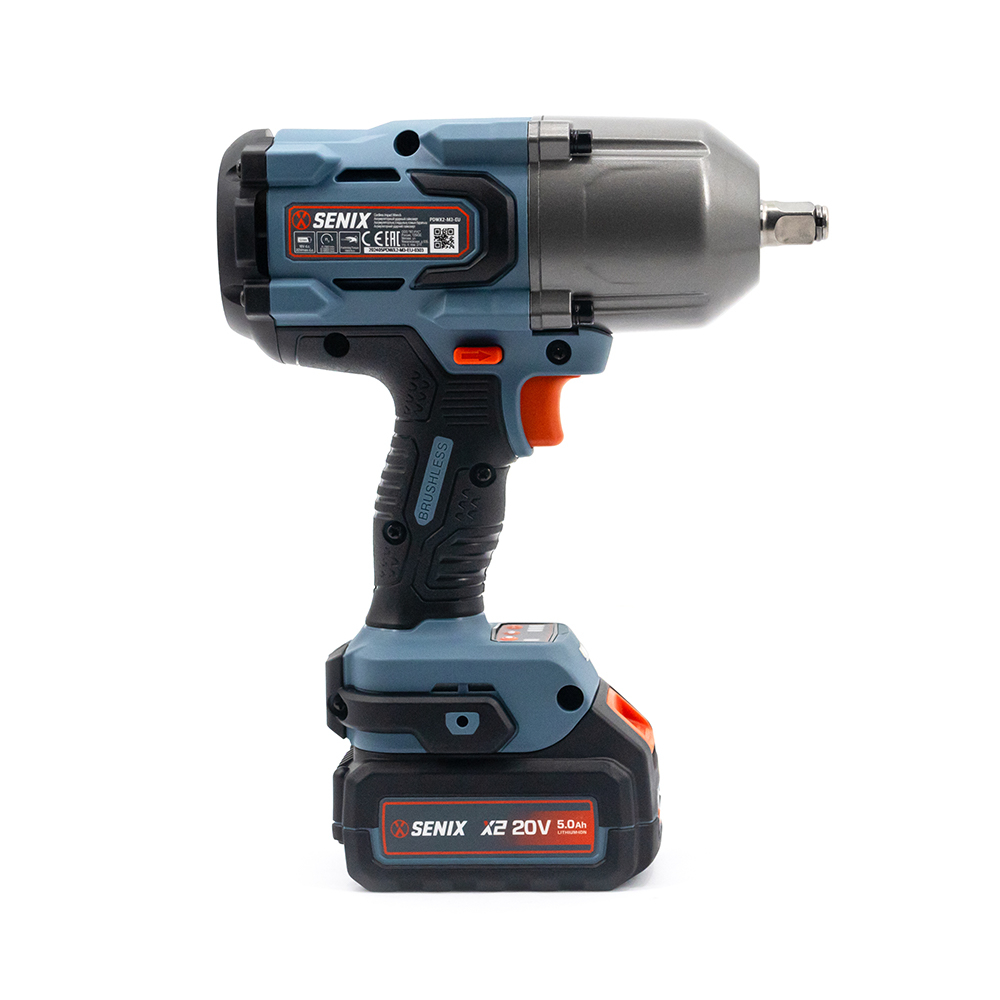

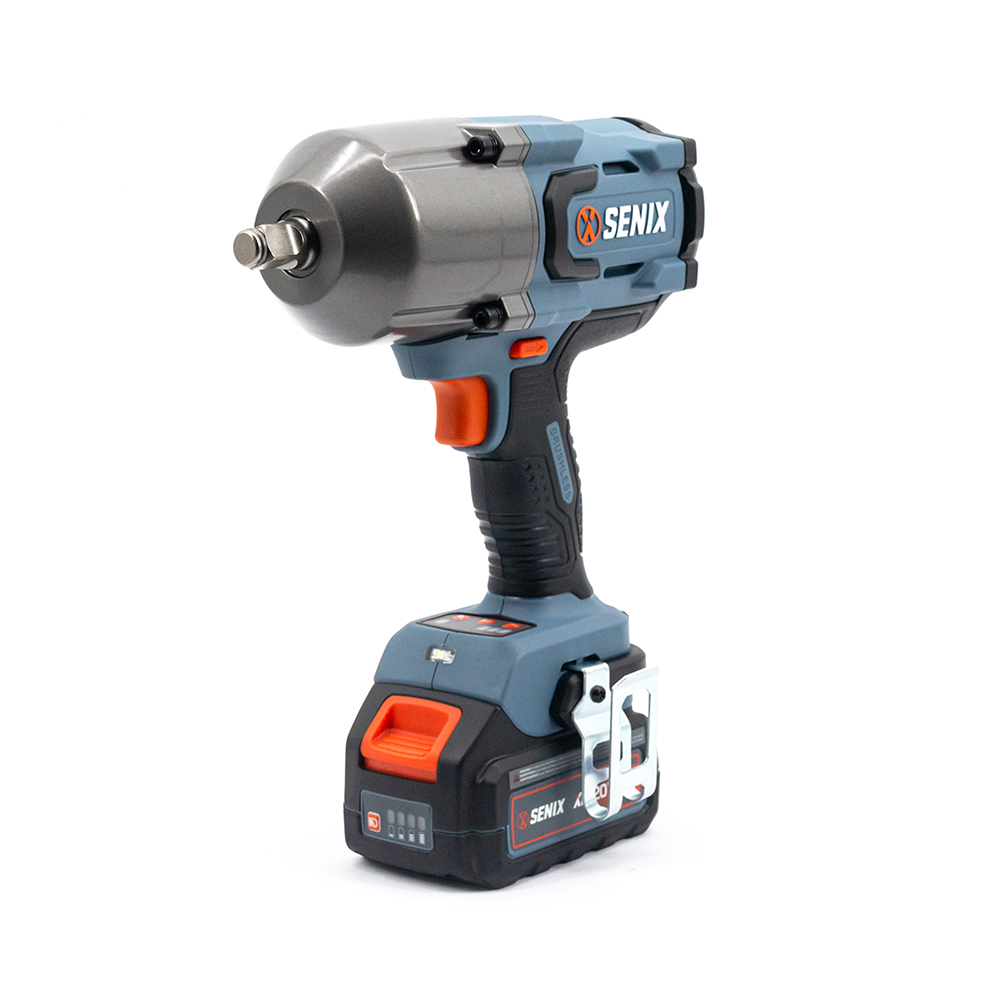

20V Brushless 12.7mm(1/2'') 1000Nm Impact Wrench
PDWX2-M3-EU
(5.0)The SENIX 20V Brushless 1/2'' Impact Wrench delivers 1000Nm of fastening torque in a compact, rugged design. Featuring a 3-speed selector, friction ring anvil, and high-efficiency brushless motor, it's the perfect cordless powerhouse for mechanics, builders, and pros who demand consistent, high-torque performance.

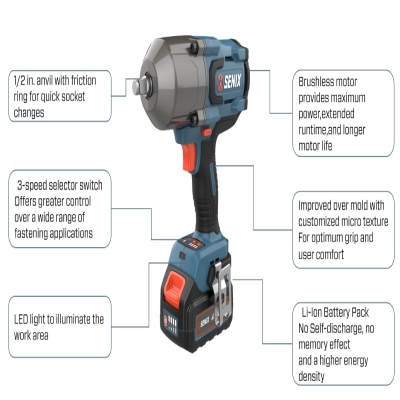

KEY FEATURES

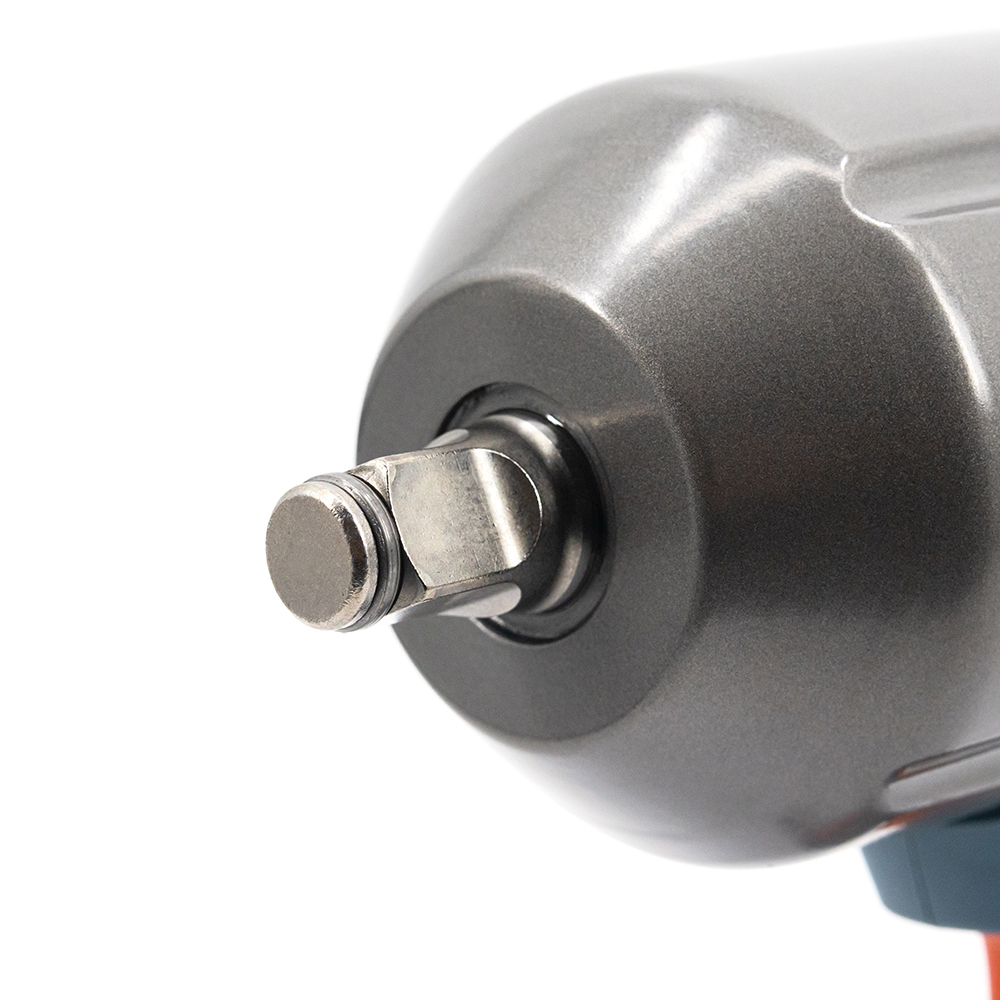

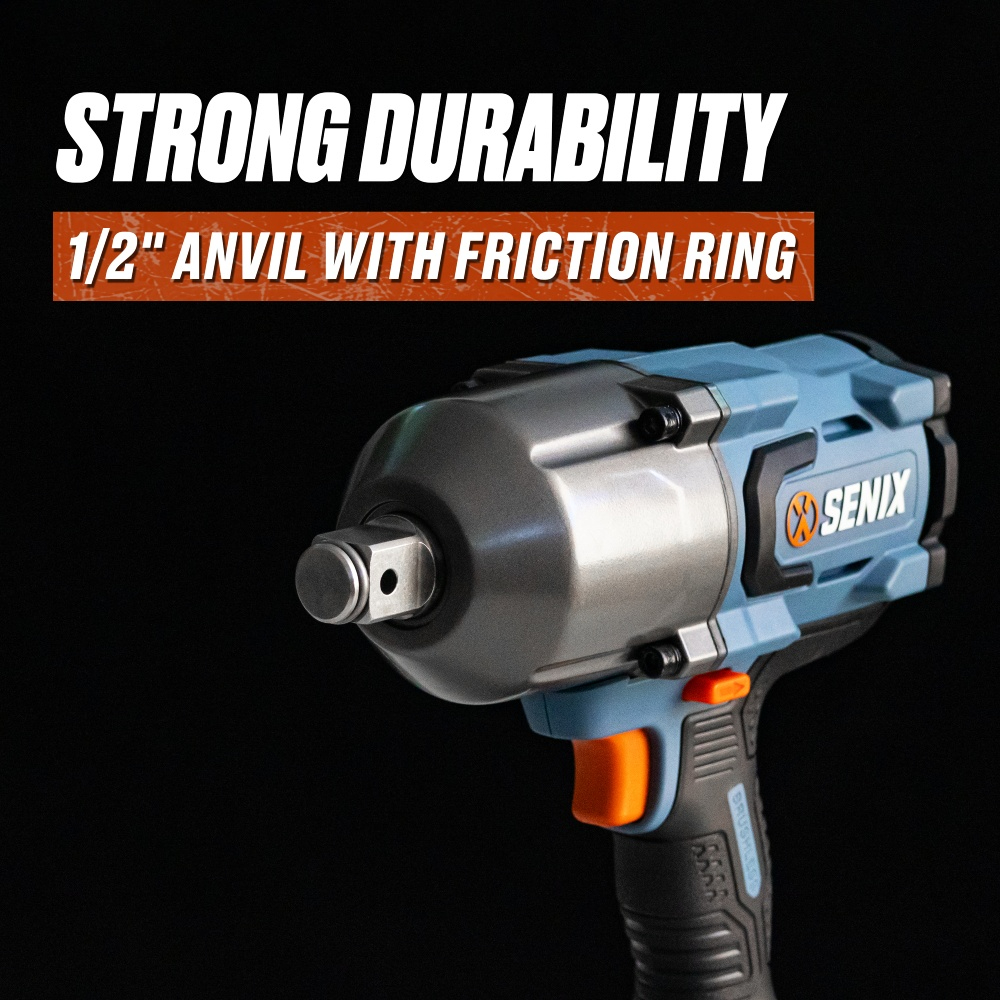

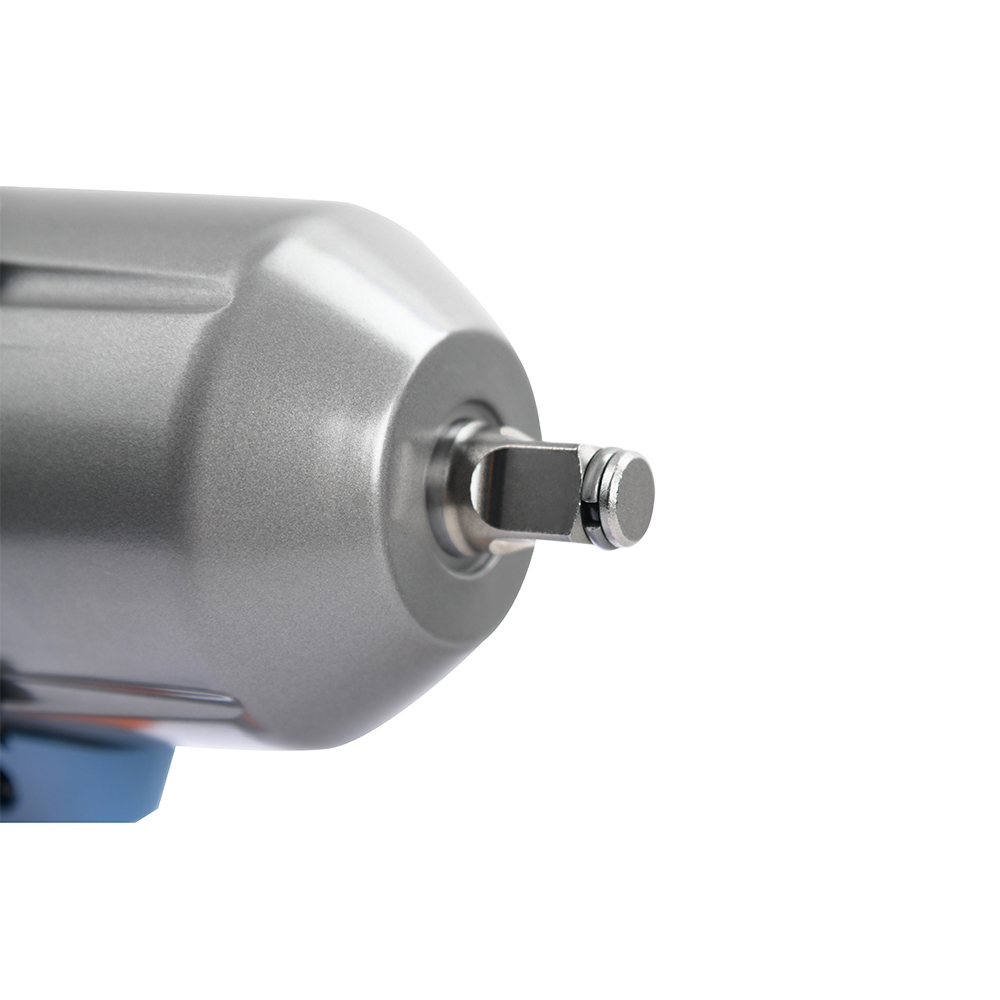

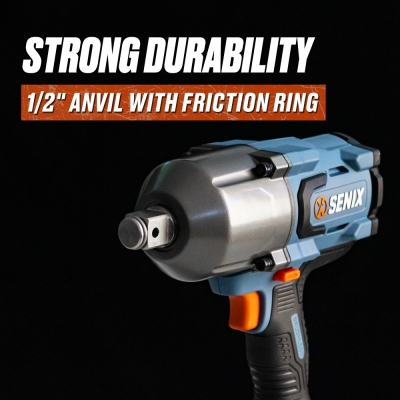

1/2 in. Anvil with Friction Ring – Enables fast and secure socket changes without additional tools.

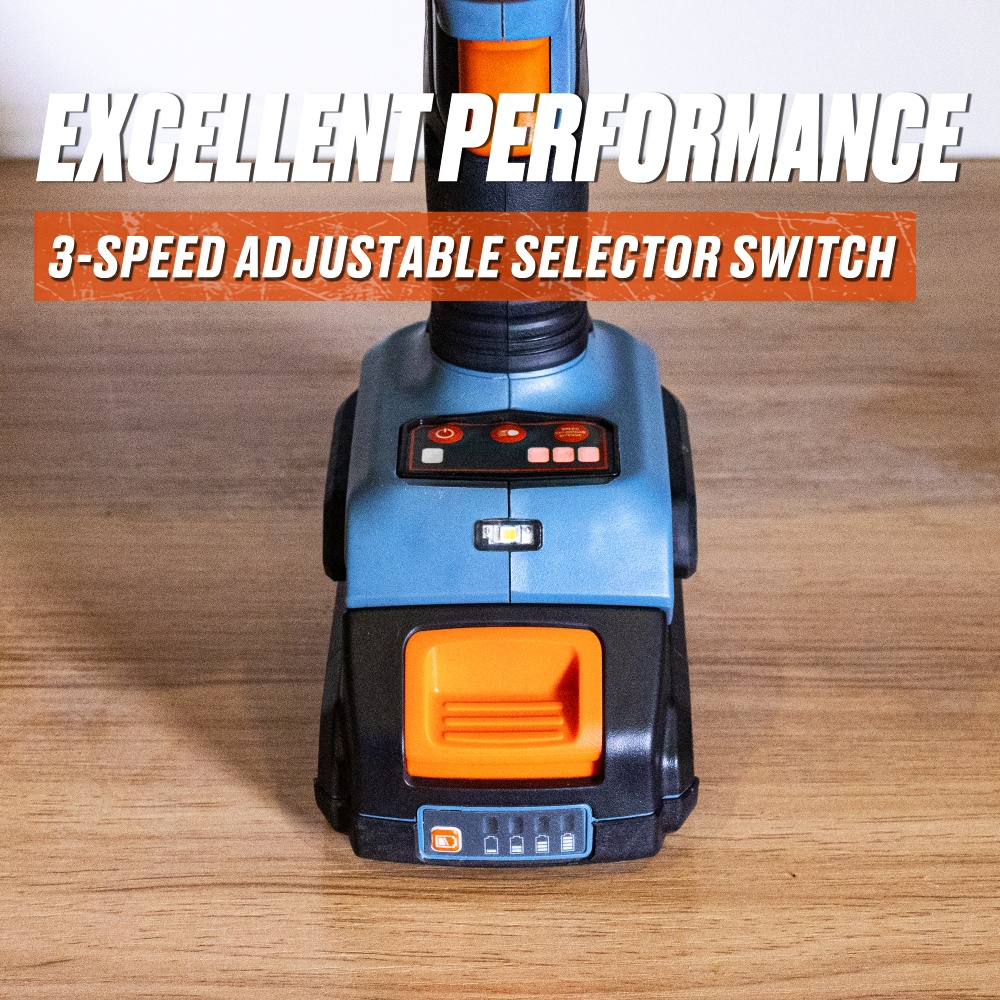

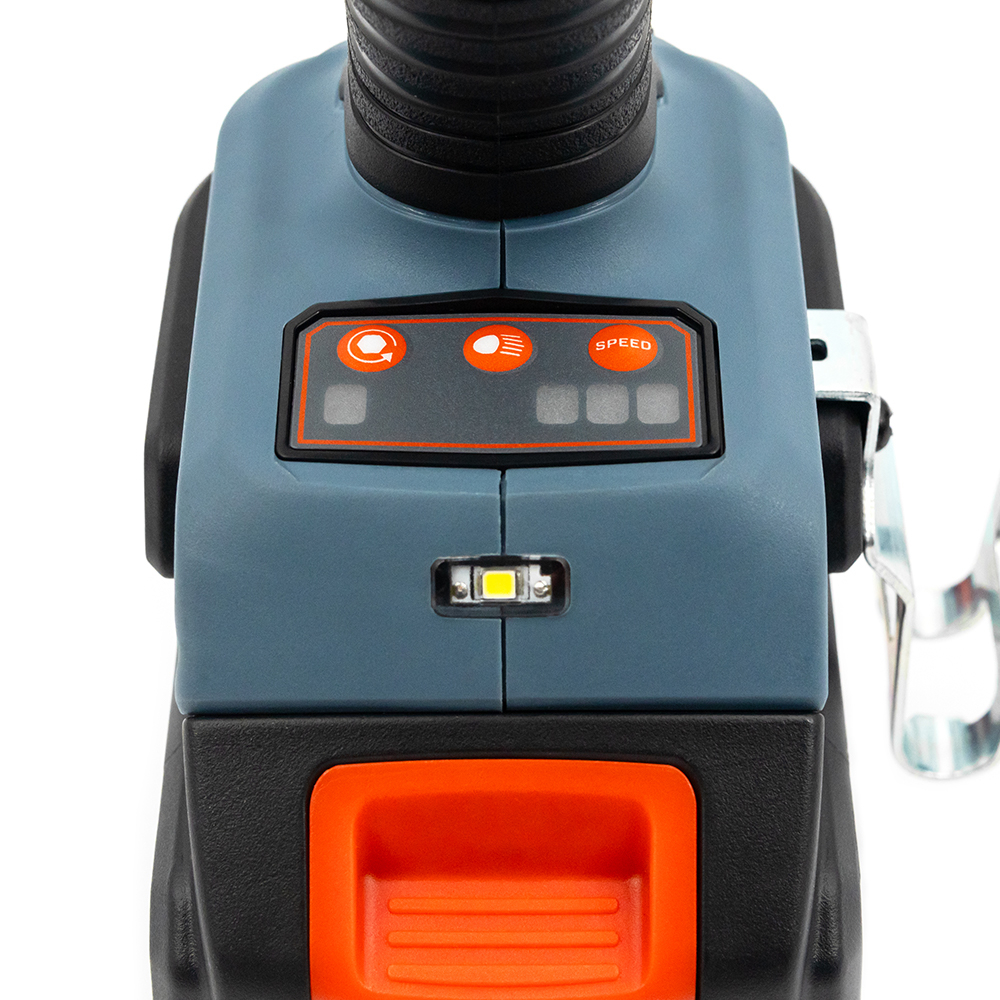

3-Speed Selector Switch – Provides customizable power and speed control for various fastening needs.

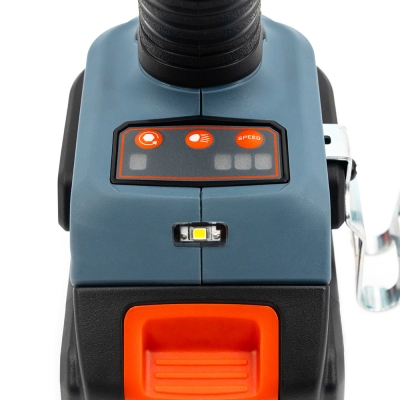

Integrated LED Light – Brightens the work area for enhanced visibility in dark or confined spaces.

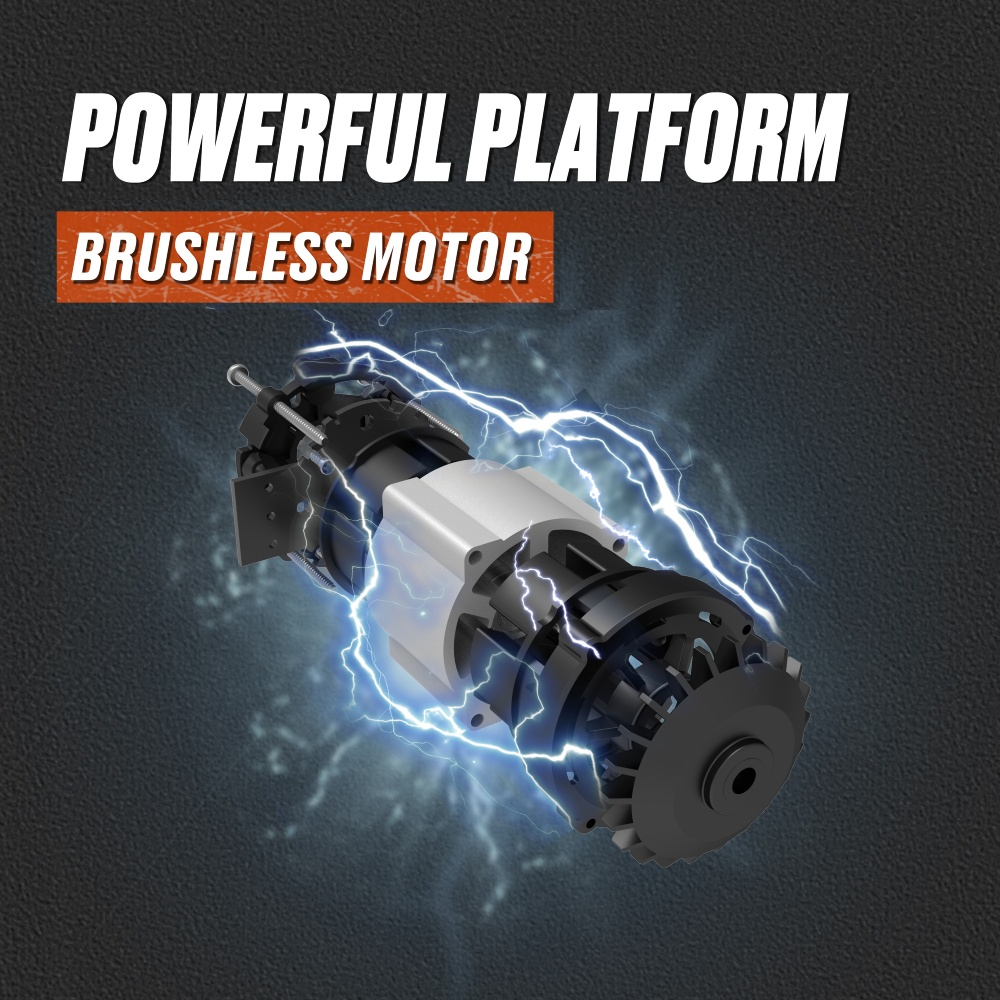

High-Efficiency Brushless Motor – Delivers maximum torque output, improved runtime, and longer motor life.

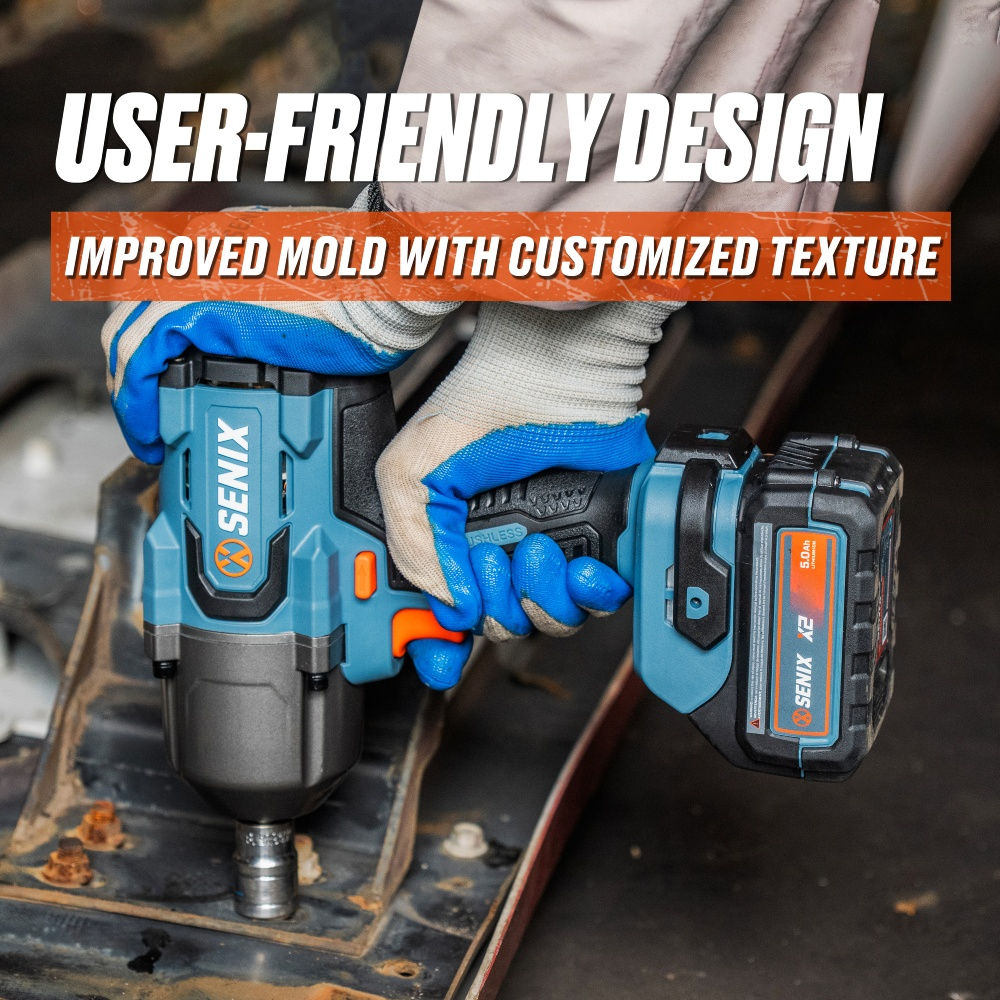

Customized Overmold with Micro Texture – Ensures a comfortable, non-slip grip for extended usage.
Li-Ion Battery Pack Compatibility – Offers no self-discharge, no memory effect, and higher energy density for consistent high-performance.
Powerful Torque Output – 1000Nm fastening and 1500Nm nut-busting torque handle even the toughest bolts.
Optimized Efficiency – Tightens up to 163 M24 bolts per charge using a 5Ah battery.
Durable, Compact Design – Weighs only 2.7 kg and is built to withstand rugged environments.
TECHNICAL PARAMETERS
Model | PDWX2-M3-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 0-750/0-1500/0-1800 RPM |
No-Load IPM | 0-1150/0-2100/0-2400 IPM |
Max. Fastening Torque | 1000Nm(1100 ft.Ibs) |
Nut-busting Torque | 1500Nm |
Speed power selection | 3-Mode |
Square drive | 12.7mm(1/2 inch) |
Fastening capacities | Standard bolt: M12-M30 High tensile bolt: M10-M24 |
Fastening and removing efficiency | 85 pcs per 2.5Ah battery or 163pcs per 5Ah battery for M24 bolt |
Machine Weight (Tool Only) | 2.7 kg |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE/MD, CE/EMC |
Machine Size | 218*83*228mm |
Color Box Size | 245*233*90mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 1/2'' 1000Nm Impact Wrench is the ultimate solution for professionals demanding high torque in a portable package. Powered by a robust brushless motor, this wrench delivers 1000Nm fastening torque and 1500Nm nut-busting torque, capable of handling heavy-duty applications in automotive, construction, and industrial environments.
Its 3-speed selector switch (750/1500/1800 RPM) and adjustable impact rate (up to 2400 IPM) allow users to tailor performance to the job, from delicate assembly to aggressive bolt removal. The 1/2 inch friction ring anvil enables fast socket changes, improving efficiency on the job site.
Designed with user comfort in mind, the customized micro-texture grip minimizes fatigue, while the built-in LED light ensures precision in low-light spaces. With lithium-ion battery compatibility, the tool offers longer runtime, reduced weight, and reliable performance—tightening up to 163 M24 bolts per charge (5Ah). Weighing just 2.7 kg, this impact wrench combines strength, endurance, and ergonomic design in one tool.
Usage Scenarios

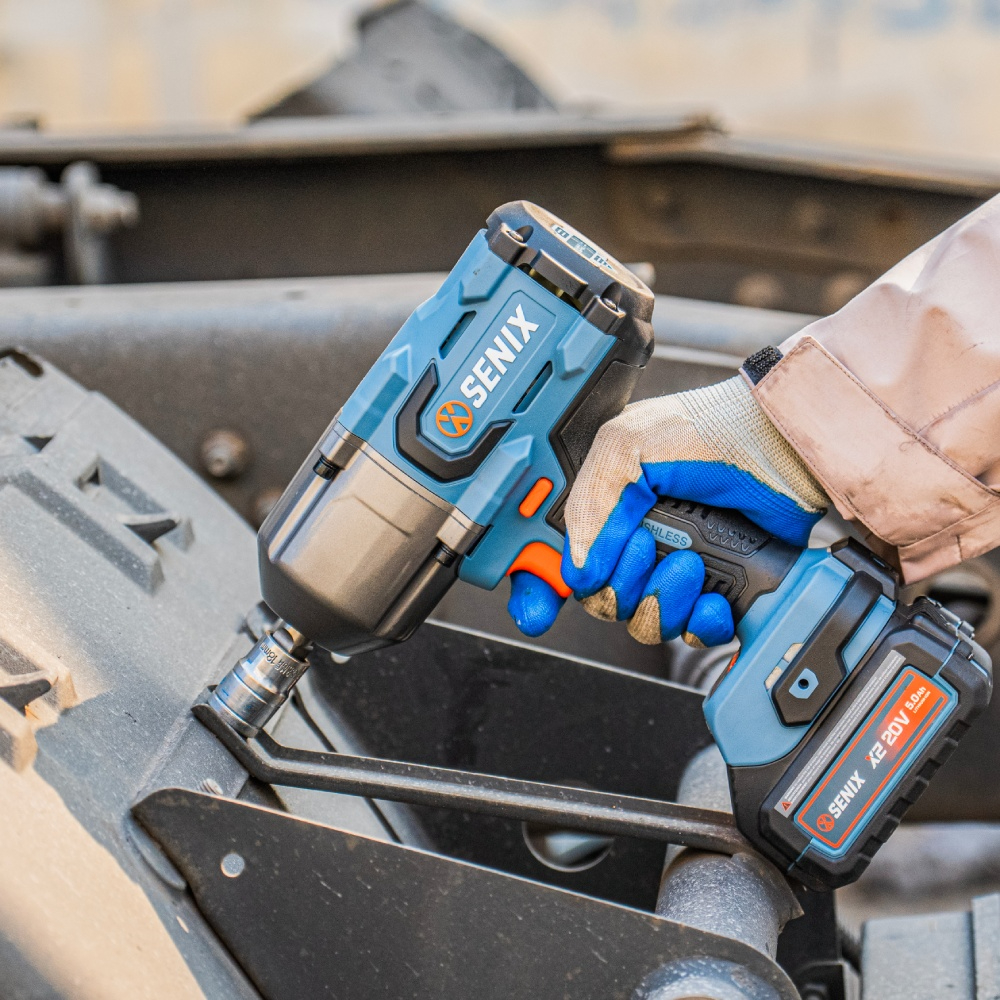

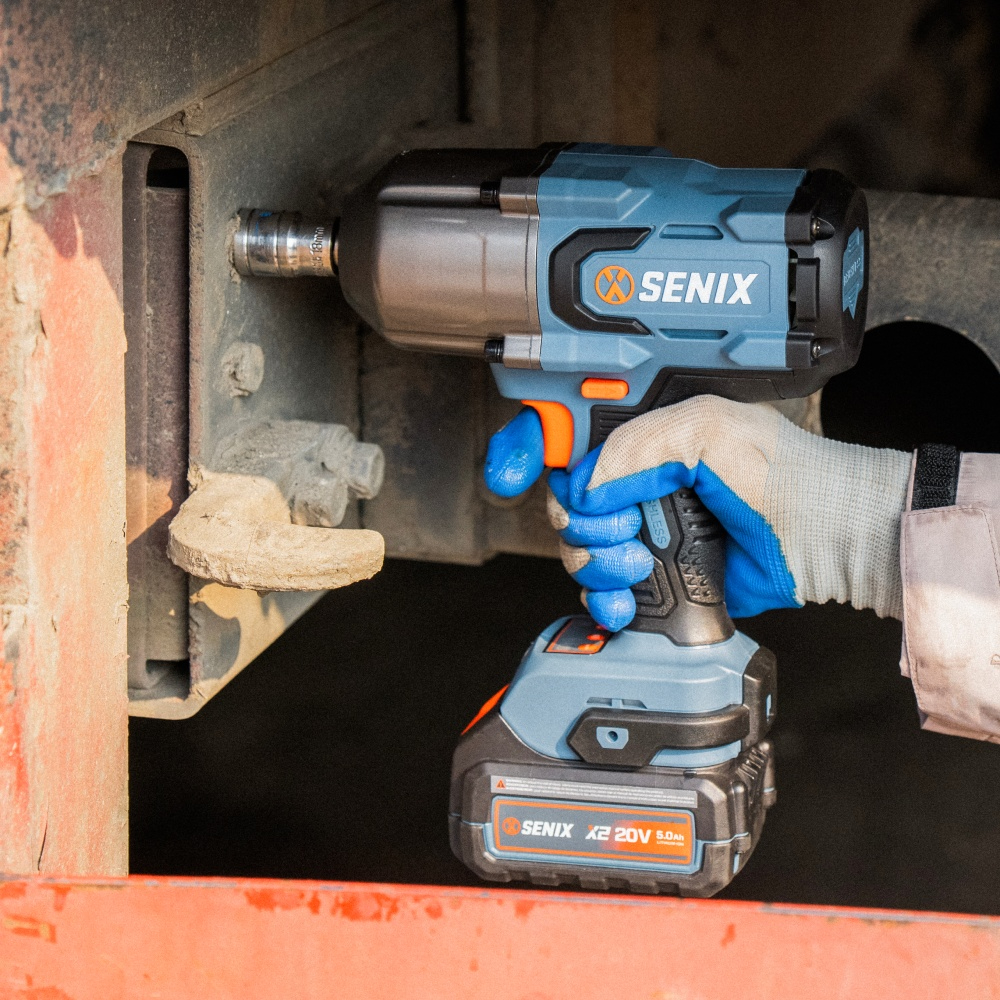

Bolt Tightening: Suitable for tasks such as mechanical repairs, automotive maintenance (e.g., tightening or loosening car bolts), and household projects like securing screws when assembling metal racks.
Steel Pipe Connections: Ideal for connecting steel pipes using fastening components. The impact wrench ensures bolts are tightened more securely compared to manual tools.
Unrecommended Conditions
Precision Assembly: The high torque and impact force may damage delicate components or cause over-tightening, affecting equipment performance.
Soft or Brittle Materials: Using the tool on materials like aluminum, plastic, or ceramics may lead to deformation or breakage.
Small Fasteners: Small bolts or screws may not withstand the high torque and could be stripped or broken.
High-Precision Torque Requirements: Applications that require precise torque control may experience under- or over-tightening.
Vibration-Sensitive Environments: The impact force may increase vibration, affecting stability or causing components to loosen.
Confined Spaces: Limited working space may hinder tool operation and increase the risk of damaging surrounding parts.
Frequent Assembly/Disassembly: Regular use may accelerate thread wear and shorten the lifespan of fasteners.
High-Speed Applications: Not suitable for continuous high-speed use, which may cause overheating or damage to the tool.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
- Q1: What types of applications is this impact wrench suitable for?
A: This tool is ideal for heavy-duty tasks such as automotive repairs, construction projects, and industrial assembly. It effectively handles standard bolts ranging from M12 to M30 and high-tensile bolts from M10 to M24.
Q2: How much torque does the wrench deliver?
A: The impact wrench provides a maximum fastening torque of 1000Nm (1100 ft-lbs) and a nut-busting torque of 1500Nm, making it capable of loosening even the most stubborn bolts.
Q3: Can I adjust the speed settings?
A: Yes, the tool features a 3-mode speed selector switch, allowing you to choose between 0-750, 0-1500, and 0-1800 RPM to match the requirements of various tasks.
Q4: Is the tool compatible with all SENIX 20V batteries?
A: Absolutely. The impact wrench is compatible with SENIX 20V Max lithium-ion batteries, including 2.5Ah and 5Ah variants, offering flexibility and extended runtime.
Q5: How many bolts can I fasten on a single charge?
A: Using a 2.5Ah battery, you can fasten approximately 85 M24 bolts. With a 5Ah battery, this number increases to about 163 bolts, enhancing productivity on the job site.
Q6: Does the tool have features for low-light conditions?
A: Yes, it includes an integrated LED light that illuminates the work area, ensuring visibility and precision in dimly lit environments.
Q7: What is the weight of the tool? Is it suitable for prolonged use?
A: The impact wrench weighs 2.7 kg (tool only), and its ergonomic design with a customized micro-texture overmold provides a comfortable grip, making it suitable for extended periods of use.
