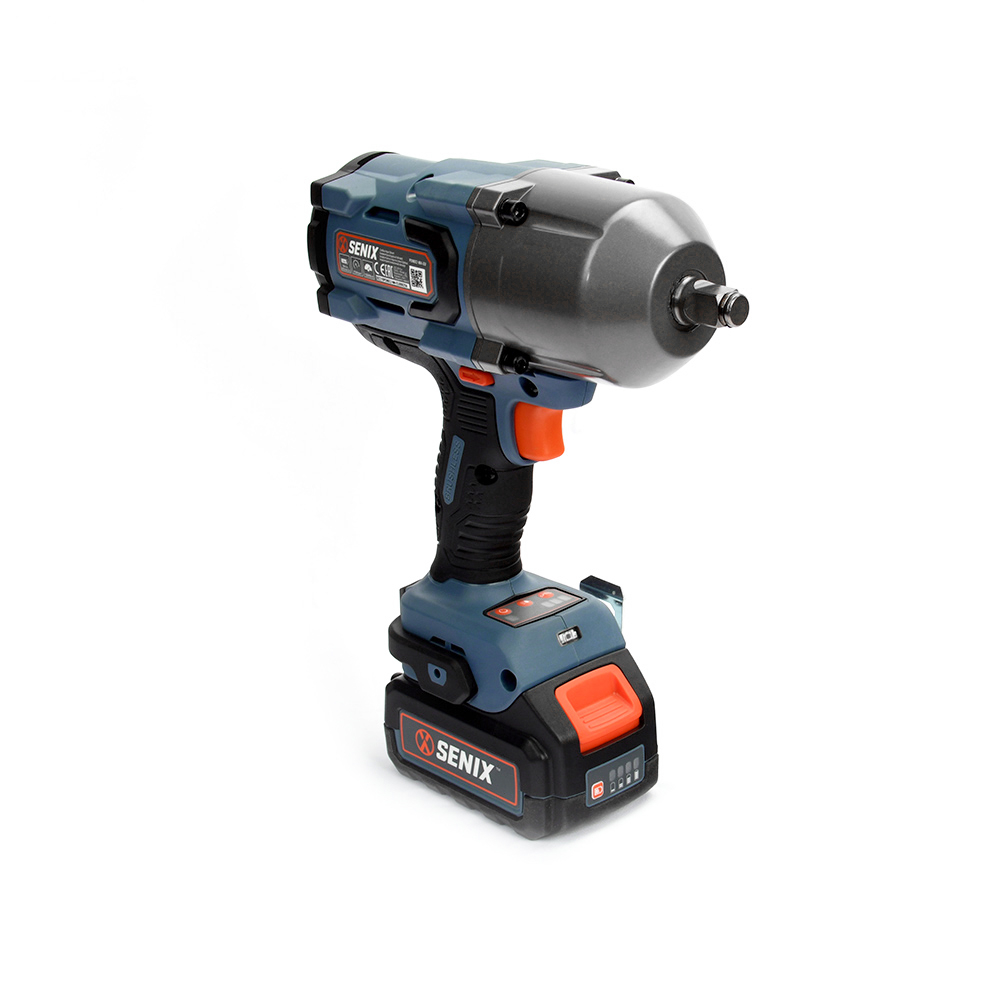

20V Brushless 12.7mm(1/2'') Impact Wrench
PDWX2-M4-EU

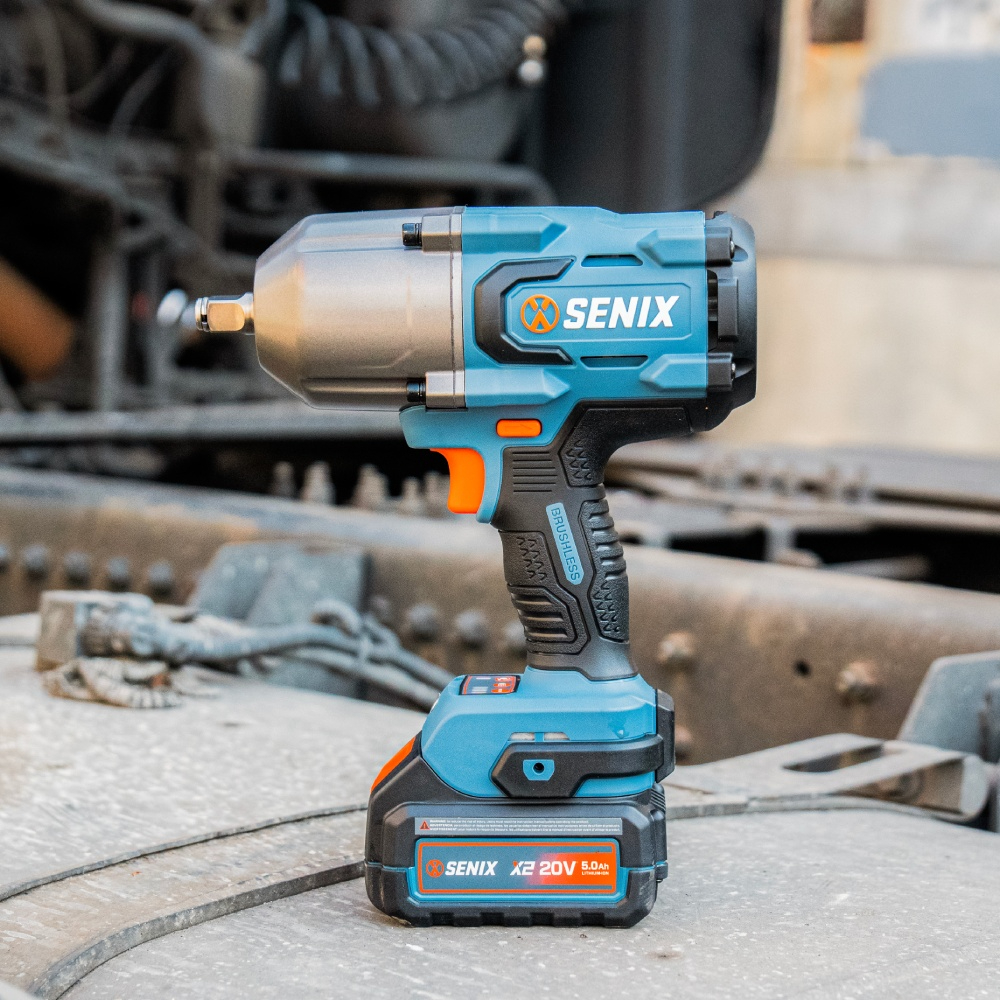

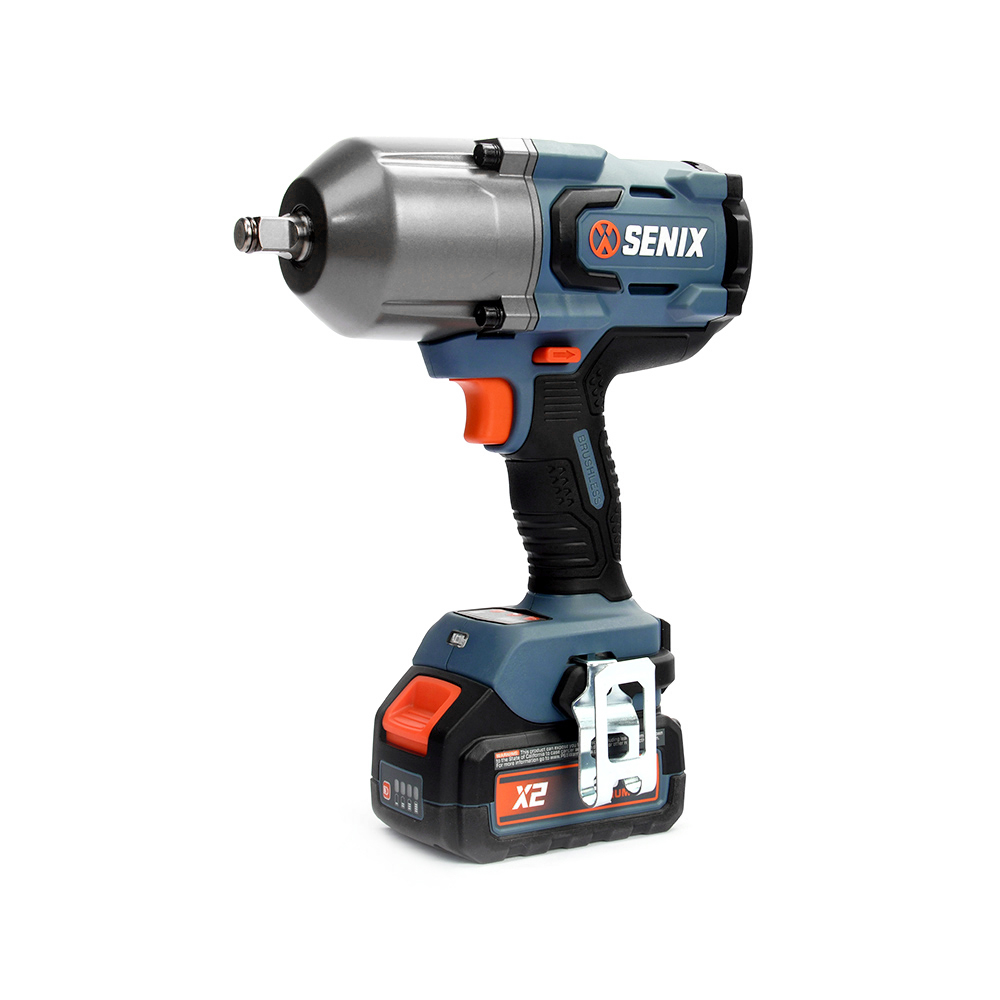

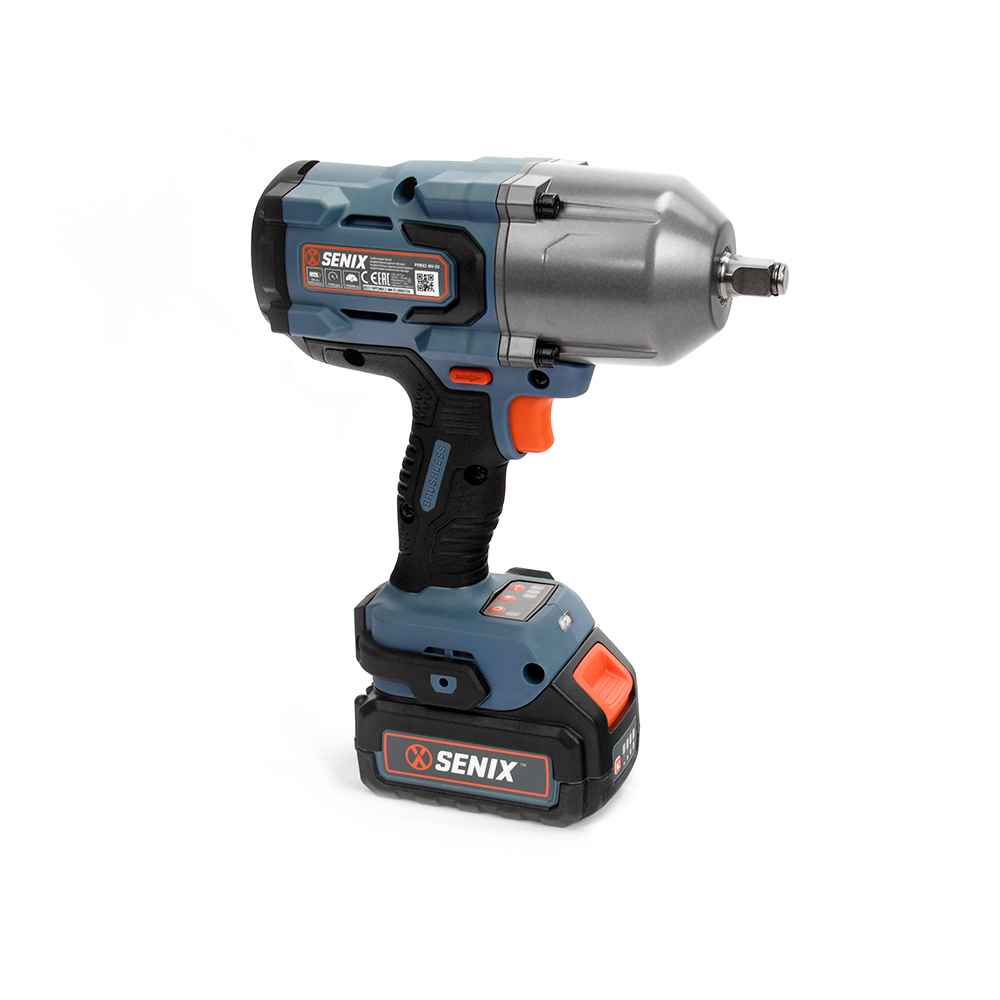

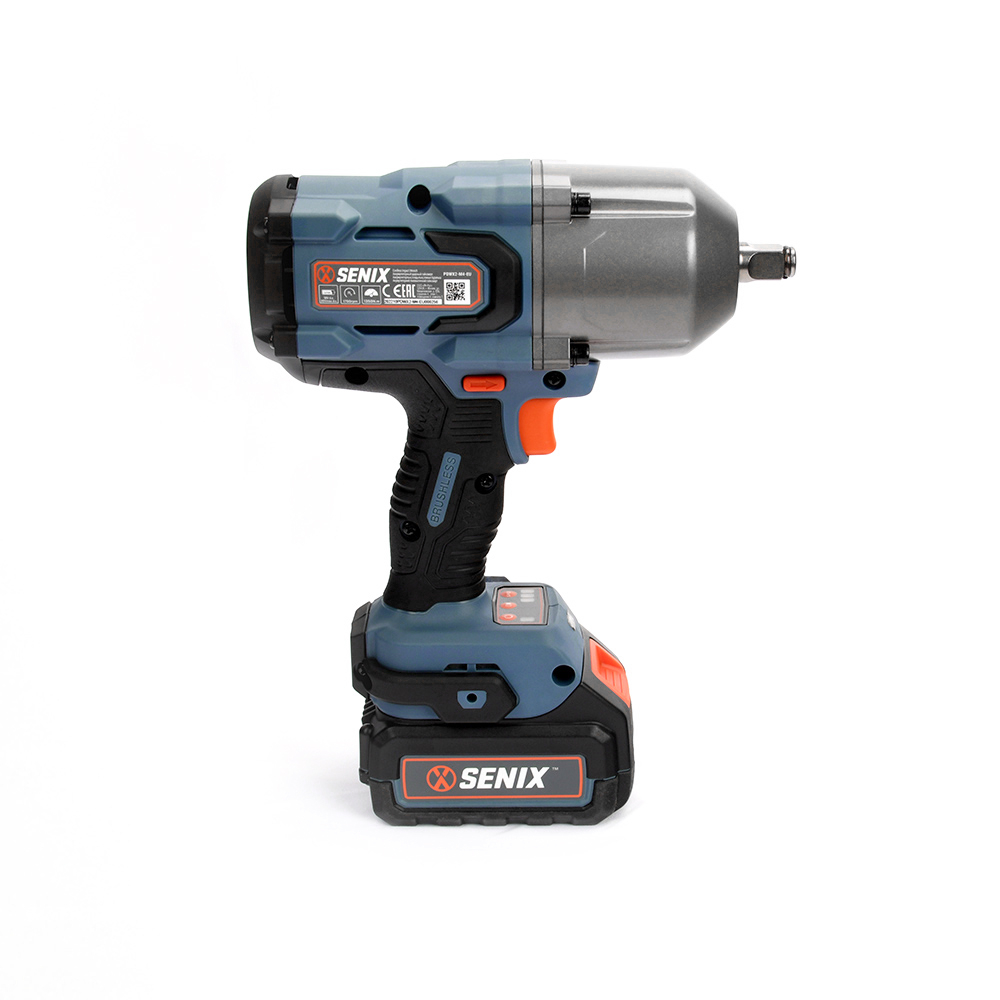

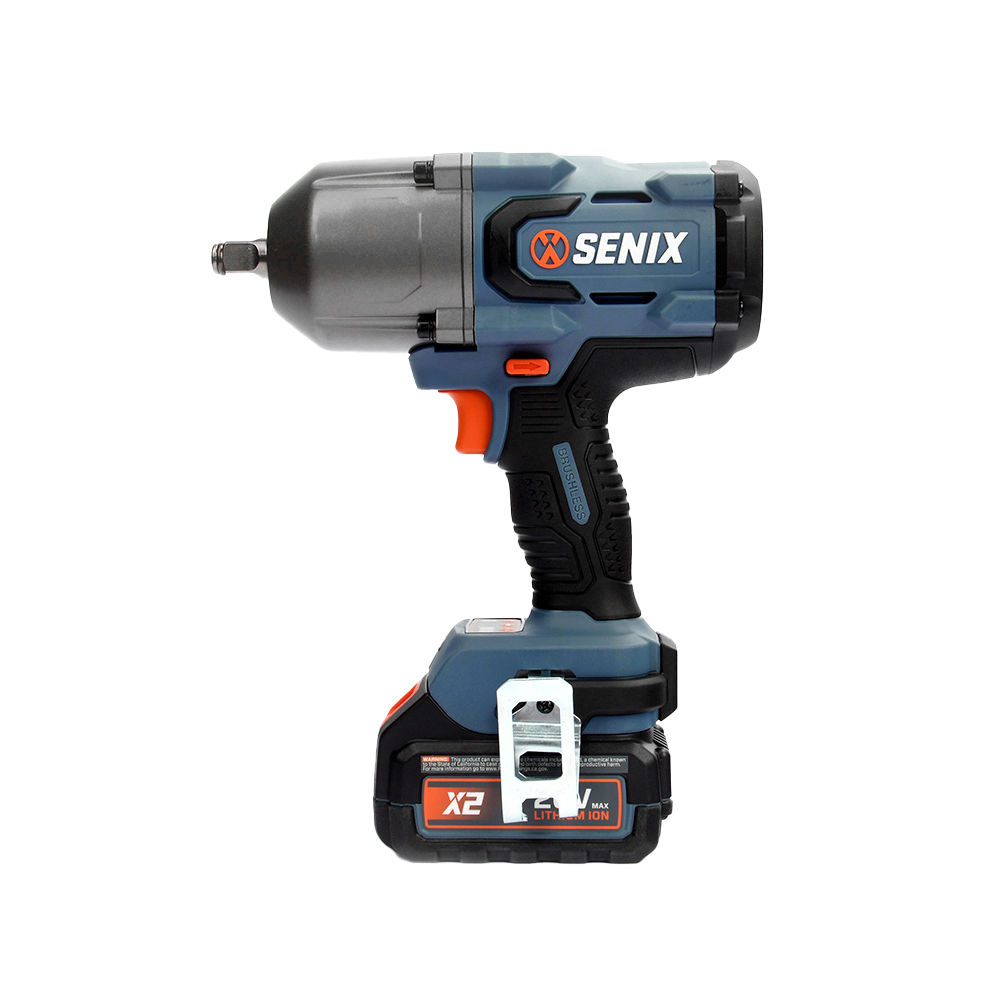

(5.0)The SENIX 20V Brushless 1/2'' Impact Wrench combines compact power with professional-grade performance. Delivering up to 1900Nm of torque and equipped with a 3-speed selector, this tool is perfect for automotive, industrial, and construction tasks where strength, control, and durability are essential in a cordless solution.

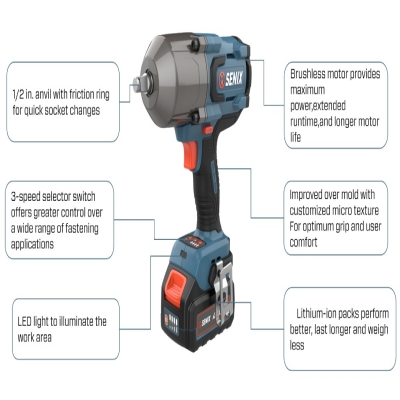

KEY FEATURES

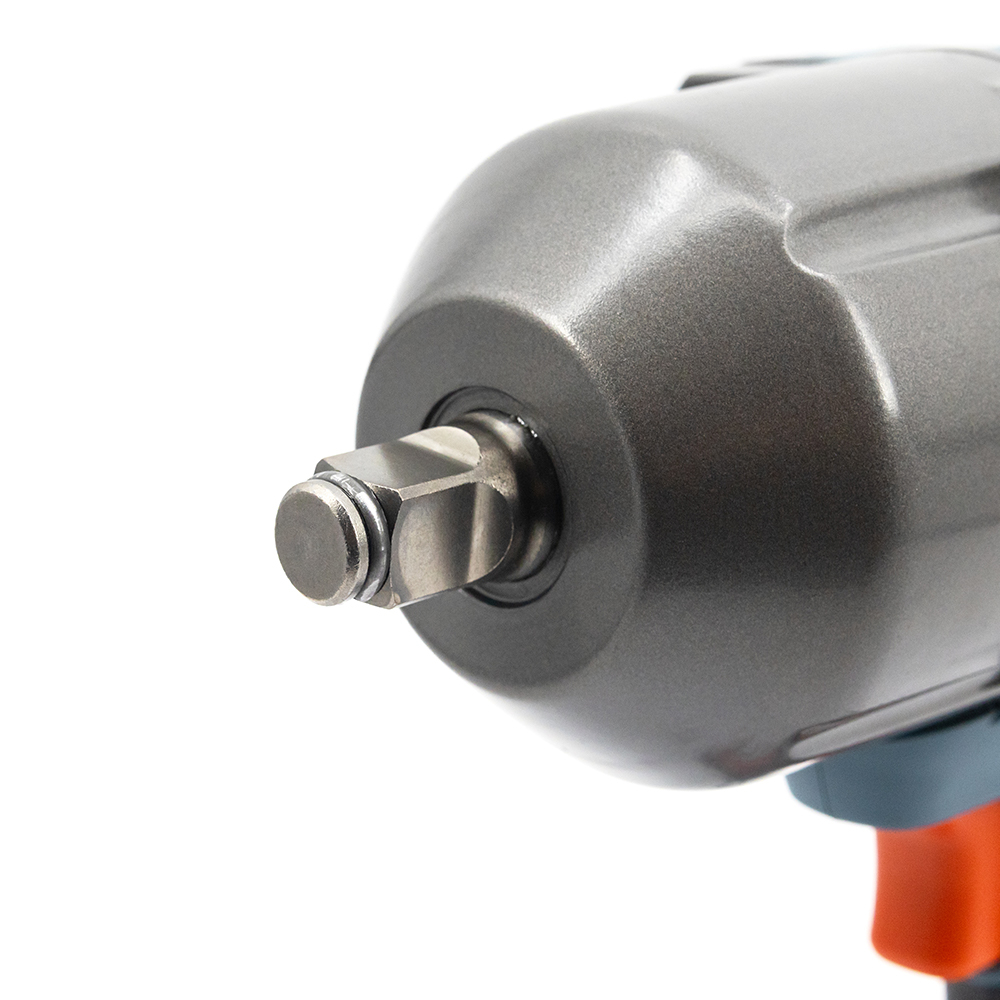

1/2 in. Anvil with Friction Ring – Enables quick and secure socket changes for maximum efficiency.

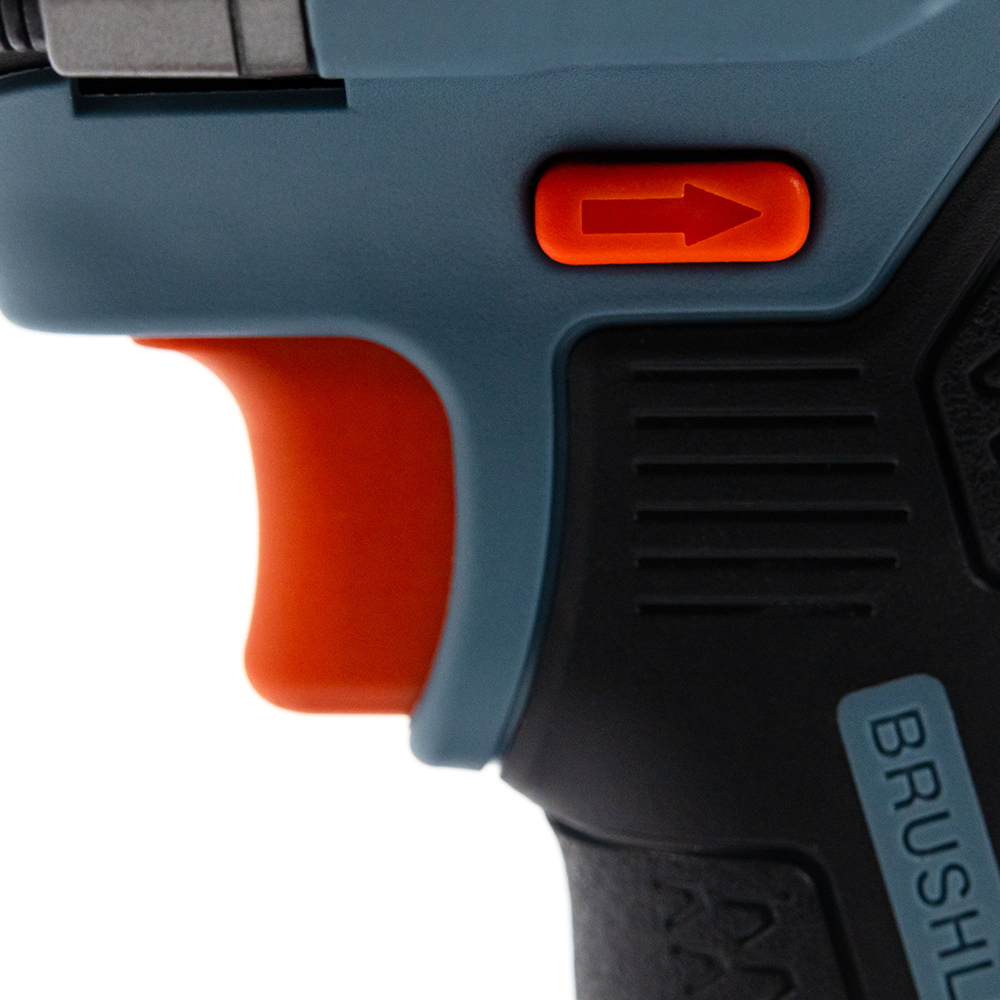

3-Speed Selector Switch – Provides precise control for a variety of fastening applications.
Integrated LED Light – Brightly illuminates the work area, especially useful in dark or confined spaces.
Brushless Motor – Delivers higher power, extended runtime, and longer service life.
Customized Overmold with Micro Texture – Ensures a secure grip and improved user comfort during prolonged use.
Lithium-ion Battery Compatibility – Offers improved performance, extended runtime, and lighter tool weight.
Robust Torque Output – Provides up to 1350Nm fastening torque and 1900Nm nut-busting torque for tough jobs.
High Fastening Efficiency – Capable of tightening 150 M24 nuts in just 3 seconds per nut on a single charge.
Heavy-Duty Fastening Range – Supports standard bolts up to M36 and high tensile bolts up to M27, making it ideal for large-scale industrial fastening tasks.
Reinforced Gearbox Design – Built for durability under continuous high-torque use, ensuring reliable performance in demanding applications.
TECHNICAL PARAMETERS
Model | PDWX2-M4-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 0-750/0-1500/0-1800 RPM |
No-Load IPM | 0-1150/0-2100/0-2400 IPM |
Max. Fastening Torque | 1350Nm |
Nut-busting Torque | 1900 Nm |
Speed power selection | 3-Mode |
Square drive | 12.7mm(1/2 inch) |
Fastening capacities | Standard bolt: M12-M36 High tensile bolt: M10-M27 |
Fastening and removing efficiency | Impact for 3 seconds, Tighten the nuts of M24. The number is 150 pieces |
Machine Weight (Tool Only) | 2.9 kg |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE/EMC |
Machine Size | 218*83*228mm |
Color Box Size | 245*90*233mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 1/2'' Impact Wrench is engineered for power users in automotive repair, construction, heavy machinery maintenance, and metalworking. Powered by a high-performance brushless motor, it delivers up to 1350Nm of fastening torque and 1900Nm of nut-busting torque, handling even the most demanding fastening jobs with confidence.
Its three-speed selector switch allows users to match torque and speed output to specific tasks, with RPM settings of 750, 1500, and 1800, and a corresponding impact rate up to 2400 IPM. The 1/2 in. friction ring anvil enables fast and reliable socket changes, streamlining workflow on site.
Designed for convenience and performance, the tool includes a custom overmolded grip for all-day comfort and a built-in LED light to enhance visibility in low-light conditions. Despite its high torque capability, it maintains a balanced design at 2.9 kg, ensuring optimal handling and control. With impressive fastening efficiency—150 M24 nuts tightened per full charge—the SENIX 1/2'' Impact Wrench is an indispensable tool for professionals needing reliable, cordless power. It's CE/EMC certified and built to withstand the toughest environments.
Usage Scenarios

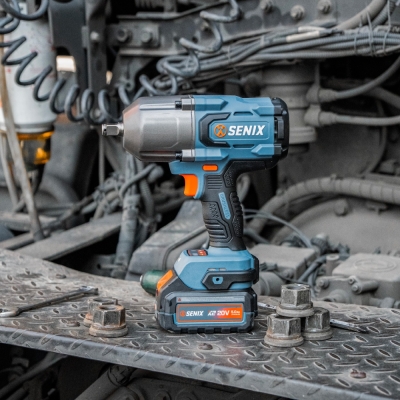

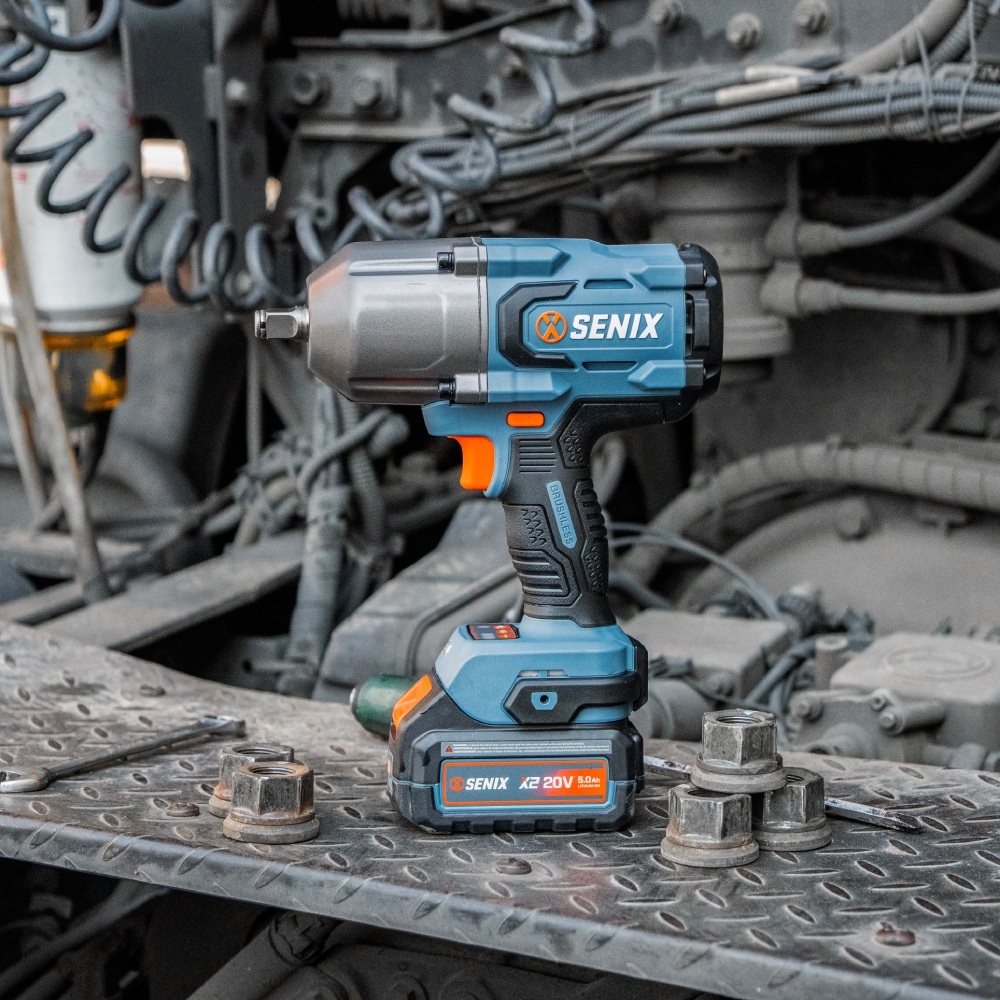

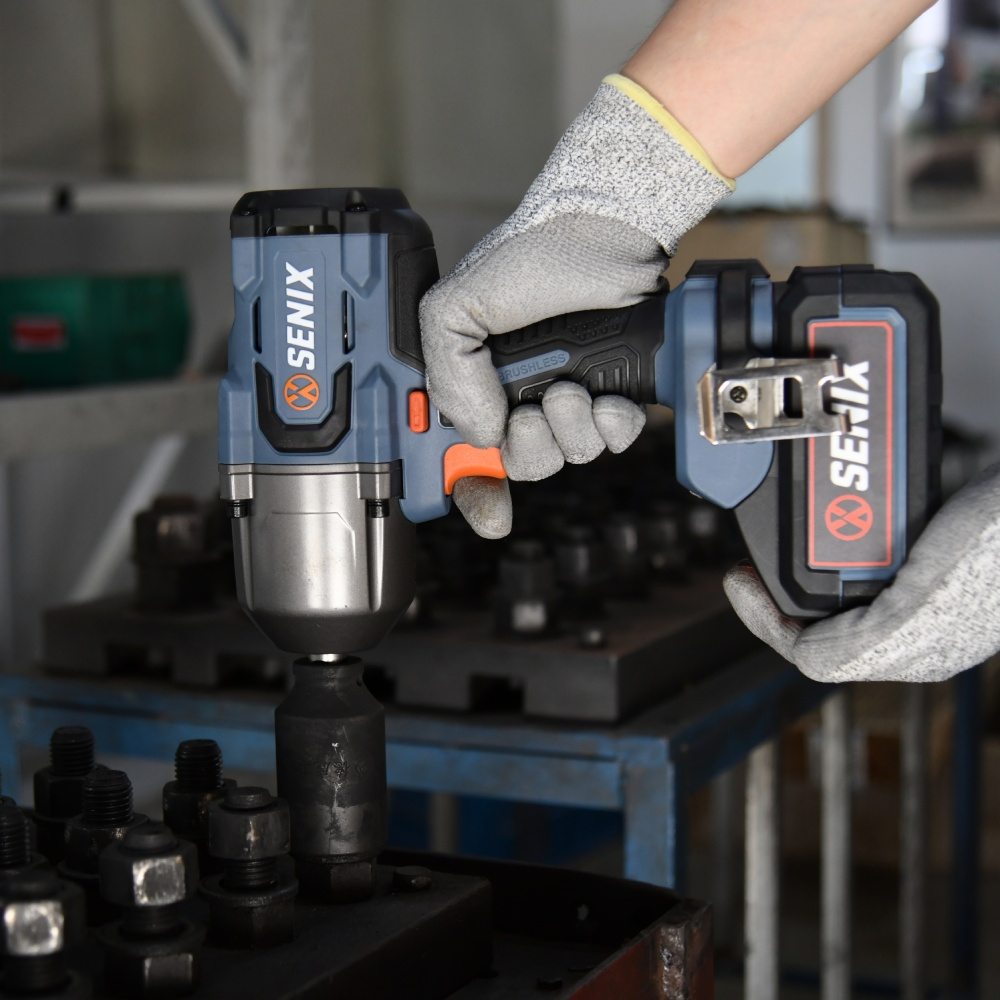

Bolt Tightening: Suitable for tasks such as mechanical repairs, automotive maintenance (e.g., tightening or loosening car bolts), and household projects like securing screws when assembling metal racks.
Steel Pipe Connections: Ideal for connecting steel pipes using fastening components. The impact wrench ensures bolts are tightened more securely compared to manual tools.
Unrecommended Conditions
Precision Assembly: The high torque and impact force may damage delicate components or cause over-tightening, affecting equipment performance.
Soft or Brittle Materials: Using the tool on materials like aluminum, plastic, or ceramics may lead to deformation or breakage.
Small Fasteners: Small bolts or screws may not withstand the high torque and could be stripped or broken.
High-Precision Torque Requirements: Applications that require precise torque control may experience under- or over-tightening.
Vibration-Sensitive Environments: The impact force may increase vibration, affecting stability or causing components to loosen.
Confined Spaces: Limited working space may hinder tool operation and increase the risk of damaging surrounding parts.
Frequent Assembly/Disassembly: Regular use may accelerate thread wear and shorten the lifespan of fasteners.
High-Speed Applications: Not suitable for continuous high-speed use, which may cause overheating or damage to the tool.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What applications is this impact wrench suitable for?
A: It's ideal for automotive repair, truck and machinery maintenance, construction, metal framework assembly, and industrial bolt tightening, especially when working with M12–M36 standard bolts or M10–M27 high tensile bolts.
Q2: How much torque does it deliver?
A: It provides up to 1350Nm of fastening torque and an impressive 1900Nm of nut-busting torque, making it suitable for loosening or tightening extremely stubborn fasteners.
Q3: What kind of drive does the tool have?
A: It features a 12.7mm (1/2 inch) square anvil with a friction ring, allowing for quick and secure socket changes without extra tools.
Q4: How many bolts can it tighten on a full charge?
A: Using a high-capacity battery, it can tighten up to 150 M24 nuts (at 3 seconds per impact), depending on bolt conditions and material.
Q5: Is it too heavy for overhead or long-duration use?
A: Despite its high torque power, the tool weighs only 2.9 kg, and its ergonomic overmolded grip helps reduce fatigue during extended use.
Q6: Can I adjust the speed for delicate tasks?
A: Yes, it includes a 3-speed power selector switch (750/1500/1800 RPM) with matching impact rates for greater control across light to heavy-duty applications.
Q7: Is it compatible with all SENIX 20V batteries?
A: Yes, this tool is fully compatible with SENIX 20V Max lithium-ion batteries, including 2.5Ah and 5Ah models.
Q8: Does it include any lighting for dark work areas?
A: Absolutely. A built-in LED light automatically illuminates your work area for better visibility in poorly lit or enclosed environments.
