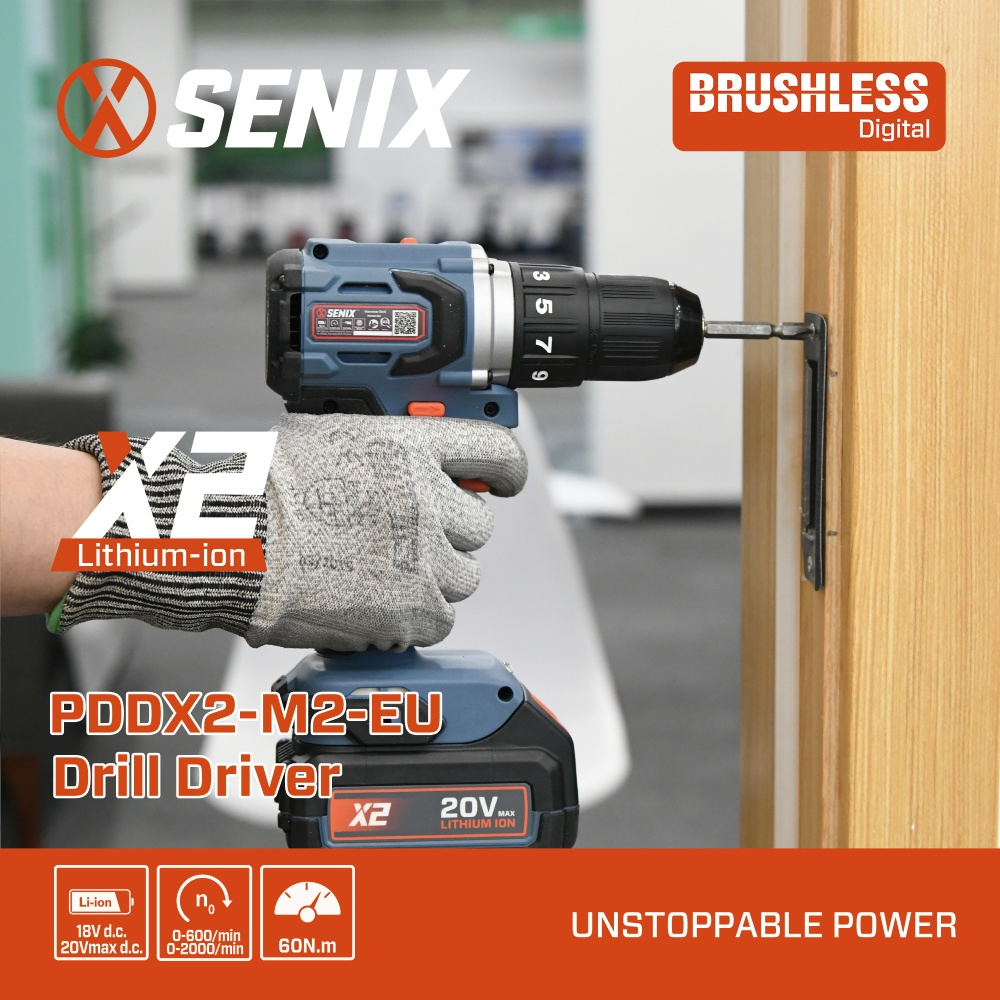

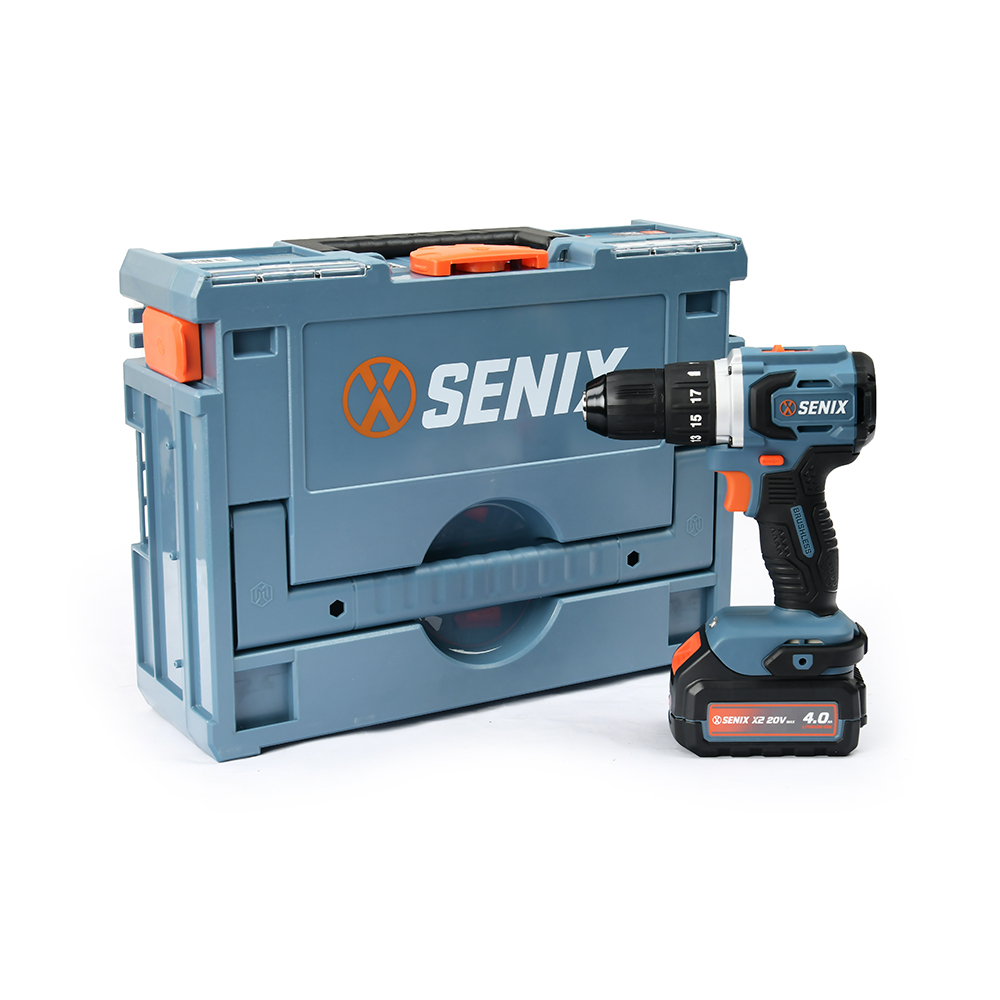

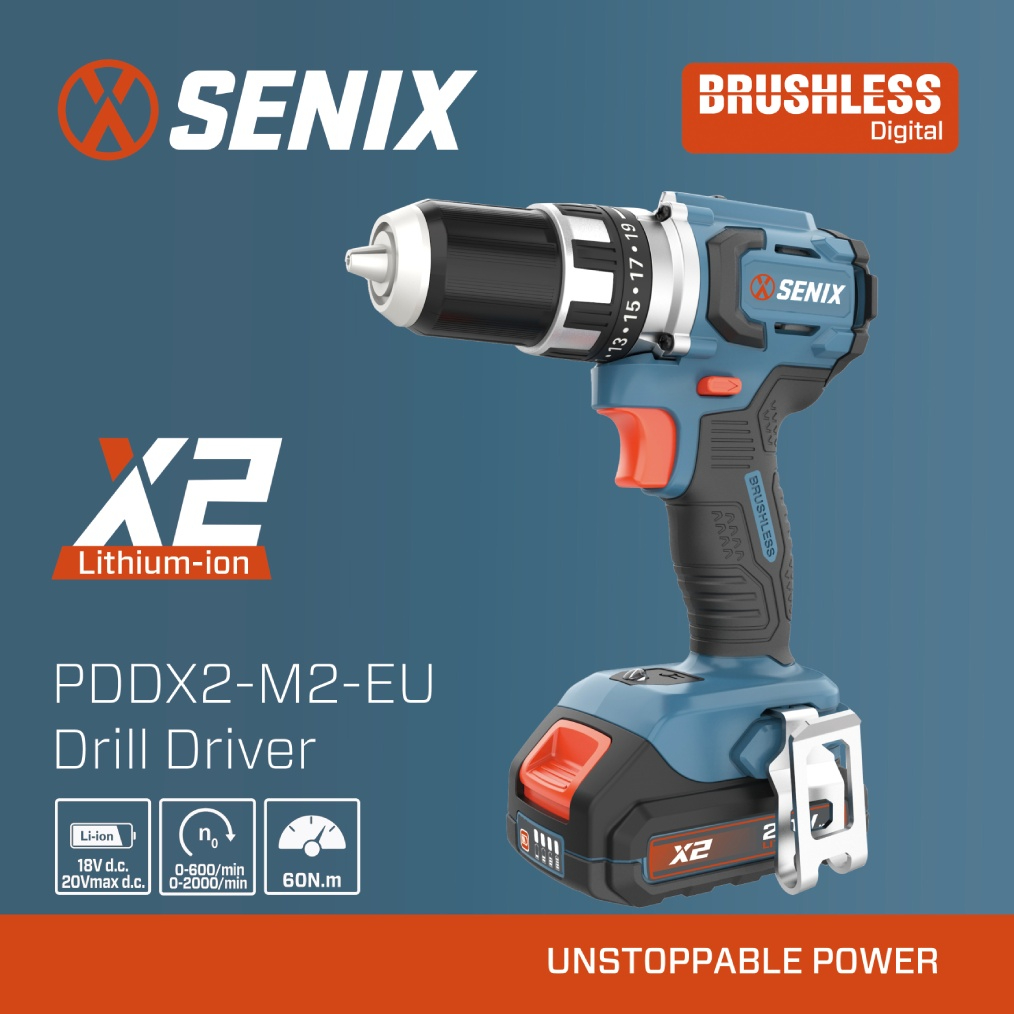

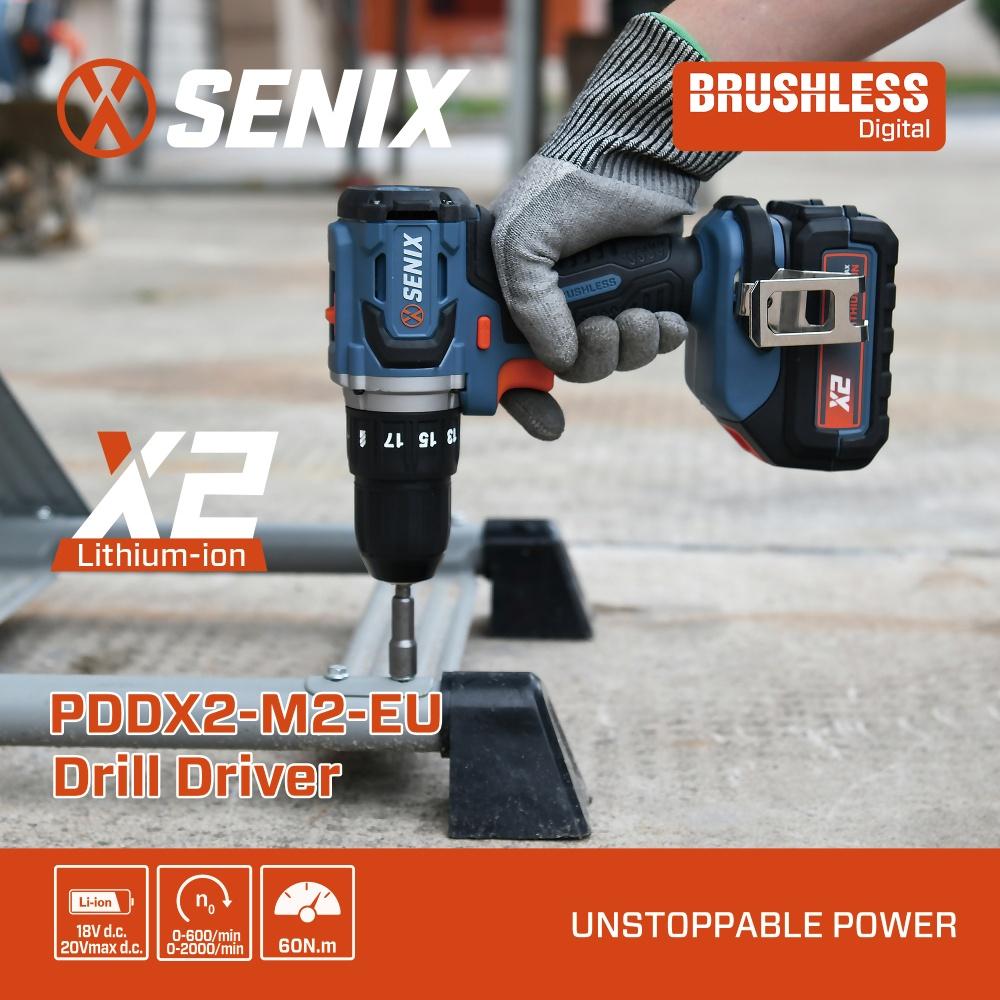

20V Brushless 13mm(1/2'') Drill Driver
PDDX2-M2-EU
(5.0)The SENIX 20V Brushless 13mm Drill Driver delivers professional-grade power with a brushless motor, metal ratcheting chuck, and 17+1 torque settings. Compact and balanced, it’s engineered for durability and efficiency in drilling or driving tasks across wood, steel, and more.

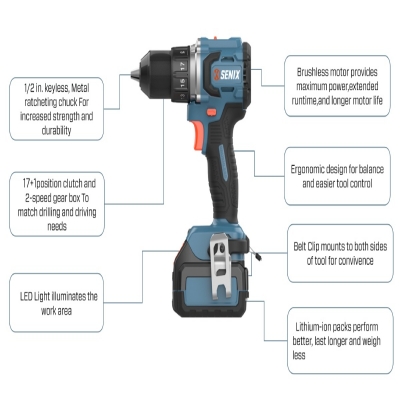

KEY FEATURES

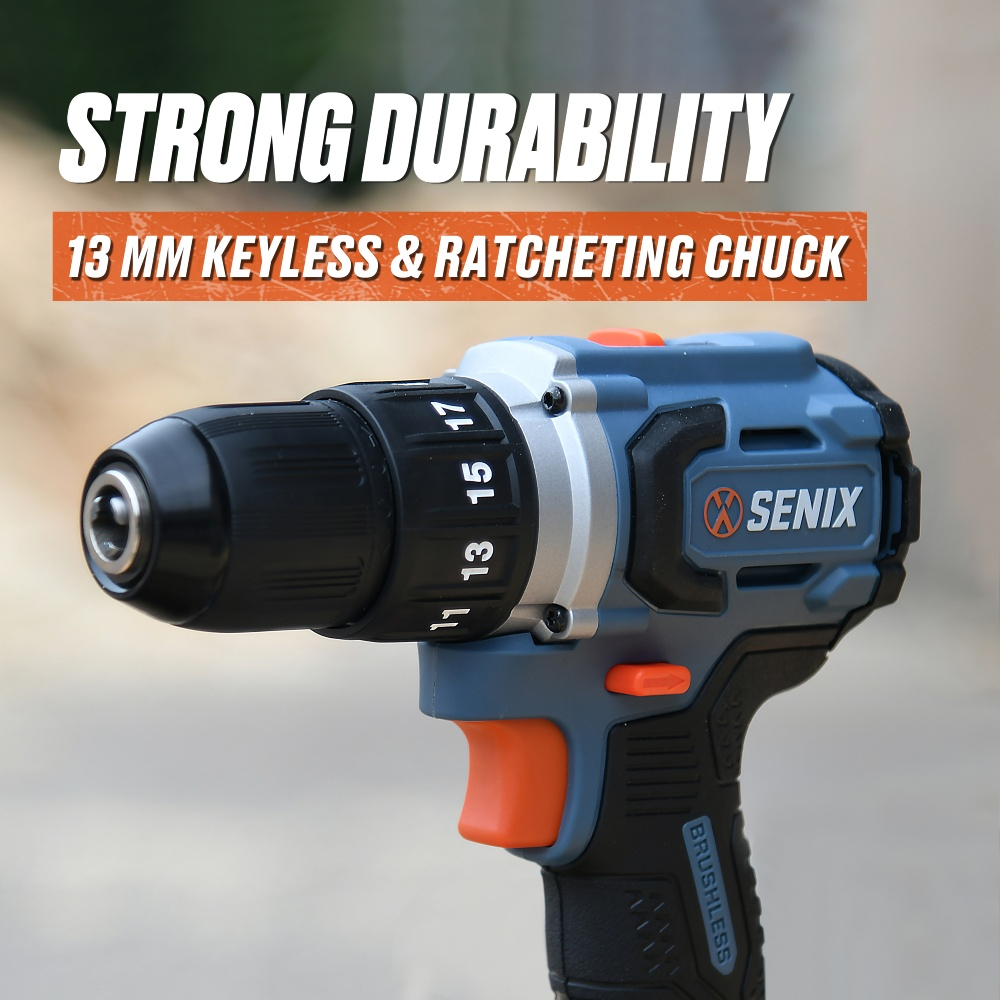

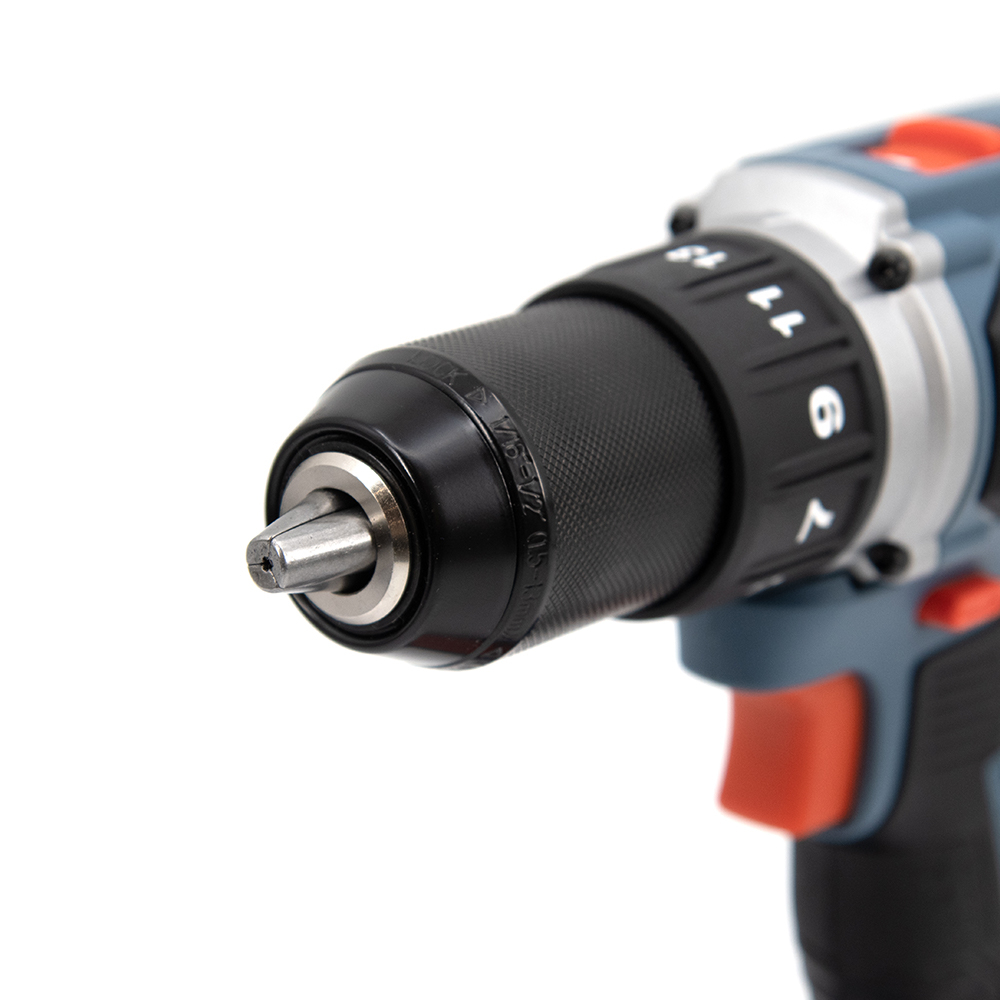

1/2 in. Metal Keyless Ratcheting Chuck – Delivers exceptional bit grip strength and long-term durability

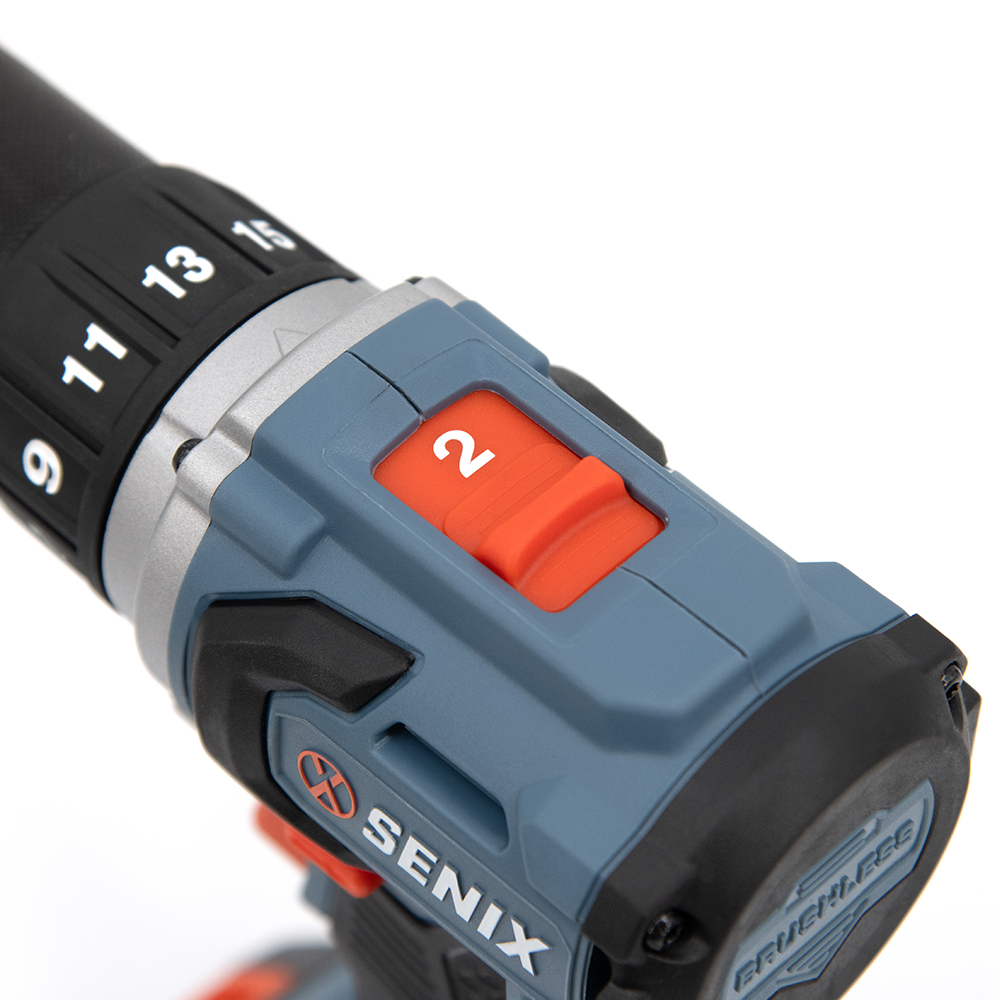

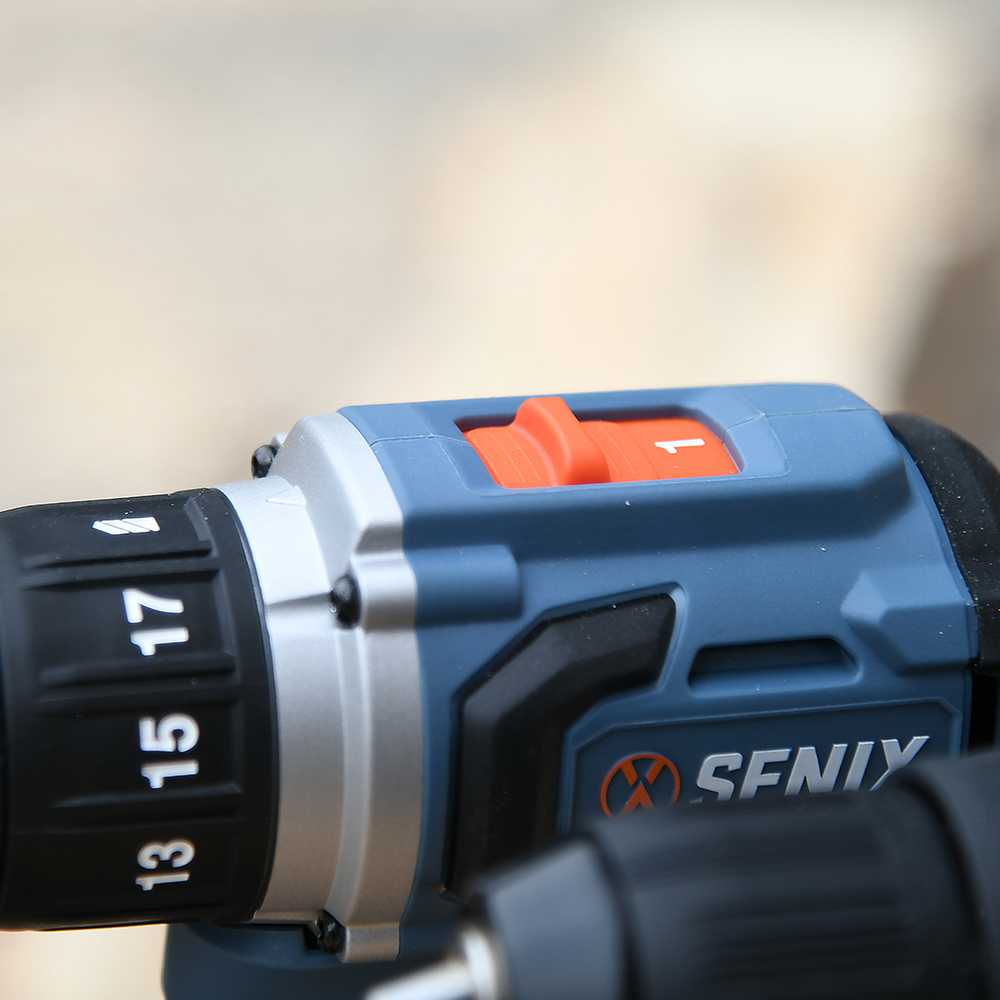

17+1 Position Clutch & 2-Speed Gearbox – Provides versatile torque control and precision for a wide range of applications

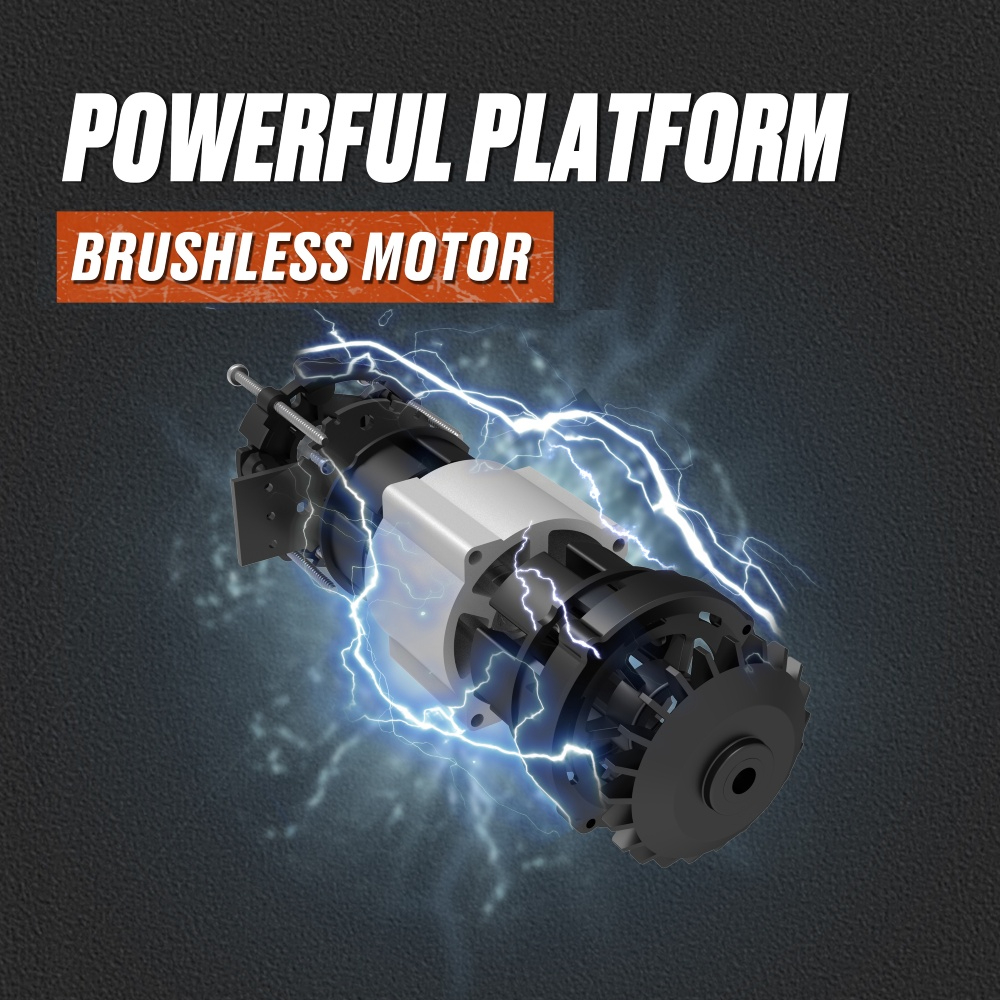

High-Performance Brushless Motor – Offers 60Nm of torque, longer runtime, extended motor life, and reduced maintenance

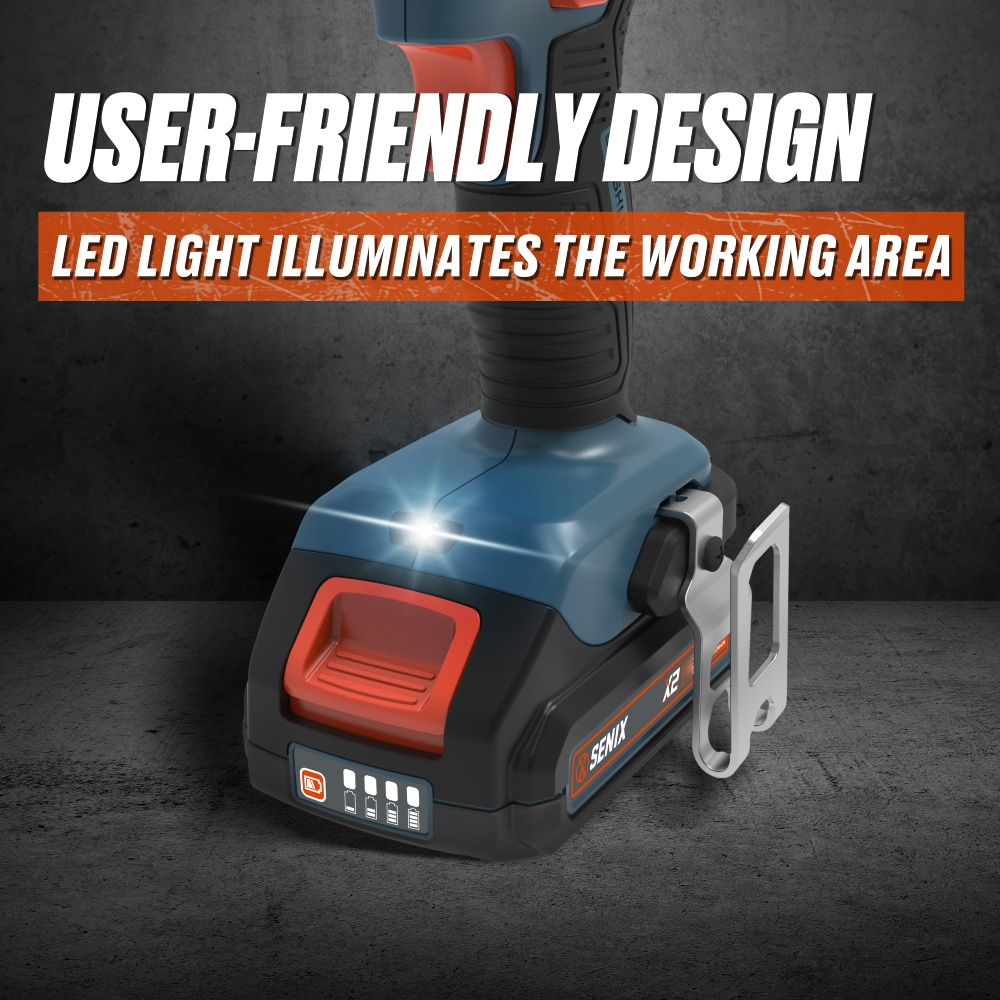

Integrated LED Work Light – Brightly illuminates dark or confined workspaces for greater accuracy and safety
Ergonomic & Balanced Design – Enhances user comfort and control during prolonged use or overhead tasks

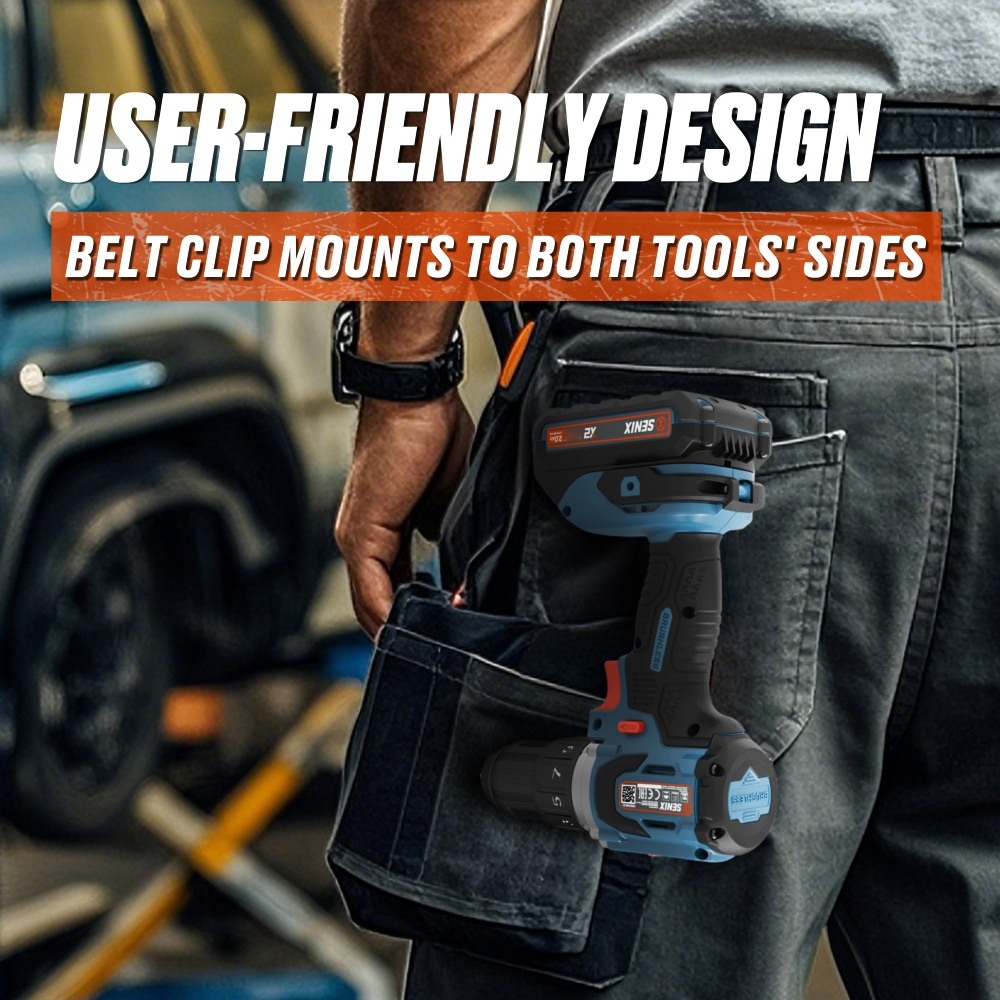

Dual-Side Belt Clip Mounting – Provides convenient carry and access for both left- and right-handed users
Lightweight Construction (1.2 kg) – Reduces operator fatigue while maximizing portability

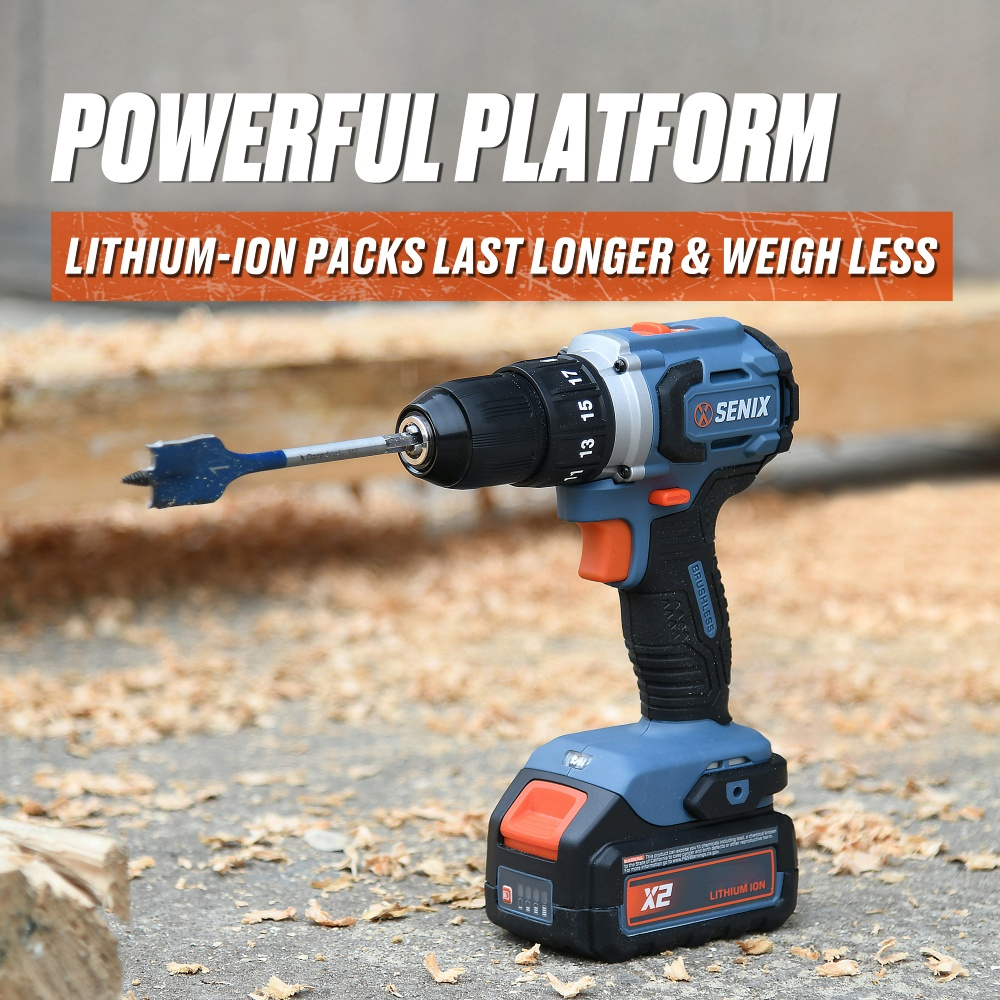

Lithium-Ion Battery Compatibility – Ensures powerful, consistent output with longer cycle life and less weight
TECHNICAL PARAMETERS
Model | PDDX2-M2-EU |
Voltage | 20V Max DC |
Motor Type | Brushless |
No Load Speed | 0-600/0-2000 RPM |
Max. Fastening Torque | 60Nm |
Torque settings | 17+1 |
Drill chuck | 13mm(1/2 inch) |
Drilling Capacity | Steel: 13mm Wood: 38mm |
Work Amount | 410 pcs M5 x 70 bolts on wood per 5Ah battery |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE |
Machine Weight (Tool Only) | 1.2 kg |
Machine Size | 173*77*196mm |
Color Box Size | 213*205*90mm |
SUPPORT
Product Overview

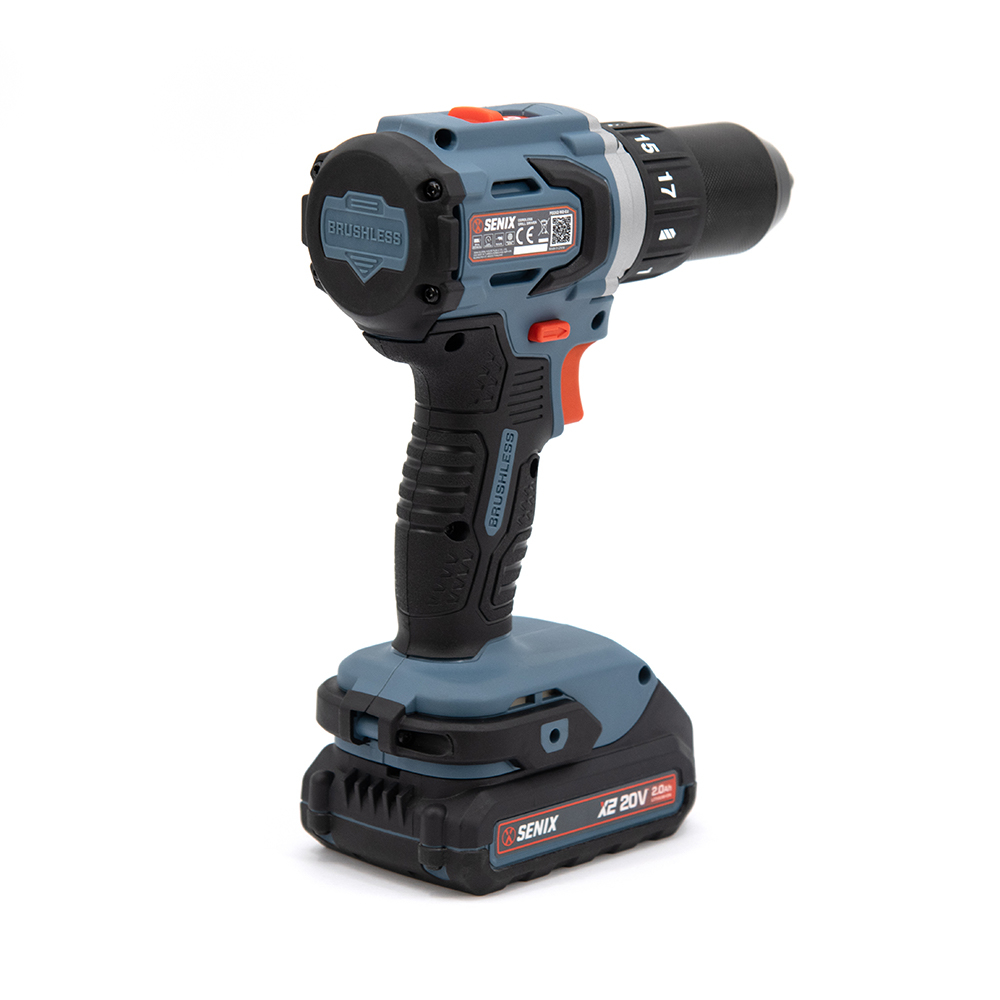

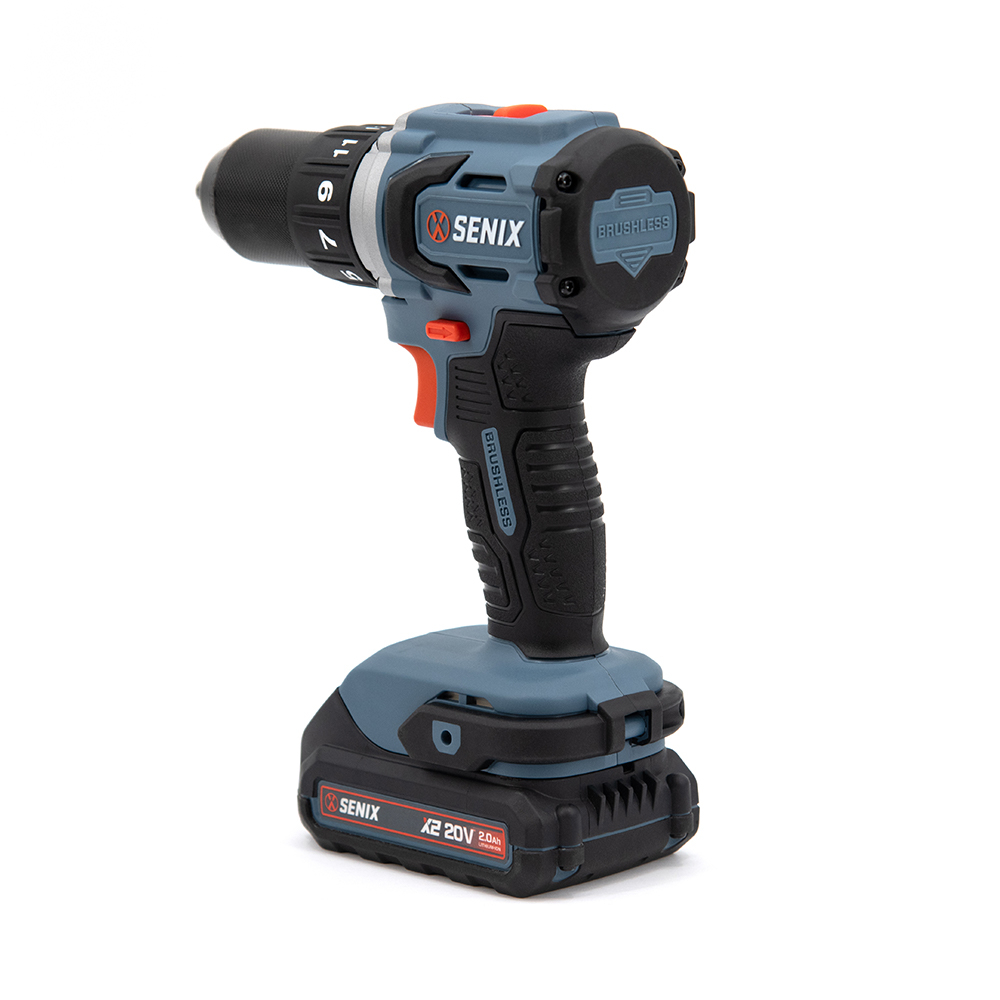

Engineered for demanding applications, the SENIX 20V Brushless 13mm (1/2'') Drill Driver combines lightweight ergonomics with uncompromised power. Featuring a brushless motor that delivers up to 60Nm of torque, this drill offers longer motor life, reduced maintenance, and improved battery efficiency. The metal keyless ratcheting chuck ensures stronger bit retention and durability under tough loads.
Its 17+1 torque settings and 2-speed gearbox (0–600/0–2000 RPM) allow precise control for drilling and driving in wood (up to 38mm) and steel (up to 13mm). An integrated LED light illuminates your work area, ensuring accurate operation even in low-light conditions. The tool's compact design (173mm length) and light weight (1.2kg) make it ideal for confined or overhead use, while the reversible belt clip adds convenience for both left- and right-handed users. Compatible with all SENIX 20V lithium-ion batteries, it can drive 410 M5 x 70mm bolts into wood on a single 5Ah charge. Certified to CE standards, it's built for both professionals and serious DIYers.
Usage Scenarios

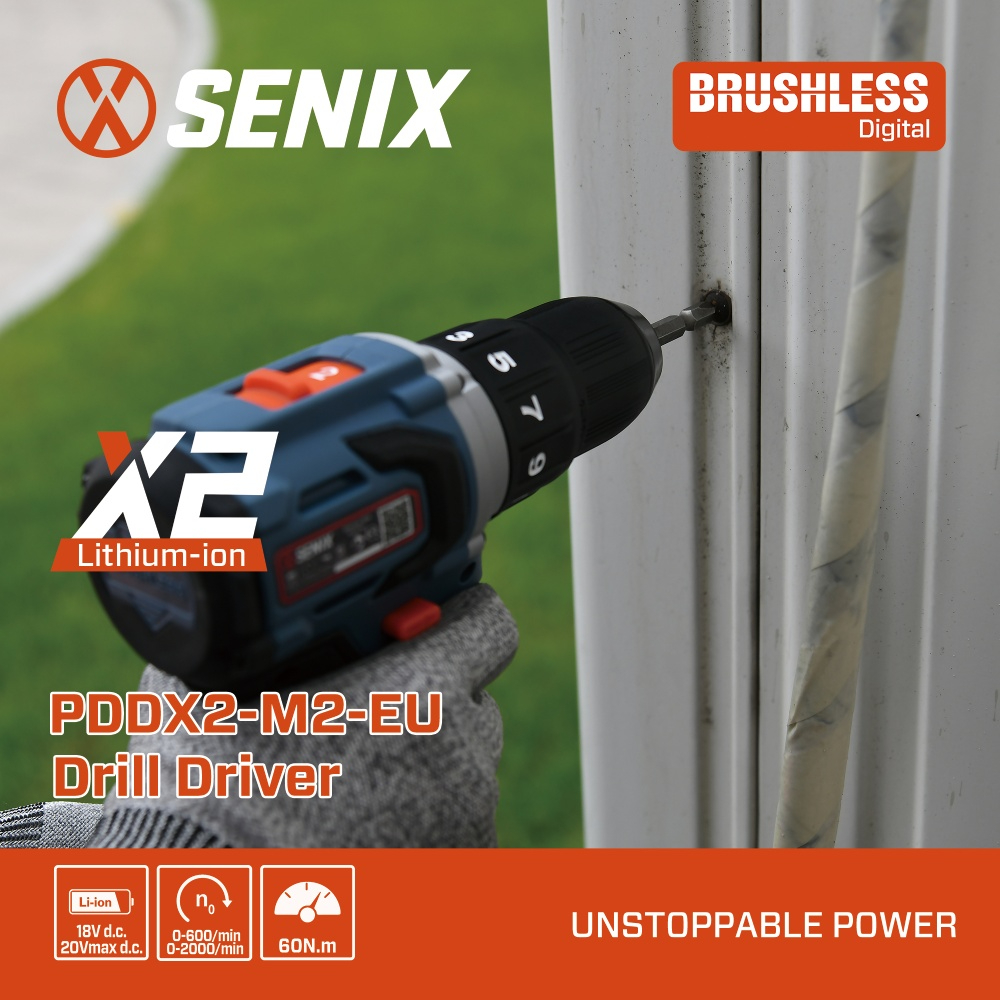

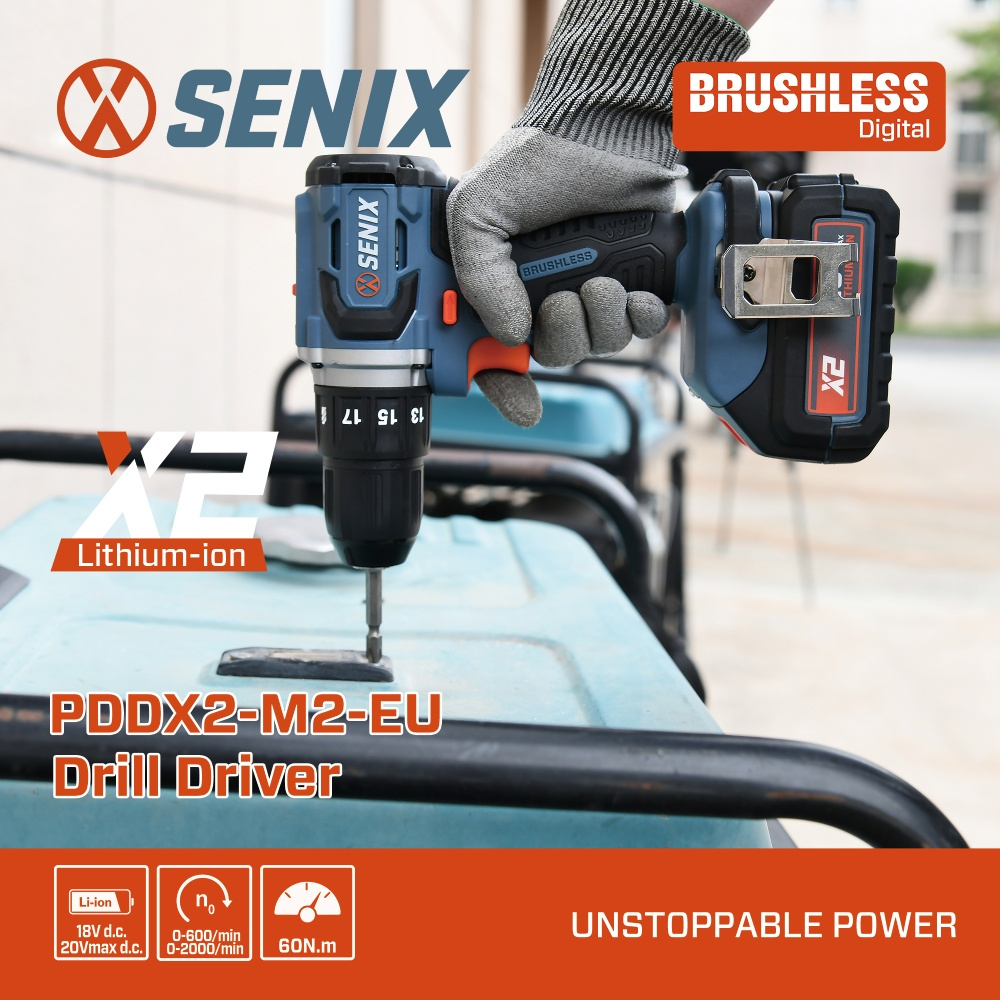

Screwdriving: Suitable for fastening small screws, such as in furniture assembly, appliance repair, and indoor renovations.

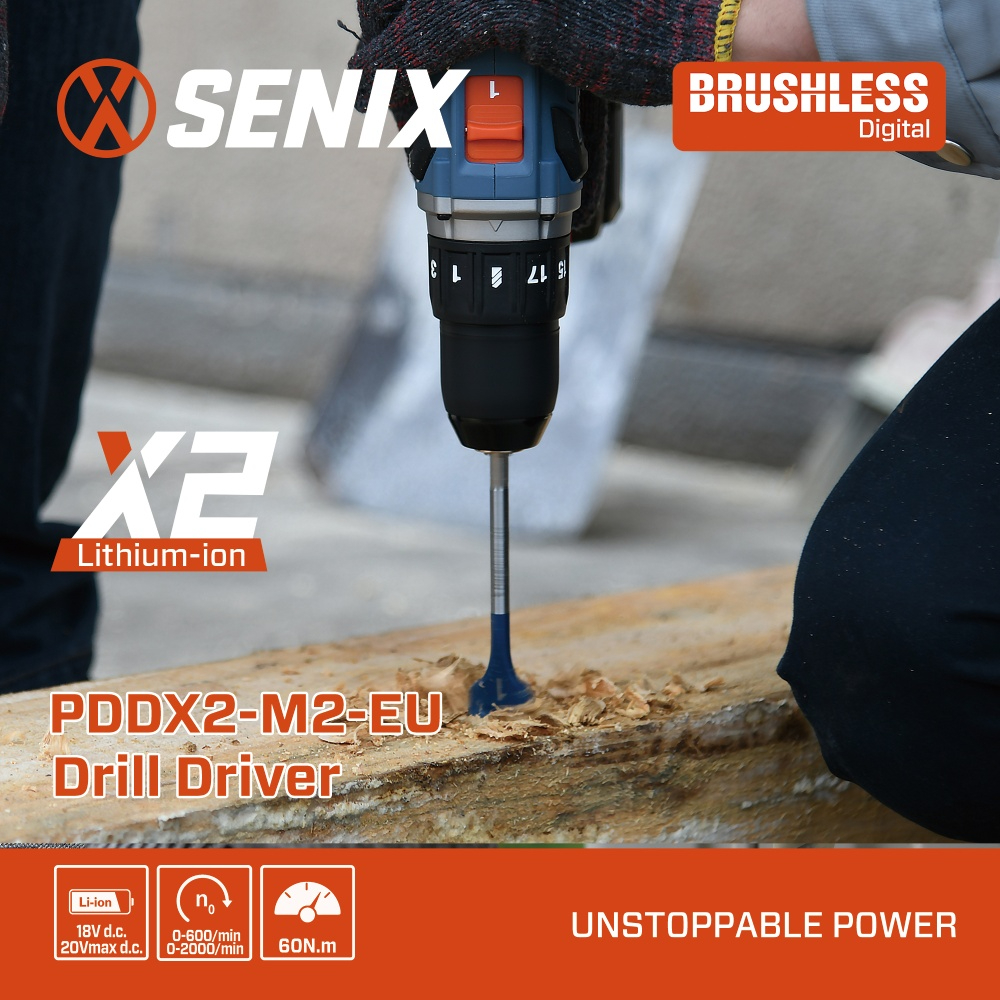

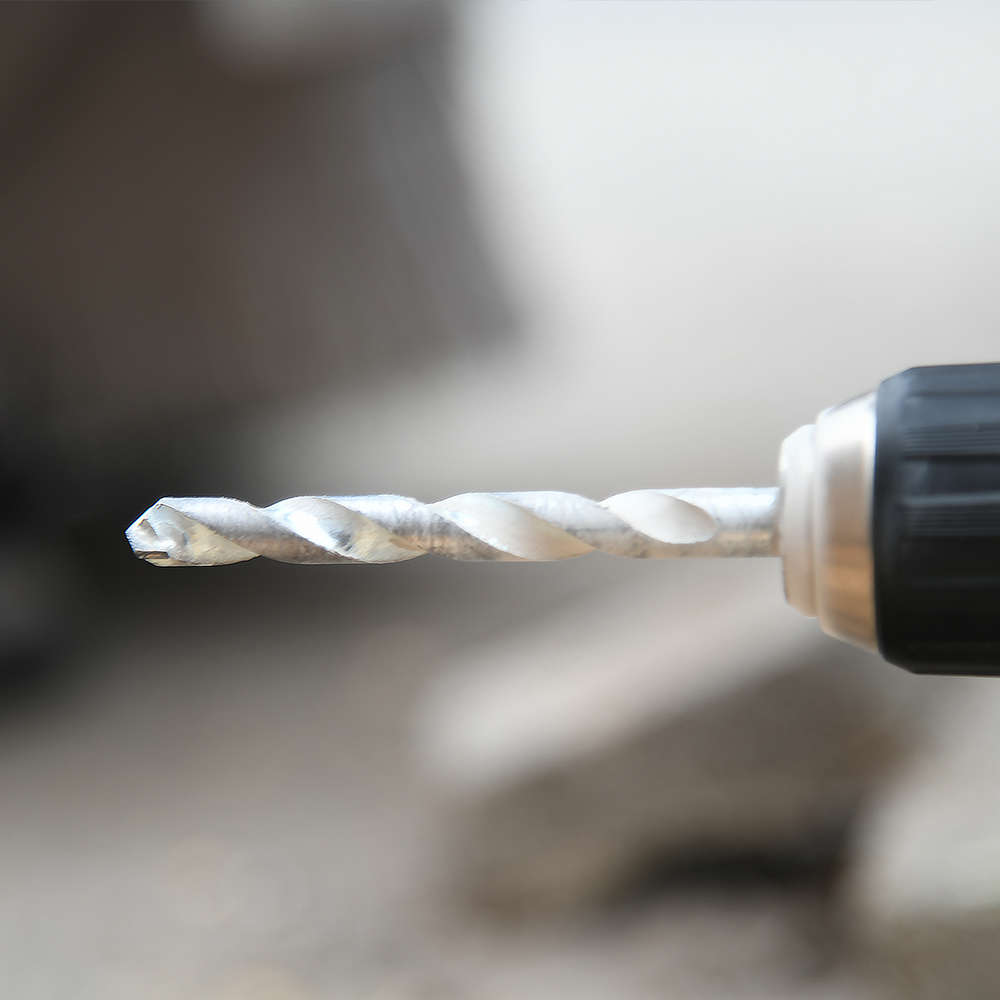

Drilling: Ideal for drilling small holes in wood, plastic, thin metal sheets, and non-load-bearing walls.
DIY Projects: Perfect for crafting simple wooden items and installing small decorative pieces.
Unrecommended Conditions
Drilling Large or Deep Holes: This drill is not designed for high-efficiency large or deep hole drilling.
Hard Materials: Not suitable for use on hard materials such as concrete or brick walls.
Prolonged Heavy-Duty Use: Designed primarily for light-duty tasks; extended high-intensity use may cause motor overheating or damage.
Mixing Applications: Not recommended for mixing putty or cement, which may result in structural damage or deformation of the tool.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please contact us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What's the main advantage of the brushless motor?
A: It delivers up to 60Nm of torque, extends motor life, reduces maintenance, and improves battery efficiency.
Q2: How heavy and compact is this drill?
A: It weighs 1.2kg and measures 173mm in length, ideal for confined/overhead work.
Q3: What battery does it use, and how long does a charge last?
A: It uses SENIX 20V Max lithium-ion batteries. A 5.0Ah battery drives ~410 M5 x 70mm bolts into wood per charge.
Q4: Is the chuck durable?
A: Yes, its metal keyless ratcheting chuck ensures strong bit retention and durability under tough loads.
Q5: Can I control power for different tasks?
A: Yes, with 17+1 torque settings and a 2-speed gearbox (0–600 RPM / 0–2000 RPM).
Q6: What materials/hole sizes can it handle?
A: Drilling: Wood (≤38mm), plastic, thin metal sheets, non-load-bearing walls (steel ≤13mm).
Screwdriving: Furniture, appliances, indoor renovations (e.g., M5 bolts).
Q7: Is it left-hand compatible?
A: Yes, the reversible belt clip works for left- and right-handed users.
Q8: Is this a heavy-duty industrial drill?
A: It's engineered for demanding tasks but designed for light-to-medium duty. Avoid extended high-intensity use.
Q9: Is it suitable for DIY projects?
A: Yes, perfect for crafting wooden items, installing decor, and DIY tasks within its capabilities.
