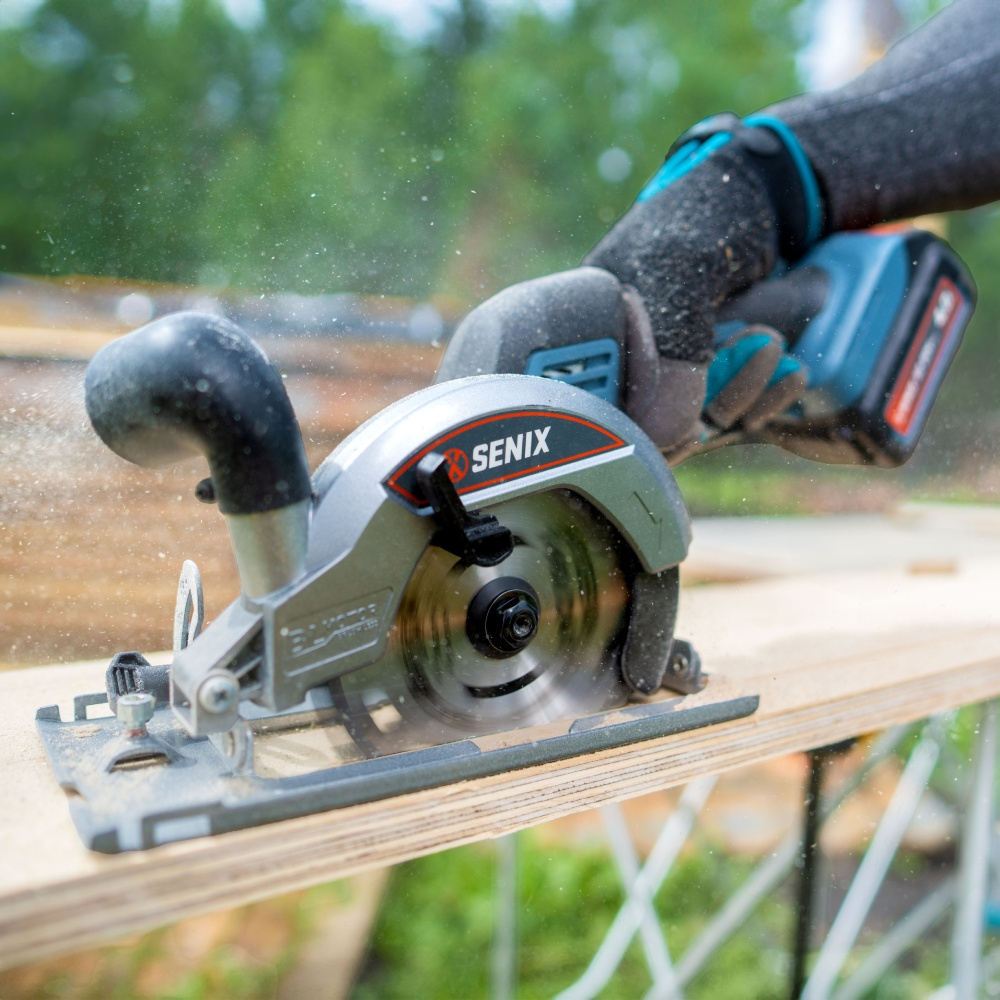

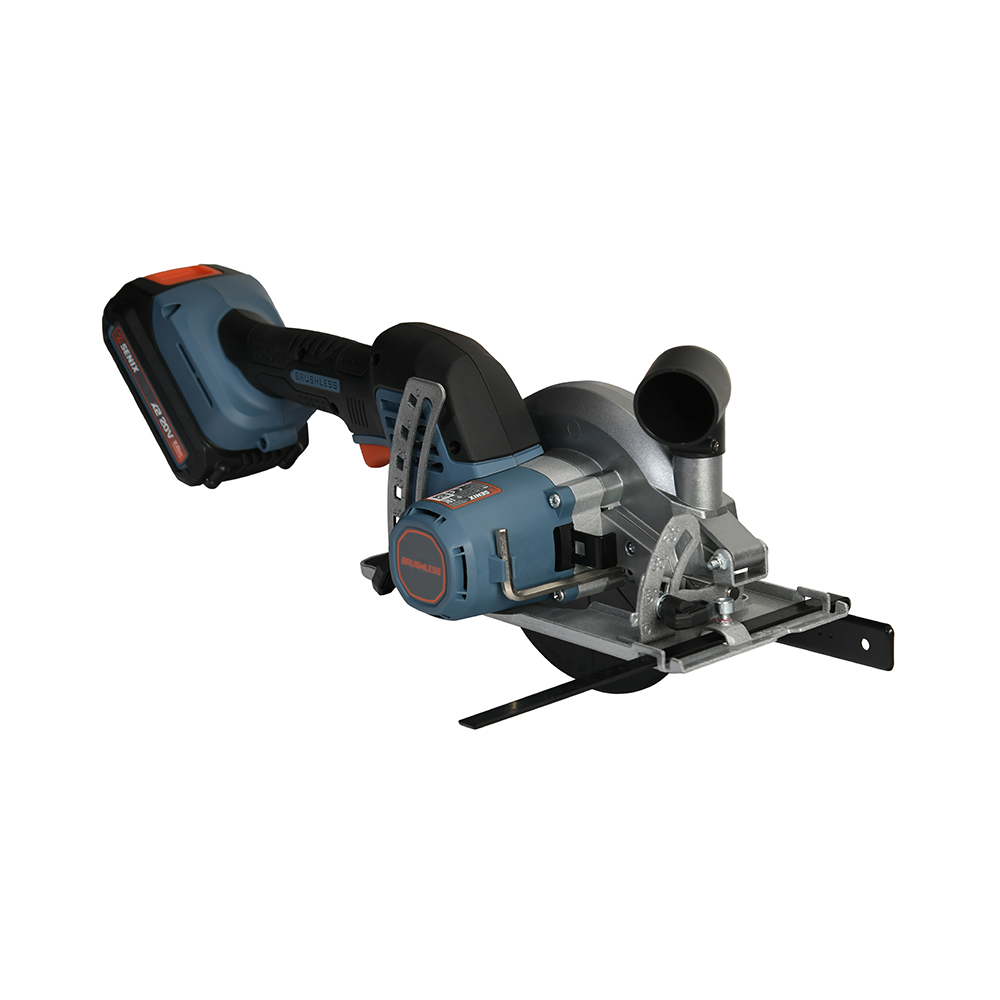

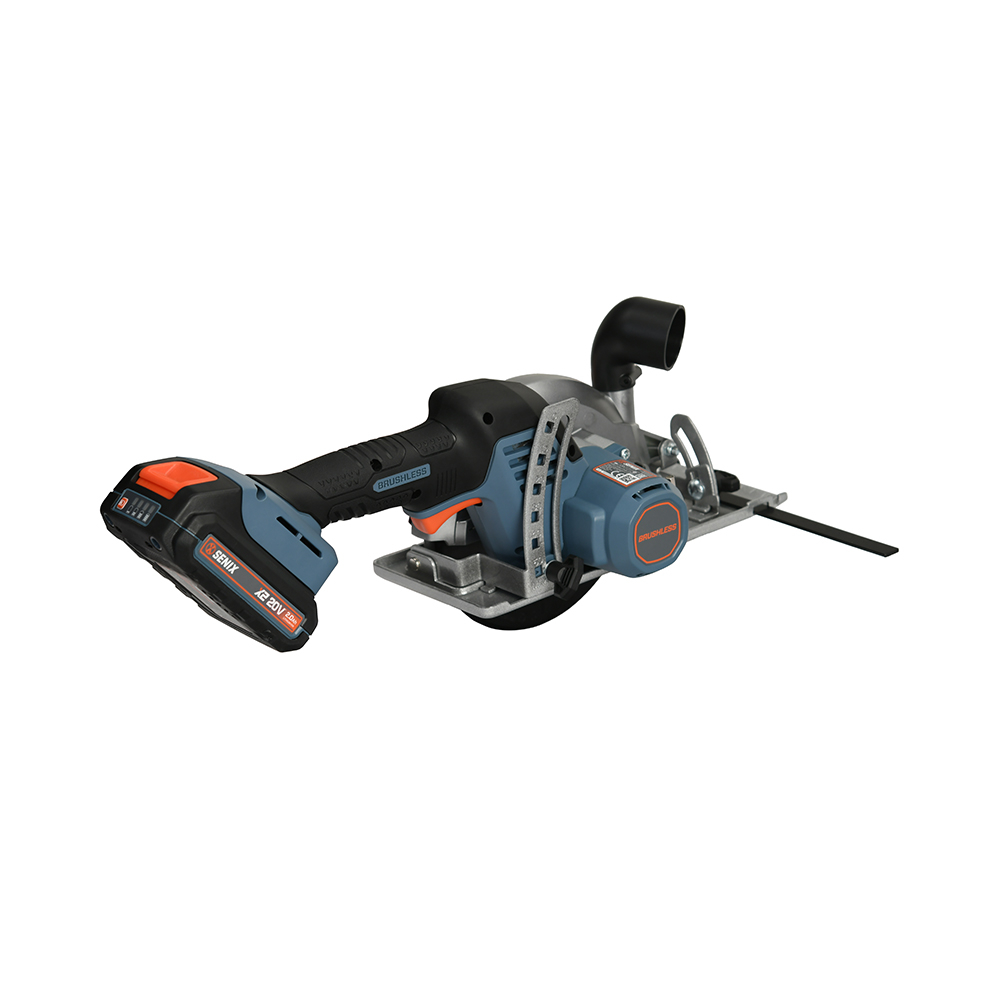

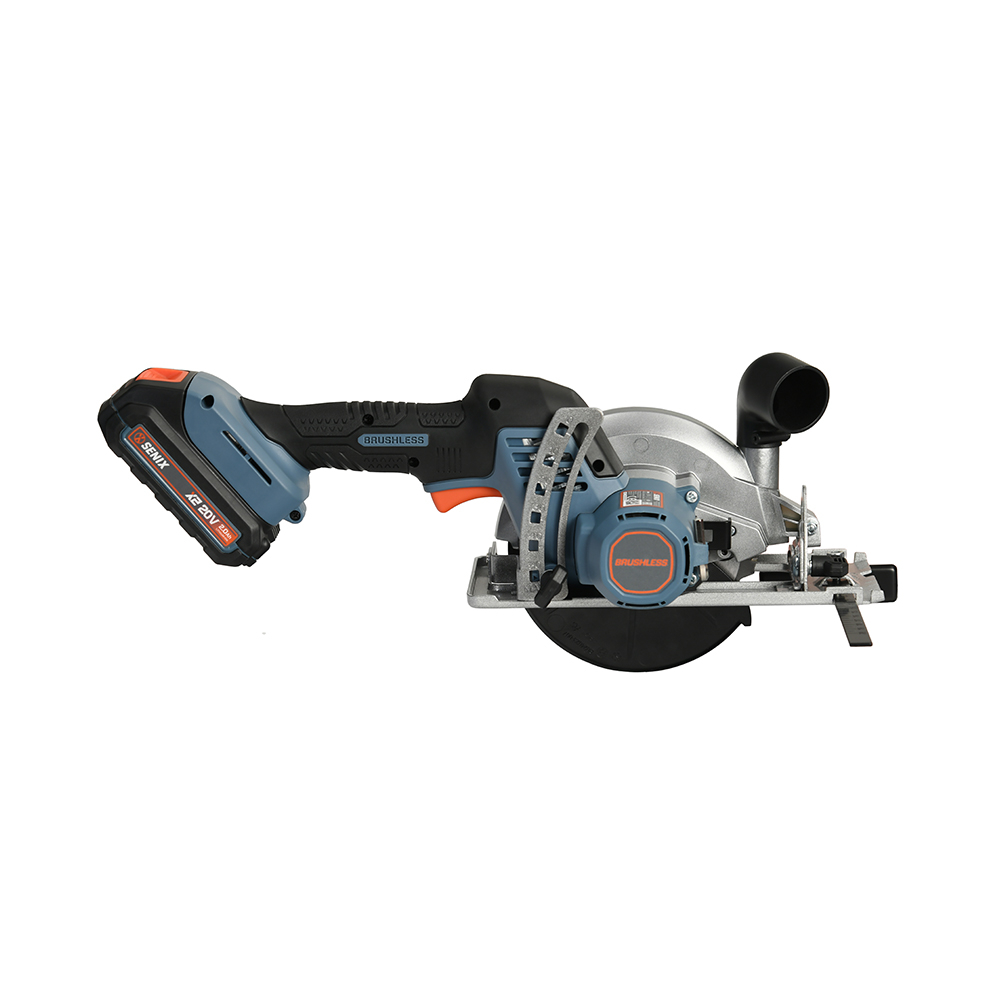

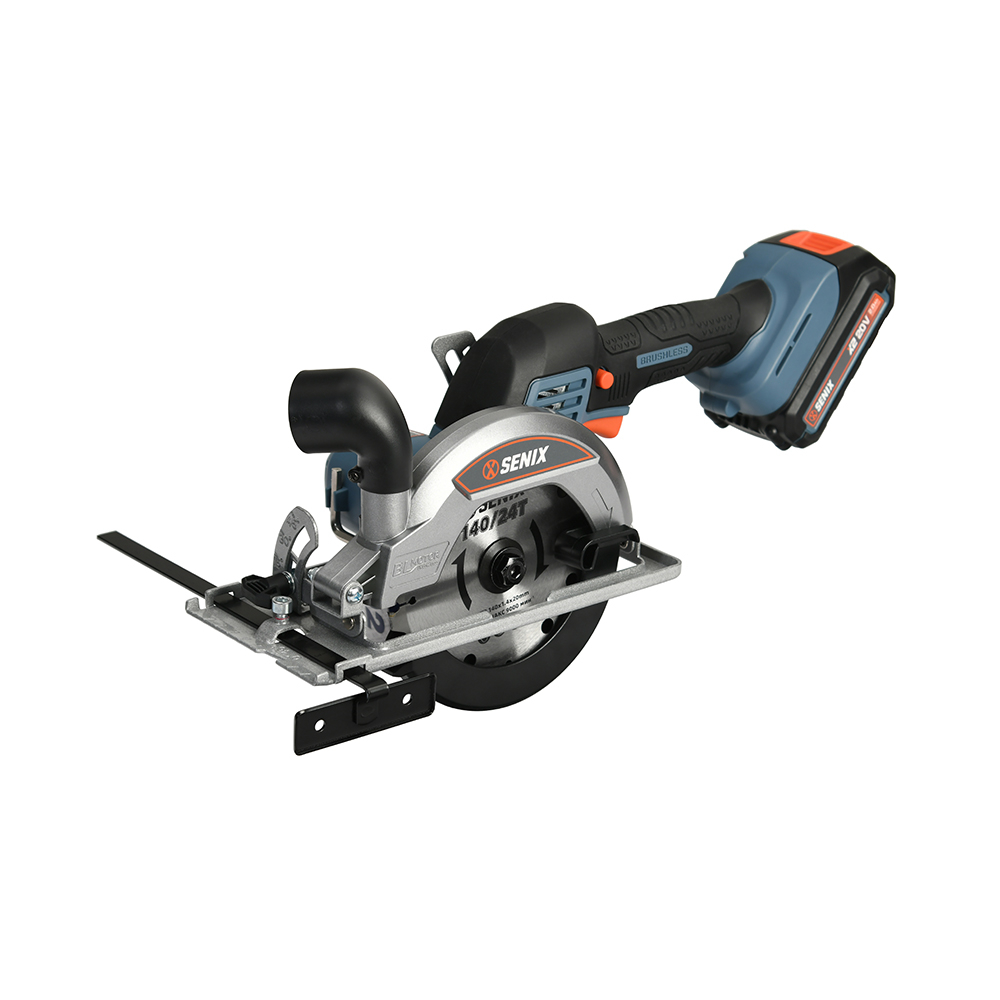

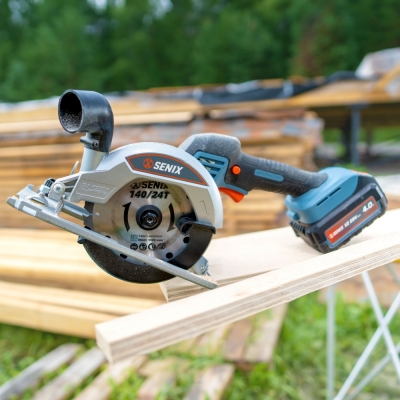

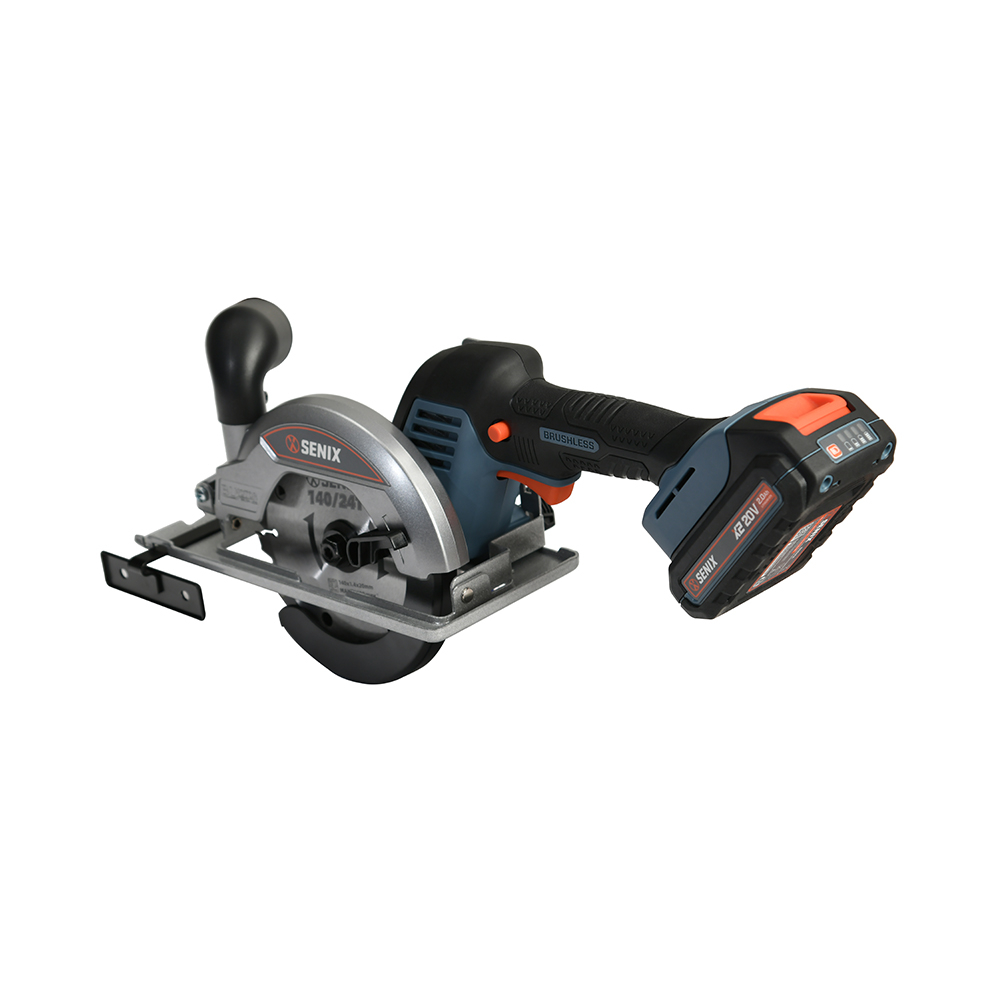

20V Brushless 140mm(9/16'') Circular Saw
PSCX2-M4-EU
(5.0)The SENIX 20V Brushless 140mm Circular Saw delivers powerful, precise cutting with 6900 RPM and up to 45° bevel versatility. Designed for comfort and efficiency, it features LED lighting, advanced dust control, and a lightweight body—perfect for contractors and DIY users seeking reliability in every cut.

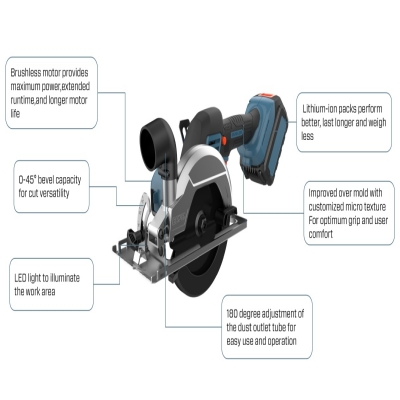

KEY FEATURES
Powerful Brushless Motor – Provides maximum power, extended runtime, and longer motor life.

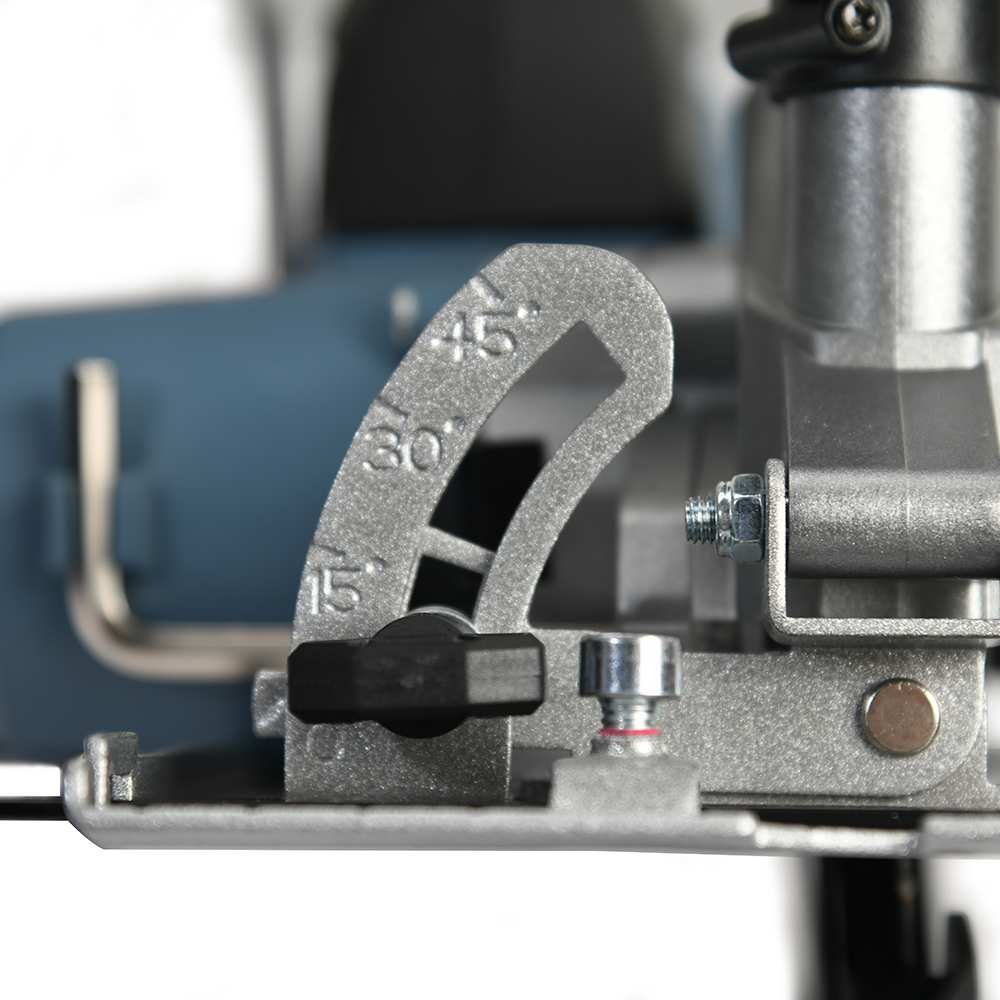

Adjustable Bevel Capacity – 0–45° bevel range supports versatile angled cuts.
Integrated LED Work Light – Illuminates the work area for better visibility in low-light conditions.
High-Performance Lithium-Ion Battery – Delivers longer runtime, lighter weight, and consistent performance.

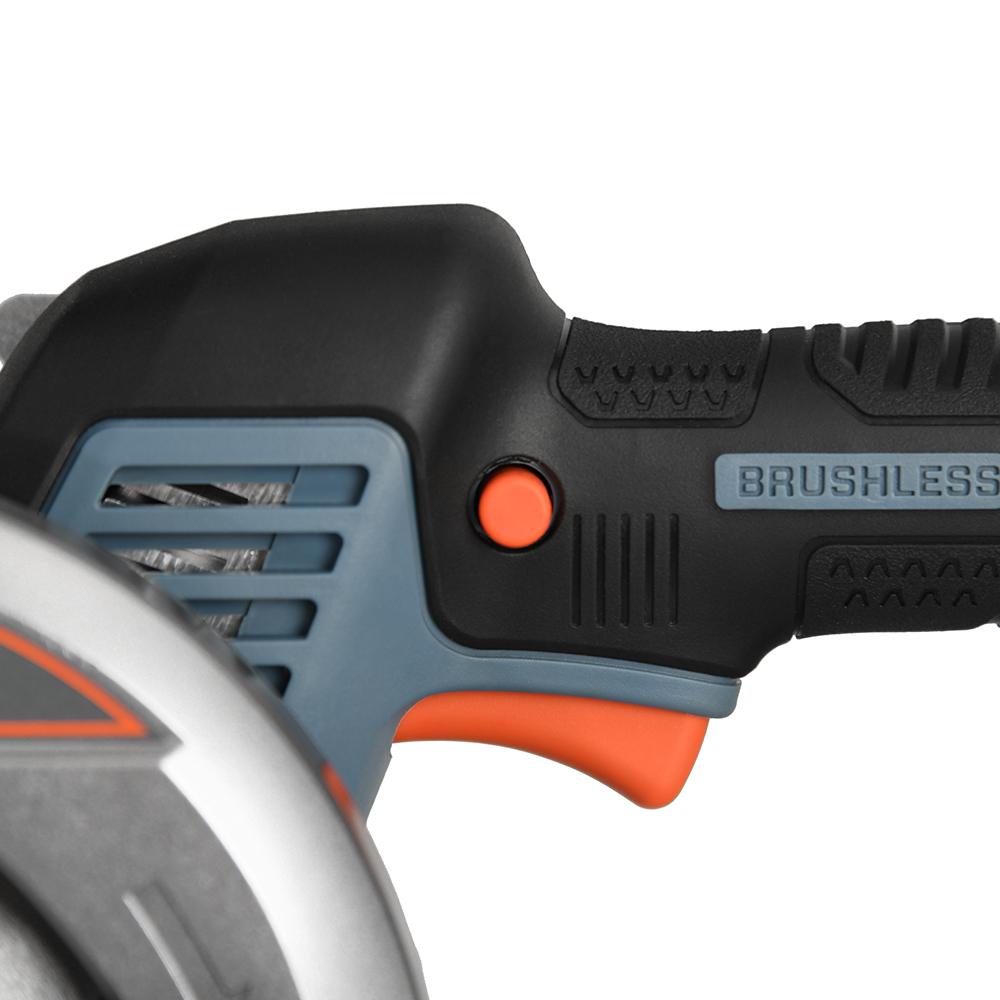

Enhanced Ergonomic Grip – Customized micro-texture over mold offers superior control and comfort.

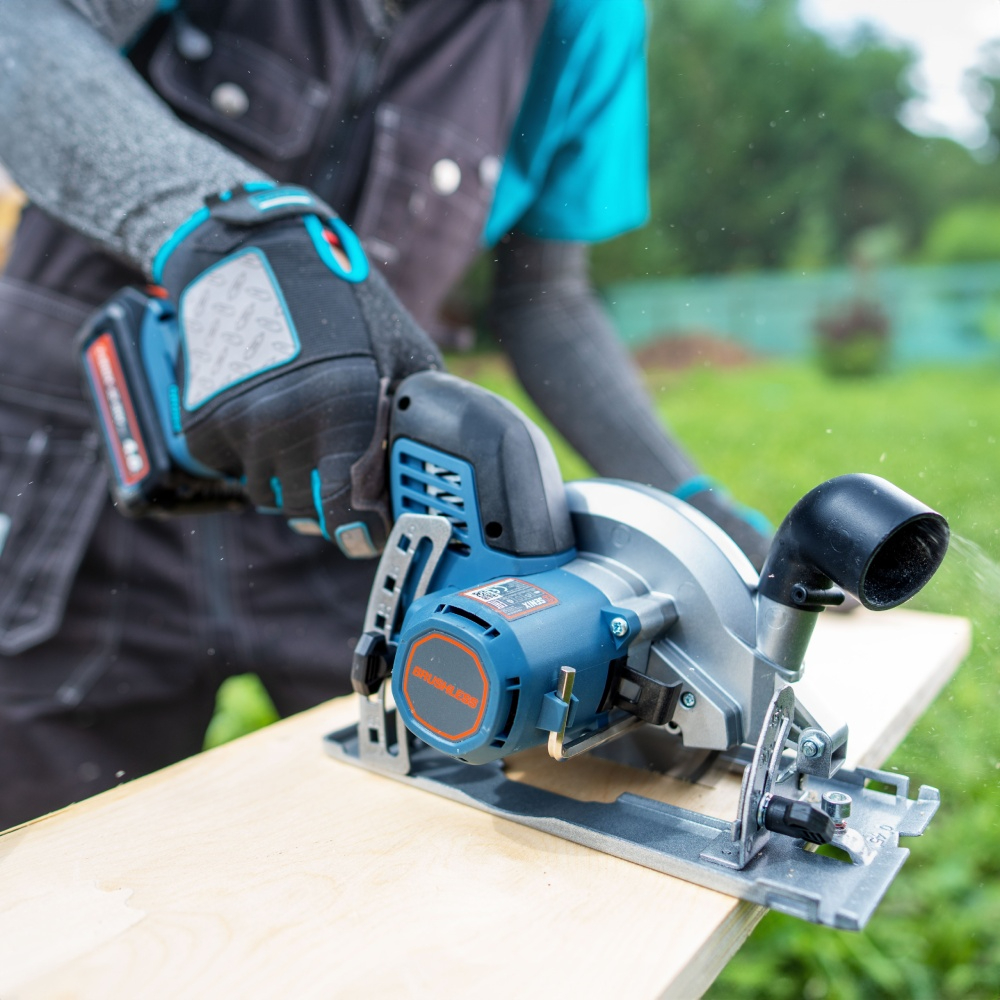

180° Rotating Dust Outlet Tube – Allows directional adjustment for cleaner operation.
Compact & Lightweight Design – Weighs only 1.8 kg, ideal for prolonged use and precise handling.
TECHNICAL PARAMETERS
Model | PSCX2-M4-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 6900 RPM |
Saw blade diameter | 140mm(9/16 inch) |
Cutting capacity | 0°：51mm 45°: 27mm |
Machine Weight (Tool Only) | 1.8 kg |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Machine Size | 379*145*137mm |
Color Box Size | 399*185*145mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 140mm (9/16'') Circular Saw combines power, versatility, and ergonomic design to meet the demands of both DIYers and professionals. Powered by a high-efficiency brushless motor, this tool delivers up to 6900 RPM for fast, clean cuts across a variety of materials. Whether you're making straight or angled cuts, the saw's 0–45° bevel capacity ensures precision and flexibility for diverse woodworking tasks.
Equipped with a 140mm blade, it offers a cutting depth of 51mm at 0° and 27mm at 45°, making it suitable for common lumber and panel sizes. A built-in LED light helps illuminate the work surface, enhancing cutting accuracy in dim or shaded areas. The advanced lithium-ion battery system not only boosts performance but also reduces the overall tool weight, making it easier to use on-site or overhead.
The ergonomic overmold grip and micro-textured handle provide comfort and stability during extended use, while the adjustable 180° dust outlet tube supports cleaner and safer cutting conditions. Weighing just 1.8 kg (without battery), the SENIX circular saw is both portable and powerful—ideal for job sites, renovations, and home workshops.
Usage Scenarios

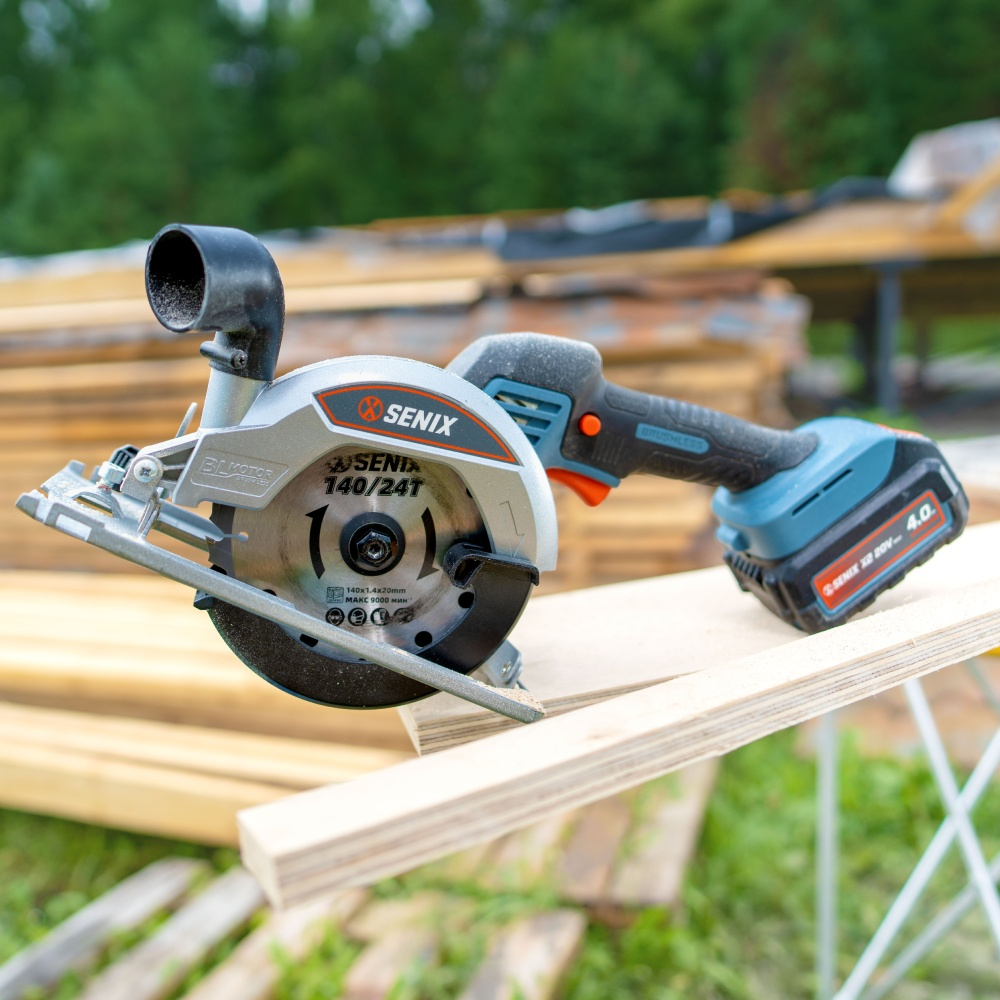

Wood and Panel Cutting: Ideal for cutting wood, panels, plywood, and similar raw materials. Provides precise cutting performance for furniture making, woodworking, and decorative projects.
Unrecommended Conditions
Cutting Composite Materials with Hard Inclusions: Not suitable for cutting materials that contain metal, stone, or other hard components, as this may damage the blade or reduce tool efficiency.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What materials can I cut with this circular saw?
A: This saw is ideal for cutting wood, plywood, soft plastics, and other common construction materials. Use the appropriate blade type for each material to ensure clean, safe cuts.
Q2: What is the cutting depth of the saw?
A: At 0° (straight cut), it offers a cutting depth of 51mm. At a 45° bevel angle, the cutting depth is 27mm.
Q3: Is this saw suitable for bevel cuts?
A: Yes. The saw has a 0–45° bevel capacity, allowing for angled cuts commonly used in trim work, cabinetry, and framing applications.
Q4: Does the saw include a dust collection feature?
A: Yes. It features a 180° adjustable dust outlet tube, which helps control sawdust direction and can be connected to a vacuum system for cleaner operation.
Q5: How heavy is the tool? Can it be used for overhead cuts?
A: The tool weighs only 1.8 kg (without battery), making it lightweight enough for overhead work and extended use without significant fatigue.
Q6: What type of battery does it use?
A: It uses a 20V Max DC lithium-ion battery, known for high energy density, low self-discharge, and longer runtime.
Q7: Is the saw blade included, and can I use third-party blades?
A: Typically, a standard 140mm blade is included. You can also use third-party blades with a 140mm diameter and compatible arbor size, provided they meet safety standards.
Q8: What's the difference between this and a larger 165mm circular saw?
A: The 140mm saw is more compact and lightweight—ideal for precision work, smaller cuts, and tighter spaces—while the 165mm version offers deeper cutting capacities for thicker materials.
