20V Brushless 25.4mm(1'') Impact Wrench
PDWX2-M6-EU

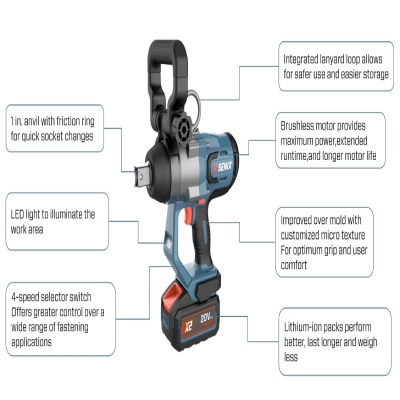

(5.0)KEY FEATURES

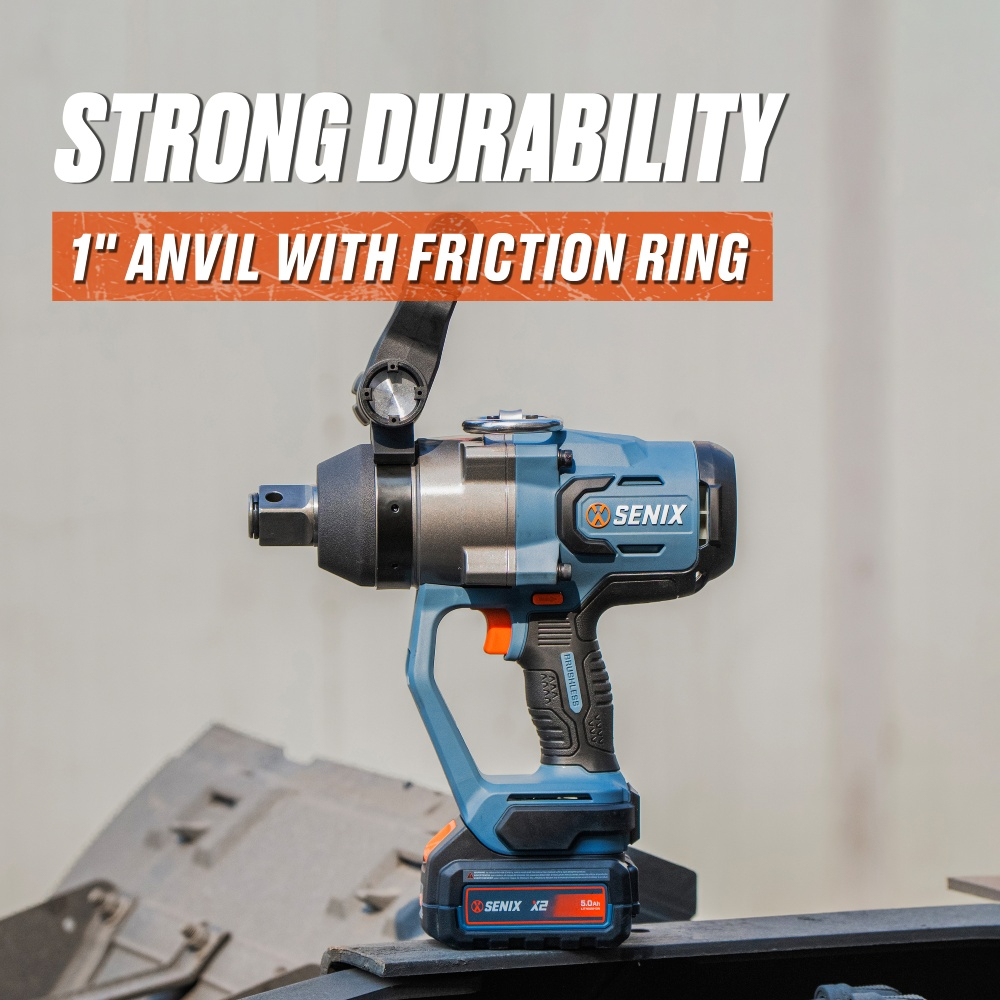

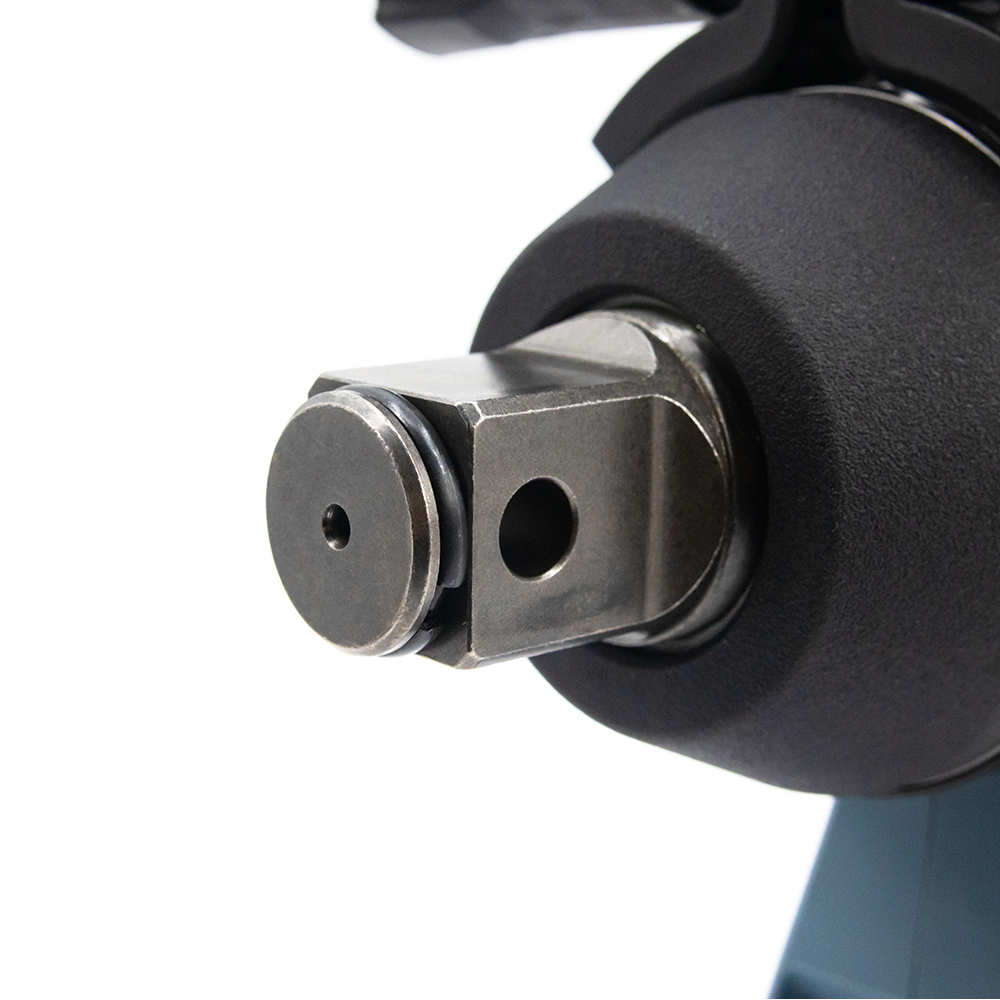

1" Square Anvil with Friction Ring – Enables quick and secure socket changes for high-demand applications
4-Speed Selector Switch – Provides enhanced control for a wide range of fastening and loosening needs

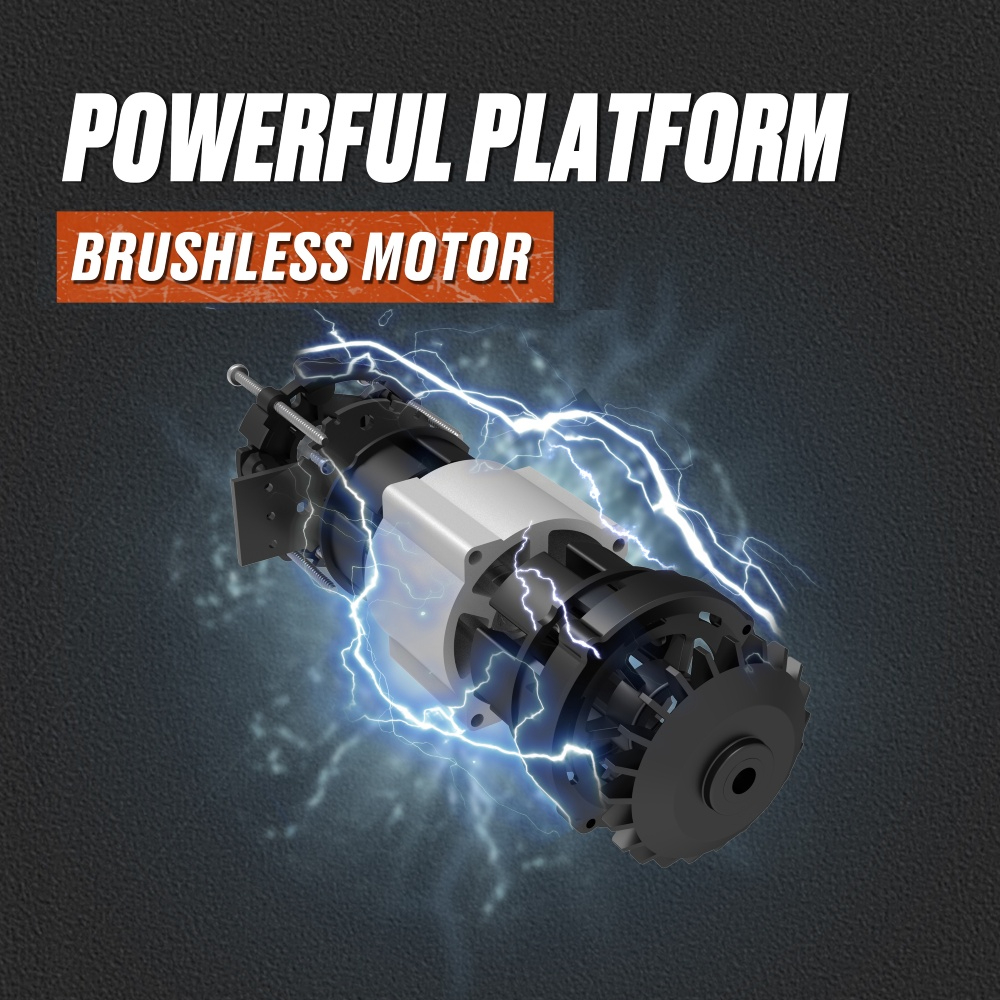

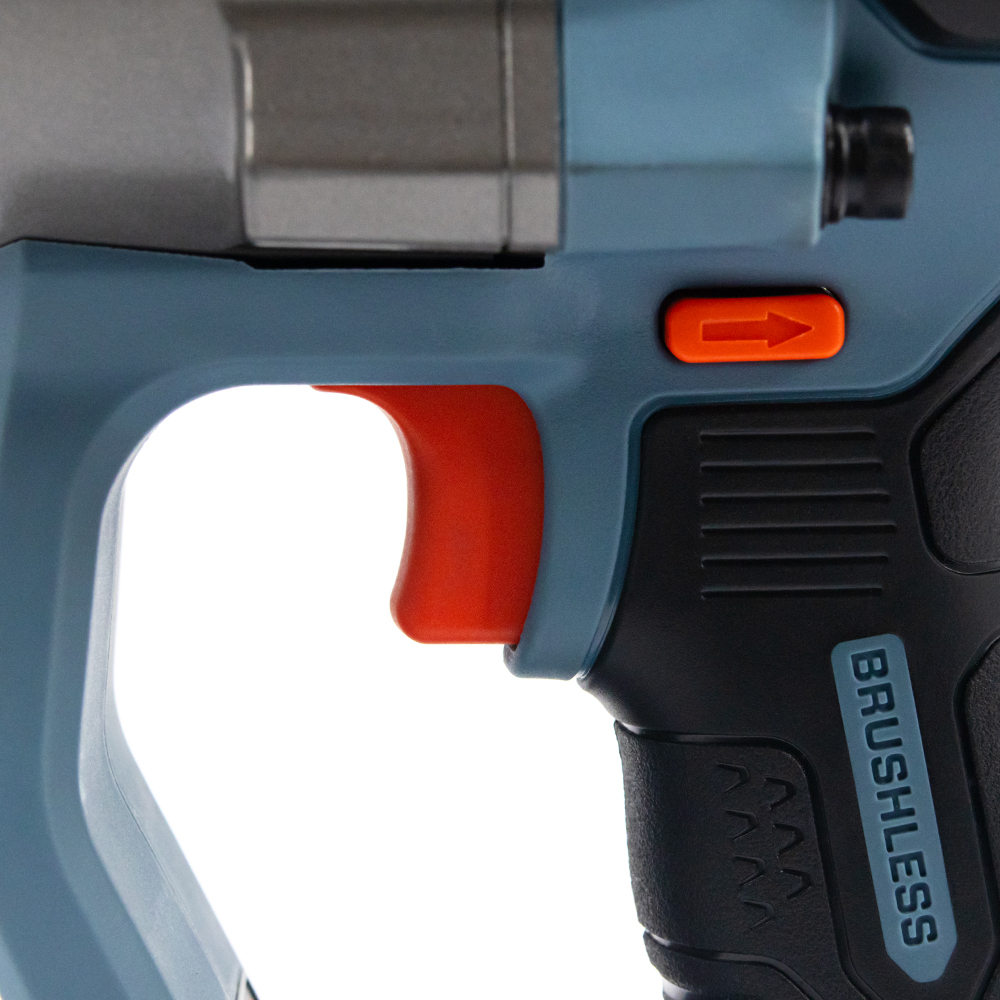

High-Performance Brushless Motor – Delivers maximum power output, longer runtime, and extended motor durability
LED Work Light – Illuminates dark or confined workspaces for better visibility and accuracy

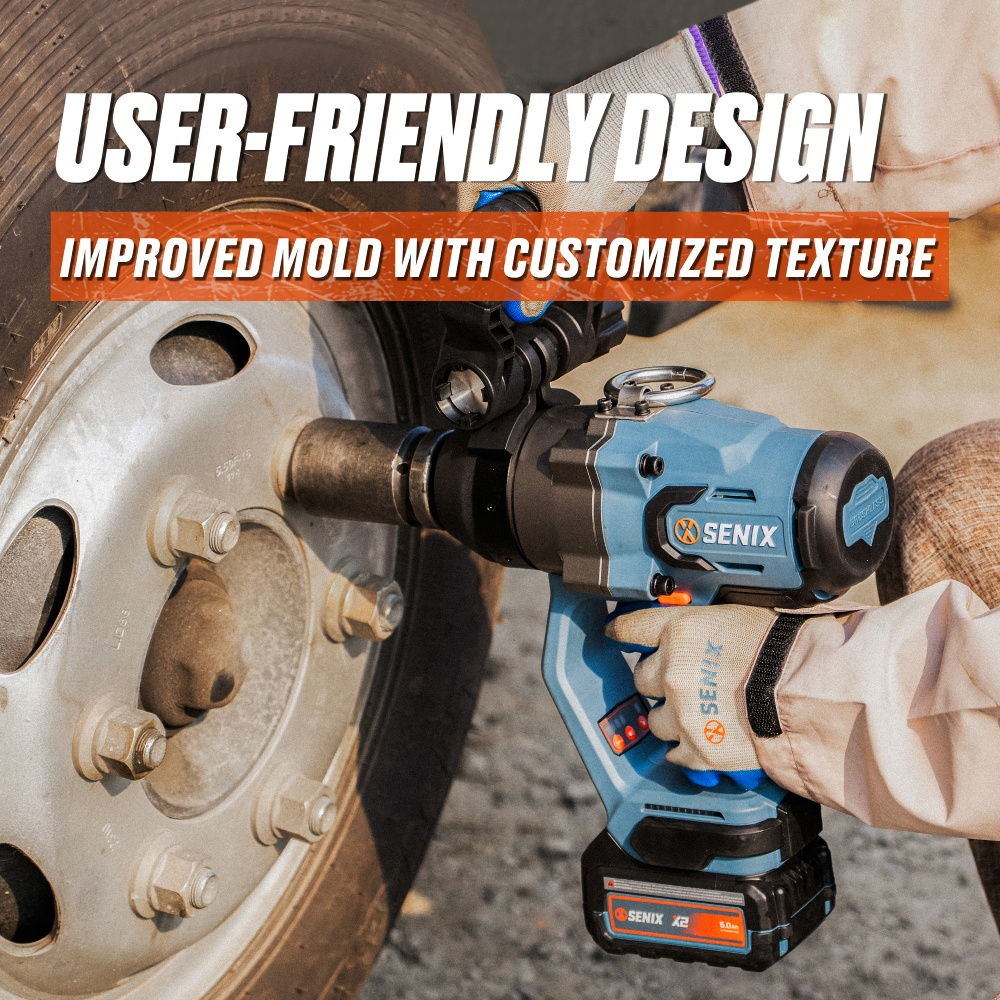

Custom Micro-Texture Overmold – Designed for optimal grip and user comfort during extended use

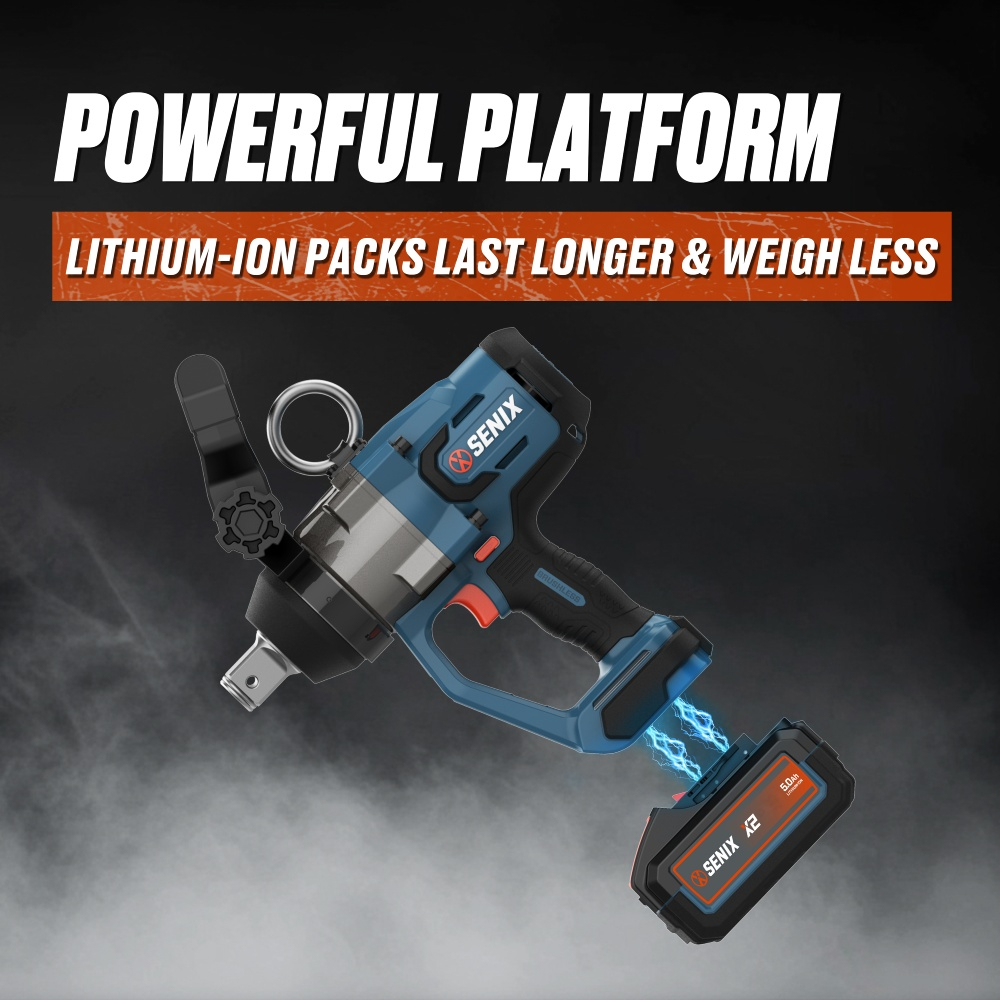

Advanced Lithium-Ion Battery Compatibility – Supports longer runtimes, reduced weight, and consistent performance

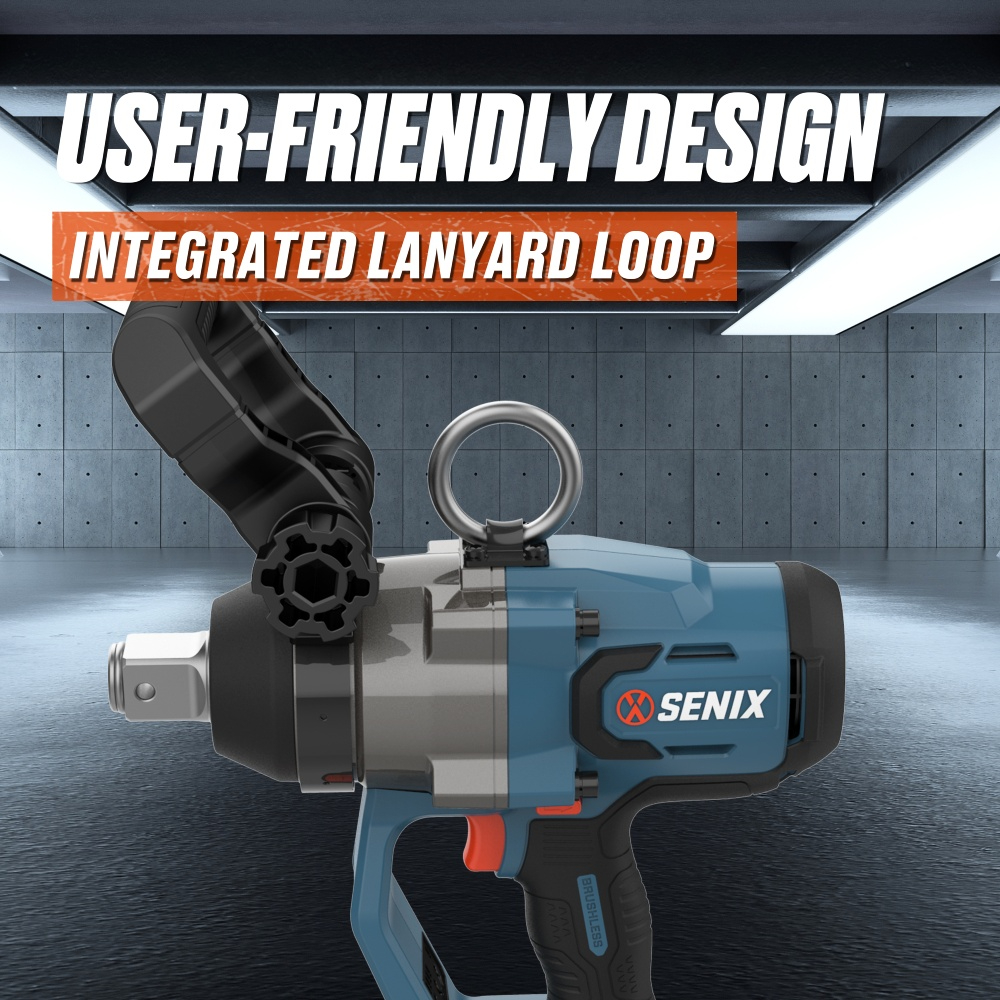

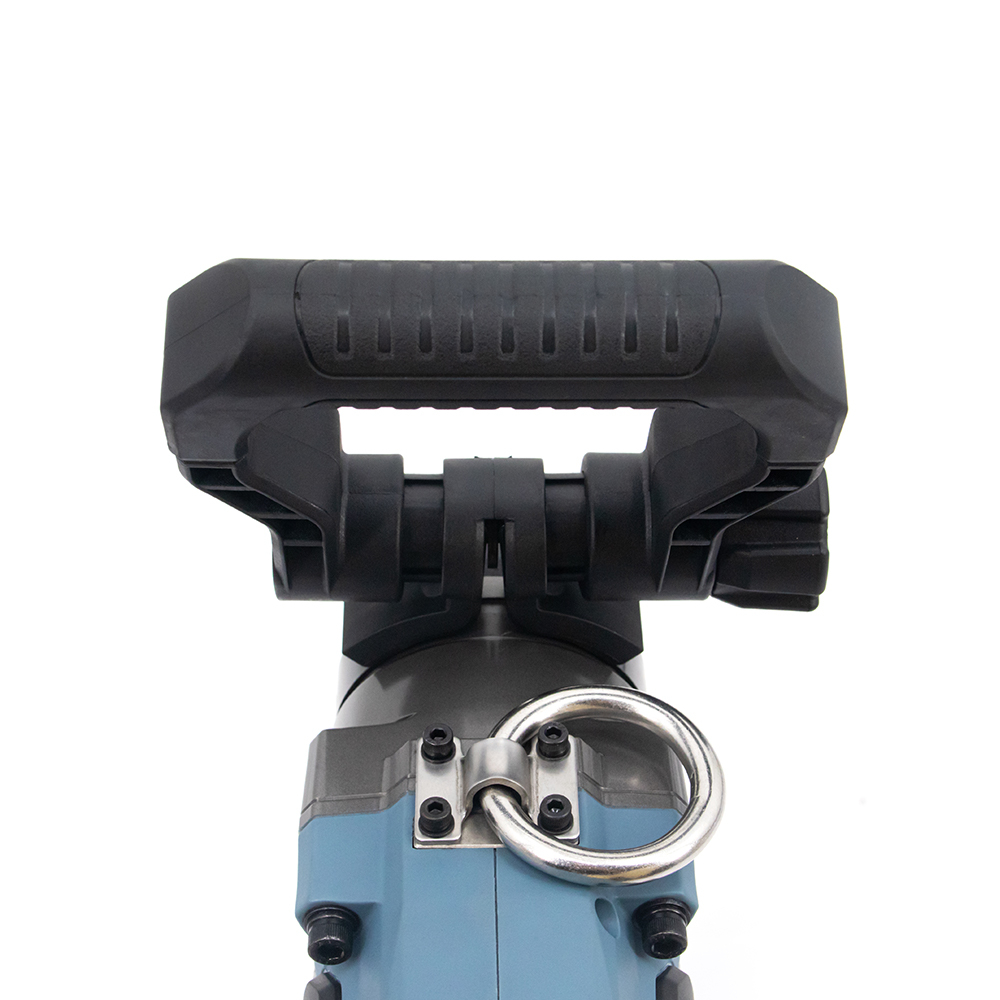

Integrated Lanyard Loop – Adds safety and convenience, especially when working at heights
Heavy-Duty Torque Output – Provides up to 2000Nm fastening torque and 2450Nm nut-busting torque for industrial jobs
Wide Bolt Compatibility – Supports fastening of standard M12–M42 and high-tensile M10–M32 bolts
Reinforced Gear Housing – Built to withstand repeated high-torque applications in harsh jobsite conditions
Compact Heavy-Duty Design – Balanced for better handling despite its industrial-strength capabilities
TECHNICAL PARAMETERS
Model | PDWX2-M6-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 0-1000/0-1100/0-1400/0-1650 RPM |
No-Load IPM | 0-1330/0-1620/0-2100/0-2450 IPM |
Max. Fastening Torque | 2000Nm |
Nut-busting Torque | 2450Nm |
Speed power selection | 4-Mode |
Square drive | 25.4mm(1 inch) |
Fastening capacities | Standard bolt: M12-M42 High tensile bolt: M10-M32 |
Fastening and removing efficiency | 60pcs per 5Ah battery or 100pcs per 8Ah battery for M33 bolt |
Machine Weight (Tool Only) | 4.8 kg |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE/EMC |
Machine Size | 268*93*245mm |
Color Box Size | 305*145*275mm |
SUPPORT
Product Overview

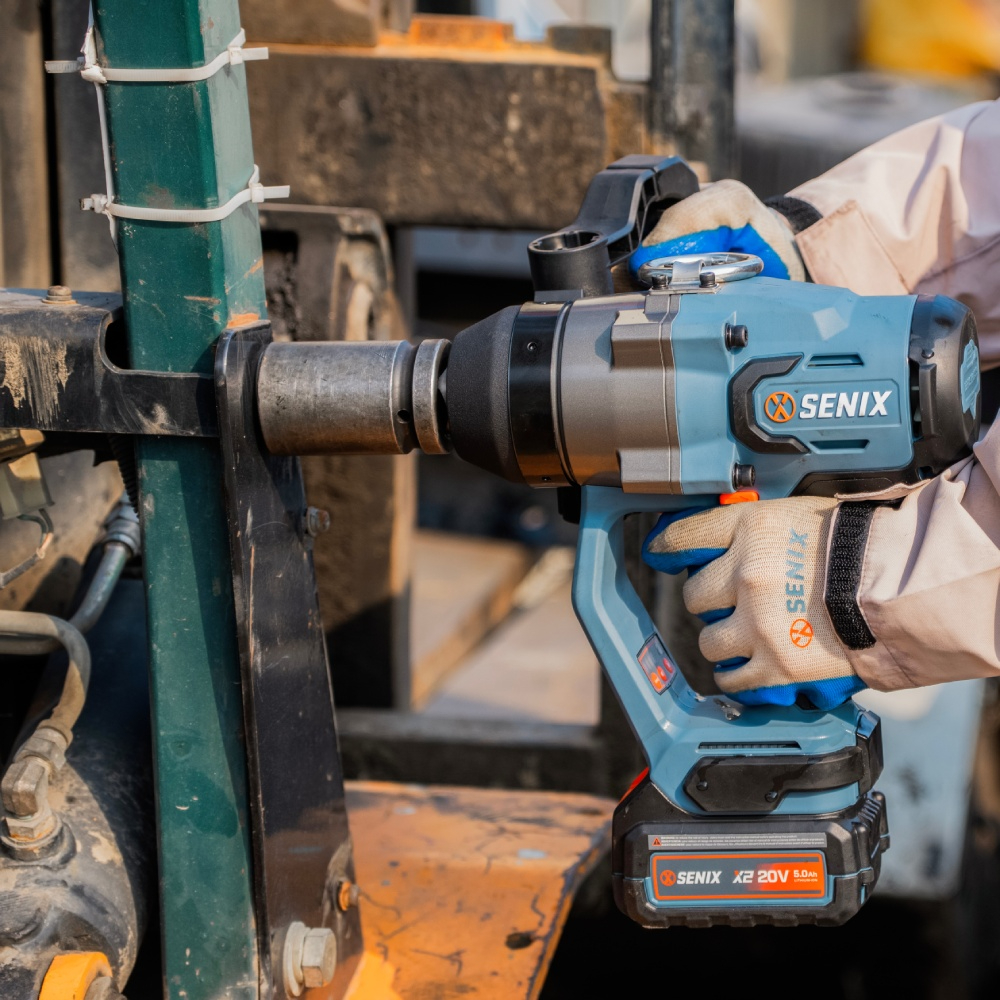

The SENIX 20V Brushless 1" Impact Wrench is engineered for industrial-grade fastening and removal tasks where extreme torque and precision are critical. Designed with a powerful brushless motor, it delivers an impressive 2000Nm of fastening torque and up to 2450Nm of nut-busting torque, making it ideal for infrastructure, heavy machinery maintenance, and steel construction work.
A 4-mode speed selector (up to 1650 RPM and 2450 IPM) ensures maximum flexibility across different materials and bolt sizes, while the 1-inch anvil with friction ring provides fast, secure socket changes. The tool is equipped with an integrated LED light to illuminate dark workspaces and a lanyard loop for added safety during elevated or overhead operations.
Despite its heavy-duty capacity, the tool is ergonomically balanced at just 4.8 kg, with an overmold grip featuring custom micro texture for superior handling during prolonged tasks. Powered by SENIX's advanced 20V lithium-ion platform, it offers excellent fastening efficiency—up to 100 M33 bolts per 8Ah charge. This impact wrench is CE/EMC certified, built for durability, and ready to take on your toughest torque demands.
Usage Scenarios
Bolt Tightening: Suitable for tasks such as mechanical repairs, automotive maintenance (e.g., tightening or loosening car bolts), and household projects like securing screws when assembling metal racks.
Steel Pipe Connections: Ideal for connecting steel pipes using fastening components. The impact wrench ensures bolts are tightened more securely compared to manual tools.
Unrecommended Conditions
Precision Assembly: The high torque and impact force may damage delicate components or cause over-tightening, affecting equipment performance.
Soft or Brittle Materials: Using the tool on materials like aluminum, plastic, or ceramics may lead to deformation or breakage.
Small Fasteners: Small bolts or screws may not withstand the high torque and could be stripped or broken.
High-Precision Torque Requirements: Applications that require precise torque control may experience under- or over-tightening.
Vibration-Sensitive Environments: The impact force may increase vibration, affecting stability or causing components to loosen.
Confined Spaces: Limited working space may hinder tool operation and increase the risk of damaging surrounding parts.
Frequent Assembly/Disassembly: Regular use may accelerate thread wear and shorten the lifespan of fasteners.
High-Speed Applications: Not suitable for continuous high-speed use, which may cause overheating or damage to the tool.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What types of jobs is this impact wrench best suited for?
A: It's ideal for heavy-duty fastening and loosening tasks such as automotive repair, industrial assembly, construction, and maintenance of large machinery due to its high torque output and robust design.
Q2: How does the 4-speed selector switch improve usability?
A: The 4-speed switch allows you to adjust the speed and impact frequency to match different tasks, giving you better control for both delicate and tough fastening applications.
Q3: Can I use any battery with this tool?
A: The impact wrench is compatible with SENIX 20V Max lithium-ion battery packs. Using original batteries ensures optimal performance, longer runtime, and safety.
Q4: How does the brushless motor benefit the tool?
A: Brushless motors provide more power, increased efficiency, less maintenance, extended motor life, and longer battery runtime compared to brushed motors.
Q5: Is the LED light bright enough for working in dark spaces?
A: Yes, the integrated LED work light effectively illuminates the workspace, improving visibility in low-light or confined areas.
Q6: How do I change sockets on this impact wrench?
A: The 1-inch square anvil features a friction ring for quick and secure socket changes without needing extra tools.
Q7: What maintenance is required for this impact wrench?
A: Regularly clean the tool, avoid exposure to extreme moisture, and keep the battery charged. Periodically inspect the anvil and replace worn sockets to maintain performance.
Q8: What is the weight of the tool, and is it comfortable to use for long periods?
A: The tool weighs 4.8 kg. It features a customized micro-texture overmold grip designed to reduce fatigue and improve comfort during extended use.
Q9: What safety features does the wrench have?
A: It includes an integrated lanyard loop for secure handling at heights and a stable grip to reduce slippage during operation.
