20V Brushless 250Nm(185 ft.lbs) Compact Impact Driver
PDIX2-M5-EU

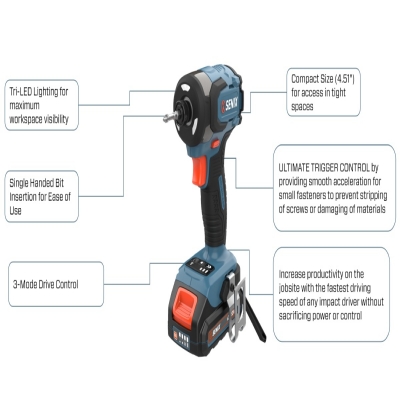

(5.0)KEY FEATURES

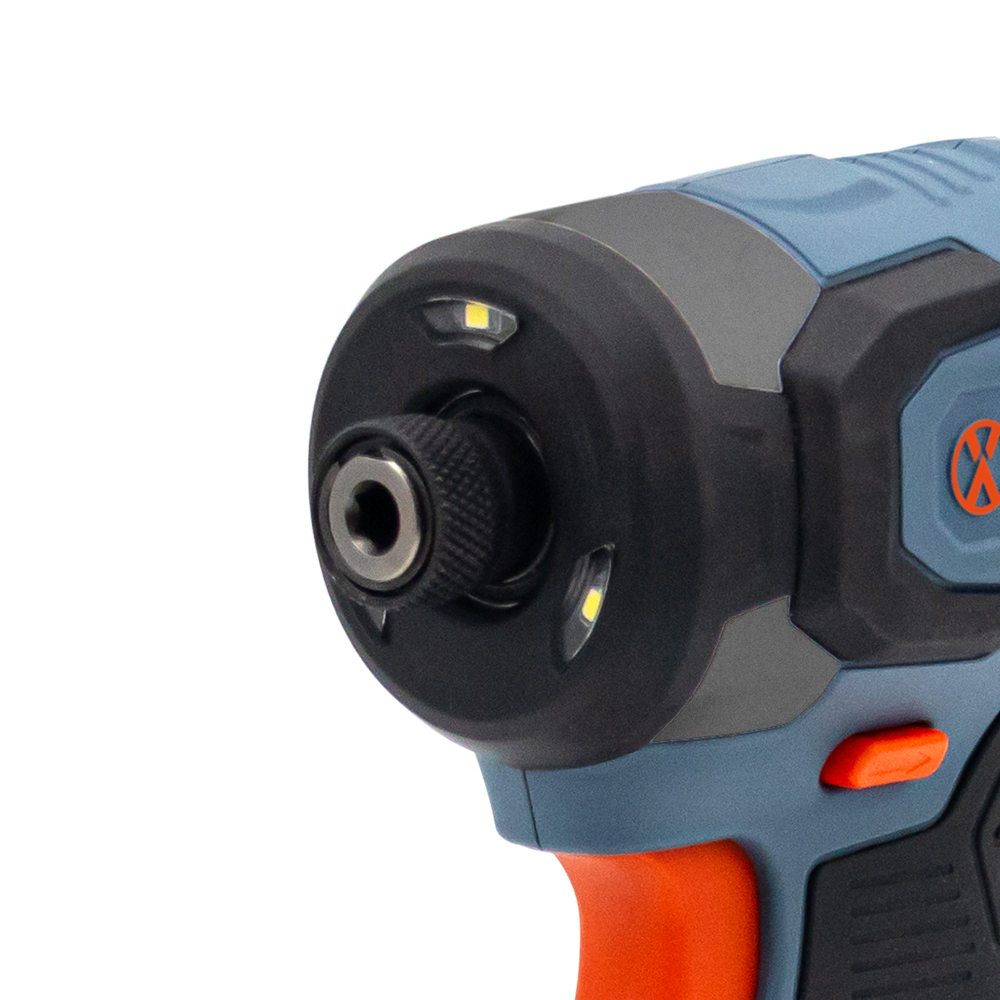

Tri-LED Lighting – Ensures maximum visibility in dark or enclosed work areas.
Single-Handed Bit Insertion – Quick, tool-free changes for enhanced ease of use.
3-Mode Drive Control – Offers precision across different applications and materials.
Compact Body (Only 4.51'') – Ideal for accessing tight or confined spaces.

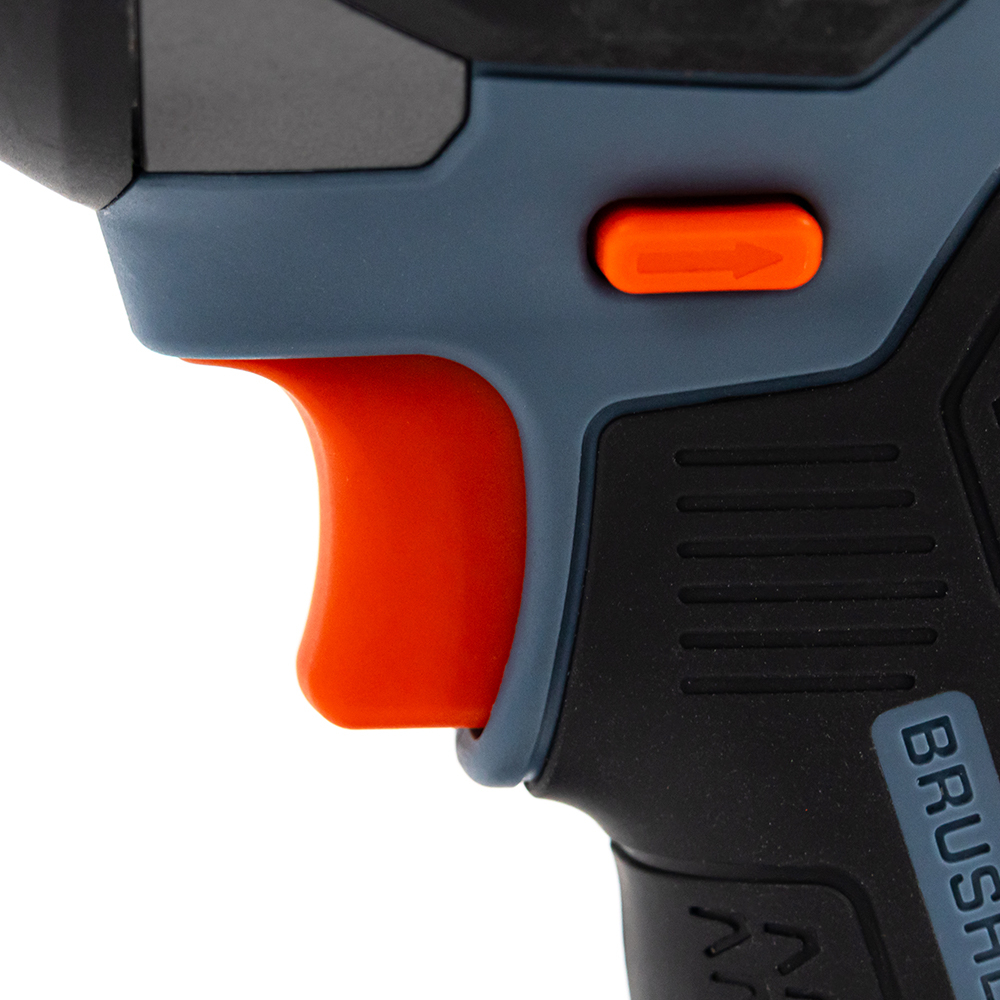

Ultimate Trigger Control – Smooth acceleration for driving small fasteners without stripping or material damage.
High-Speed Performance – Fastest driving speed in its class, maximizing on-site productivity.
Brushless Motor – Delivers consistent power, extended runtime, and longer tool life.
Heavy-Duty Torque – Provides up to 250Nm (185 ft lbs) of fastening power for demanding tasks.
Advanced Brushless Motor Technology – Enhances tool efficiency by reducing internal friction, delivering longer motor life, higher torque output, and superior energy savings.
Durable, Industrial-Grade Build – Engineered for rugged jobsite use with reinforced internal components and housing to withstand daily wear in demanding environments.
TECHNICAL PARAMETERS
Model | PDIX2-M5-EU |
Voltage | 20V Max DC |
Motor Type | Brushless |
Chuck Size | 1/4" （6.35mm） |
No Load Speed | 0-1800/0-2700/0-3900RPM |
No-Load IPM | 0-1500 / 0-3000 / 0-4400 IPM |
Max. Fastening Torque | 250Nm |
Speed Power Selection | 3-Mode |
Fastening Capacities | Standard bolt: M5-M16 High tensile bolt: M5-M14 |
Work Amount | 203 pcs M8 x 60mm bolts on wood per 5Ah battery |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE CB |
Machine Weight (Tool Only) | 1.05 kg |
Machine Size | 199*114.5*64.6mm |
Color Box Size | 225*82*130mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 250Nm Compact Impact Driver is built for power users who demand high performance in tight spaces. Its compact body measures only 4.51 inches in length and weighs just 1.05 kg, making it ideal for overhead tasks or restricted jobsite conditions. Powered by a brushless motor, it offers up to 250Nm of torque, delivering robust fastening power without compromising on control.
With a 3-mode drive control system, this impact driver adapts easily to various tasks, from delicate screwdriving to heavy-duty bolt fastening. The ULTIMATE TRIGGER CONTROL ensures fine-tuned acceleration, helping prevent overdriving or stripping screws. For low-light conditions, the Tri-LED lighting system provides consistent illumination of your workspace, while the single-handed bit insertion enhances productivity by allowing seamless, quick bit changes.
Built for professionals, the PDIX2-M5-EU can drive up to 203 pieces of M8x60mm bolts per 5Ah battery on wood. Its durability is matched with practicality — from dual-speed power to high-impact per minute ratings — offering a reliable solution for carpenters, electricians, HVAC techs, and more.
Usage Scenarios
Drilling: Suitable for drilling into a wide range of materials such as concrete, brick walls, wood, and steel plates.
Screw Driving: Equipped with screw-driving capabilities, ideal for tasks like furniture assembly and electrical appliance repair.
Home Improvement Projects: Perfect for installing lighting fixtures, hanging pictures, and mounting storage racks in kitchens or bathrooms.
Maintenance Work: Useful for reinforcing loose furniture and removing outdated wall decorations or fittings.
Unrecommended Conditions
Extremely Hard Rock Formations: The tool may not penetrate dense rock layers, which could damage the drill bit or mechanical parts.
Excessive Drilling Depths: As depth increases, impact force may decrease, preventing the bit from effectively penetrating rock or compacted soil.
Very Soft Soil Layers: Drill bits may become stuck or difficult to extract due to excessive sinking into soft soil.
Fragile Materials: Not recommended for use on glass, ceramics, or delicate stone, as the impact function may cause cracking or shattering.
Special Metal Structures: Thin-walled tubes, fine wires, or sheet metal may deform or be damaged by the hammer drill's impact action.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What type of applications is this impact driver best suited for?
A: It's ideal for medium to heavy-duty fastening tasks such as driving long screws, lag bolts, or construction fasteners into wood, metal, or masonry.
Q2: Can it be used for precision work or small screws?
A: Yes. The ULTIMATE TRIGGER CONTROL allows smooth speed ramp-up to prevent stripping small fasteners, making it suitable for both heavy and delicate tasks.
Q3: Is the Tri-LED light always on?
A: The Tri-LED activates automatically when the trigger is pressed, offering excellent visibility.
Q4: Does this model support quick bit changes?
A: Absolutely. The 1/4" hex chuck supports single-handed bit insertion, allowing for fast, tool-free changes with enhanced convenience.
Q5: Can I use this with all SENIX 20V batteries?
A: Yes, this tool is compatible with all SENIX 20V Max lithium-ion battery packs.
Q6: What's the main difference compared to the lower-torque SENIX models?
A: This model delivers higher torque (250Nm), a faster driving speed, and additional drive modes, making it better suited for heavy-duty applications.
Q7: Is the impact driver suitable for use on automotive tasks like removing lug nuts?
A: While it delivers up to 250Nm of torque—suitable for many automotive applications—it may not be ideal for very tight or rusted lug nuts. A dedicated impact wrench is recommended for heavy-duty automotive work.
Q8: How does the 3-mode drive control improve usability?
A: The 3-speed settings allow you to adjust torque and impact rate for different tasks—low for precision work, medium for general fastening, and high for driving large fasteners or bolts efficiently.
