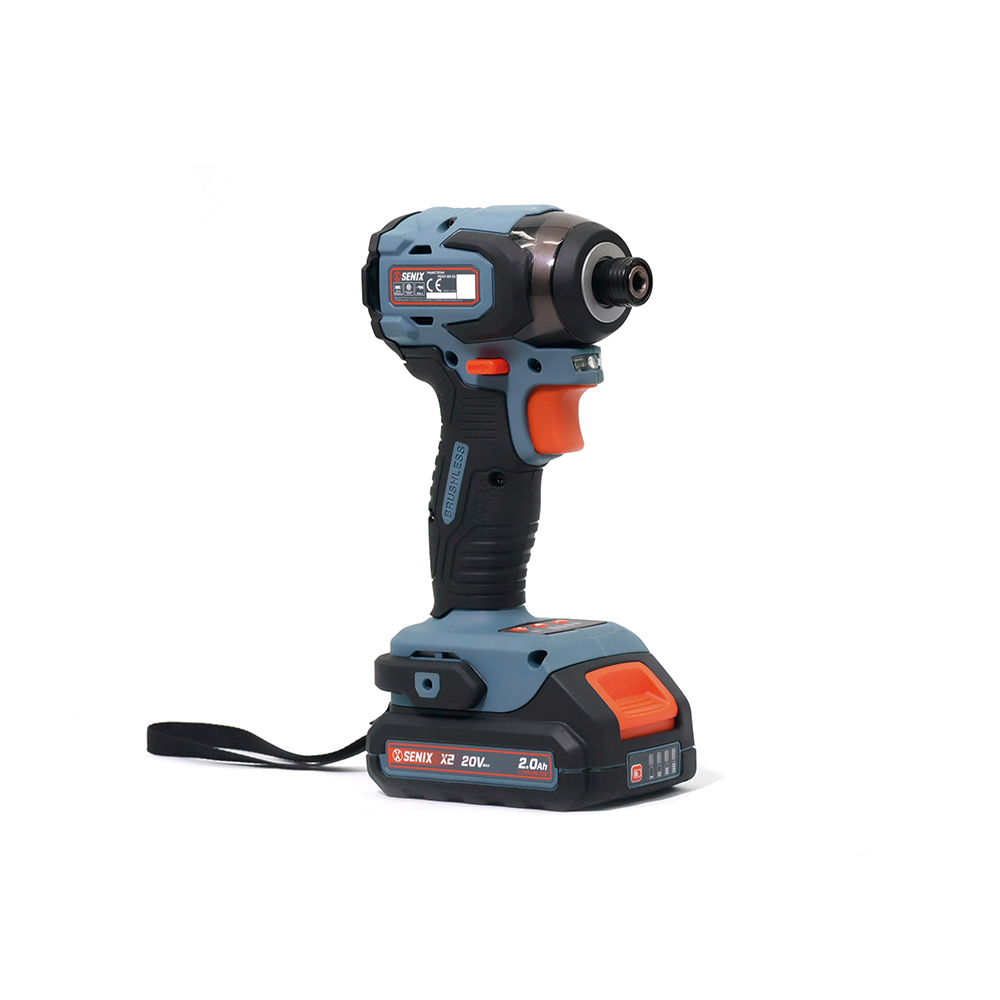

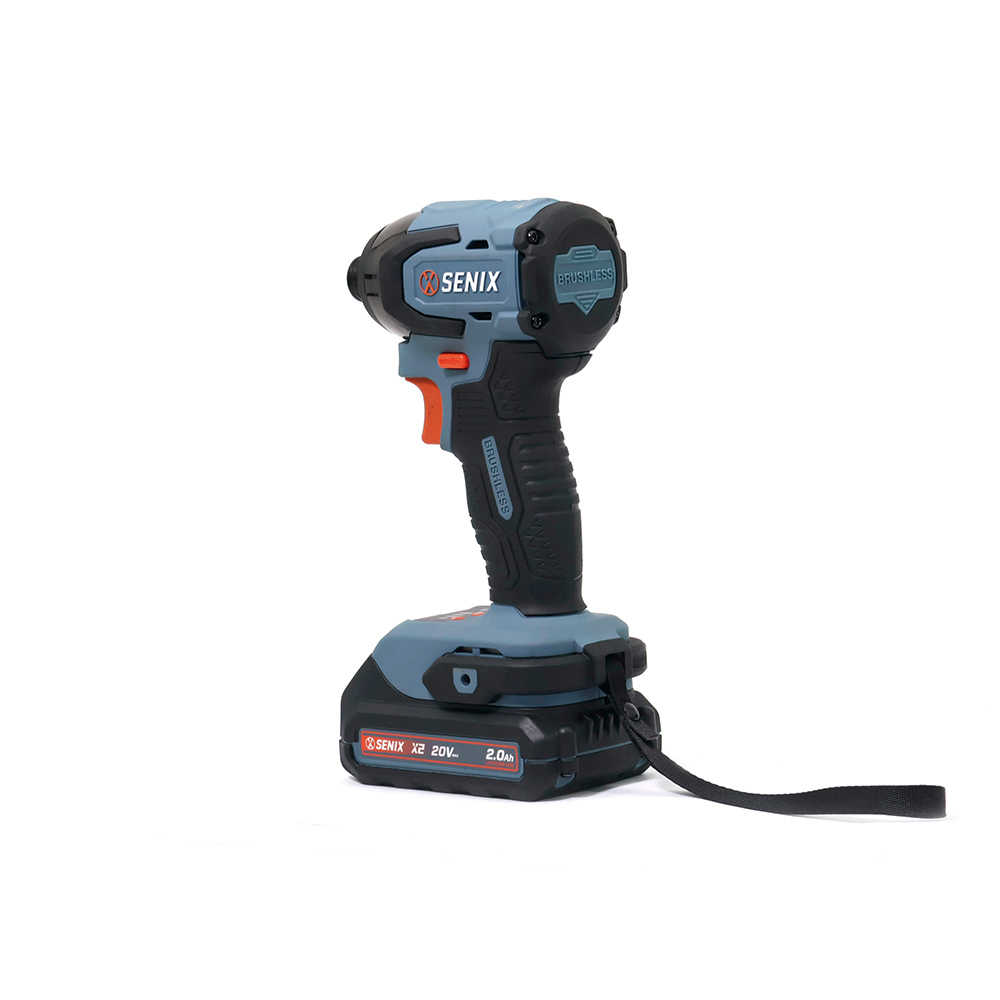

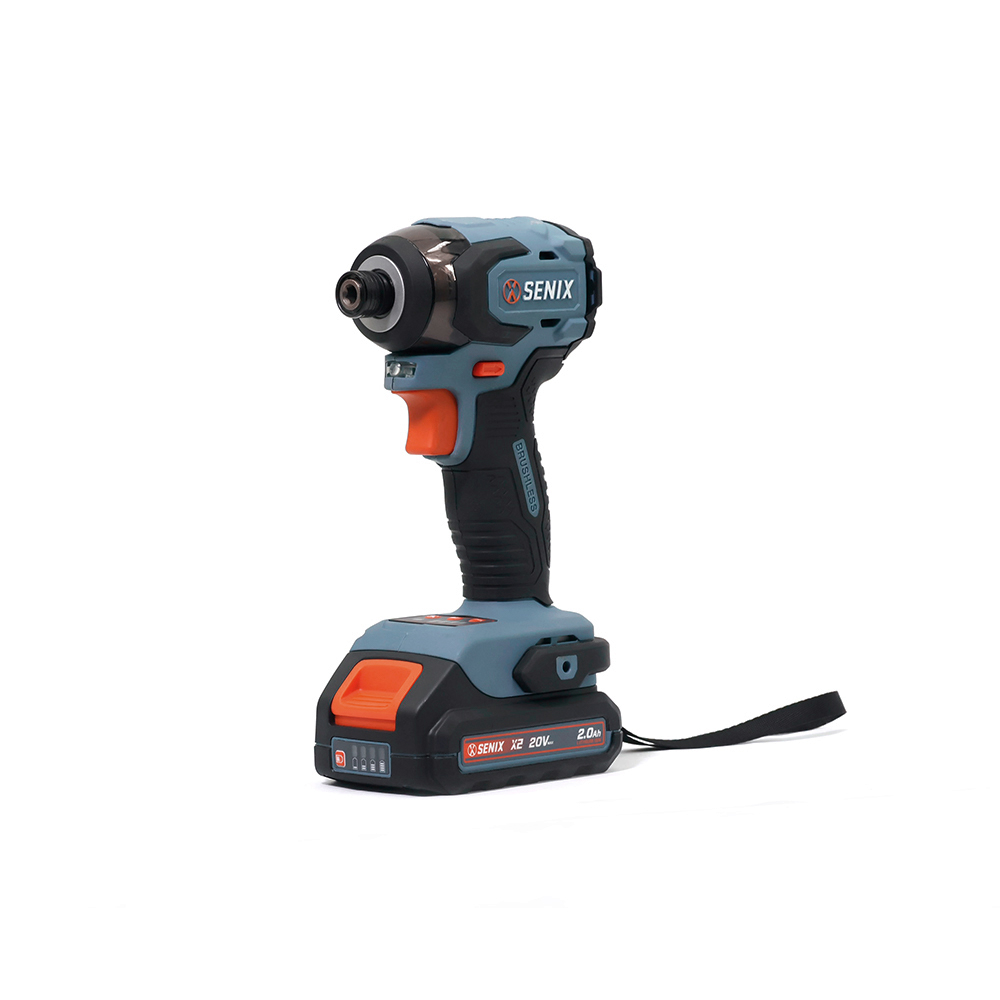

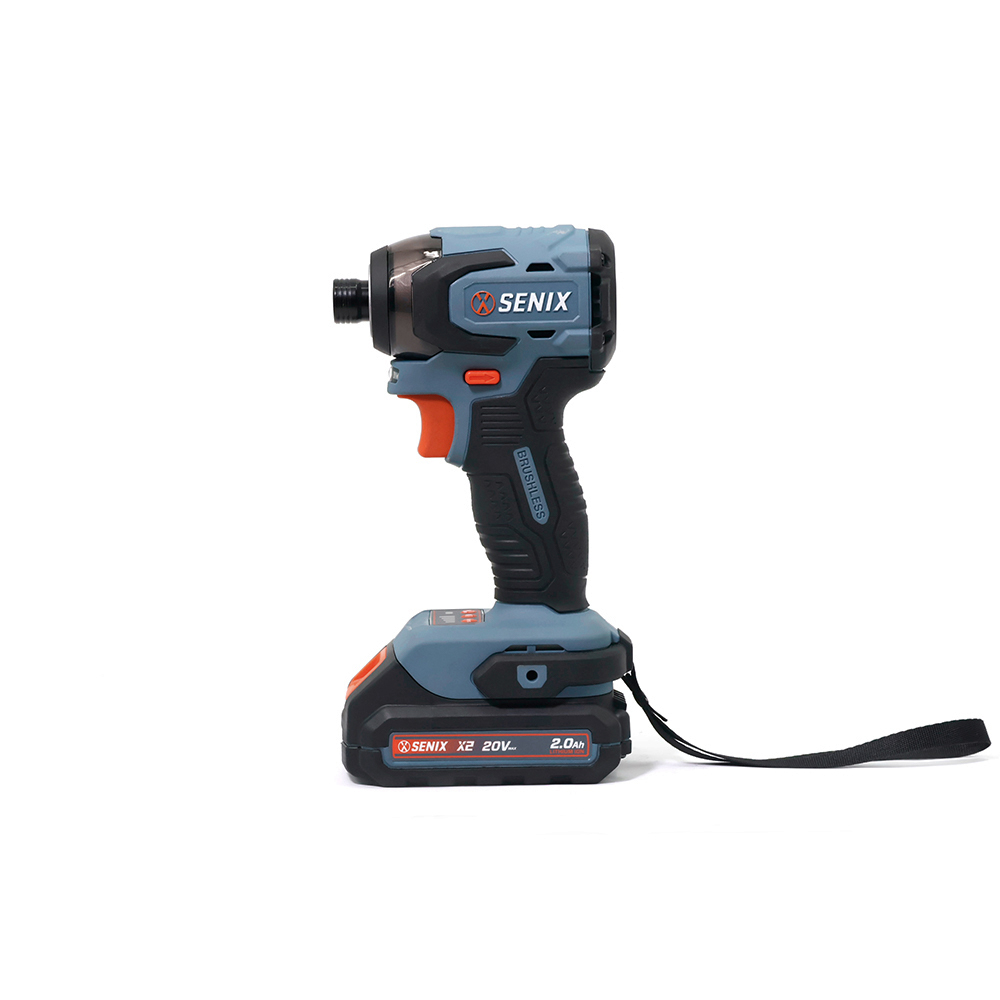

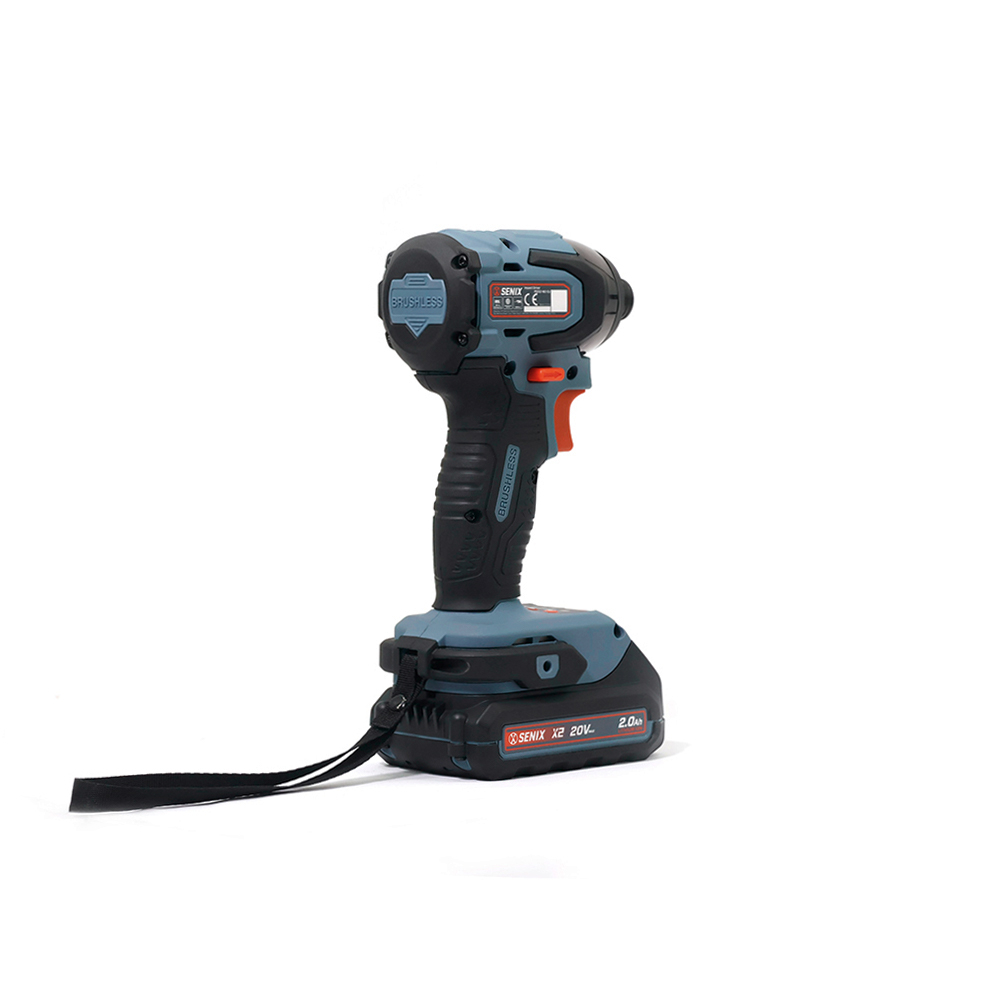

20V Brushless 6.35mm(1/4'') 4-Speed Drill Driver
PDIX2-M2-EU
(5.0)KEY FEATURES

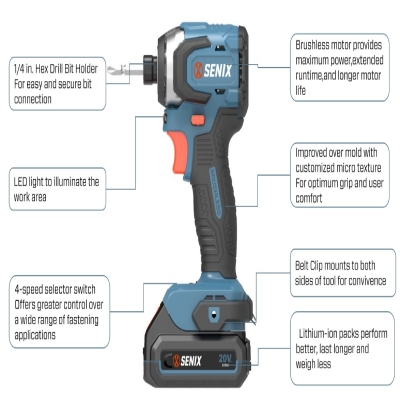

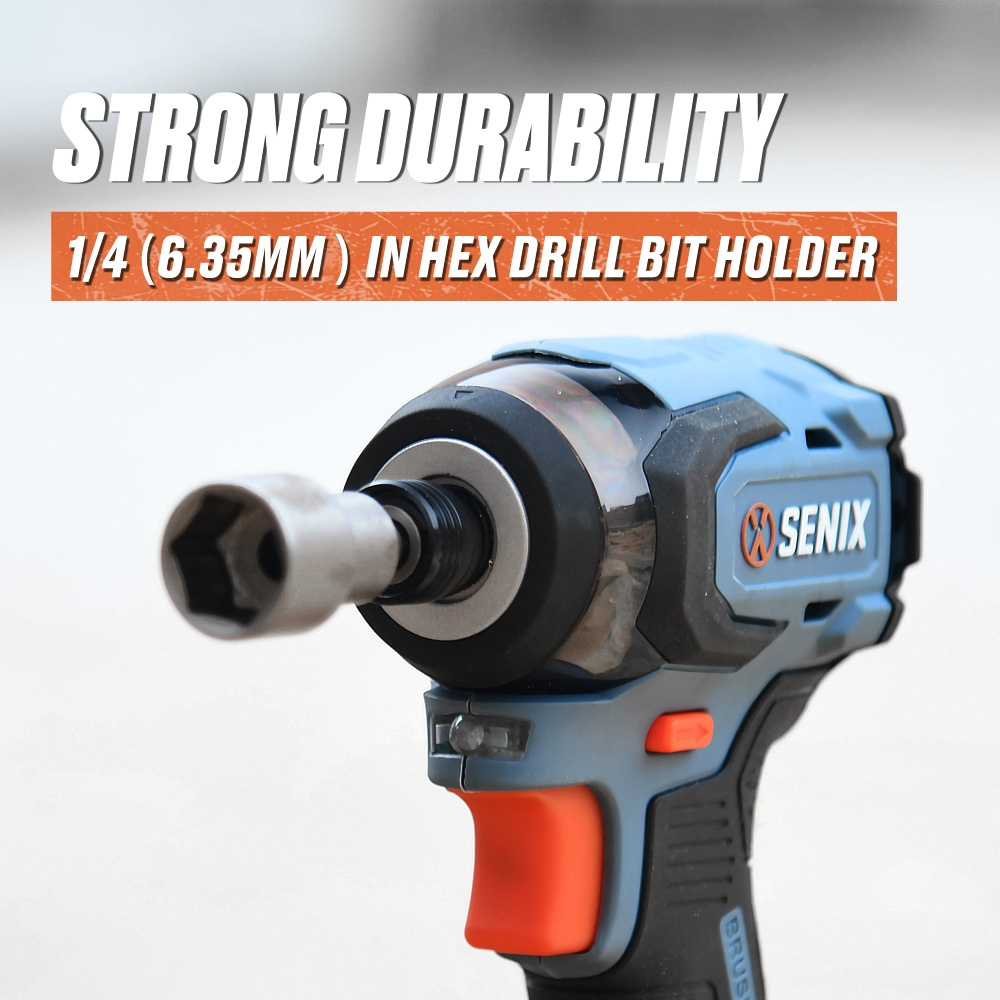

1/4" Hex Drill Bit Holder – Enables fast, easy, and secure bit changes for greater efficiency on the job.

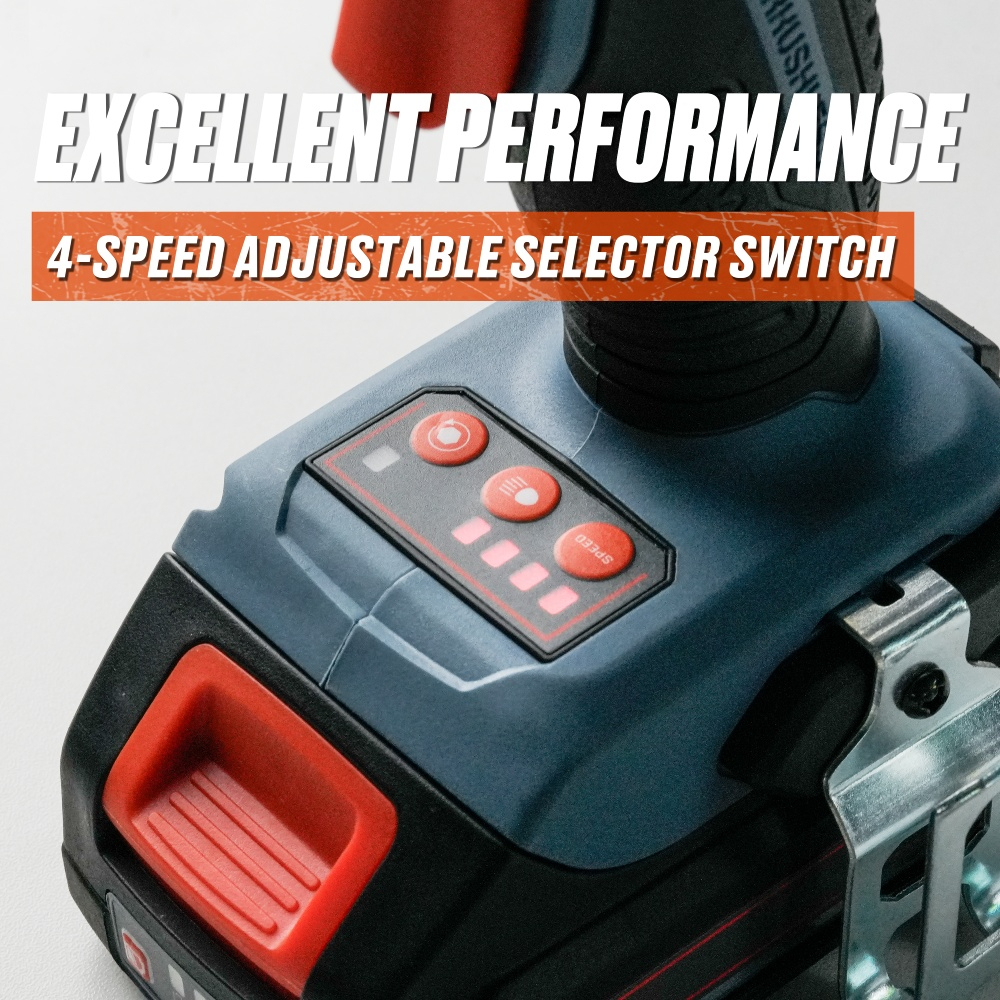

4-Speed Selector Switch – Offers precise control across various fastening tasks, from light-duty to heavy-duty applications.
Brushless Motor Technology – Delivers powerful performance, longer runtime, and increased motor lifespan with reduced maintenance needs.

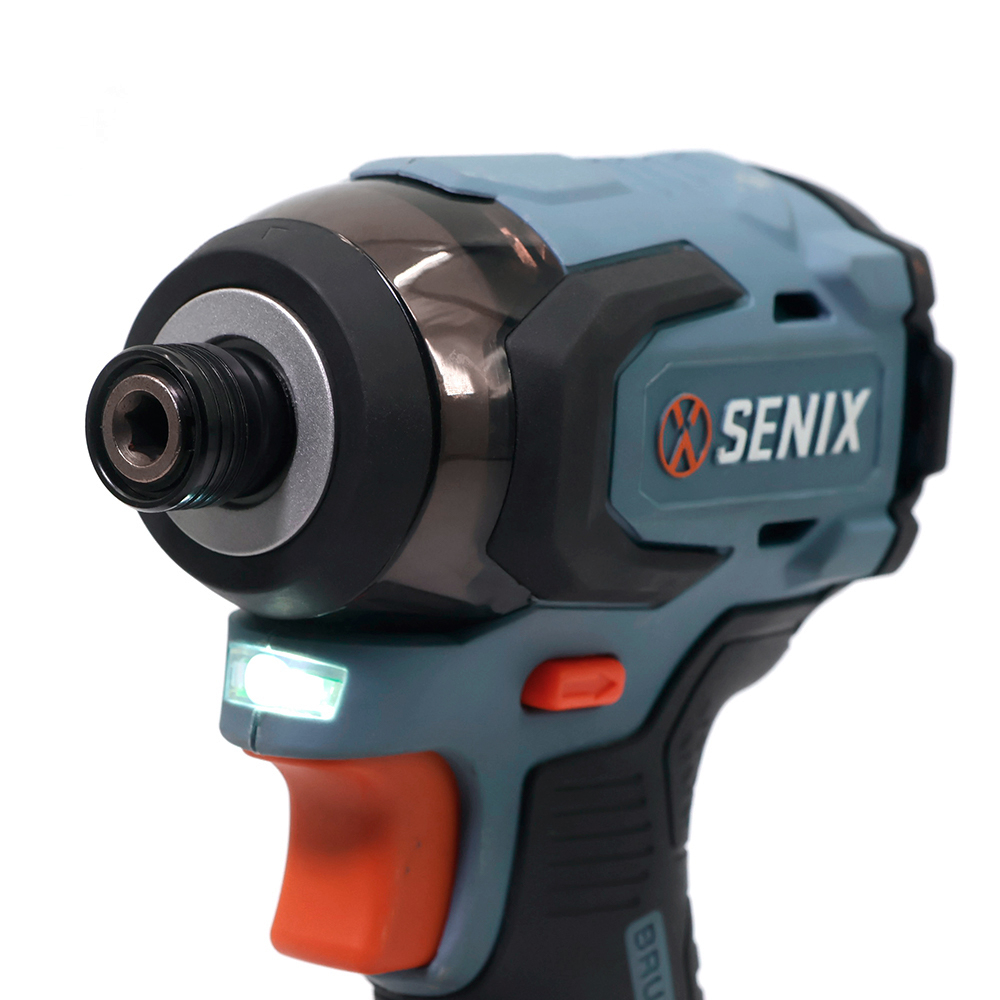

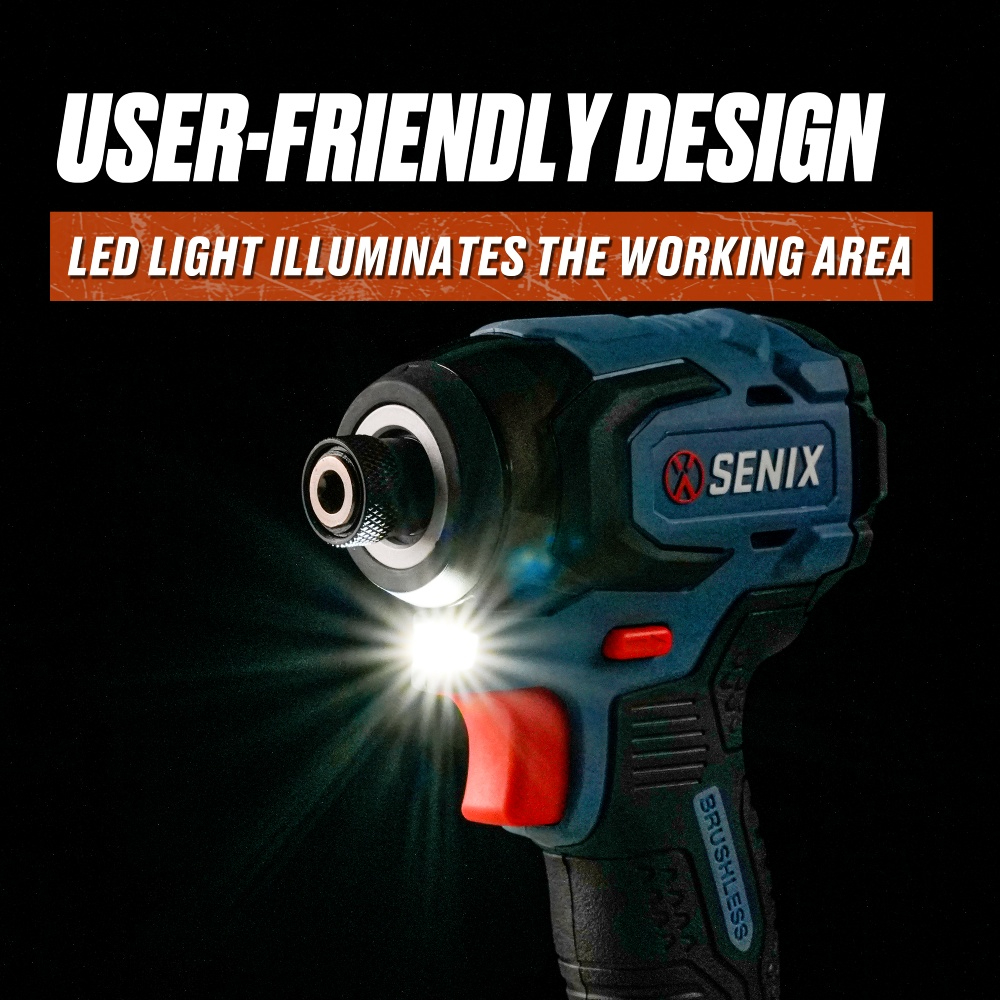

LED Work Light – Brightens the workspace, making it easier to operate in dim or tight areas.

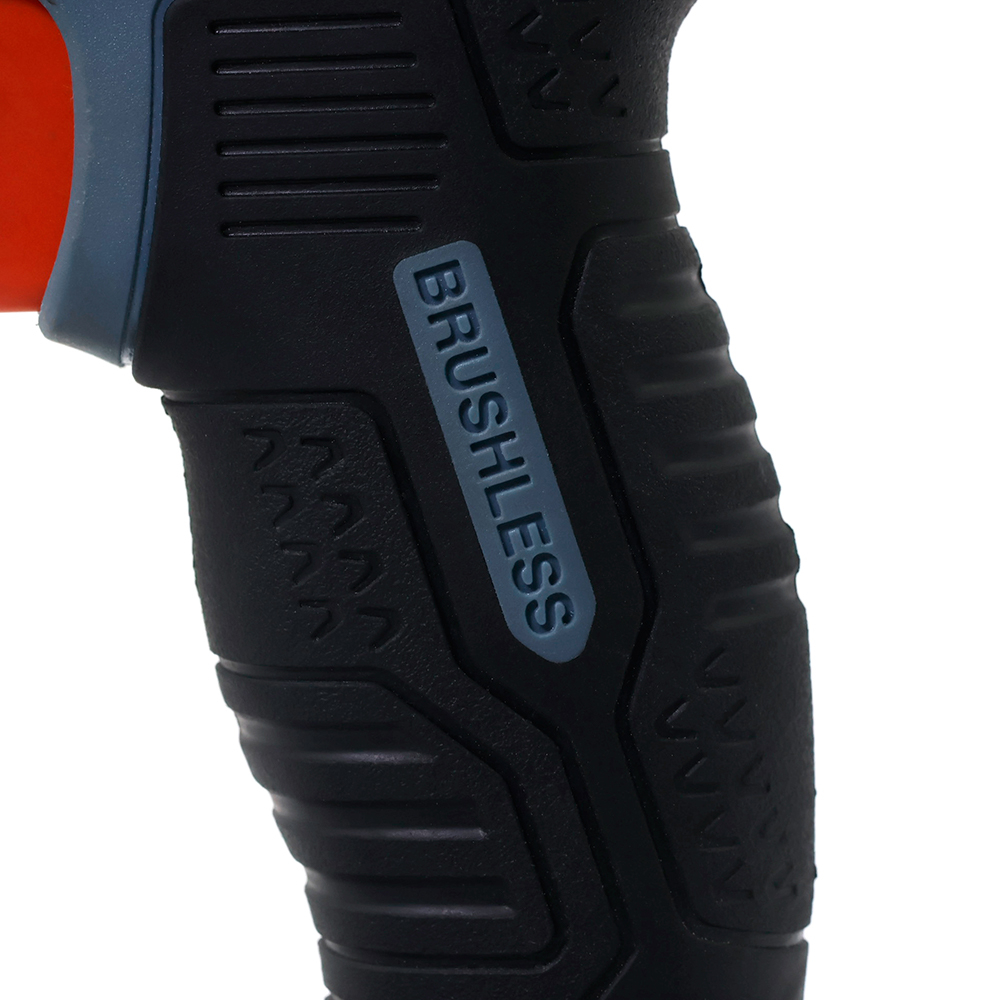

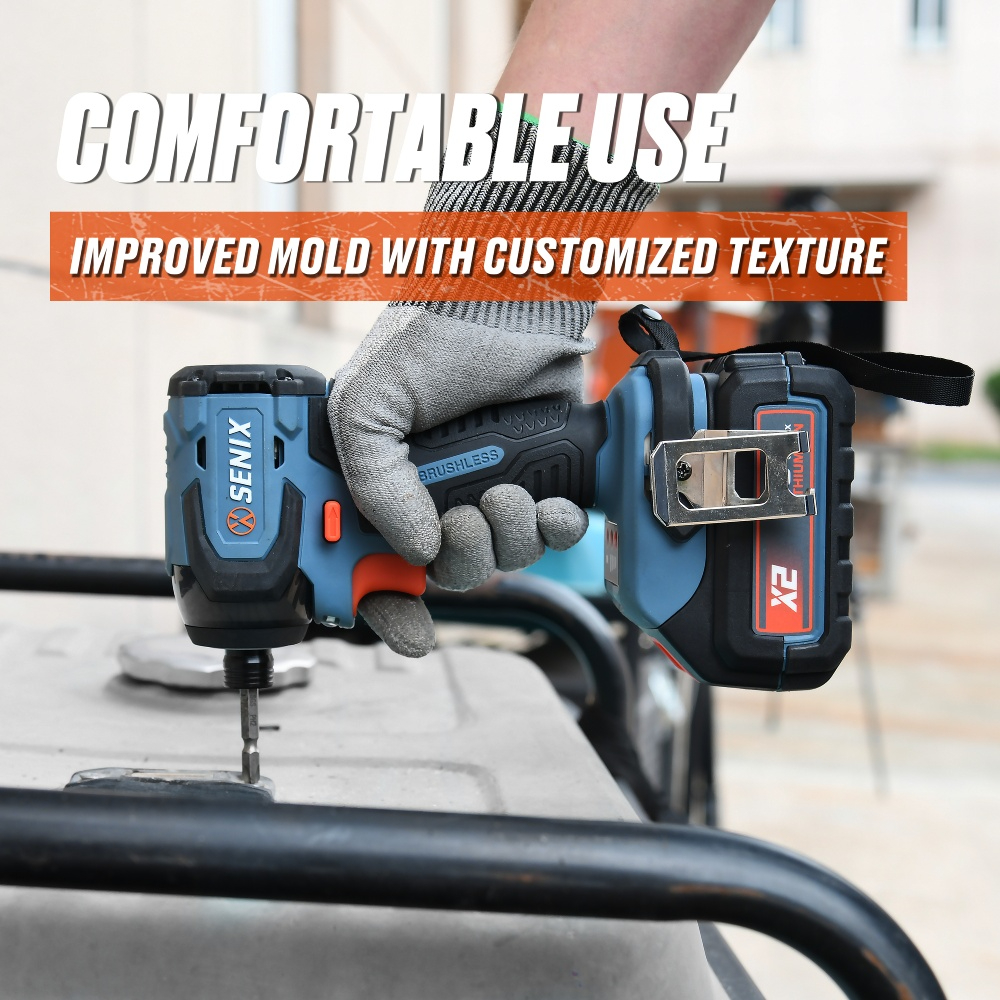

Ergonomic Overmold Grip – Features a customized micro-textured surface for better comfort and control during prolonged use.

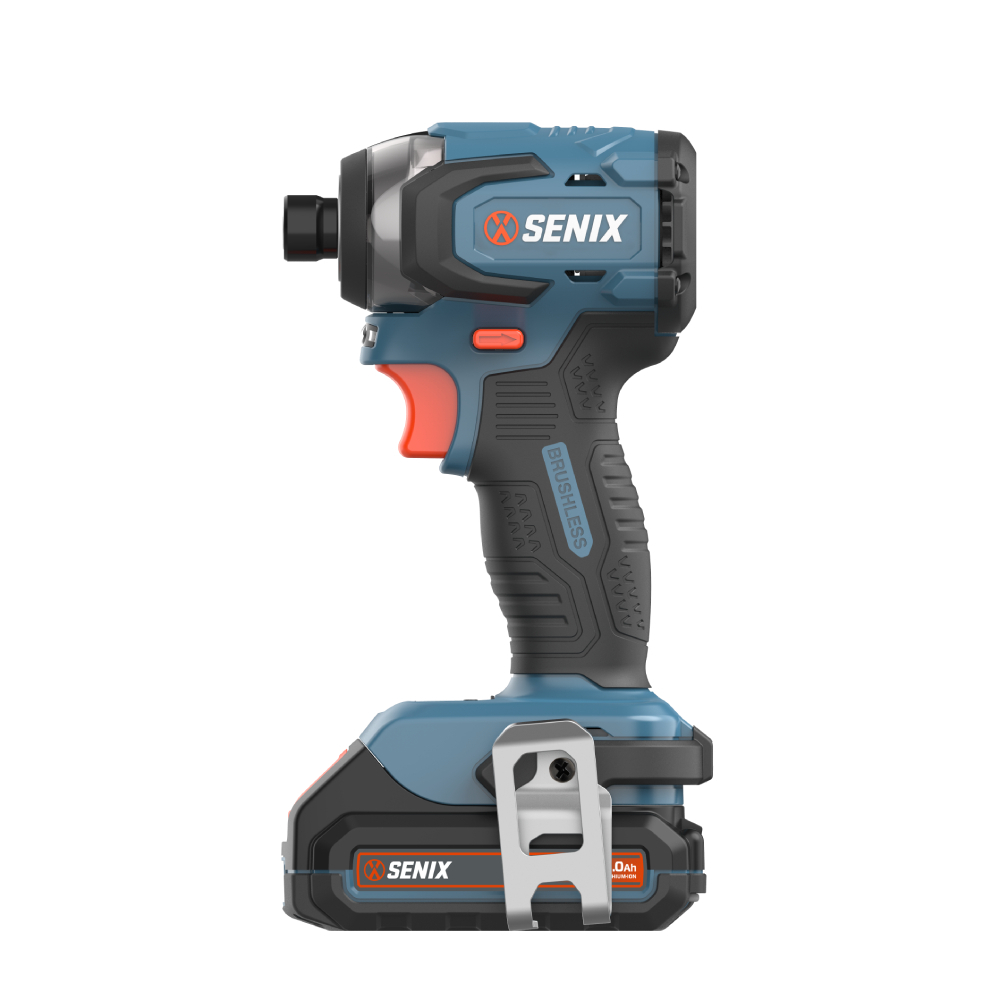

Dual-Side Belt Clip – Allows convenient tool hanging on either side for left- or right-handed users.
Compact & Lightweight Design – Weighs just 0.90 kg, reducing user fatigue and improving maneuverability in tight spots.

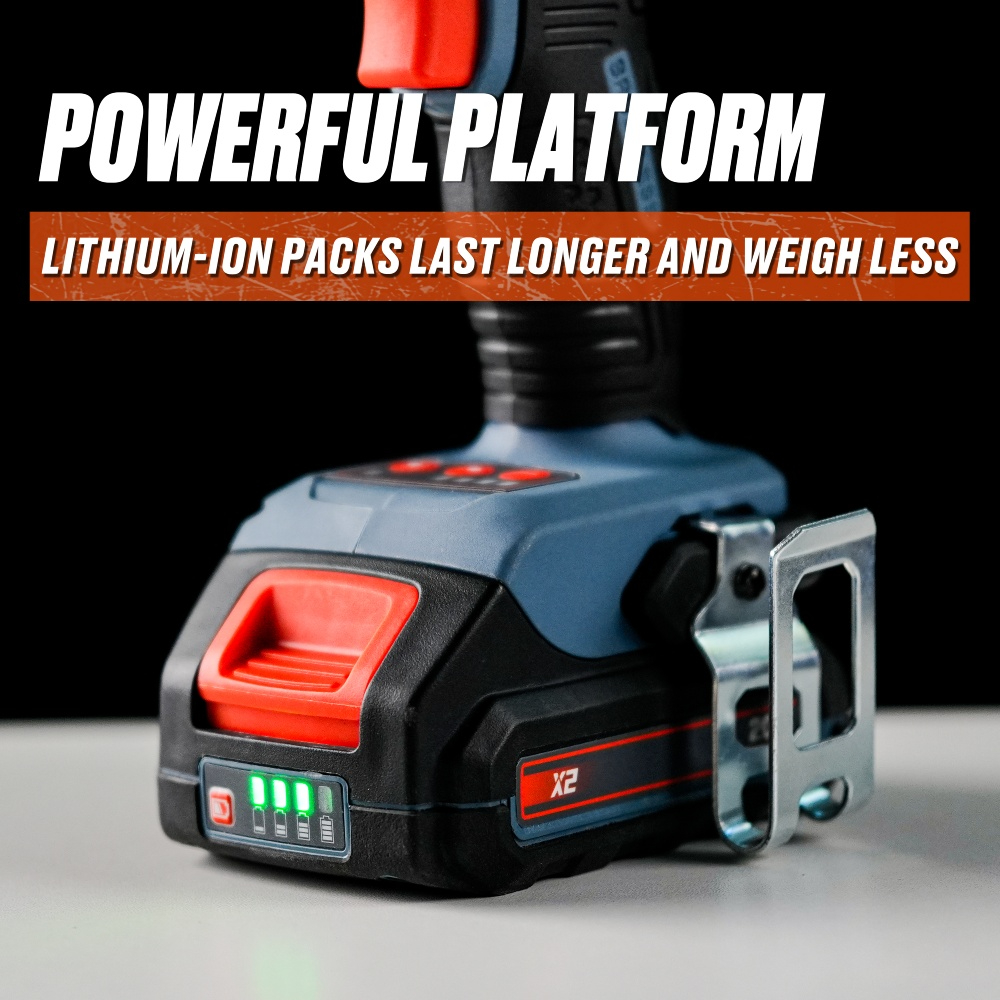

Lithium-Ion Battery Compatibility – Supports high-performance SENIX 20V Max battery packs for extended use and less downtime.
Versatile Fastening Range – Suitable for machine screws (M4–M8), standard bolts (M5–M16), and high tensile bolts (M5–M12).
TECHNICAL PARAMETERS
Model | PDIX2-M2-EU |
Voltage | 20V Max DC |
Motor Type | Brushless |
Chuck Size | 1/4" （6.35mm） |
No Load Speed | 0-1100/0-2100/0-3000/0-3300 RPM |
No-Load IPM | 0-1100/0-2600/0-3600/0-3800 IPM |
Max. Fastening Torque | 180Nm |
Speed Power Selection | 4-Mode |
Fastening Capacities | Machine screw: M4-M8 Standard bolt: M5-M16 High tensile bolt: M5-M12 |
Work Amount (approx) | 536 pcs M5 X 70mm bolts on wood per 5Ah battery |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE |
Machine Weight (Tool Only) | 0.90 kg |
Machine Size | 115*77*189.5mm |
Color Box Size | 215*130*85mm |
SUPPORT
Product Overview

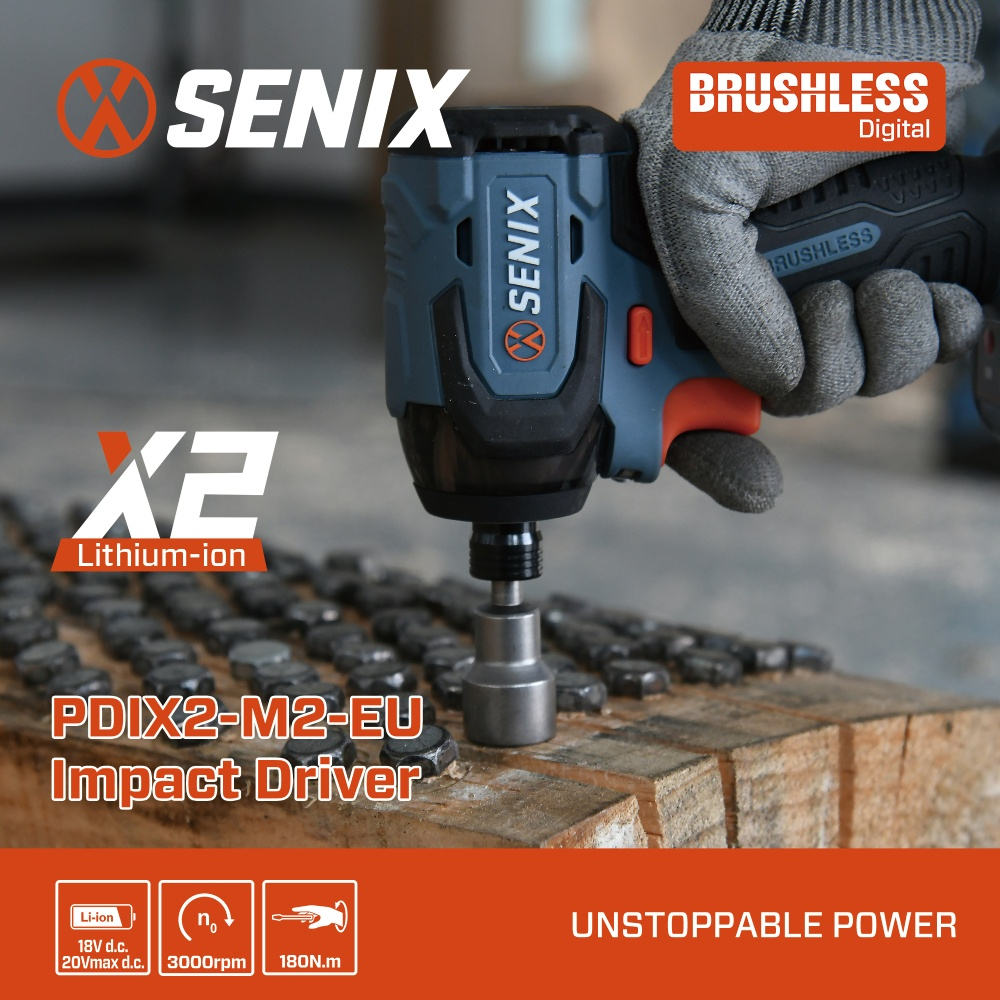

The SENIX 20V Brushless 6.35mm (1/4") 4-Speed Drill Driver is engineered for professionals and serious DIYers who demand power, precision, and control. Featuring a robust brushless motor that delivers up to 180Nm of torque, so this tool easily handles heavy-duty fastening tasks. The 4-speed mode selector offers customizable performance for different applications—from delicate machine screws to high-torque bolts. Its compact and lightweight form factor (0.90 kg) reduces user fatigue, while the 1/4" hex chuck enables fast, tool-free bit changes.
A built-in LED light improves visibility in dark spaces, and the micro-textured overmold provides secure, comfortable handling. Whether assembling furniture, driving large bolts, or tackling complex installations, this drill driver delivers consistent performance. Compatible with SENIX 20V lithium-ion batteries, it also ensures extended runtime and overall efficiency. Ideal for construction, repair, and home improvement jobs.
Usage Scenarios

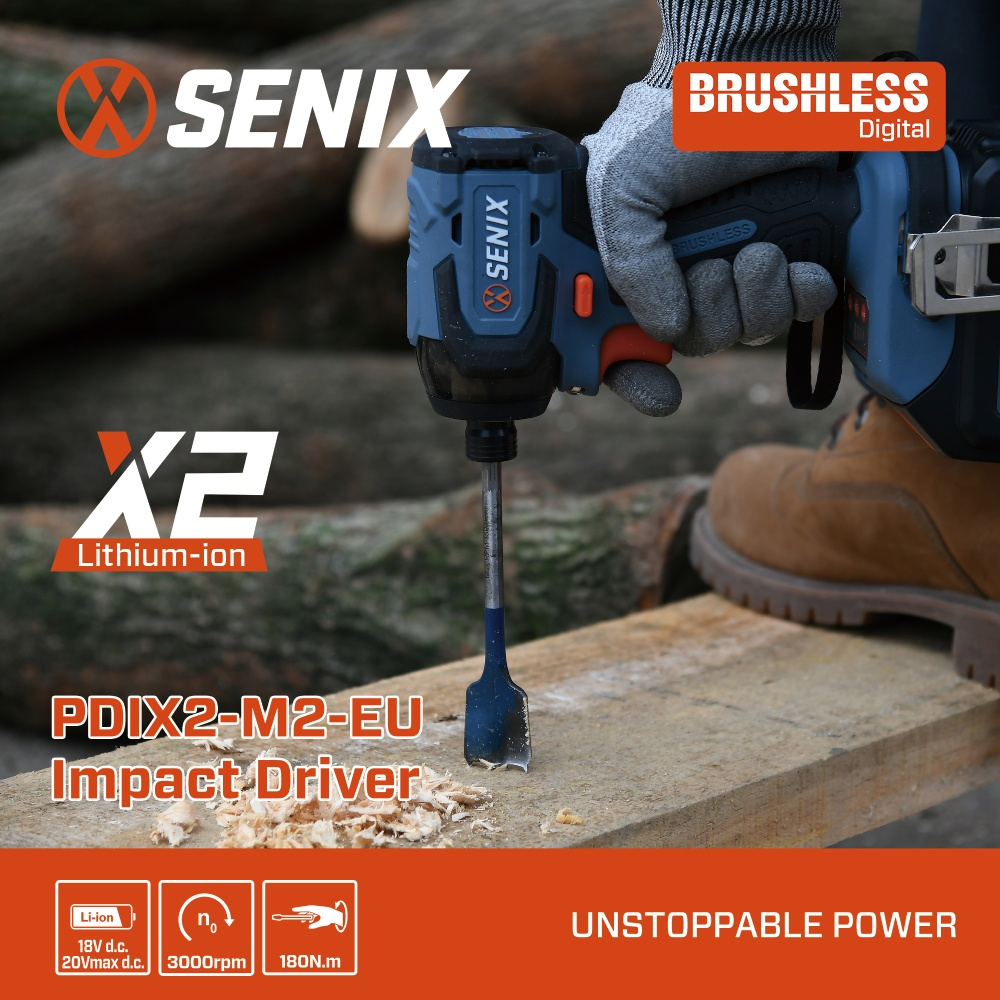

Drilling: Suitable for drilling into a wide range of materials such as concrete, brick walls, wood, and steel plates.
Screw Driving: Equipped with screw-driving capabilities, ideal for tasks like furniture assembly and electrical appliance repair.
Home Improvement Projects: Perfect for installing lighting fixtures, hanging pictures, and mounting storage racks in kitchens or bathrooms.
Maintenance Work: Useful for reinforcing loose furniture and removing outdated wall decorations or fittings.
Unrecommended Conditions
Extremely Hard Rock Formations: The tool may not penetrate dense rock layers, which could damage the drill bit or mechanical parts.
Excessive Drilling Depths: As depth increases, impact force may decrease, preventing the bit from effectively penetrating rock or compacted soil.
Very Soft Soil Layers: Drill bits may become stuck or difficult to extract due to excessive sinking into soft soil.
Fragile Materials: Not recommended for use on glass, ceramics, or delicate stone, as the impact function may cause cracking or shattering.
Special Metal Structures: Thin-walled tubes, fine wires, or sheet metal may deform or be damaged by the hammer drill's impact action.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: Can I use this drill driver for automotive work or assembling machinery?
A: Yes, the 180Nm maximum torque and 4-speed settings make it suitable for tasks like fastening bolts on vehicles, machinery assembly, and general mechanical maintenance.
Q2: Does it support one-handed bit changes?
A: Yes, the 1/4" hex chuck allows for quick, tool-free, one-handed bit insertion and release, saving time during fast-paced tasks.
Q3: Is this tool compatible with impact-rated screwdriver bits?
A: Absolutely. For optimal performance and safety, especially at higher speeds or torques, we recommend using impact-rated bits.
Q4: What battery should I use for best performance?
A: For extended work sessions and higher power demand, a SENIX 20V Max lithium-ion battery is recommended.
Q5: Can I use this tool for precision tasks like electronics or cabinetry?
A: While the tool is powerful, its variable speed control and ergonomic grip allow for controlled driving in delicate applications when set to lower speed modes.
Q6: Is the LED light always on when using the tool?
A: The built-in LED light activates automatically when the trigger is engaged, providing clear visibility in dimly lit or tight spaces.
Q7: Can I attach a belt clip or hook for easier carrying?
A: Yes, the drill driver includes a dual-side belt clip mounting design for convenience, allowing left- or right-handed users to carry it securely during jobs.
