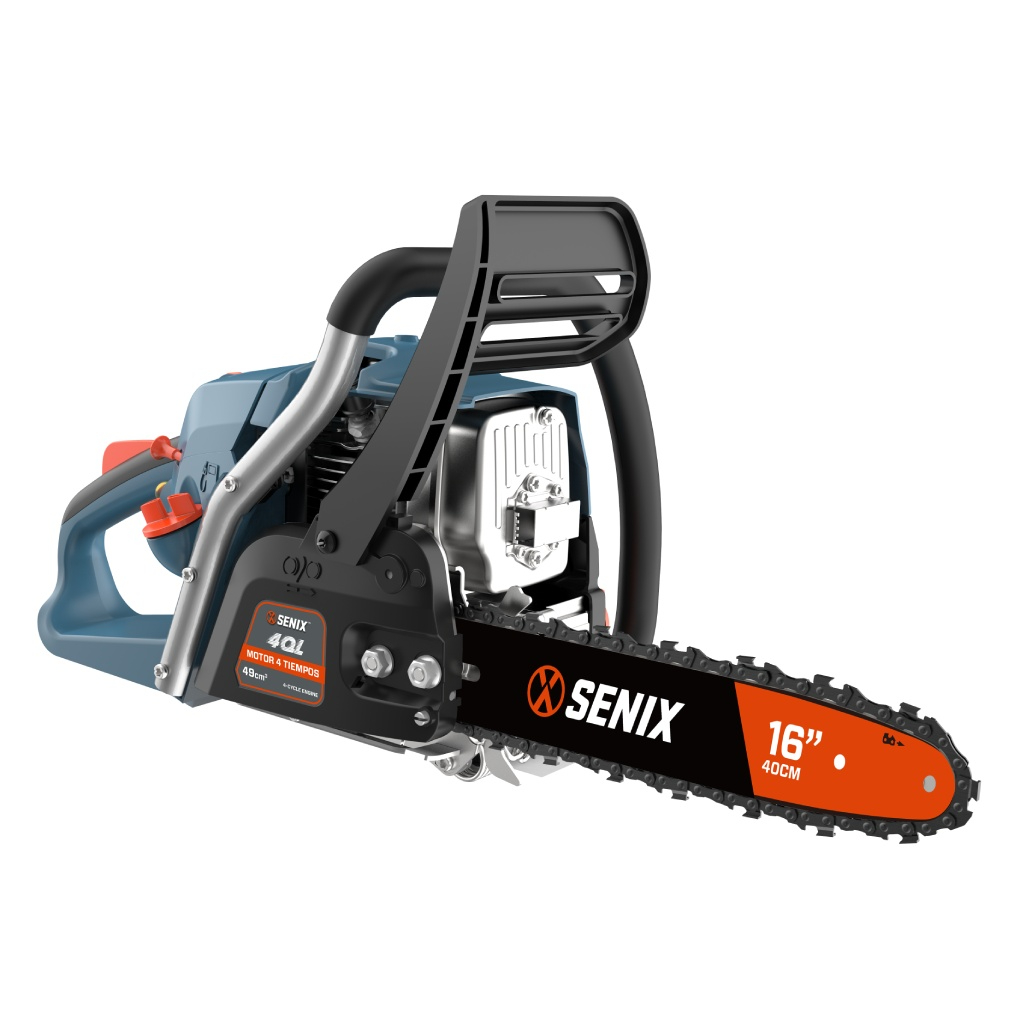

4QL® 49cc 4QL 40cm(16'') Chain Saw
4QL® 49cc 4QL 40cm(16'') Chain Saw

4QL® 49cc 4QL 40cm(16'') Chain Saw

CS4QL-L-EU

(5.0)

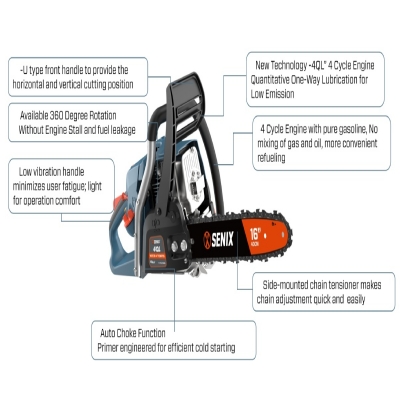

  • U type front handle to provide the horizontal and vertical cutting position;

  • Available 360 Degree Rotation ;

  • Without Engine Stall and fuel leakage;

  • Low vibration handle minimizes user fatigue; light for operation comfort;

  • Auto Choke Function;

  • Primer engineered for efficient cold starting;

  • New Technology -4QL” 4 Cycle Engine Quantitative One-Way Lubrication for  Low Emission;

  • 4 Cycle Engine with pure gasoline, No mixing of gas and oil, more convenient refueling;

  • Side-mounted chain tensioner makes chain adjustment quick and easily.

KEY FEATURES

TECHNICAL PARAMETERS

Model

CS4QL-L-EU

Powerful Engine

4-cycle engine

Displacement

49cc

Rated Output Power

1500W

No Load Speed

7500RPM

Chain Speed

18m/s

Chain & Bar Length

40cm(16'')

Chain Pitch

9.5mm

Number of Drive Links

57

Chain Gauge

1.3mm

Lubrication Type

Automatic

Fuel Tank Capacity

400ml

Oil Tank Capacity

100ml

Chain Oil Tank Capacity

300ml

Machine Weight(tool only)

5.7kg
