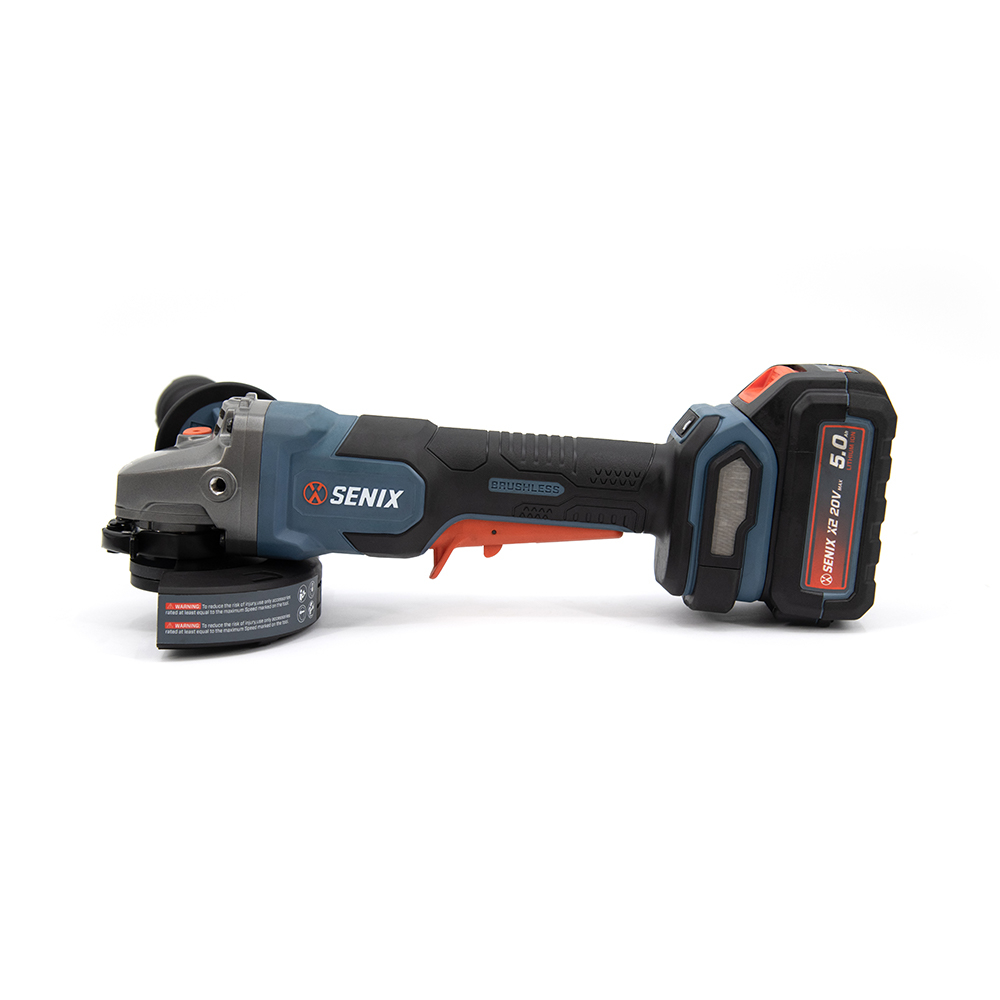

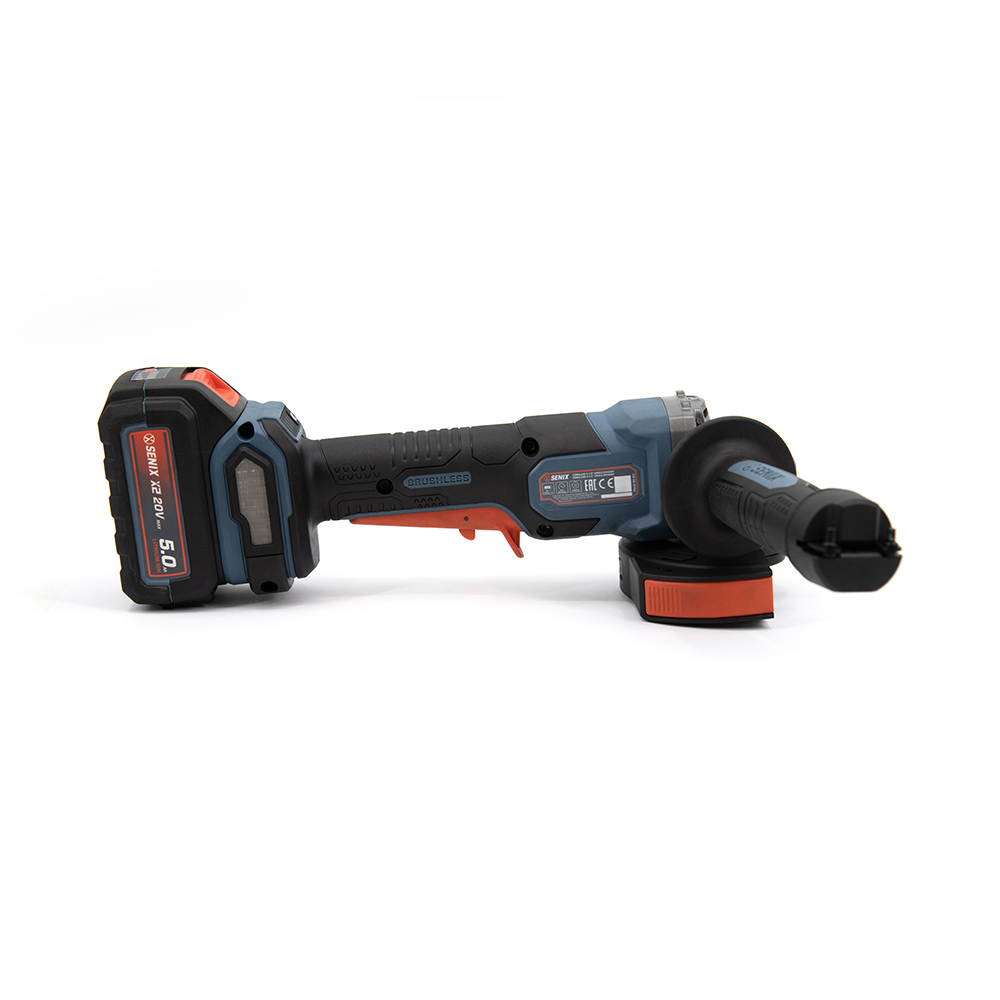

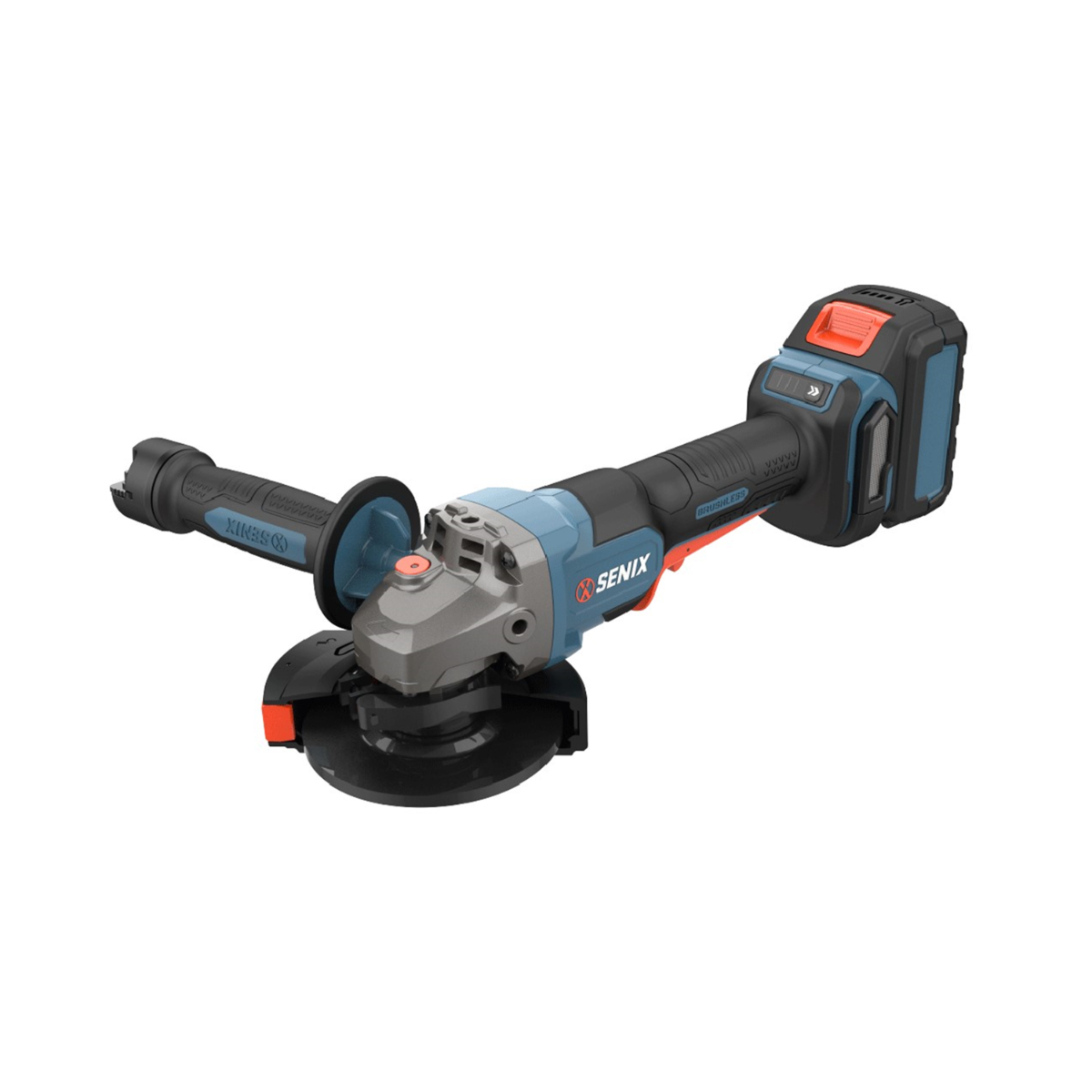

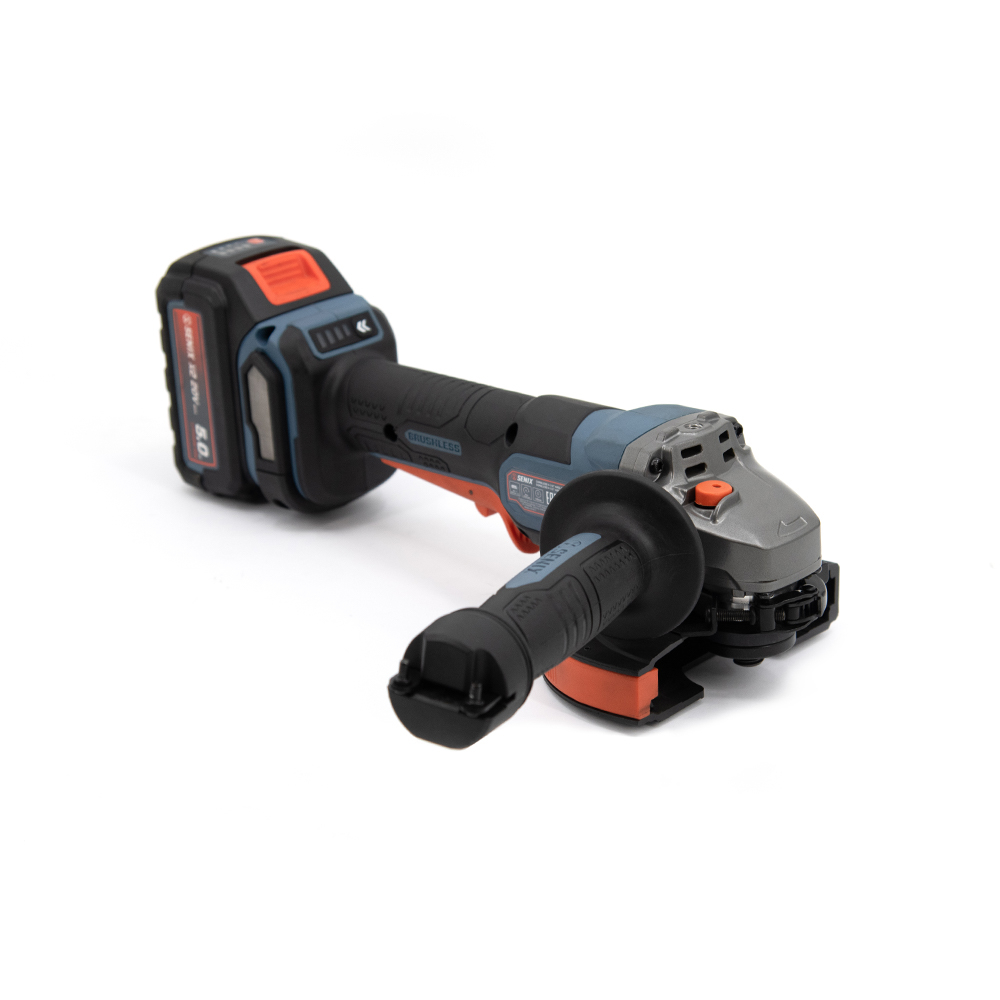

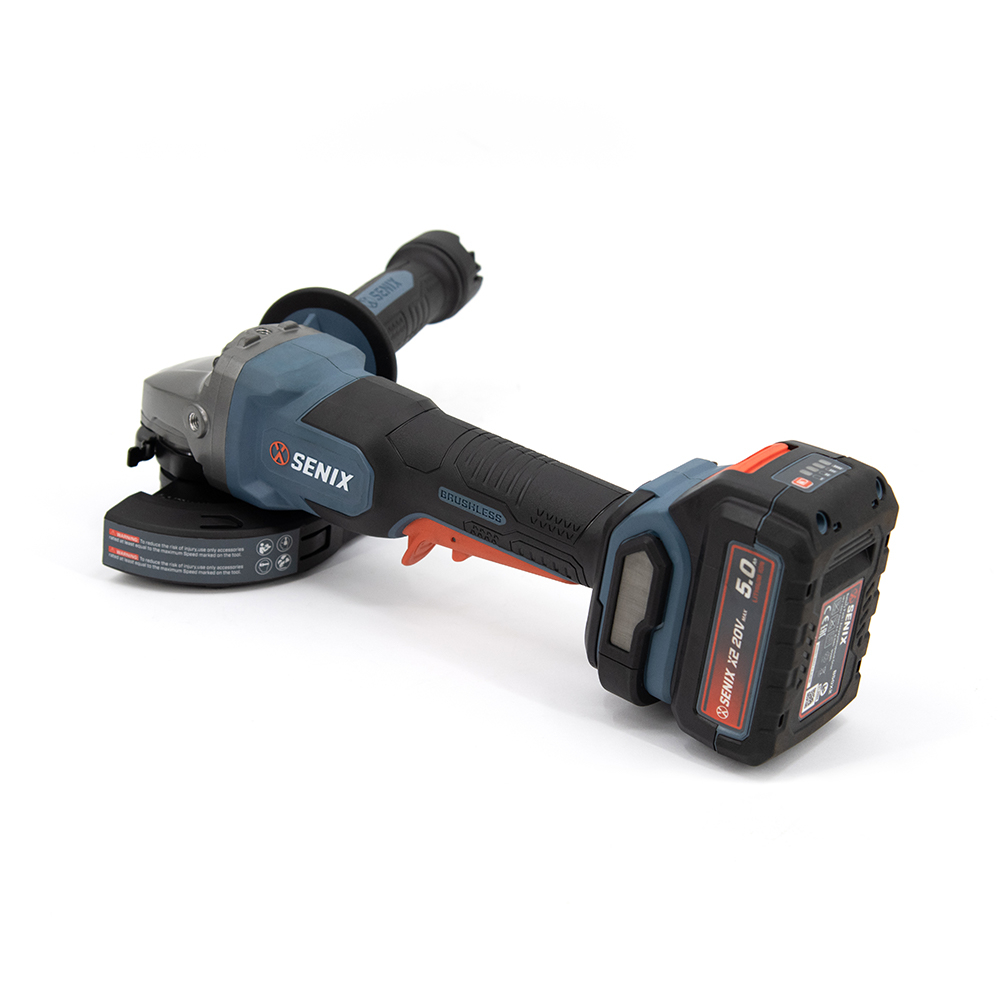

20V Brushless 115mm(4-1/2'') Paddle Switch Angle Grinder
PAX2-M1-EU
(5.0)Take on demanding cutting and grinding tasks with the SENIX 20V Brushless 115mm Paddle Switch Angle Grinder. Designed for pros and DIYers alike, it delivers 8,500 RPM, tool-free adjustments, and extended runtime—all in a lightweight, ergonomic design that’s comfortable for prolonged use and tough enough for any job.

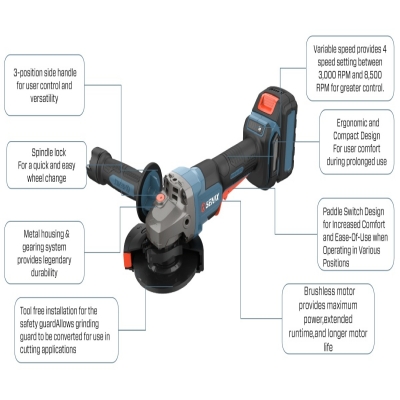

KEY FEATURES

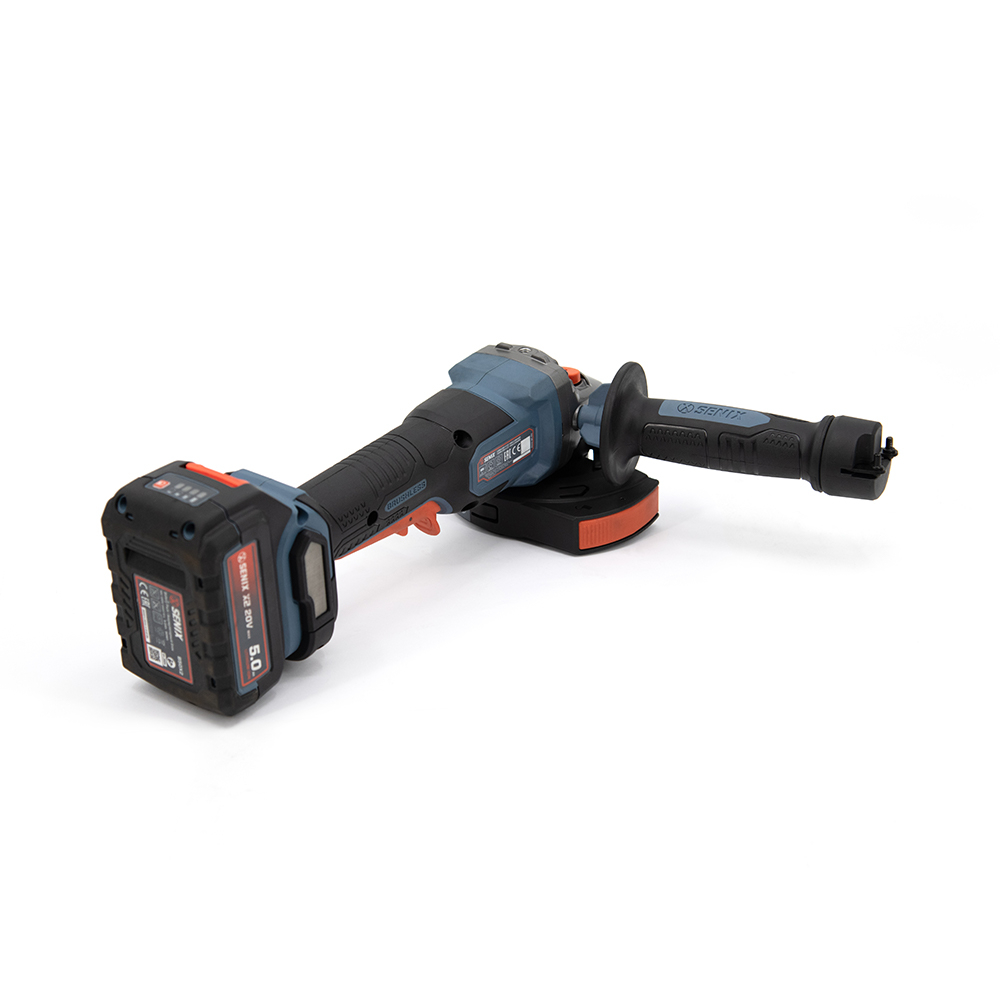

3-Position Side Handle – Provides enhanced control and flexibility for various grinding and cutting angles.

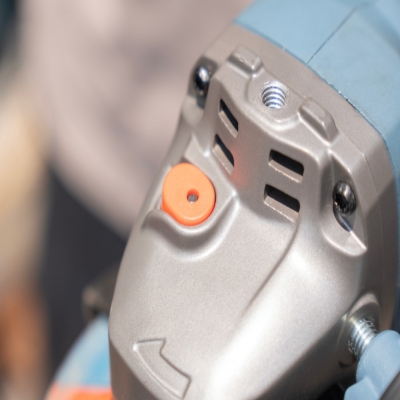

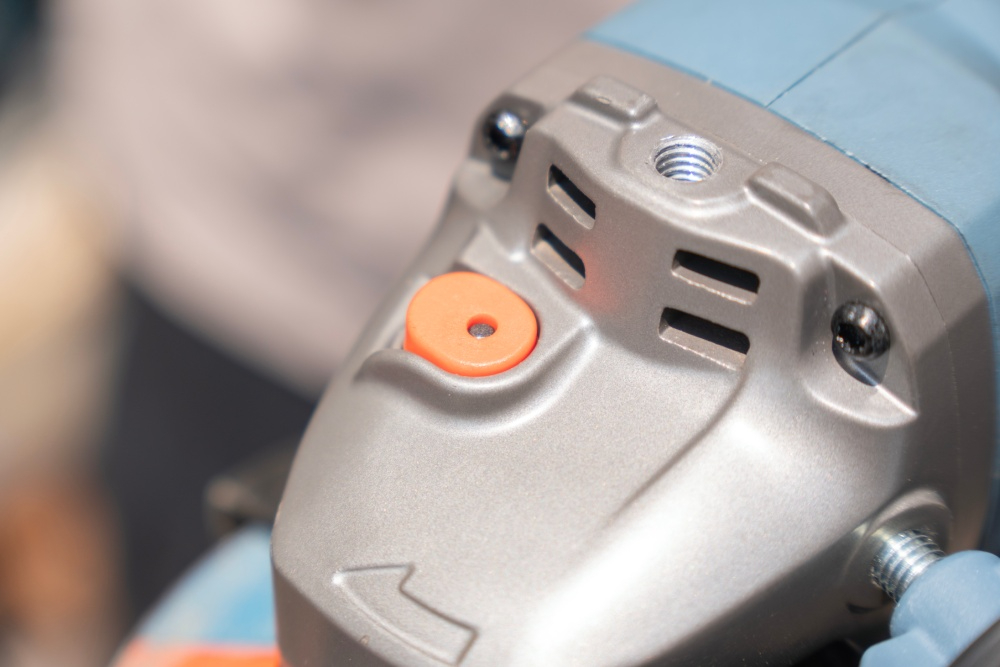

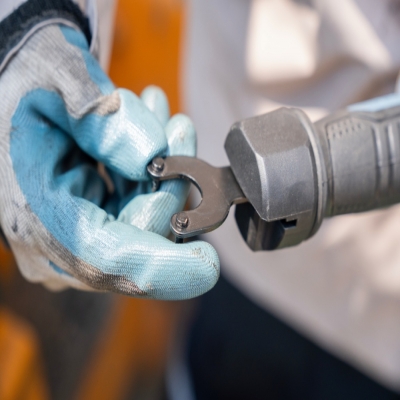

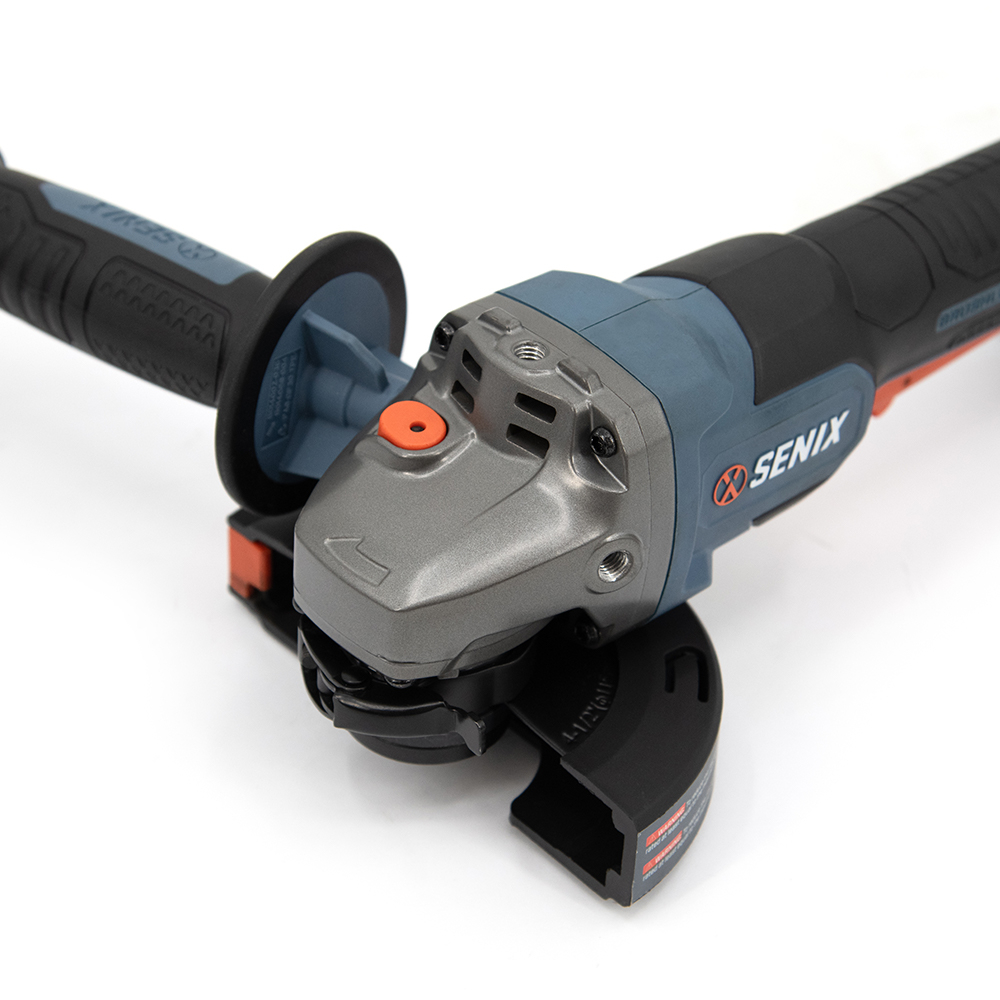

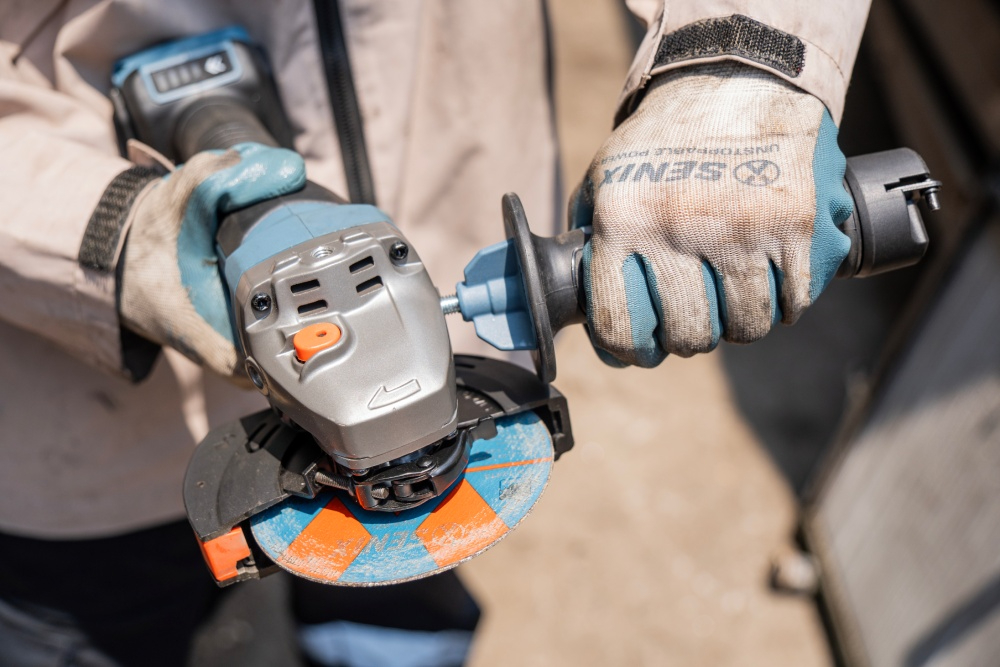

Spindle Lock – Enables quick and easy disc changes to minimize downtime.
Durable Metal Housing & Gearing – Built for legendary toughness and long-term durability in demanding conditions.

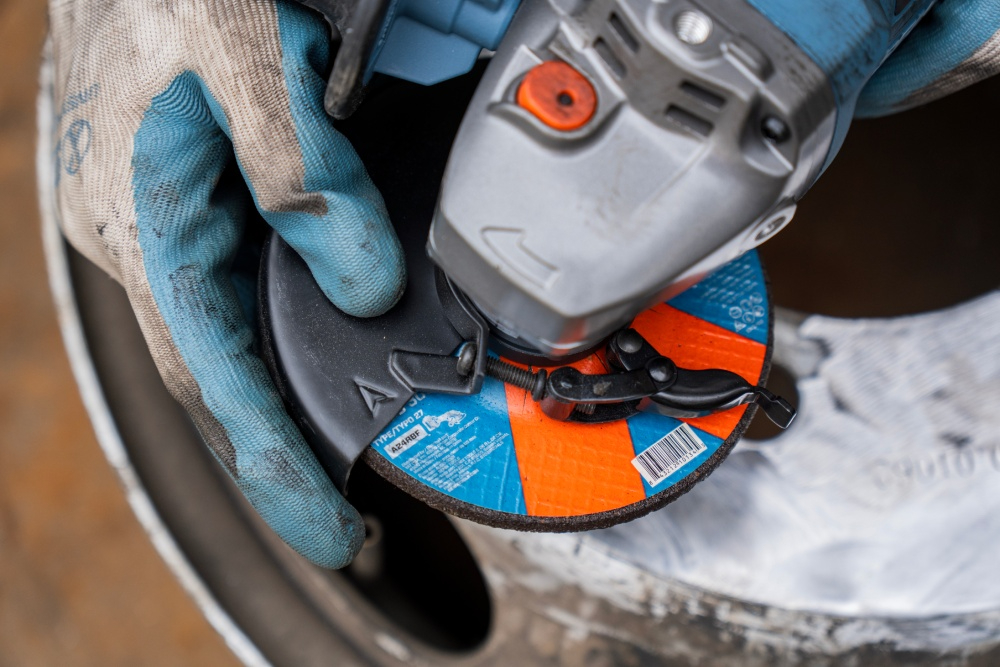

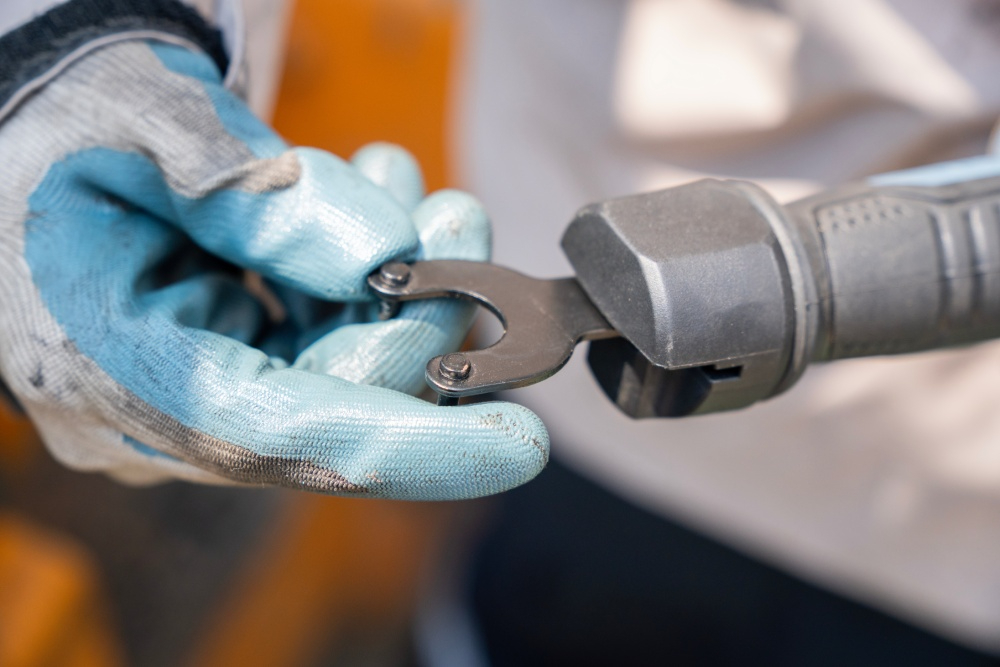

Tool-Free Guard Adjustment – Allows fast and safe switching between grinding and cutting applications without extra tools.

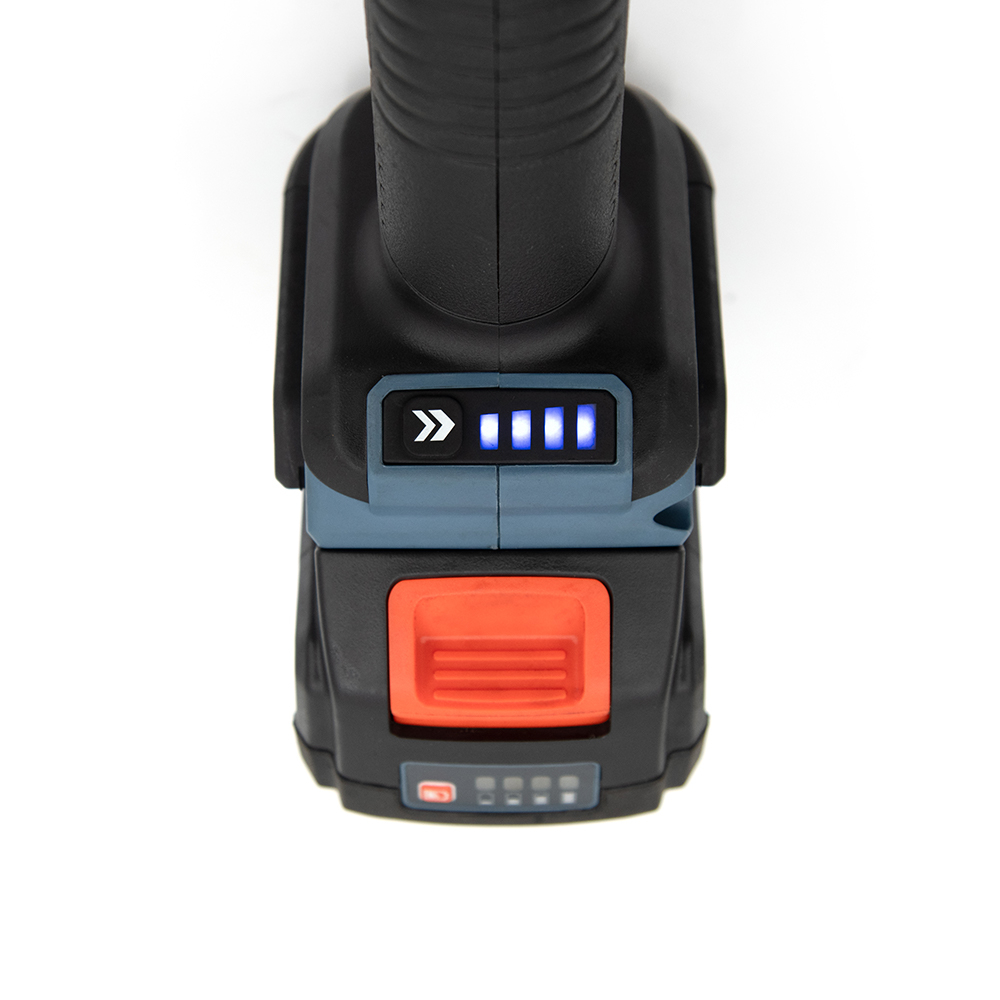

Variable Speed Control – Four adjustable speeds (3,000 to 8,500 RPM) for precision performance across multiple materials.
Ergonomic & Compact Design – Lightweight and user-friendly, reducing fatigue during prolonged use.

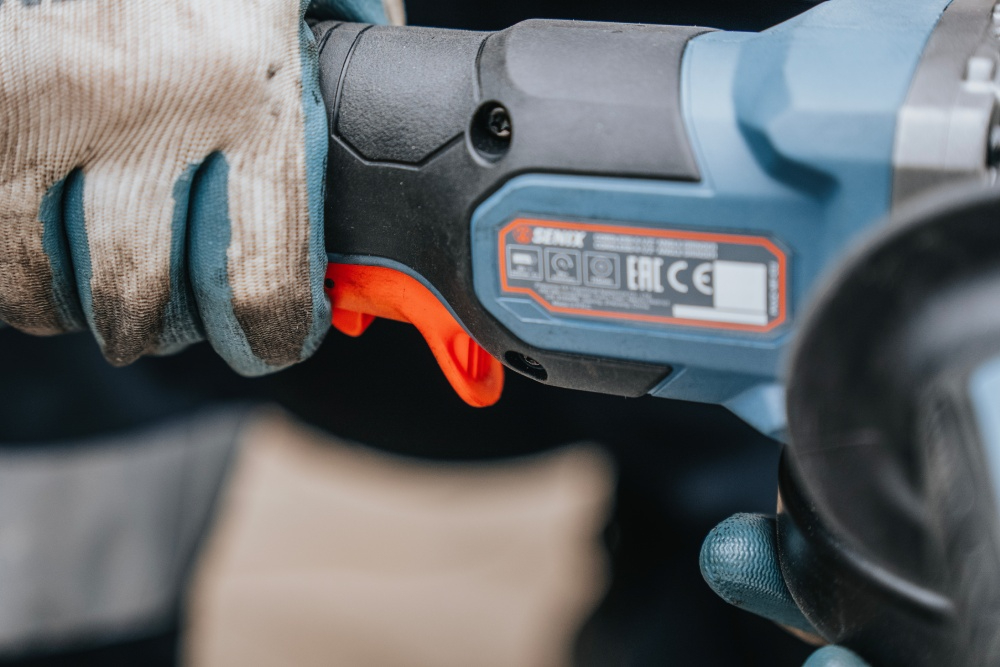

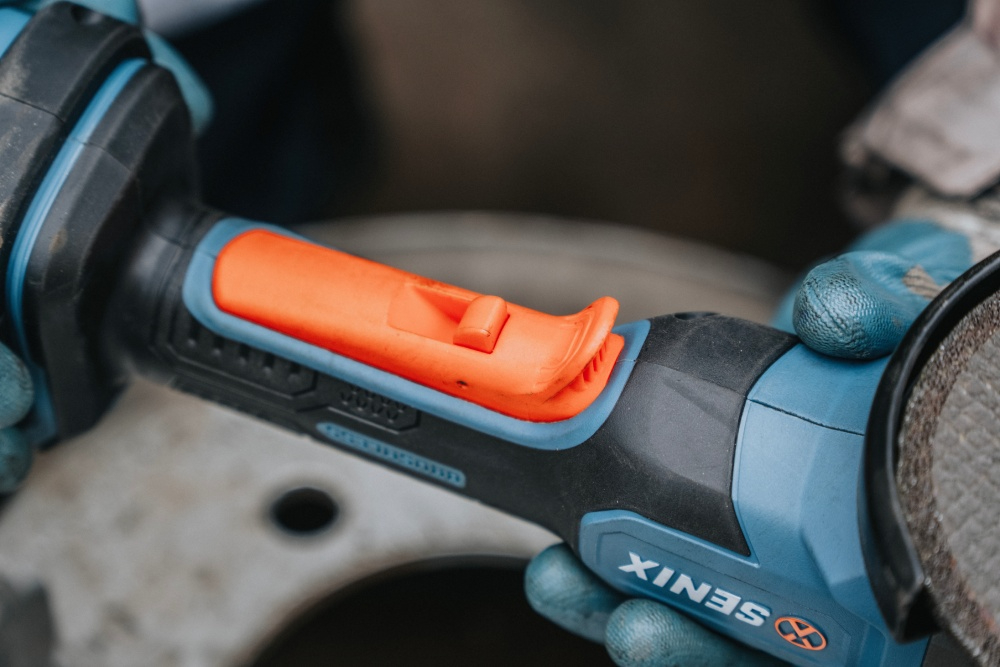

Paddle Switch Design – Offers increased comfort and safe operation in various working positions.
High-Efficiency Brushless Motor – Delivers maximum power, extended runtime, and longer motor lifespan.
TECHNICAL PARAMETERS
Model | PAX2-M1-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 3000/4500/6000/8500RPM |
Max. Disc Diameter | 115mm(4-1/2'') |
Spindle Thread | M14 |
Hole Dia. of Wheel | Φ22.23mm |
Work Amount (approx.) | Cutting 1.6m long & 16mm depth Concrete plate with 5Ah battery |
Machine Weight (Tool Only) | 1.9 kg |
Recommended Operating Temperature | -15°C ～ 40°C |
Recommended Storage Temperature | -20°C ～70°C |
Certification | CE |
Machine Size | 311*148*124mm |
Color Box Size | 338x188x123mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 115mm (4-1/2'') Paddle Switch Angle Grinder is engineered to deliver professional-grade performance with compact, user-friendly design. Weighing just 1.9 kg (tool only), this grinder is built for maximum control, comfort, and cutting efficiency.
Powered by a brushless motor, the tool provides up to 30% longer runtime and improved durability compared to traditional brushed motors. Its variable speed settings (3,000 to 8,500 RPM) allow users to tailor performance to different materials and applications, whether it’s metal, tile, or concrete.
The grinder features a 3-position side handle for enhanced versatility and ergonomic handling. A paddle switch offers intuitive, comfortable operation in multiple working positions. With a spindle lock for quick disc changes and tool-free guard adjustment, setup is fast and seamless—saving time on the job.
Built tough with metal housing and a rugged gearing system, it ensures long-lasting performance even in harsh conditions. The unit can cut through 16mm concrete plates up to 1.6m long using a 5Ah battery, demonstrating its capability on serious tasks. It's also winter-proof, designed to operate reliably in temperatures from -15°C to 40°C.
Compatible with standard M14 spindle threads and 115mm discs (with 22.23mm hole diameter), this grinder is CE certified and ready for use on construction sites, renovation projects, metal workshops, and more.

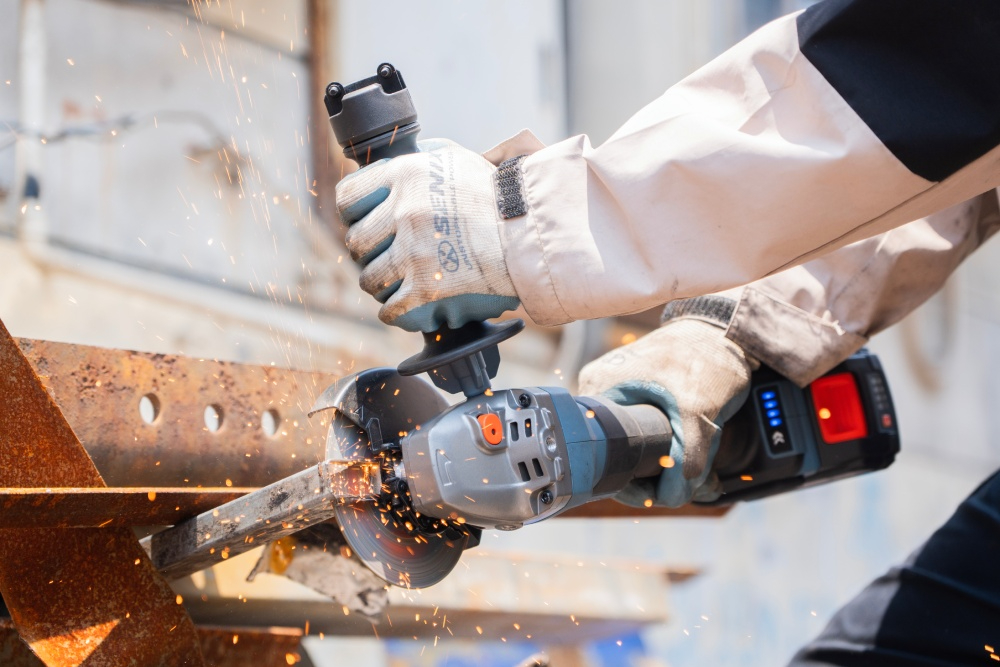

Usage Scenarios

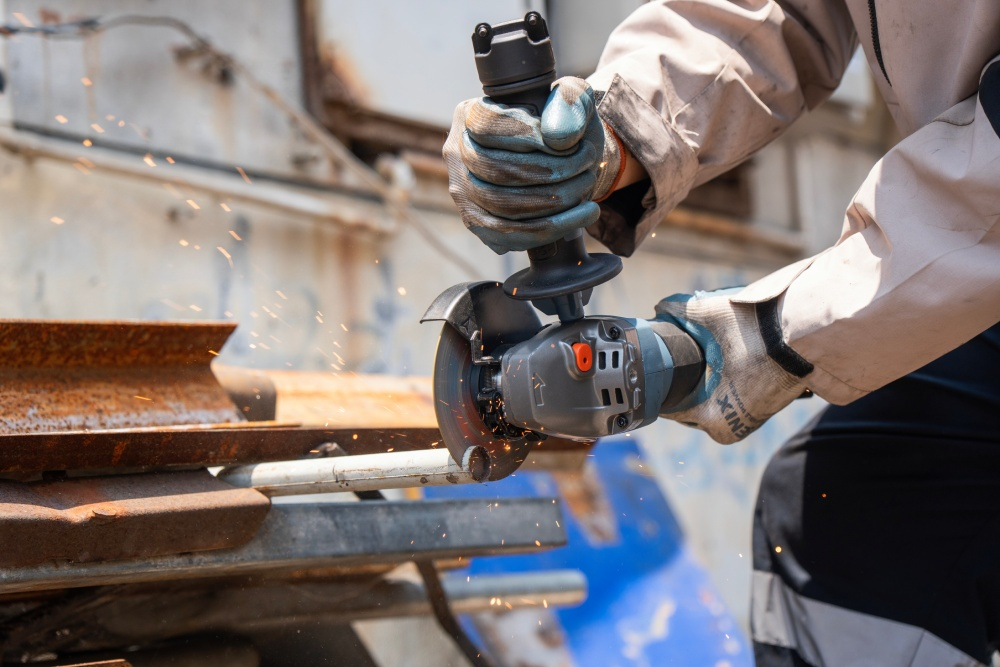

Construction Sites: Angle grinders are used for cutting, grinding, and polishing metal, improving work efficiency.
Renovation Projects: During renovations, angle grinders are used for cutting, grinding, and polishing metal materials to ensure quality results.
Metal Fabrication Workshops: Commonly used by metalworkers for cutting, grinding, and polishing metal components.

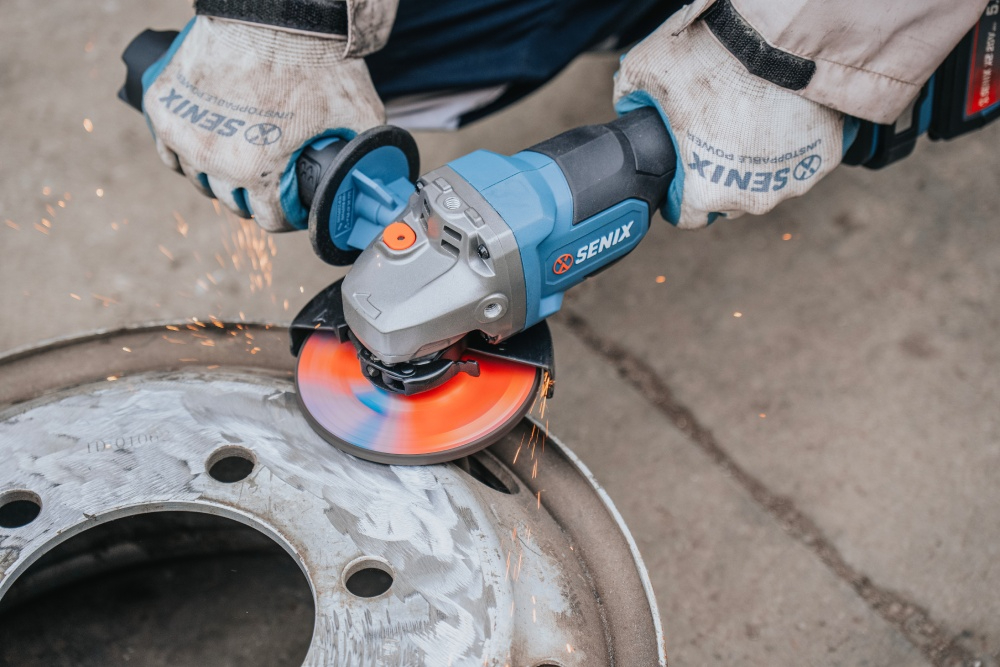

Other Metalworking Scenarios: Such as auto repair, pipeline maintenance, and more, where metal cutting and grinding are needed.
Unrecommended Conditions
Cutting Overly Thick Metal Materials: While angle grinders can cut metal, they are not suitable for very thick metals (e.g., hardened metal over 20mm thick). The cutting effect may be poor, and there are potential safety risks.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please contact us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What type of battery is recommended for optimal performance?

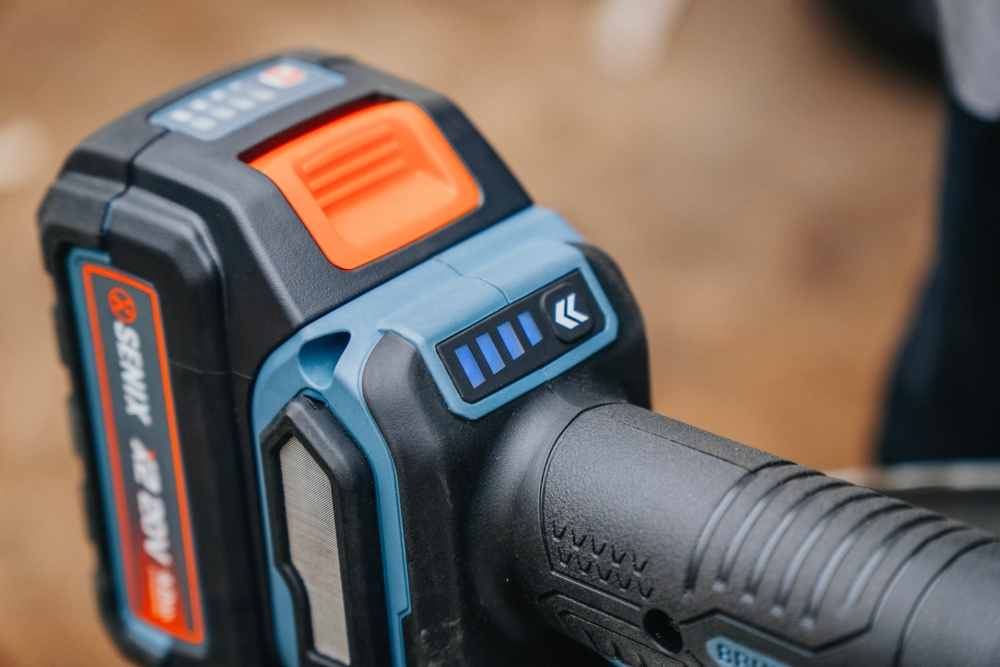

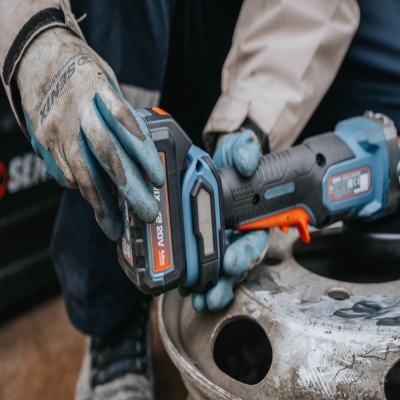

A: A 5Ah SENIX 20V MAX lithium-ion battery is recommended for ideal power and runtime.
Q2: Can this grinder cut through thick concrete?
A: It can effectively cut 16mm deep concrete plates up to 1.6m long with a 5Ah battery. For materials thicker than 20mm, other tools may be more suitable.
Q3: Is the guard adjustable without tools?
A: Yes, the safety guard can be installed and adjusted tool-free for quick switching between grinding and cutting modes.
Q4: Is the grinder safe to use in winter conditions?
A: Absolutely. It’s designed for reliable performance in temperatures as low as -15°C.
Q5: What disc size and thread type does it support?
A: The grinder supports 115mm (4-1/2'') discs with a 22.23mm hole and uses a standard M14 spindle thread.
Q6: Does it come with certifications?
A: Yes, the grinder is CE certified, ensuring compliance with European safety and performance standards.
