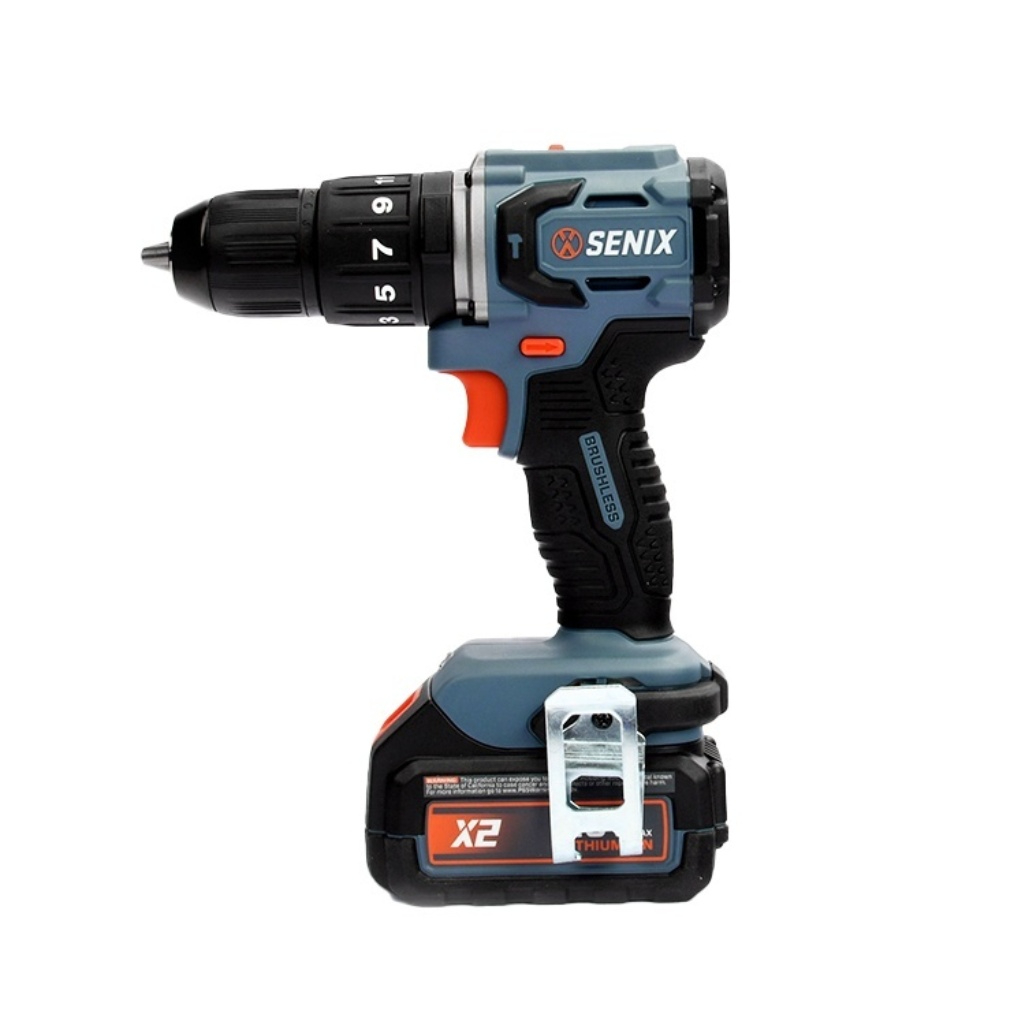

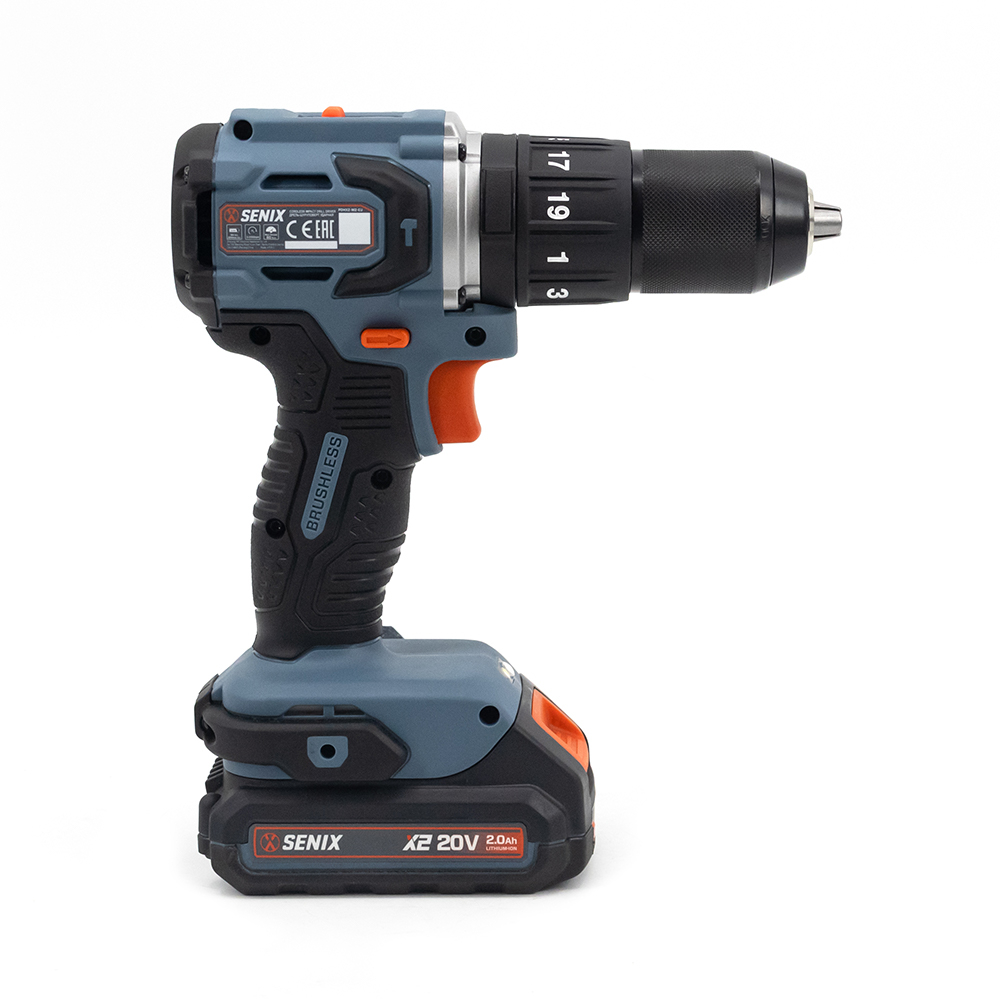

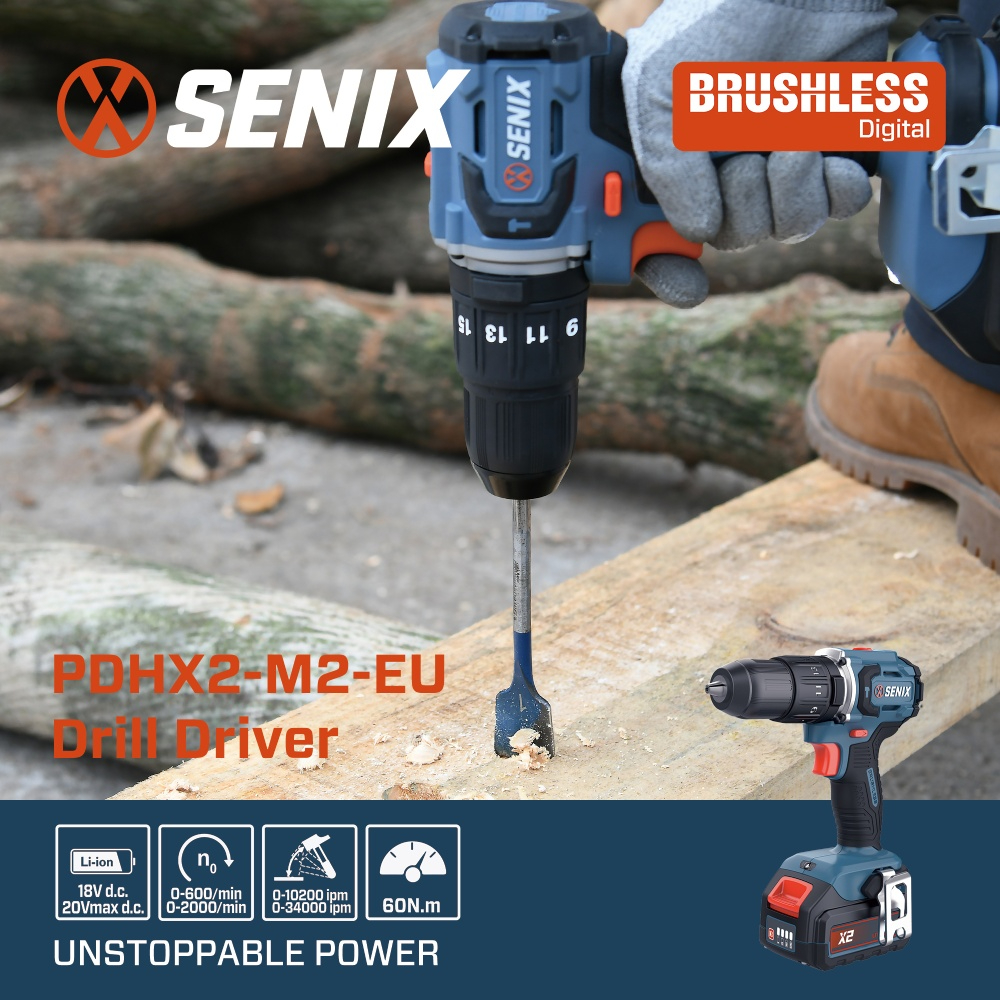

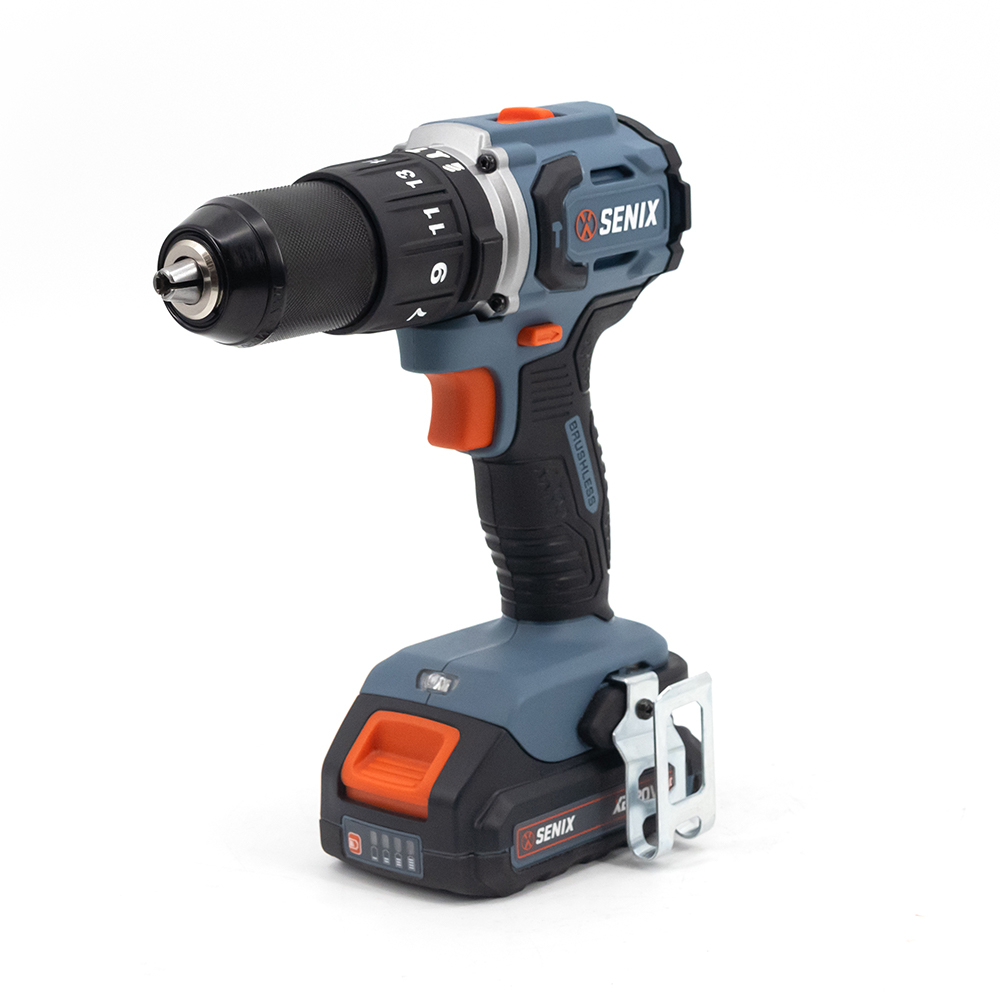

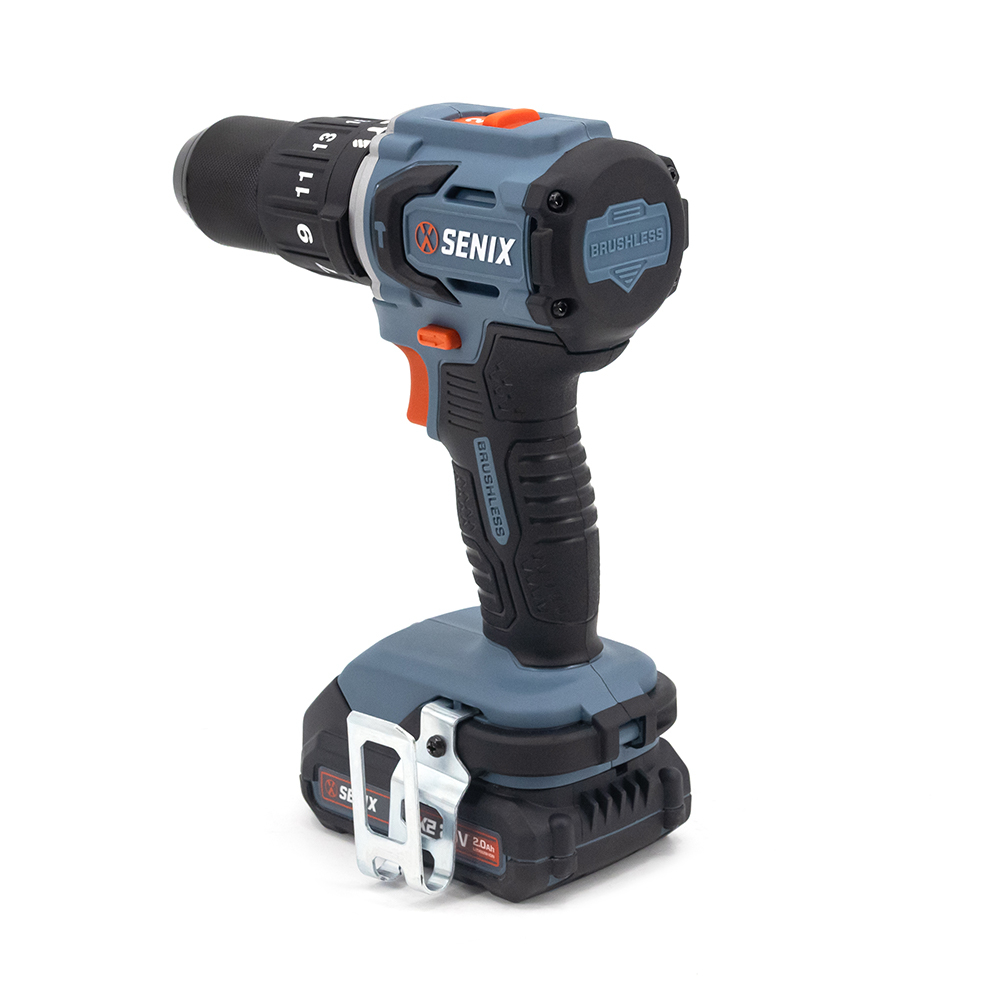

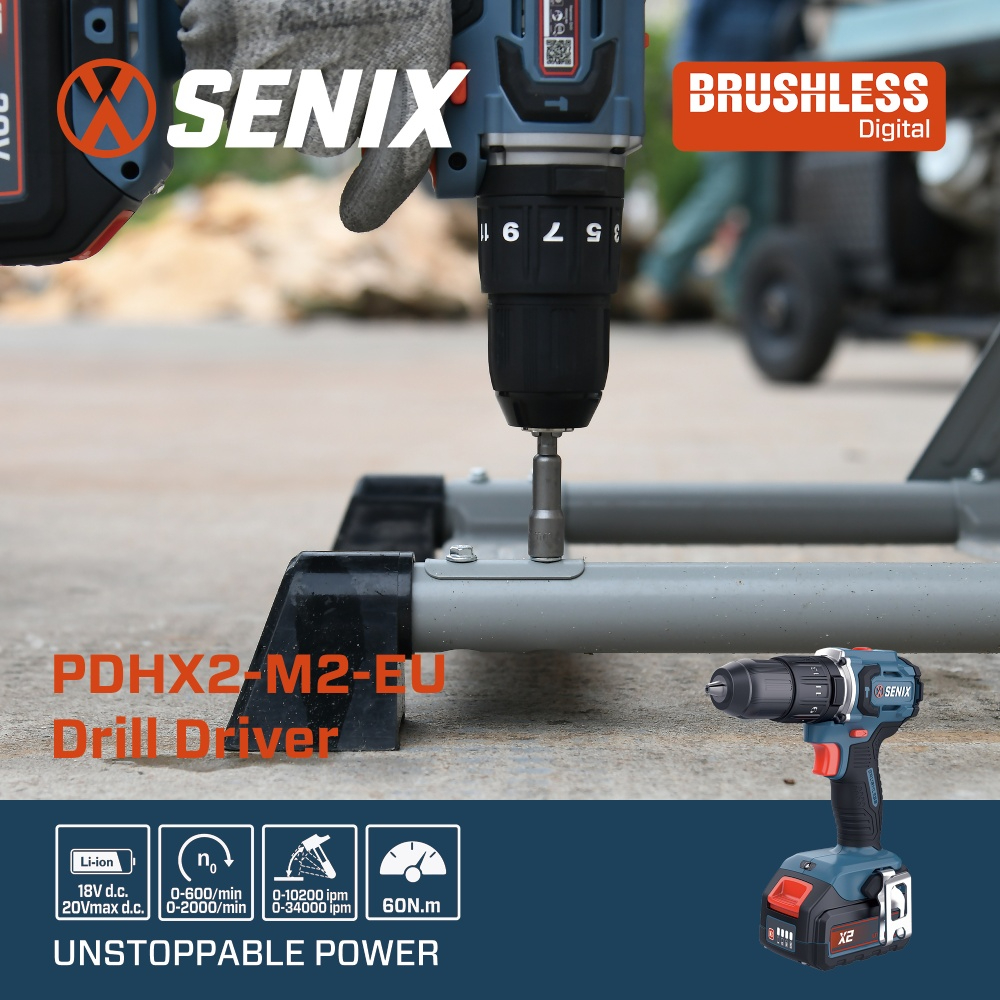

20V Brushless 13mm(1/2'') Hammer Drill
PDHX2-M2-EU
(5.0)KEY FEATURES

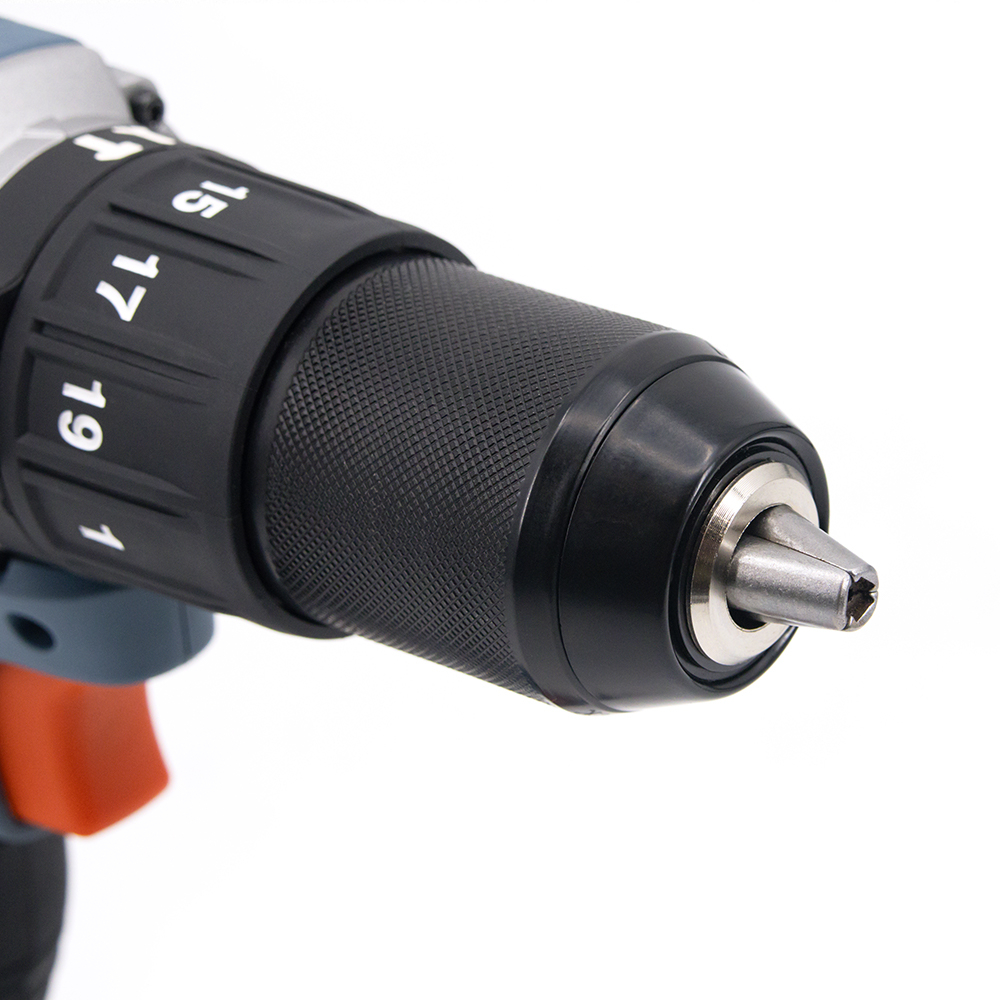

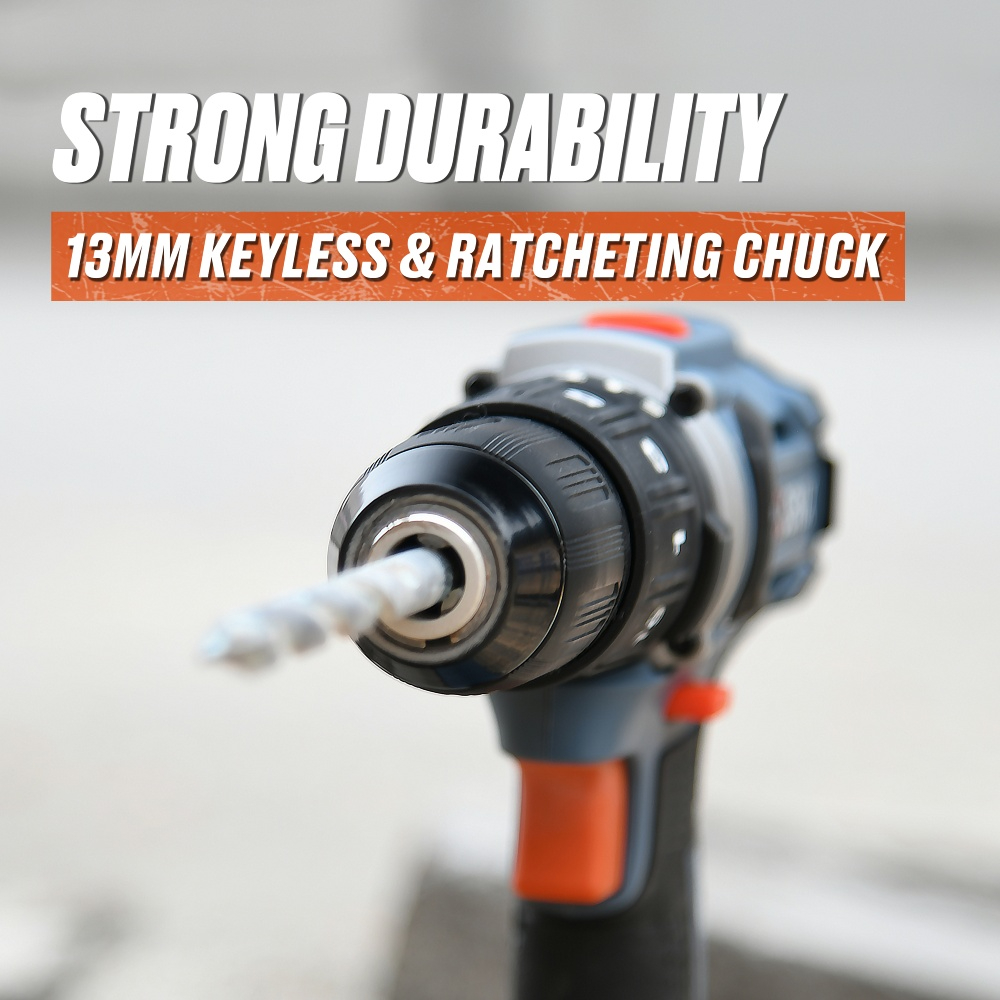

1/2 in. Keyless Ratcheting Chuck - Delivers increased bit retention strength and durability.

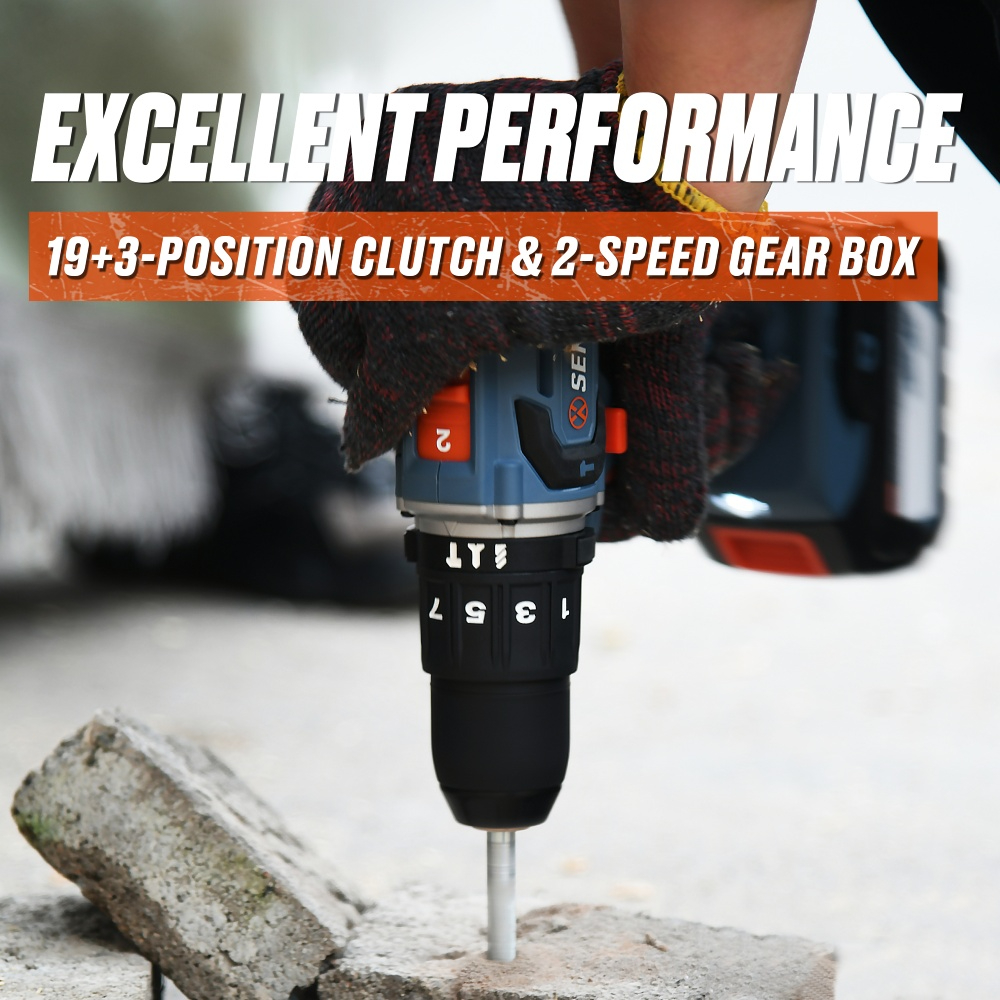

19+3 Position Clutch & 2-Speed Gearbox - Optimized torque and speed control for drilling, driving, and hammering.

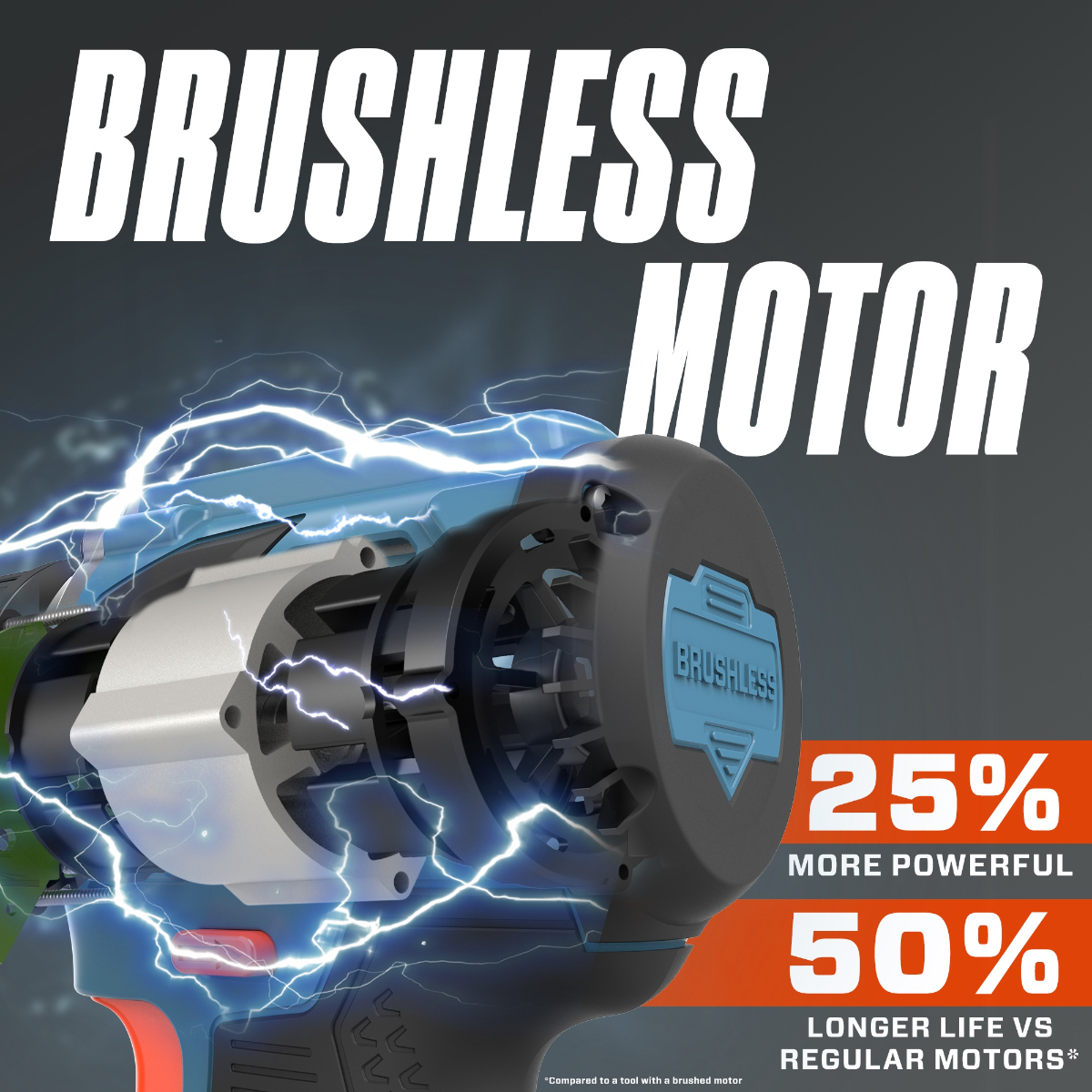

Brushless Motor - Ensures maximum power, extended runtime, and longer motor lifespan.
LED Work Light - Illuminates workspaces for enhanced visibility in low-light areas.

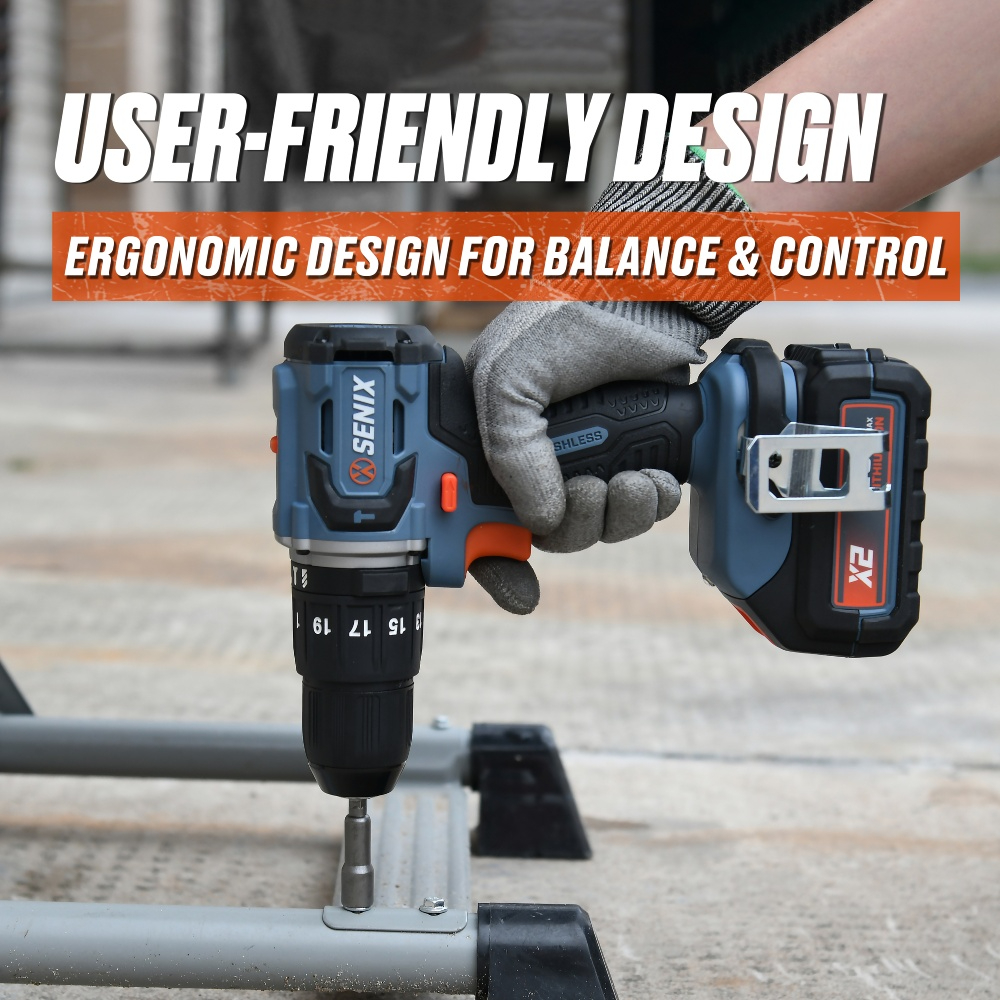

Ergonomic Design - Balanced, lightweight body (only 1.27 kg) for reduced fatigue and easier tool handling.
Belt Clip - Reversible design for left- or right-side attachment, adding portability and convenience.

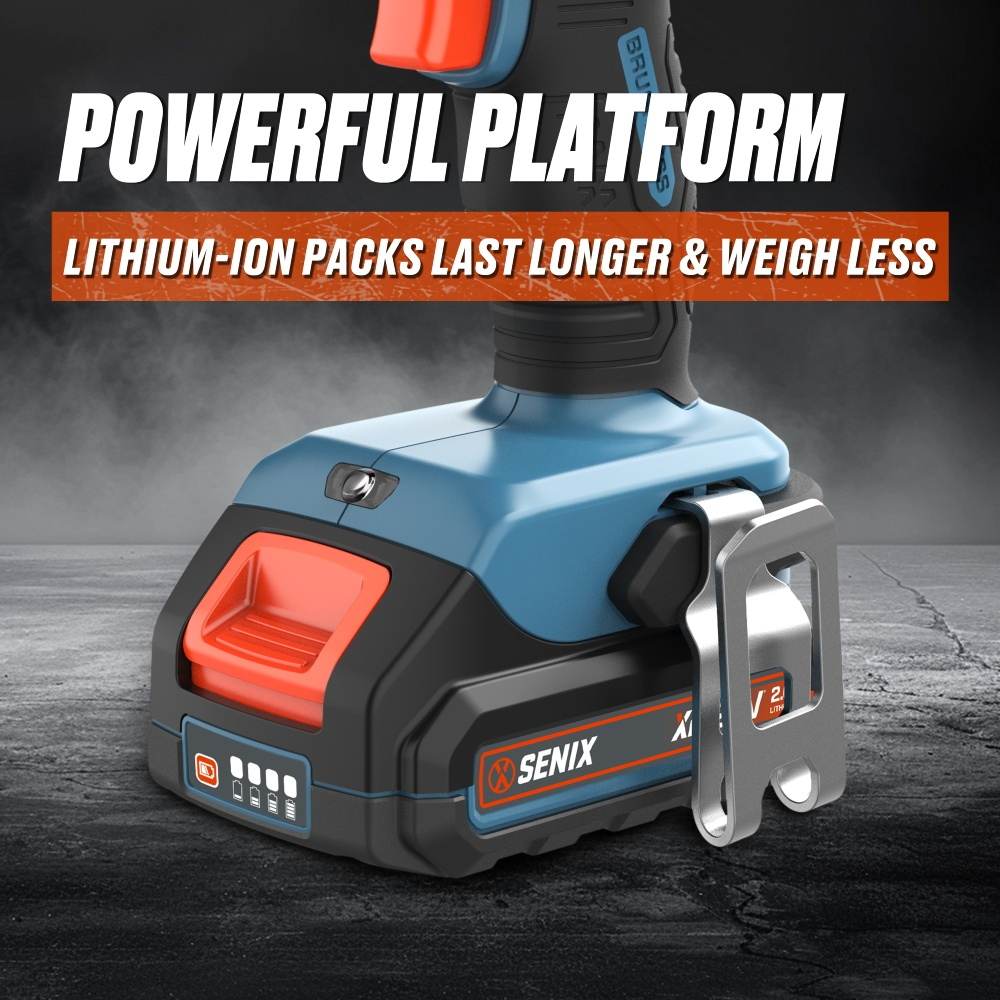

Lithium-Ion Battery Packs - Offer better performance, longer life, and lower weight.
High Performance - Up to 415 pcs of M5 x 70mm bolts in wood per charge (5Ah battery).
TECHNICAL PARAMETERS
Model | PDHX2-M2-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
No Load Speed | 0-600/0-2000 RPM |
No-Load BPM | 0-10,200/0-34,000 BPM |
Max. Fastening Torque | 60Nm |
Torque settings | 19+3 |
Chuck Capacity | 13mm |
Drilling Capacity | Steel: 13mm Wood: 38mm Masonry:13mm |
Work Amount | 415 pcs M5 x 70mm bolts on wood per 5Ah battery |
Recommended Operating Temperature | -18℃ ～ 52℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE |
Machine Weight (Tool Only) | 1.27 kg |
Machine Size | 183*77*196 mm |
Color Box Size | 213*205*90mm |
SUPPORT
Product Overview
Take on heavy-duty jobs with confidence using the SENIX 20V Brushless 13mm (1/2'') Hammer Drill. Designed for both professionals and advanced DIYers, this tool combines cutting-edge brushless motor technology with high torque and intelligent speed control to deliver unmatched drilling and driving efficiency.
Its 1/2 in. keyless ratcheting chuck ensures firm bit retention for demanding tasks, while the 19+3 clutch settings and dual-speed gearbox (0-600/0-2000 RPM) allow for customized control across applications—from wood framing to masonry drilling. With up to 34,000 BPM, hammer mode powers through concrete with ease. The LED work light keeps your workspace visible even in tight, dim areas, and the ergonomic design ensures optimal balance and reduced fatigue during long sessions. A reversible belt clip adds convenience on the job site, while lightweight construction (1.27 kg) enhances maneuverability. Certified with CE compliance, it's the perfect combination of power, durability, and comfort—all backed by SENIX's trusted engineering.
Usage Scenarios
Screw Driving: Ideal for tightening screws in applications such as furniture assembly, appliance repair, interior decoration, and door/window installation.
Drilling: Suitable for drilling into wood, plastic, thin metal sheets, and hard materials like concrete and brick walls.
DIY Projects: Perfect for creating simple wooden crafts, installing small decorative fixtures, and other home improvement tasks.
Unrecommended Conditions
Extremely Hard Rock or Geological Conditions: The hammer drill is not designed to penetrate rock layers and may damage the drill bit or internal components.
Extended Heavy-Duty Use: This tool is optimized for light to medium-duty work. Prolonged high-intensity use may cause motor overheating or mechanical failure.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please contact us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: How many bolts can it drive on one charge?
A: 415+ M5x70mm bolts into wood using a 5Ah battery—perfect for decking/framing marathons.
Q2: What's the advantage of the 19+3 clutch?
A: 19 torque settings prevent stripping screws; Hammer mode for masonry; Drill mode for unstoppable power.
Q3: Can it drill through rebar-reinforced concrete?
A: Yes! 34,000 BPM hammer mode + 13mm max capacity. Use carbide-tipped bits for best results.
Q4: Is the chuck compatible with all 1/2" bits?
A: Fully compatible. The keyless ratcheting mechanism grips SDS-Plus, hex-shank, and round-shank bits securely.
Q5: How does the dual-speed gearbox help?
A: Low gear (0–600 RPM): High torque for bolts/lag screws
High gear (0–2000 RPM): Speed drilling in wood/metal
Q6: How does brushless tech improve runtime?
A: 30% longer runtime vs. brushed motors, with zero maintenance (no carbon brushes to replace).
Q7: Can I use it in freezing temperatures?
A: Yes. Engineered for -20°C to 40°C—reliable on winter construction sites.
