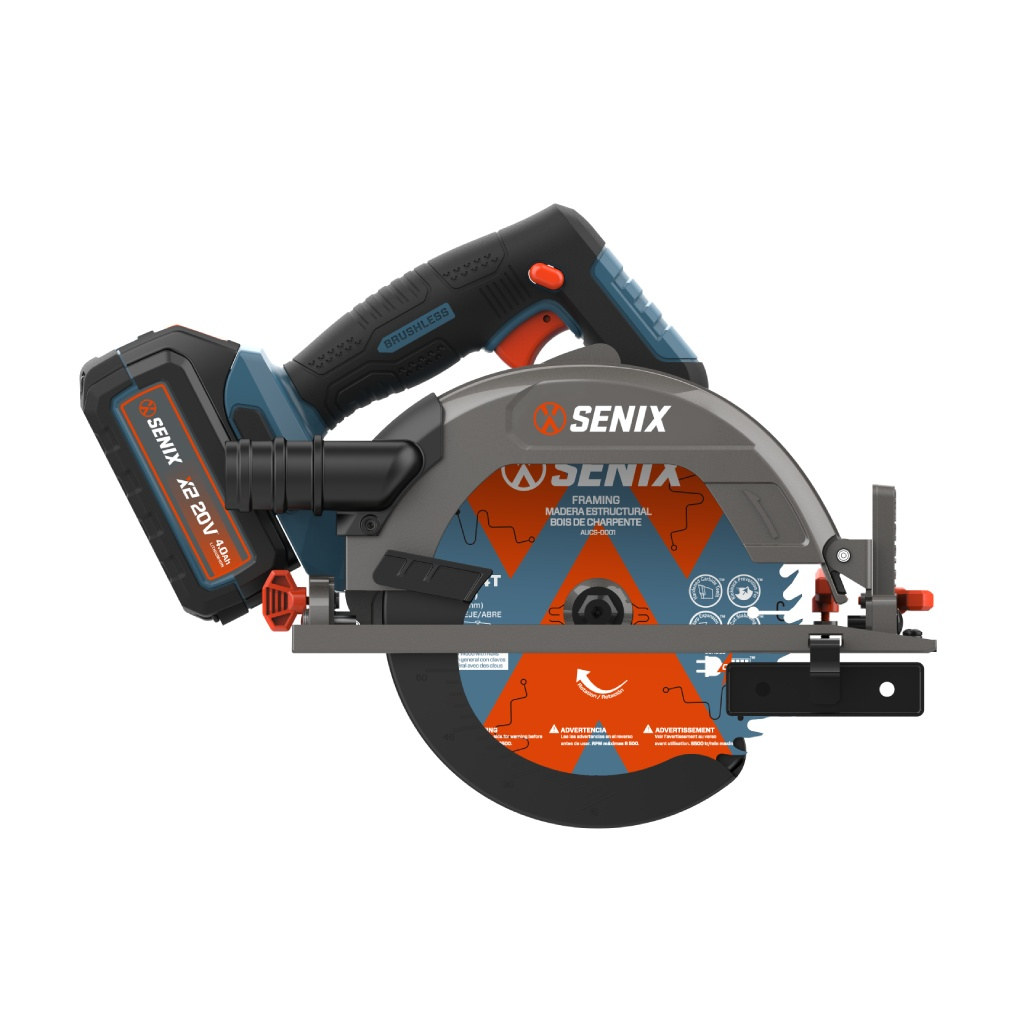

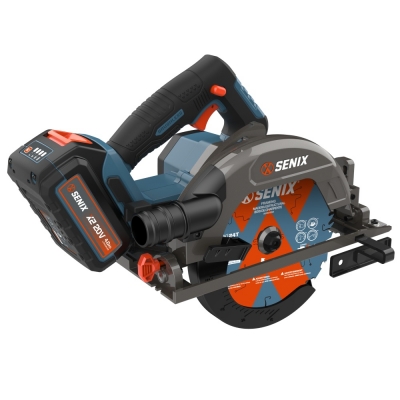

20V Brushless 165mm(6-1/2'') Circular Saw

PSCX2-M8-EU

(5.0)

Experience cordless cutting power like never before with the SENIX 20V Brushless 165mm Circular Saw. With a variable speed trigger, deep cutting capacity, and ergonomic lightweight design, it’s perfect for pros and DIYers alike. Take on any job with precision, power, and long-lasting lithium-ion performance.

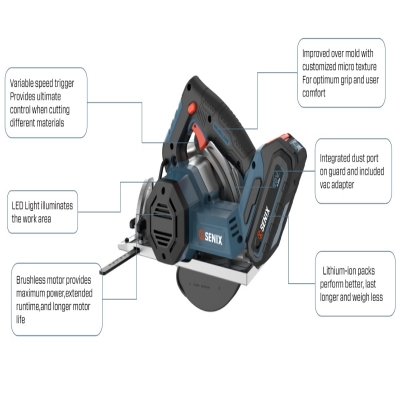

KEY FEATURES

Variable Speed Trigger - Provides precise control across different materials and cutting demands.

Built-in LED Light - Illuminates the work surface to ensure accurate cuts in any lighting condition.

Powerful Brushless Motor - Delivers maximum power, longer runtime, and extended motor life for tough applications.

Ergonomic Overmold Grip - Custom micro-texture ensures optimum grip, comfort, and control during extended tasks.

Integrated Dust Port with Vac Adapter - Helps maintain a cleaner work area by connecting to a standard vacuum.

High-Performance Lithium-Ion Battery System - No self-discharge or memory effect—lighter, longer-lasting power on the go.

Large 165mm Blade - Offers cutting depths of up to 65 mm at 0° and 42 mm at 45°, ideal for thicker materials.

Lightweight Build - Weighs just 2.3 kg (tool only) for effortless handling and less user fatigue.

TECHNICAL PARAMETERS

Model	PSCX2-M8-EU
Voltage	20V Max DC
Motor type	Brushless
Saw blade diameter	165mm(6-1/2 inch)
No-Load Speed	5000 RPM
Cutting capacity	0°: 65 mm 45°: 42 mm
Machine Weight (Tool Only)	2.3 kg
Work Amount	144 pcs. 40x200mm wood cutting per 5Ah battery
Recommended Operating Temperature	-20℃ ～ 40℃
Recommended Storage Temperature	-20℃ ～ 70℃
Machine Size	290175252mm
Color Box Size	300180275mm

SUPPORT

Product Overview
The SENIX 20V Brushless 165mm Circular Saw is engineered for power, precision, and performance—all packed in a lightweight, cordless design. Featuring a robust brushless motor, this saw delivers 5000 RPM of cutting speed to handle even the most demanding woodcutting tasks with ease. A 165mm (6-1/2'') blade enables deep cuts up to 65 mm at 0° and 42 mm at a 45° bevel, giving you maximum versatility for framing, cabinetry, and home renovation.
The variable speed trigger offers full control when working with different materials, while the built-in LED light illuminates your workspace for improved accuracy. An integrated dust port with vacuum adapter helps keep your job site clean and visible. Weighing just 2.3 kg, the saw's compact frame and ergonomic overmold grip ensure comfortable and controlled operation—even in tight spots or overhead.
Powered by a high-efficiency lithium-ion battery, the saw is capable of cutting up to 144 pieces of 40x200mm wood on a single 5Ah charge. Whether you're a contractor, carpenter, or DIY enthusiast, the SENIX 165mm circular saw is your go-to cutting companion for clean, consistent, and cordless performance.
Usage Scenarios
Wood and Panel Cutting: Ideal for cutting wood, panels, plywood, and similar raw materials. Provides precise cutting performance for furniture making, woodworking, and decorative projects.
Unrecommended Conditions
Cutting Composite Materials with Hard Inclusions: Not suitable for cutting materials that contain metal, stone, or other hard components, as this may damage the blade or reduce tool efficiency.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.

FREQUENTLY ASKED QUESTIONS

Q1: What type of materials can this circular saw cut?
A: This saw is ideal for wood, plywood, MDF, OSB, and other common construction materials. With the correct blade, it can also cut certain plastics or soft composite boards.
Q2: How deep can it cut?
A: At 0° (straight cut): Up to 65 mm
At 45° (bevel cut): Up to 42 mm
This makes it suitable for heavy-duty framing and renovation tasks.
Q3: How long does the battery last?
A: With a 5Ah battery, the saw can cut up to 144 pieces of 40x200mm wood on a single charge. Actual runtime may vary depending on material density and user technique.
Q4: Is the speed adjustable?
A: Yes, the variable speed trigger provides precise control for different materials and cutting speeds.
Q5: Is it suitable for beginners?
A: Absolutely. Its lightweight build, LED work light, comfortable grip, and dust port make it user-friendly and easy to handle even for first-time users.
Q6: What blade does it use?
A: It uses a 165 mm (6-1/2") circular saw blade. Be sure to use the right blade type for your specific task—coarse for fast rip cuts, fine-tooth for precision work.
Q7: Does it support bevel cutting?
A: Yes, it supports bevel cuts up to 45°, which is ideal for angled cuts in trim, framing, and cabinetry projects.
Q8: Can I attach it to a vacuum?
A: Yes. The saw includes an integrated dust port and a vac adapter, allowing you to connect it to most standard vacuum systems for cleaner cutting.
Q9: Is it brushless, and why is that important?
A: Yes, the saw features a brushless motor, which offers:
Increased power and torque
Longer battery runtime
Less heat and noise
Longer motor lifespan
