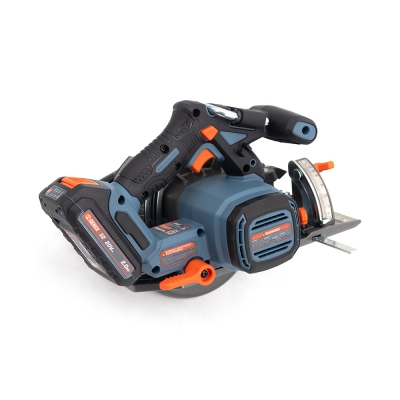

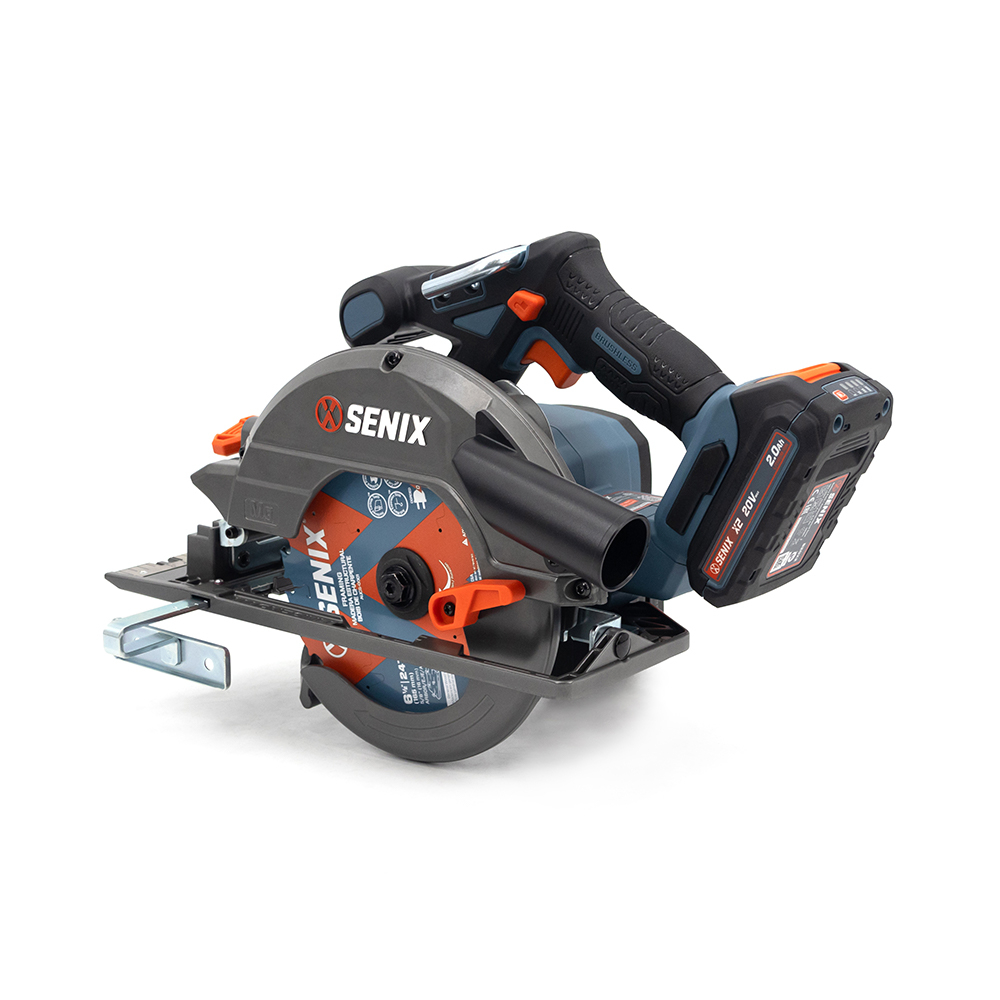

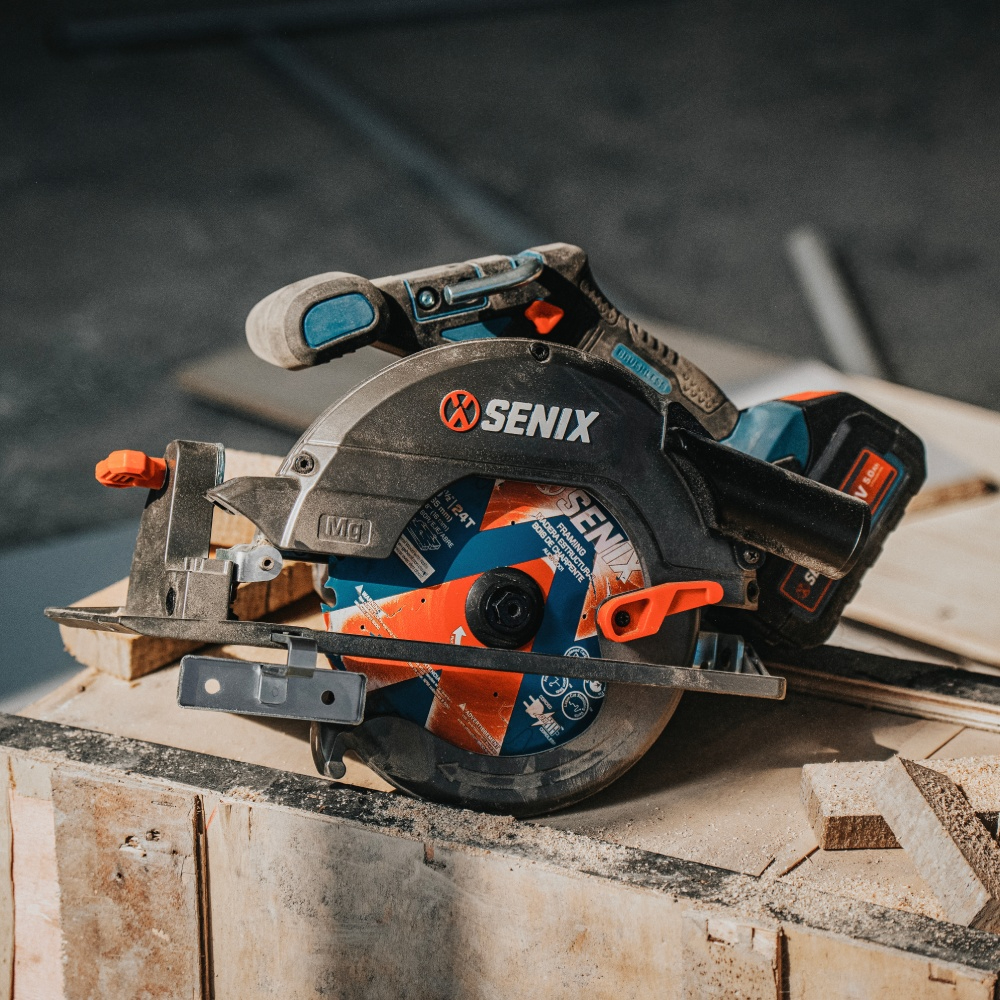

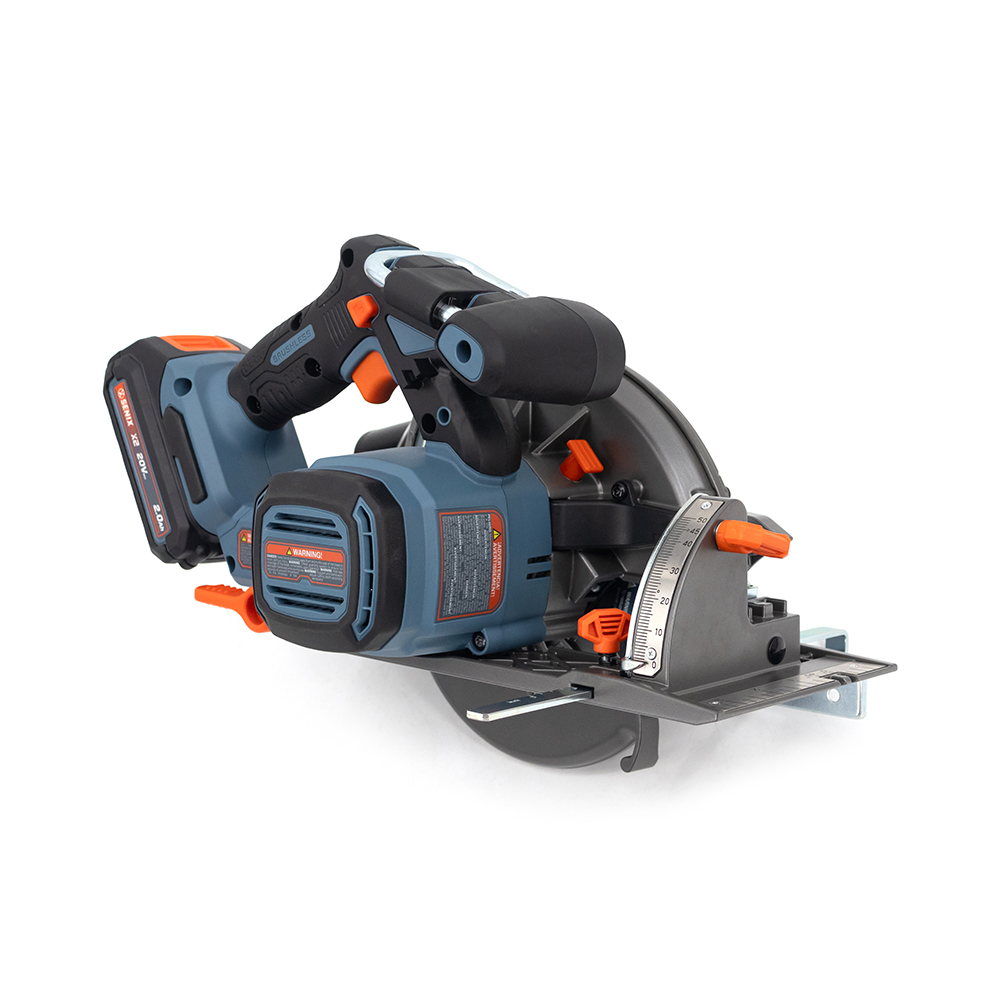

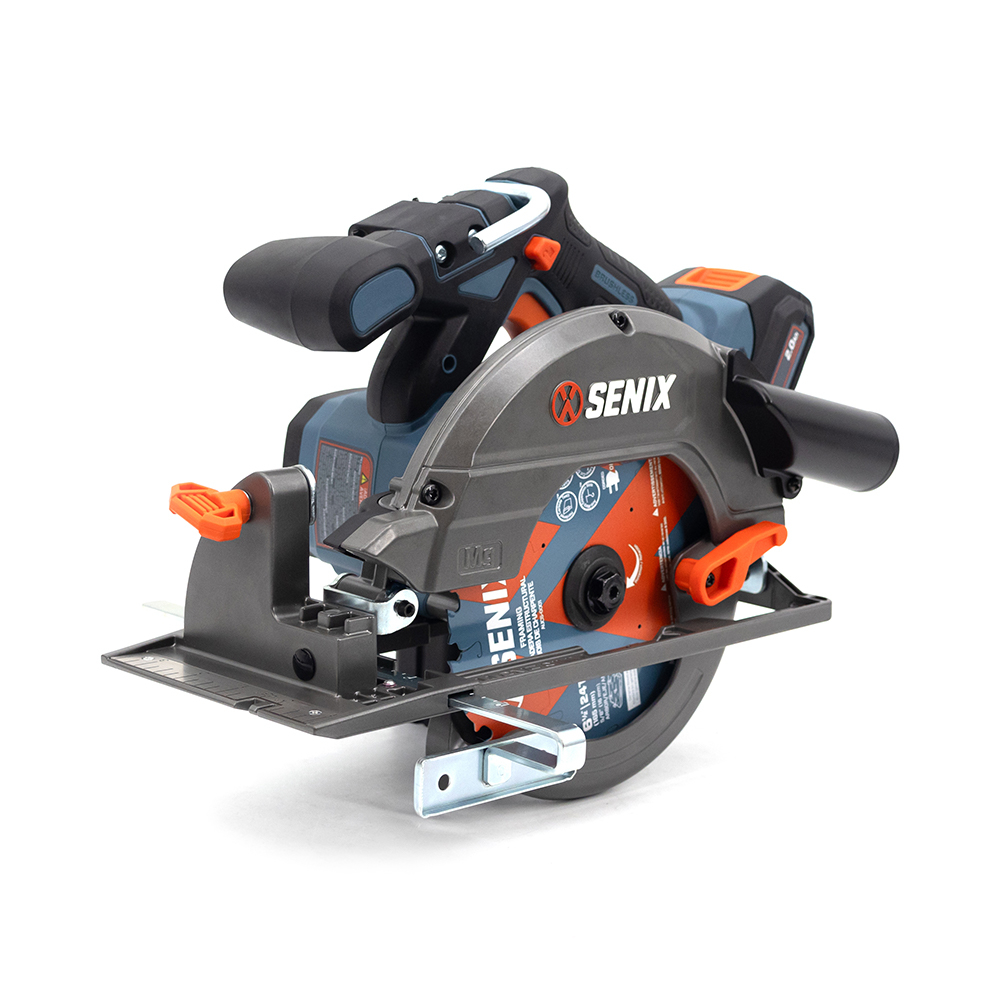

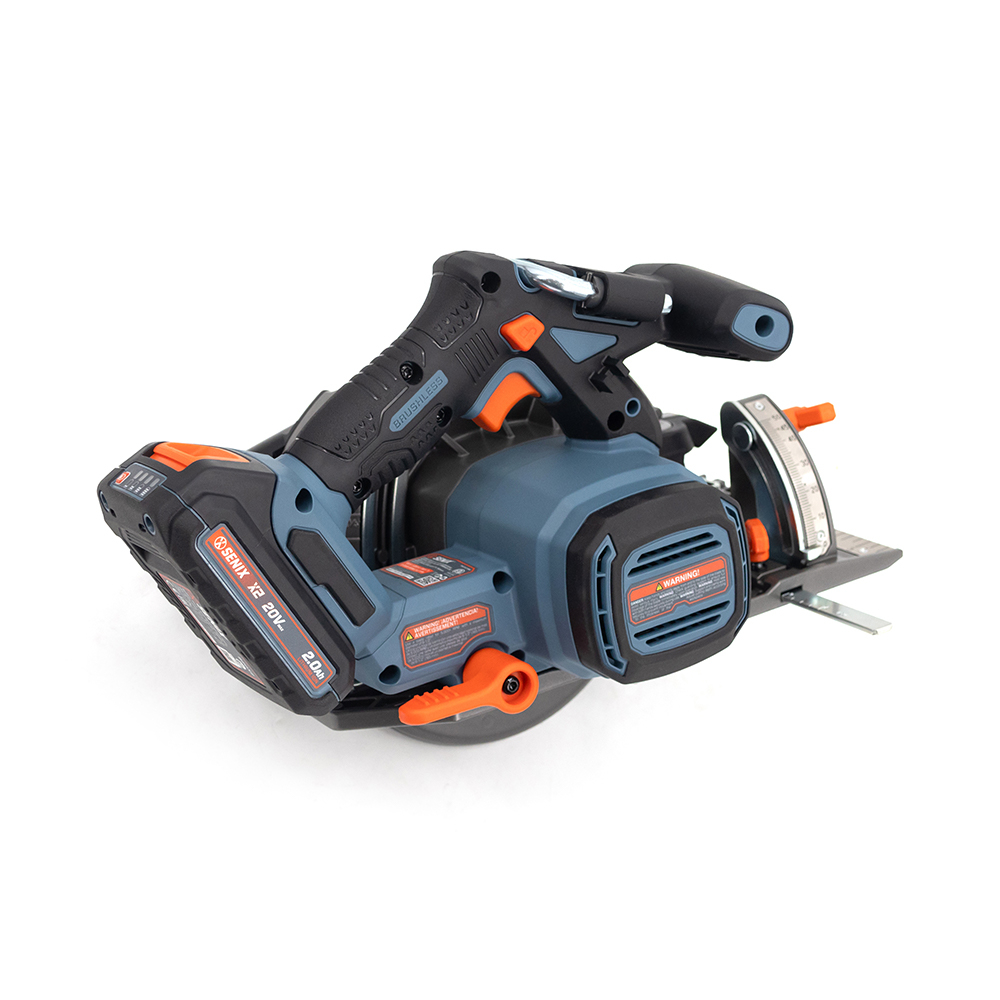

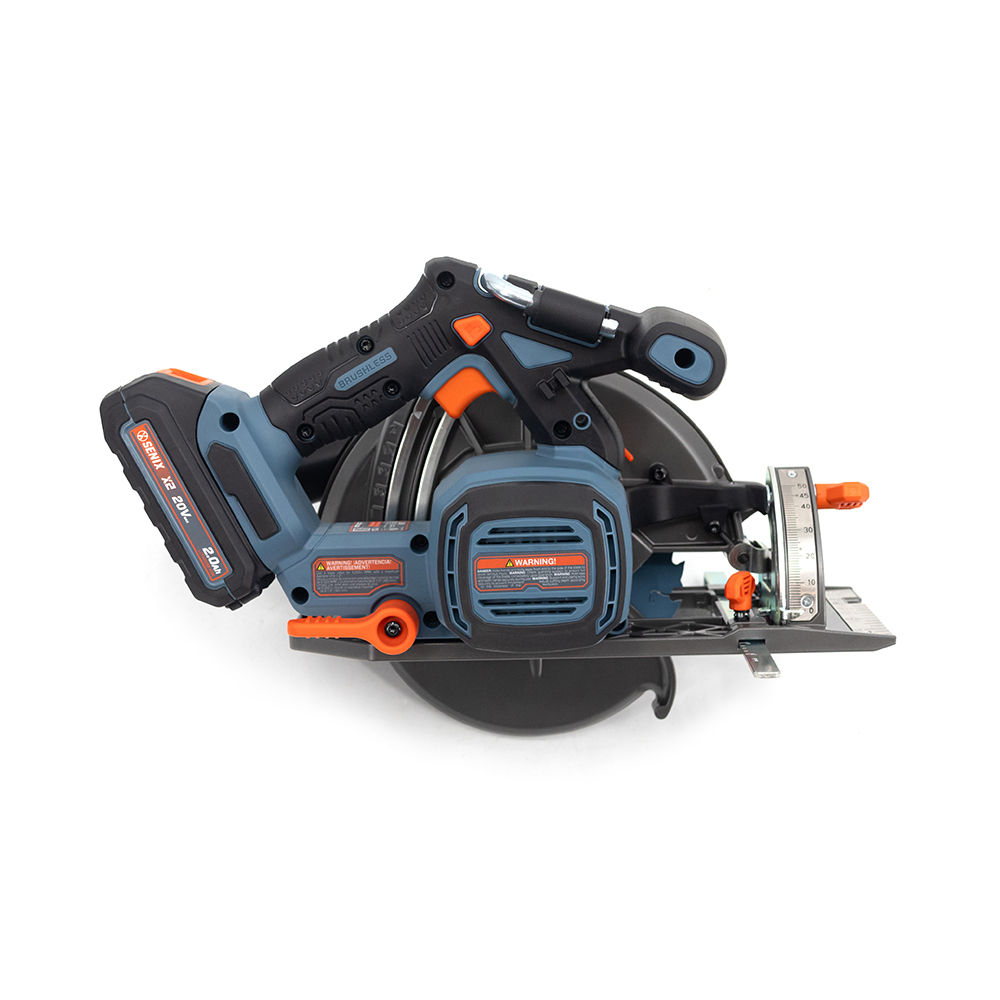

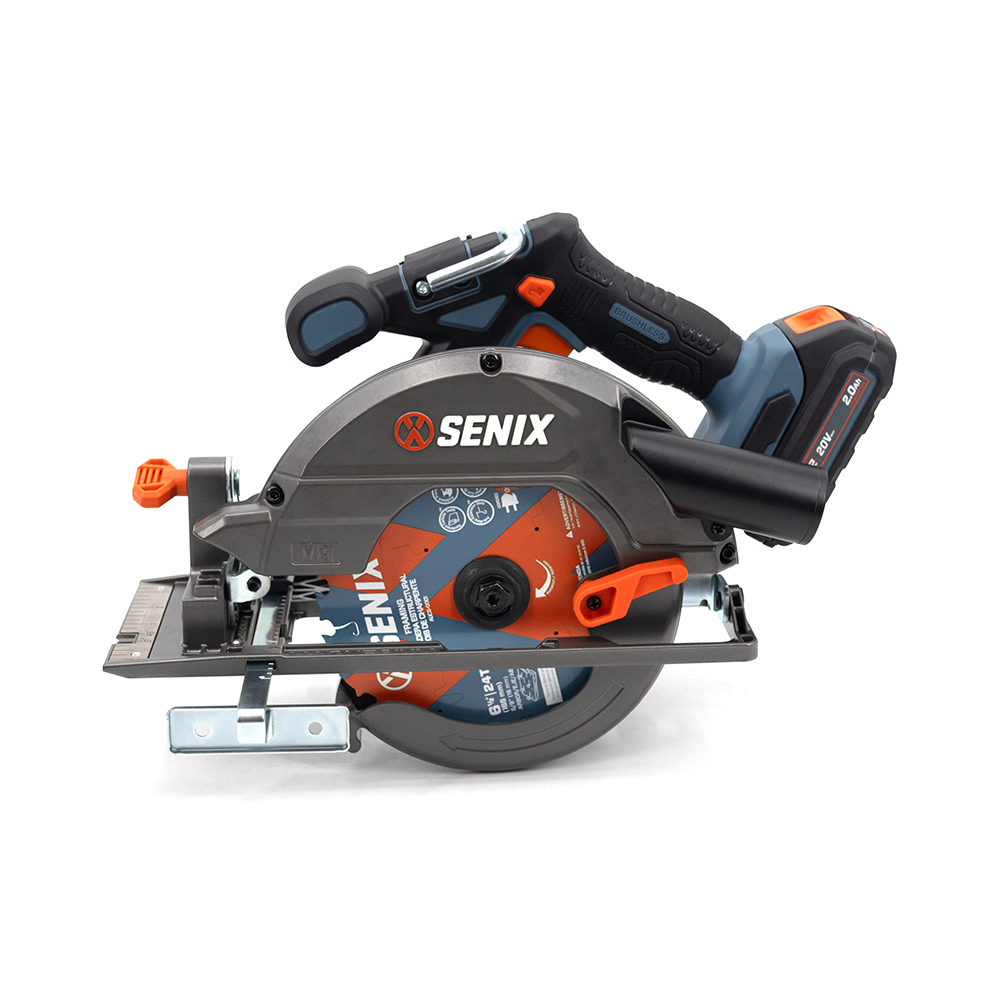

20V Brushless 165mm(6-1/2'') Circular Saw
PSCX2-M6-EU

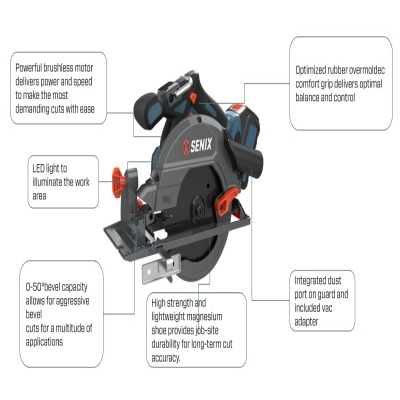

(5.0)KEY FEATURES
High-Efficiency Brushless Motor – Delivers maximum power, extended runtime, and longer tool life.
Integrated LED Light – Enhances visibility for accurate cuts, even in dim work environments.

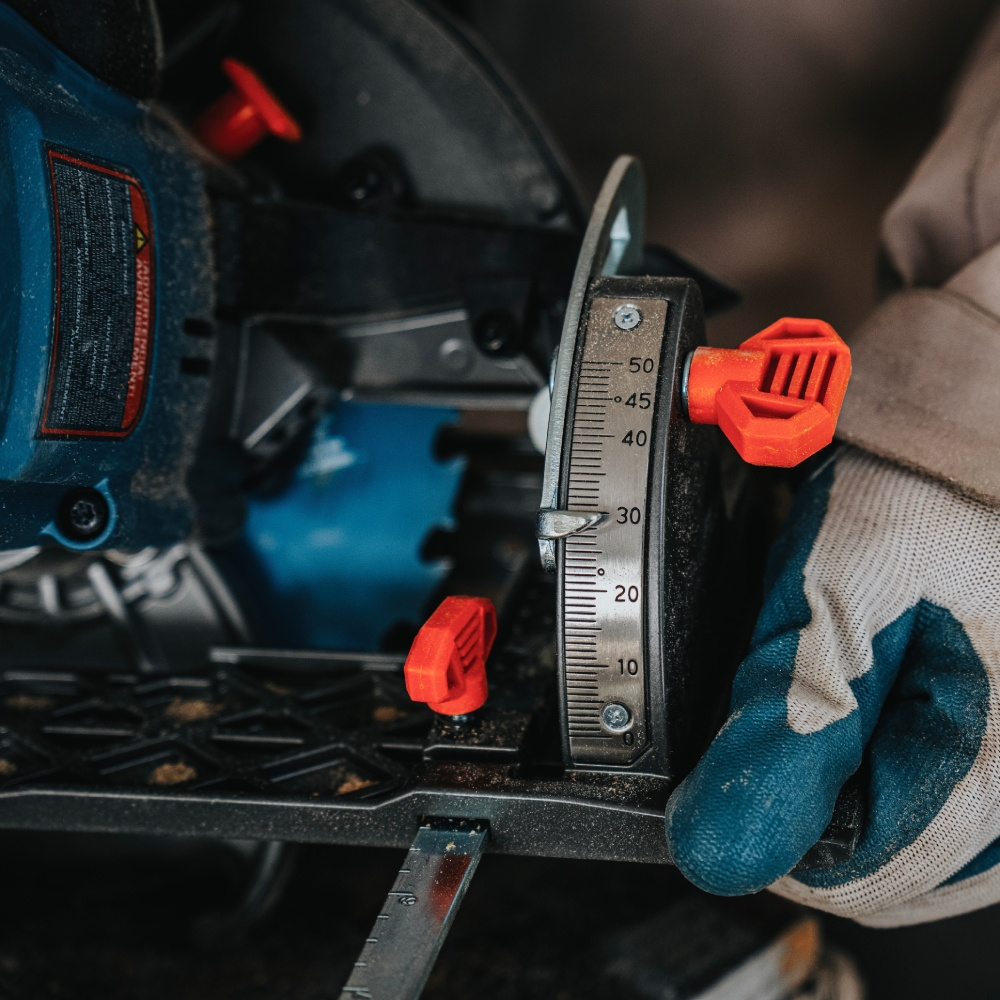

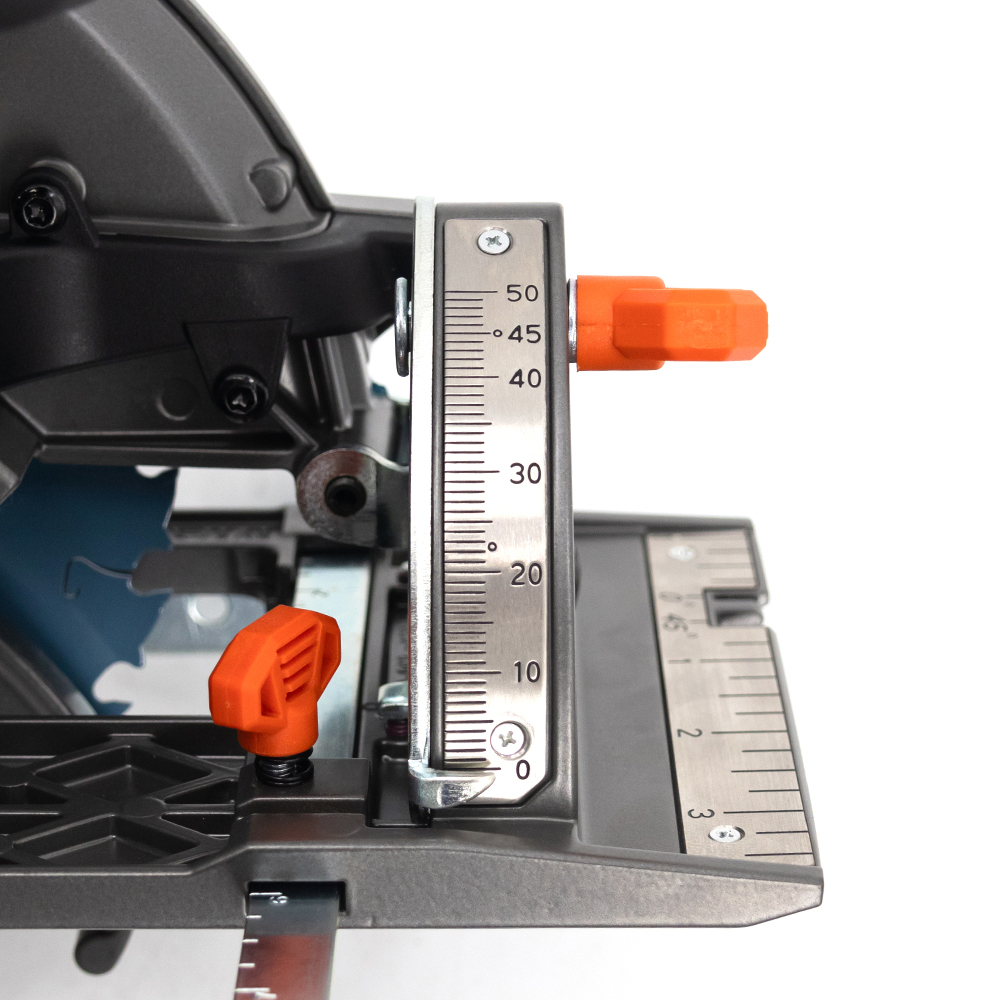

Wide 0–50° Bevel Capacity – Enables versatile angled cuts for complex projects.

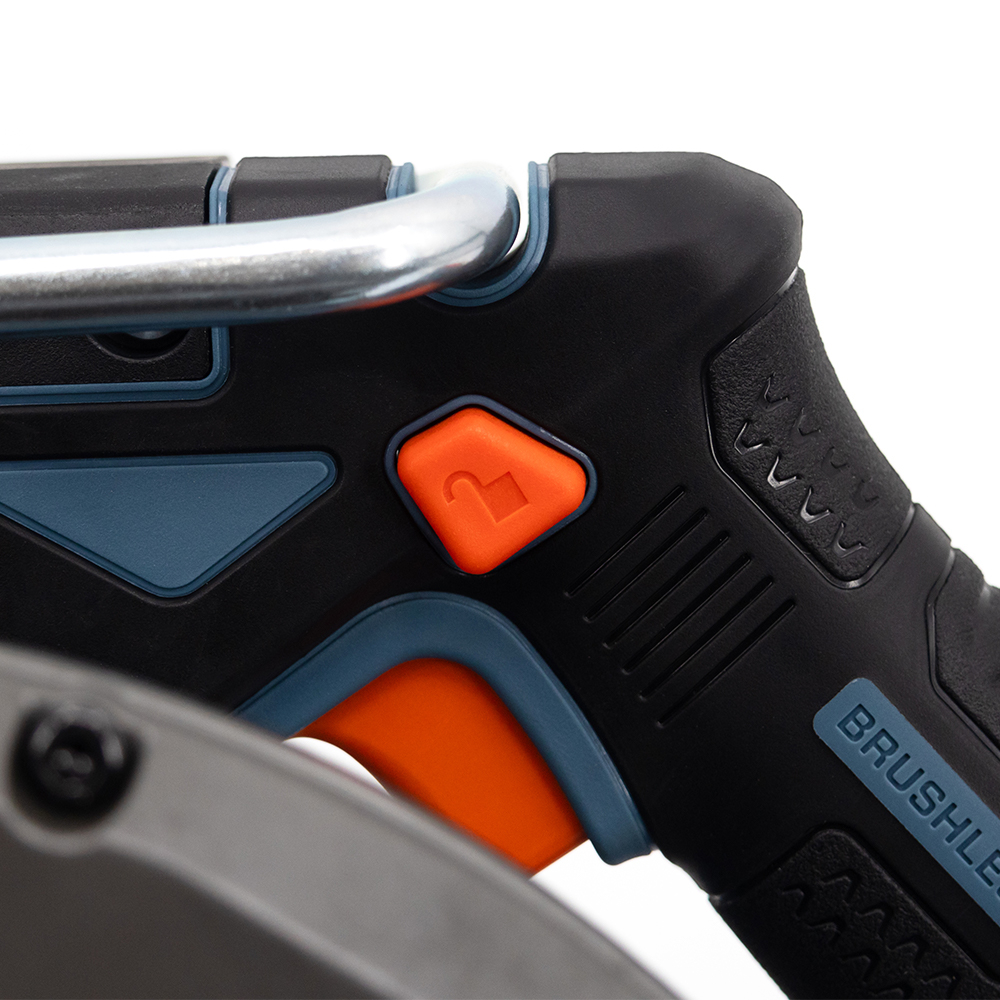

Ergonomic Over Mold Design – Customized micro-texture grip ensures optimum comfort and control.

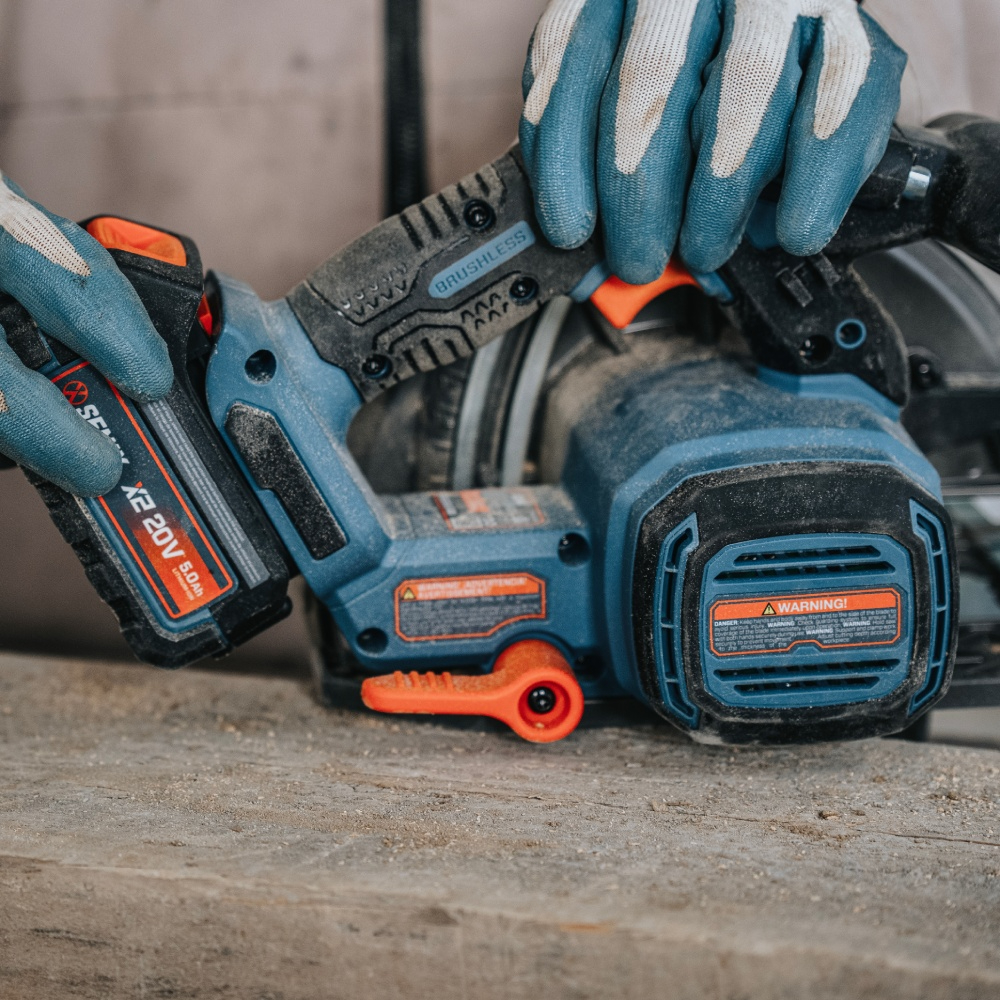

Advanced Li-Ion Battery Pack – No self-discharge, no memory effect, and higher energy density for longer-lasting power.
Integrated Dust Port with Vac Adapter – Promotes cleaner operation and efficient dust extraction.
Precision Cutting Power – Cuts up to 99 pieces of 50×200mm pine wood with a 5Ah battery at 90°.

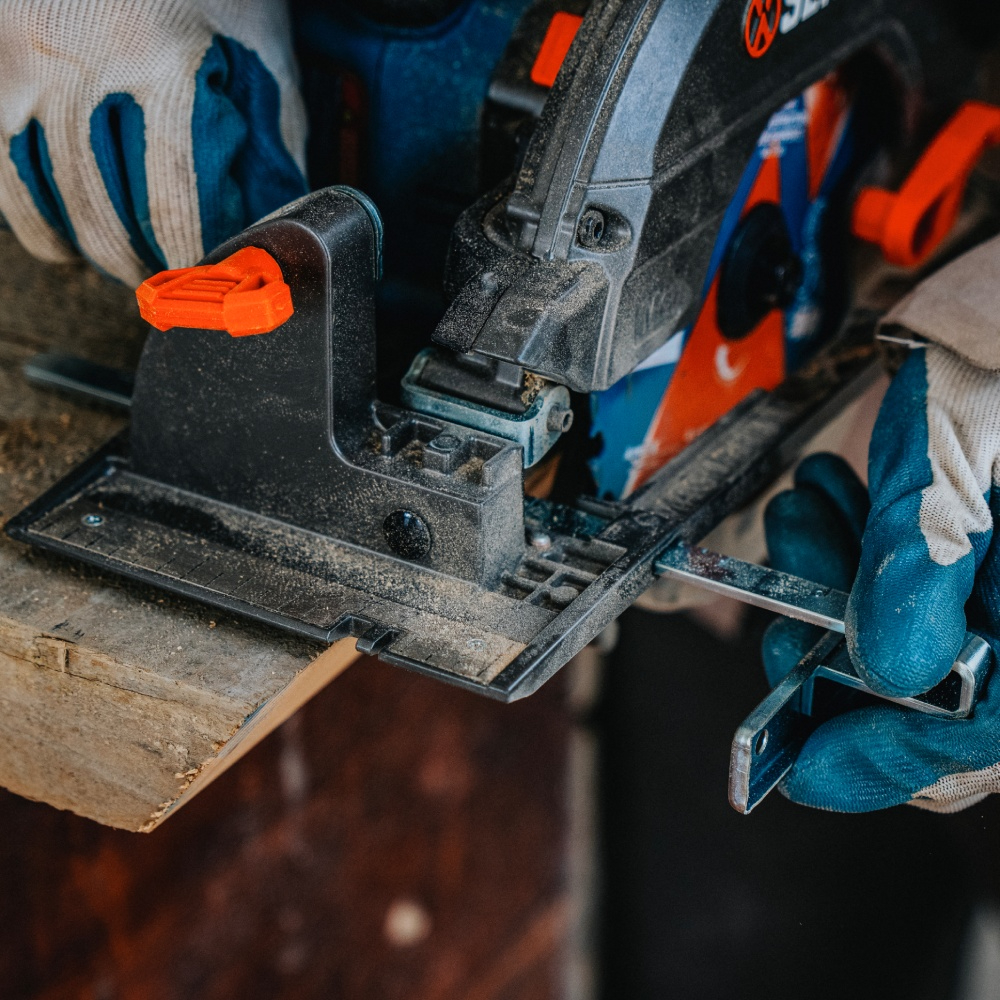

Durable Magnesium Guard and Base – Increases strength and reduces tool weight for easier handling on the jobsite.
Electronic Brake System – Stops the blade quickly after trigger release for enhanced safety.
Compact and Balanced Design – Improves maneuverability and reduces fatigue during extended cutting sessions.
TECHNICAL PARAMETERS
Model | PSCX2-M6-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
Arbor size | 20mm |
No Load Speed | 5000 RPM |
Saw Blade Diameter | 165mm(6-1/2 inch) |
Bevel Capacity | 0-50° |
Cutting capacity | 90°：56mm 45°: 41mm |
Work Amount | 99 pieces of 50x200mm pine wood planks with 5Ah battery(90°cutting) |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE CB |
Machine Weight (Tool Only) | 3.1 kg |
Machine Size | 330*193.4*255.5mm |
Color Box Size | 371*217*208mm |
SUPPORT
Product Overview

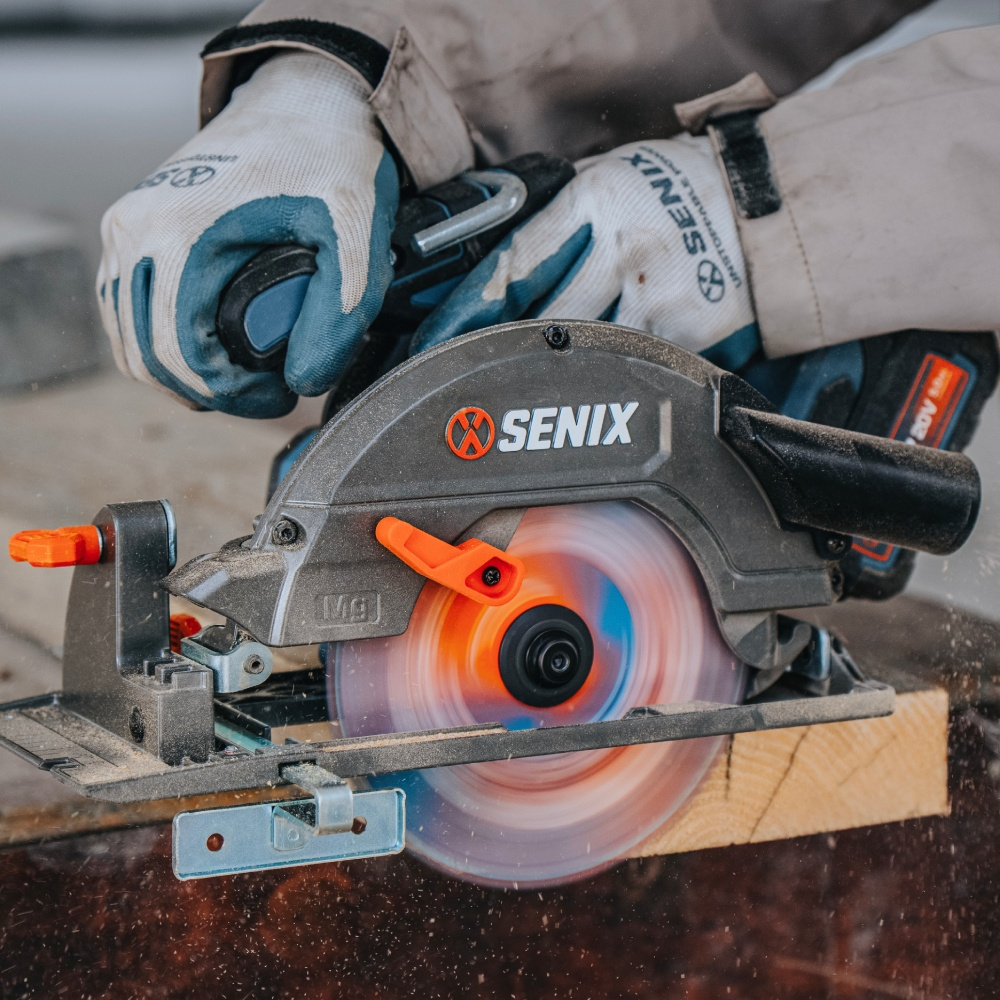

The SENIX 20V Brushless 165mm (6-1/2") Circular Saw is engineered for serious cutting performance across a variety of materials. Designed with a high-efficiency brushless motor, this circular saw offers powerful, consistent output while improving runtime and motor longevity. With a bevel capacity ranging from 0° to 50°, it supports a wide range of angled cuts, making it suitable for everything from structural framing to trim work.
The 165mm blade enables a cutting depth of 56mm at 90° and 41mm at 45°, while its arbor size of 20mm ensures compatibility with standard blades. The saw features a built-in LED light for increased visibility and a user-friendly over mold handle with micro-texture for enhanced grip and control during extended use.
The Li-Ion battery system not only offers high energy density but also eliminates self-discharge and memory issues, ensuring reliable power every time. With the integrated dust port and vacuum adapter, keeping your workspace clean becomes effortless. Whether you're a professional contractor or a dedicated DIYer, the SENIX 20V Circular Saw delivers unmatched performance and reliability.
Usage Scenarios

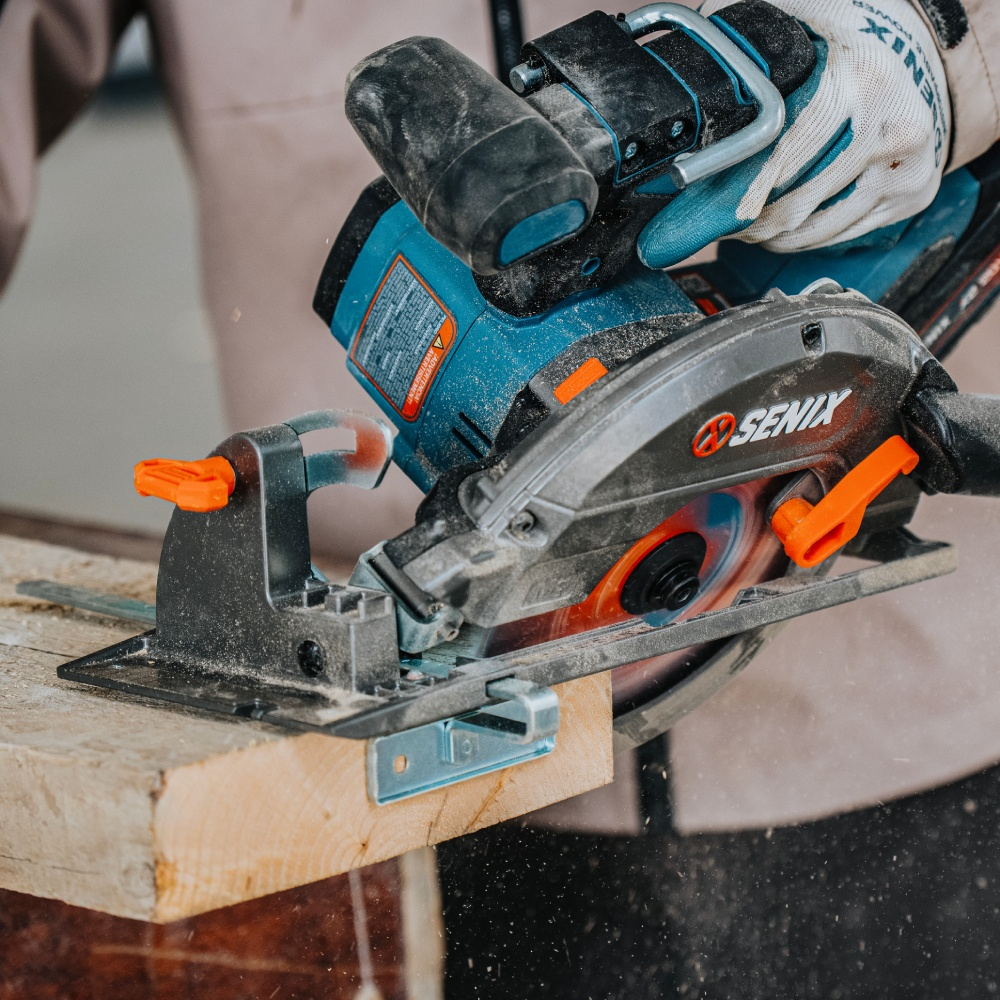

Wood and Panel Cutting: Ideal for cutting wood, panels, plywood, and similar raw materials. Provides precise cutting performance for furniture making, woodworking, and decorative projects.
Unrecommended Conditions
Cutting Composite Materials with Hard Inclusions: Not suitable for cutting materials that contain metal, stone, or other hard components, as this may damage the blade or reduce tool efficiency.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
Q1: What type of materials can this circular saw cut?
A: The saw is designed for cutting wood, including plywood, hardwood, and common construction lumber. It can also handle some soft plastics with the appropriate blade.
Q2: How long does the battery last on a full charge?
A: With a 5Ah battery, it can cut approximately 99 pieces of 50×200mm pine wood at 90° under normal working conditions.
Q3: Can the saw make bevel cuts?
A: Yes. It has a 0–50° bevel capacity, allowing for versatile angled cuts on various woodworking projects.
Q4: Is the saw compatible with third-party blades?
A: Yes, as long as the blade is 165mm (6-1/2") in diameter with a 20mm arbor hole. Always ensure blade compatibility for safety and performance.
Q5: Does it include a dust collection feature?
A: Yes. It features an integrated dust port on the guard and includes a vacuum adapter for efficient dust management.
Q6: Is the saw suitable for left-handed users?
A: Its symmetrical and ergonomic design with a side-mounted blade guard makes it comfortable for both right- and left-handed users.
Q7: Does it stop quickly after releasing the trigger?
A: Yes, the built-in electronic brake system stops the blade rapidly for enhanced user safety.
