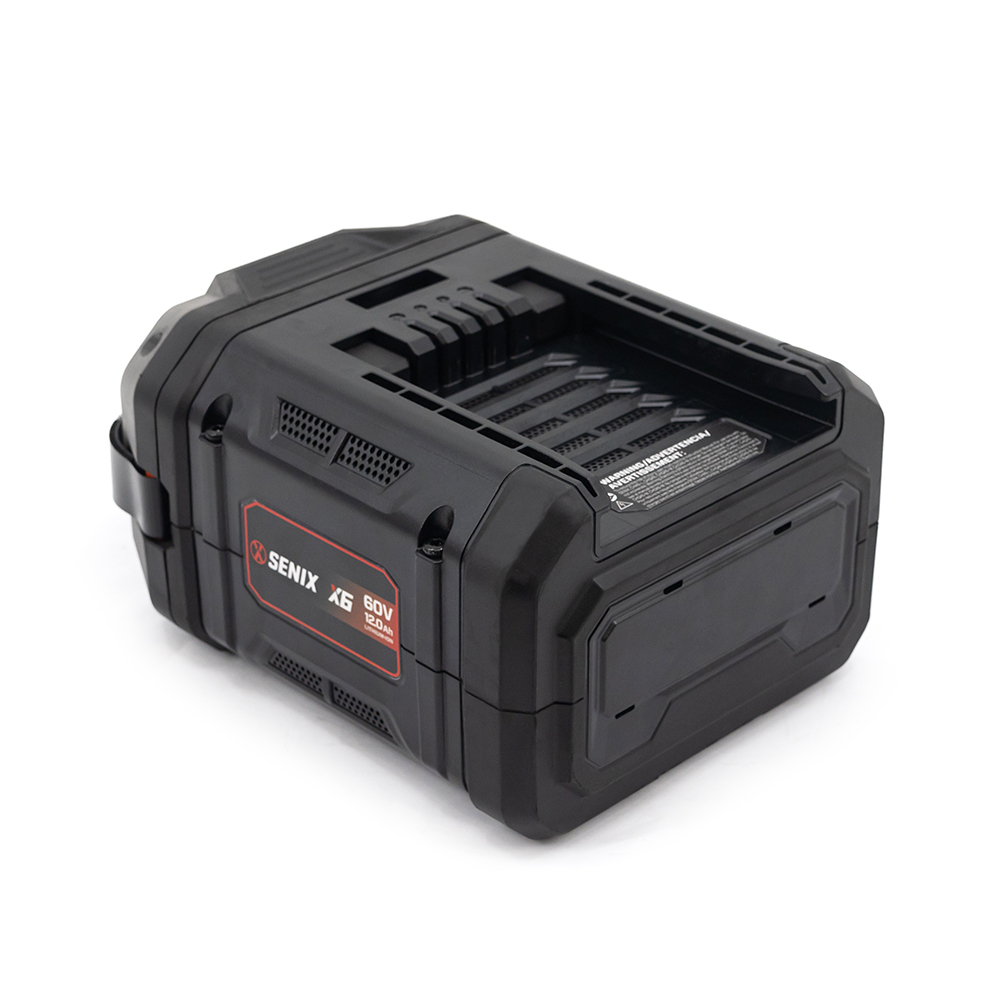

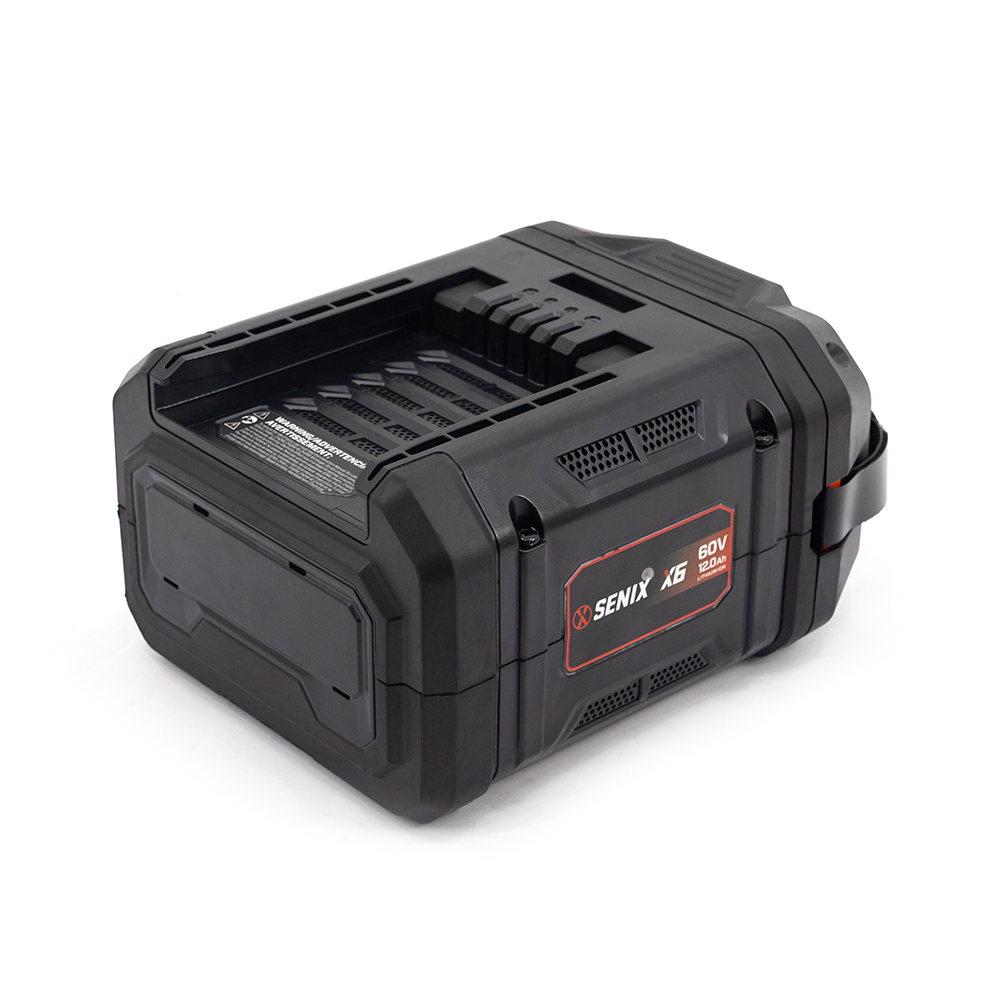

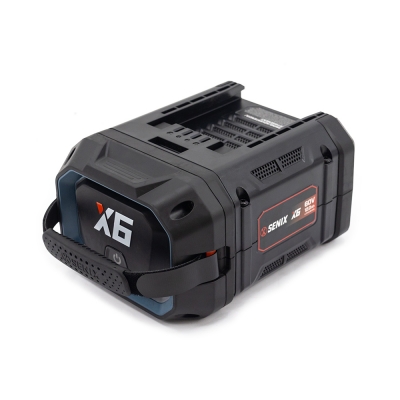

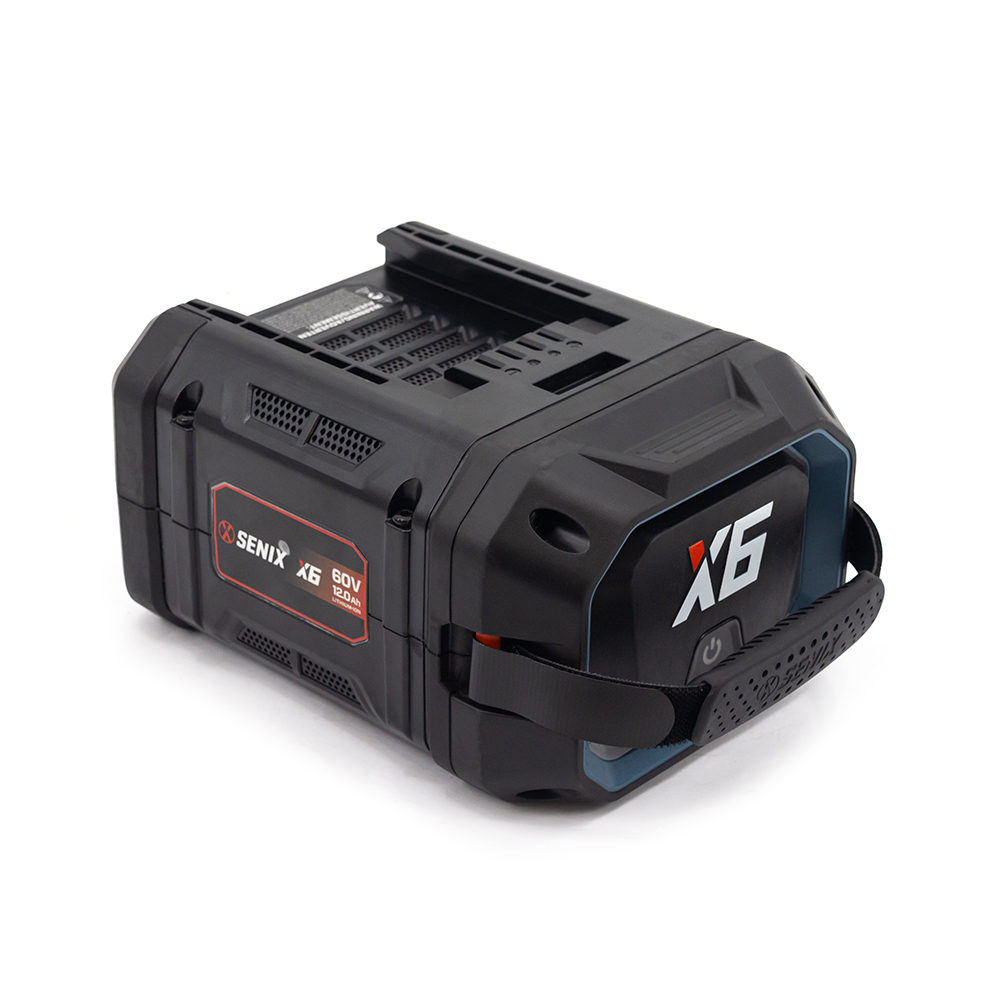

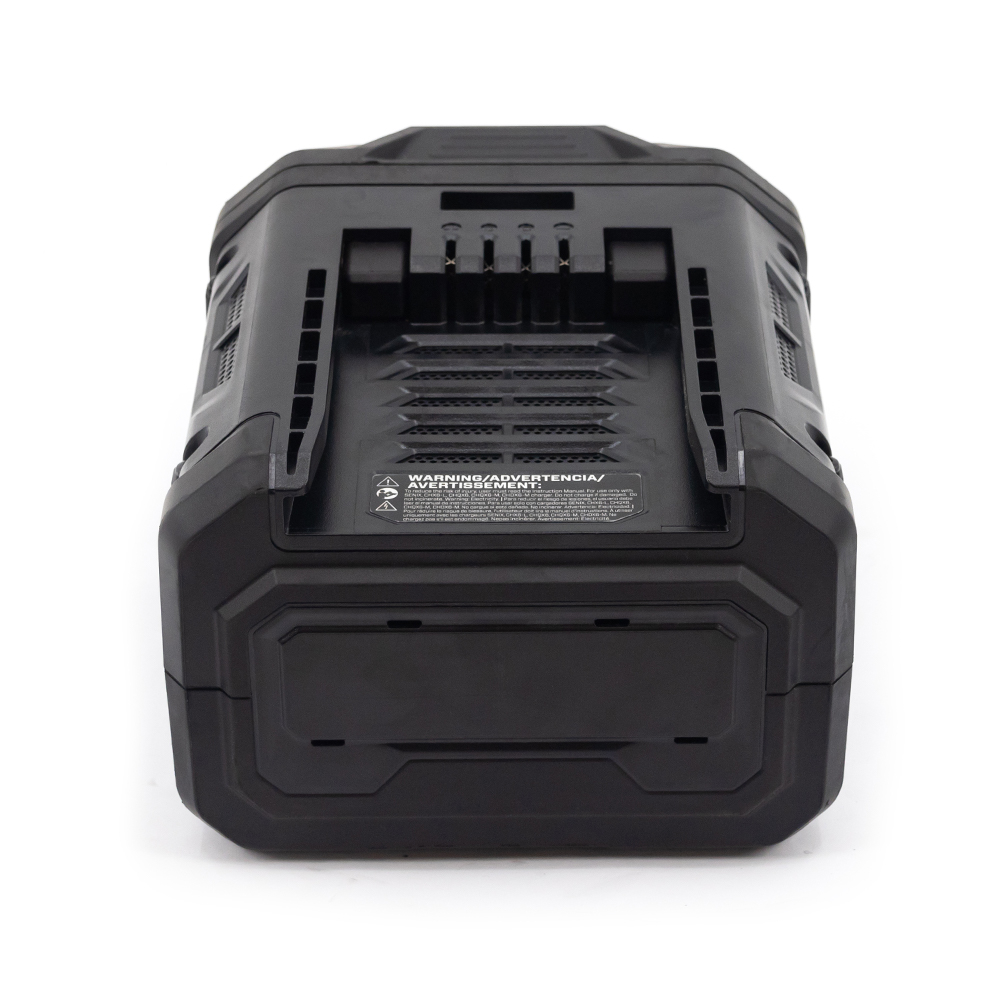

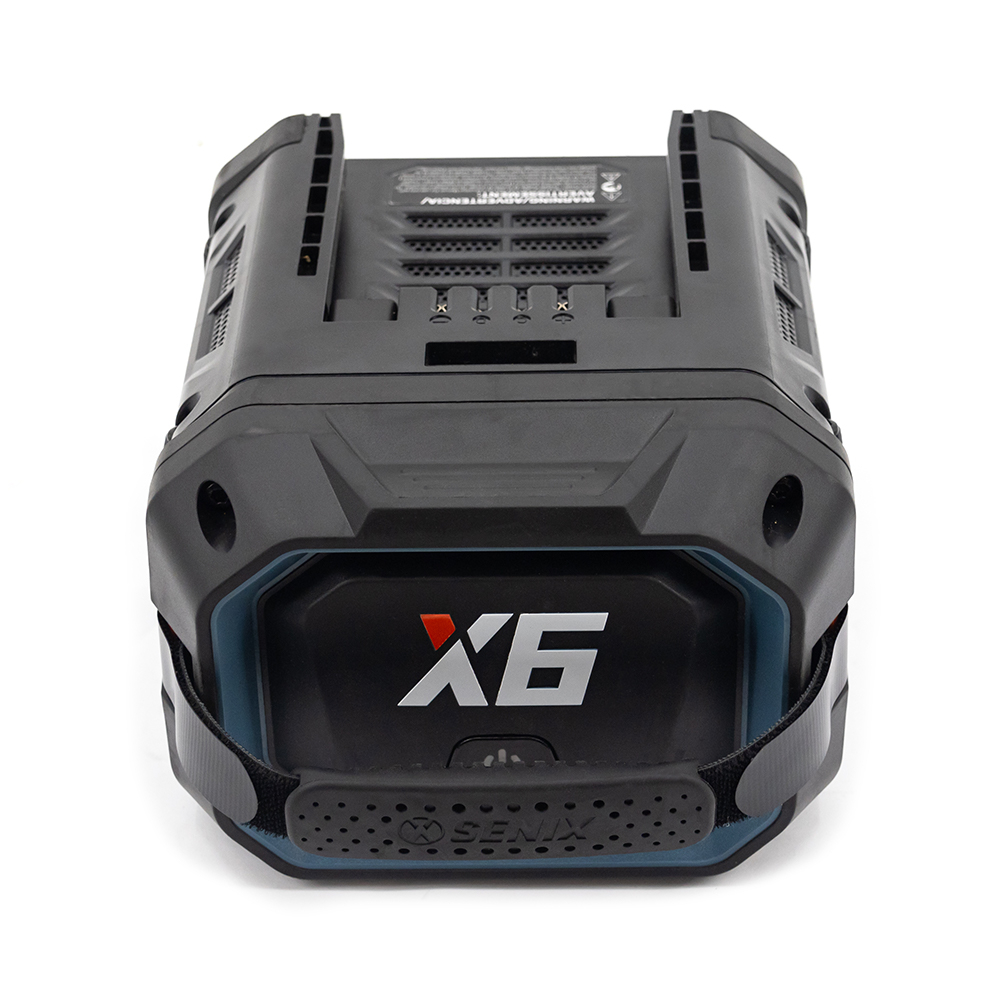

60V 12Ah Battery

B120X6

(5.0)

SENIX heavy-duty battery includes an easy-to-read fuel gauge for monitoring power levels. With intelligent power management for optimal performance and integrated heat dissipation to prevent overheating, it ensures durability. The shock-resistant design protects against drops and is compatible with all SENIX X6 equipment and chargers.

Charging Duration		Battery(Ah)
		3Ah	4Ah	6Ah	8Ah	12Ah
		B30X6	B40X6	B60X6	B80X6	B120X6
3.0A Charger	CHX6-L-EU	65min	85min	125min	170min	245min
5.0A Charger	CHQX6-EU	45min	55min	85min	105min	160min
8.0A Single-Port Charger	CHQX6-M-EU	30min	35min	50min	65min	100min
8.0A Dual-Port Charger Charging 2 batteries at the same time	CHDX6-M-EU	50min	65min	95min	130min	190min
8.0A Dual-Port Charger Charging only one battery	CHDX6-M-EU	30min	35min	50min	65min	100min

KEY FEATURES

Easy-to-Read Fuel Gauge: The easy-to-read fuel gauge quickly shows the user how much power is left during product use and while charging.

Intelligent Power Management: Intelligent power management optimizes individual battery cells for maximum power, performance, and runtime.

Integrated Heat Dissipation: Integrated heat dissipation protects the battery from overheating, so equipment runs longer at full power.

Shock-Resistant Design: Shock-resistant design protects batteries from drops.

Full Compatibility with SENIX X6 System: Compatible with all SENIX X6 equipment and chargers.

TECHNICAL PARAMETERS

Model	B120X6
Voltage	60V Max
Battery Type	Lithium-ion
Rated Capacity	12.0Ah/672Wh
Machine Weight	4.1kg
Series-parallel system	15S3P
Cell type	21700
Recommended Ambient Temperature for Charging	41°F~104°F(5°C~40°C)
Optimum Storage Temperature in Use	50°F~80°F(10°C~26°C)
Certification	UN38.3,UL 2595
Machine Size	203164113.5mm
