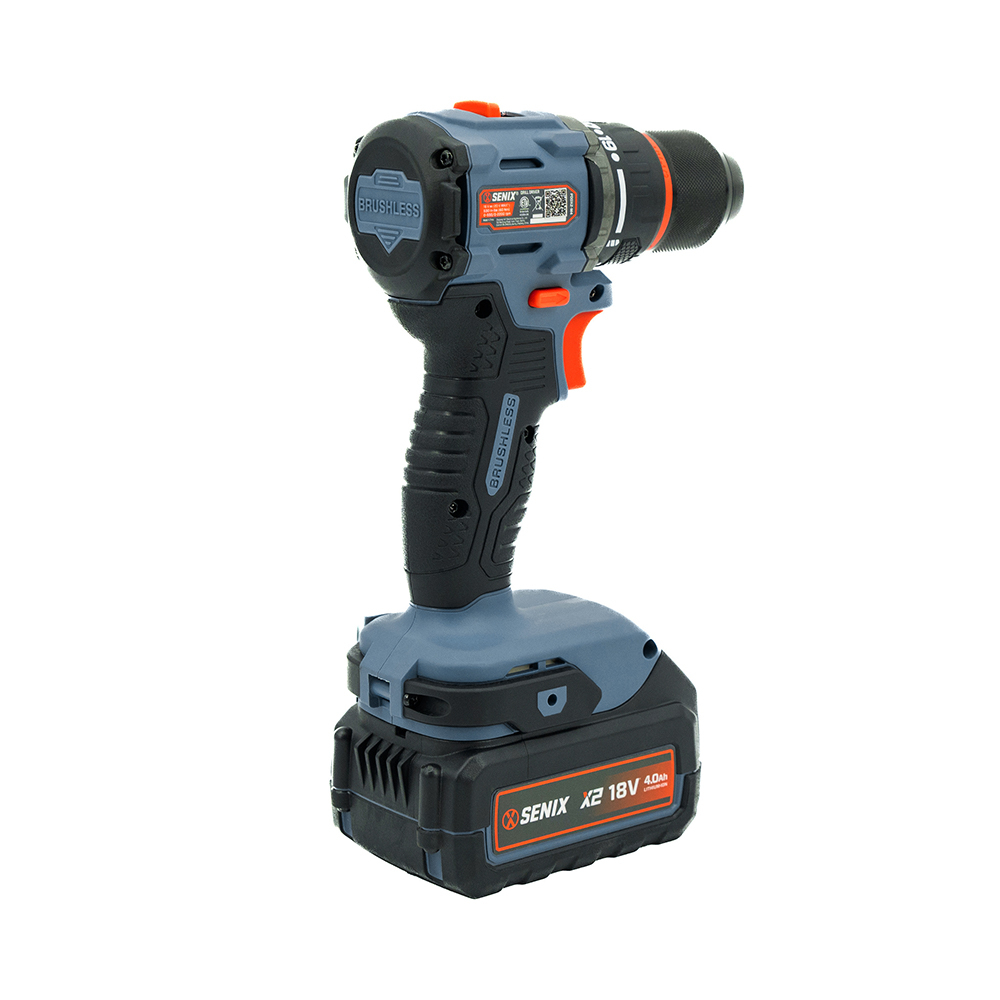

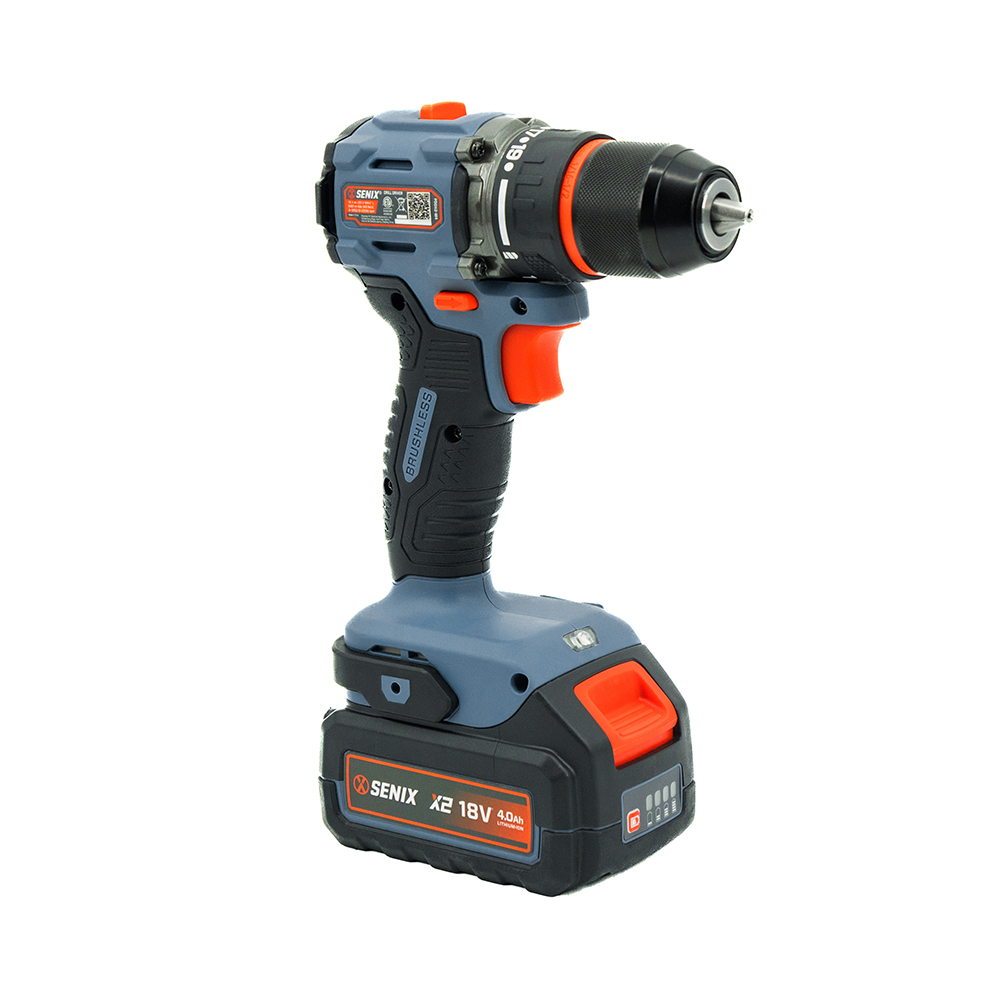

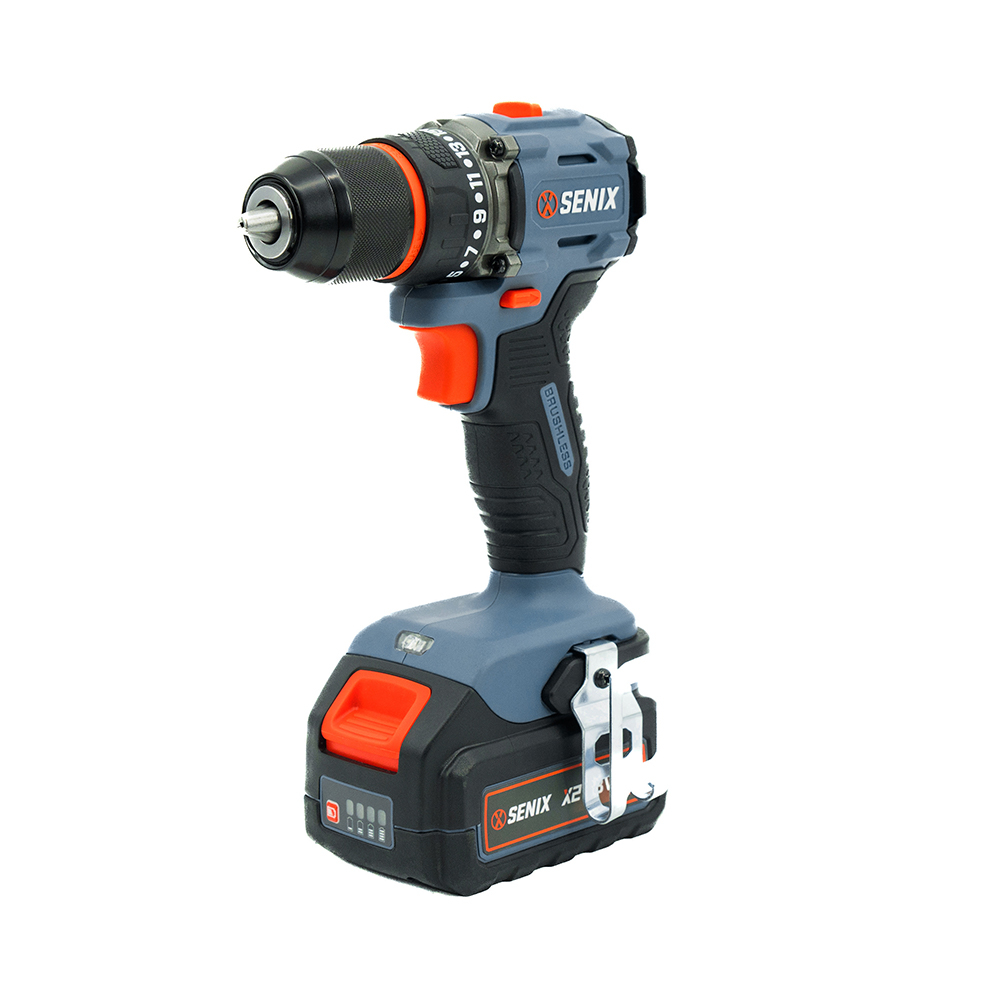

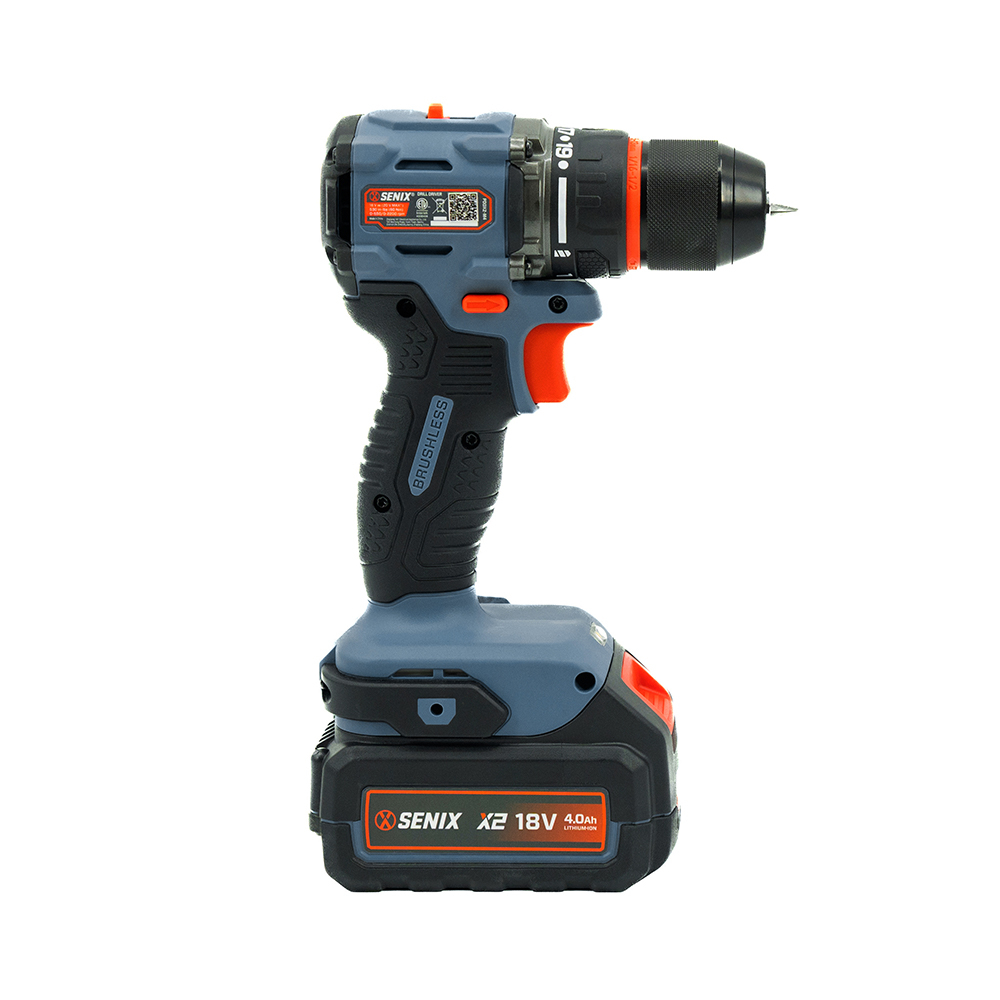

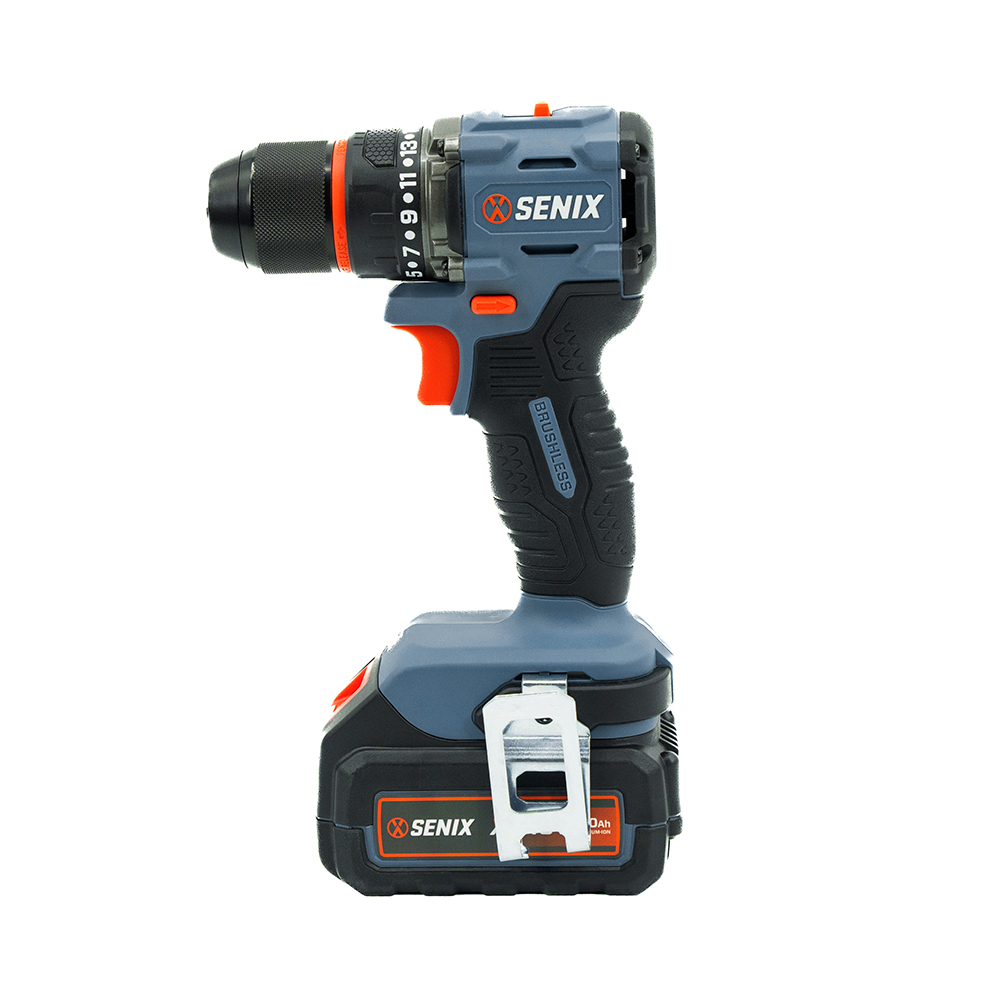

20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver
20V Brushless 13mm(1/2'') Compact Drill Driver

20V Brushless 13mm(1/2'') Compact Drill Driver

PDDX2-M4-EU

(5.0)

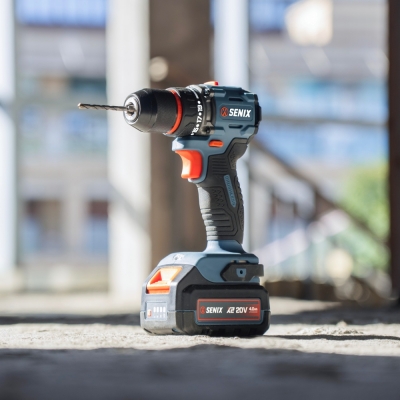

The SENIX 20V 1/2'' Brushless Compact Drill Driver is engineered for performance and precision in tight workspaces. Weighing under 1kg, it combines high torque, intelligent speed control, and premium durability, making it a must-have tool for professionals and serious DIYers alike.

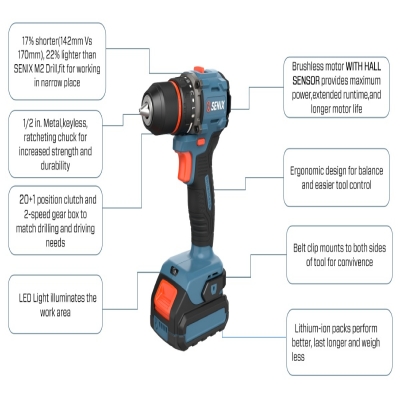

KEY FEATURES

Compact & Lightweight -17% shorter (142mm vs 170mm) and 22% lighter than SENIX M2, ideal for work in confined spaces.

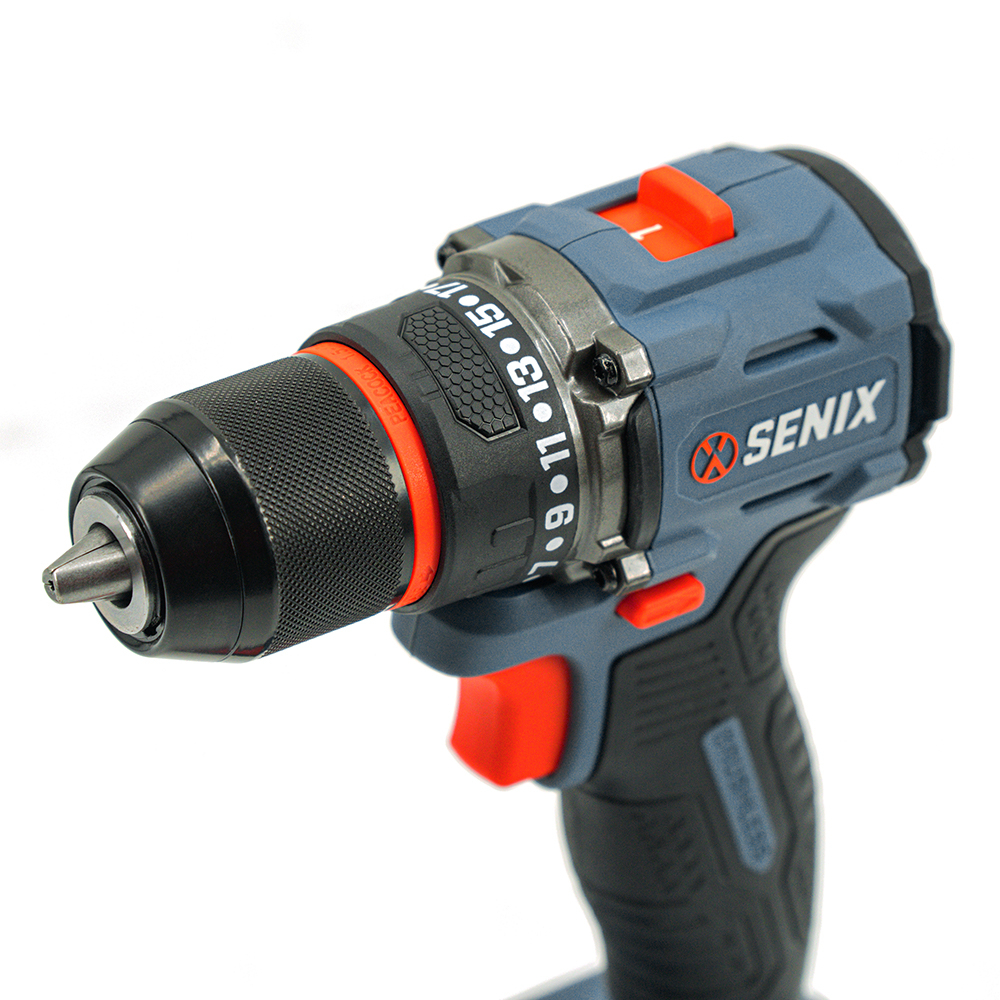

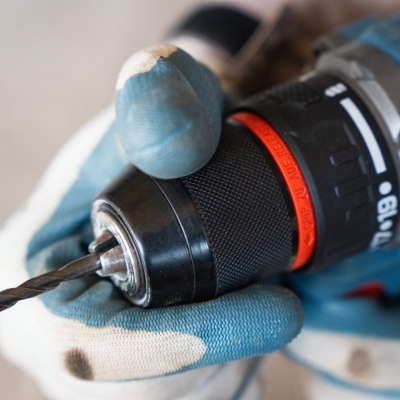

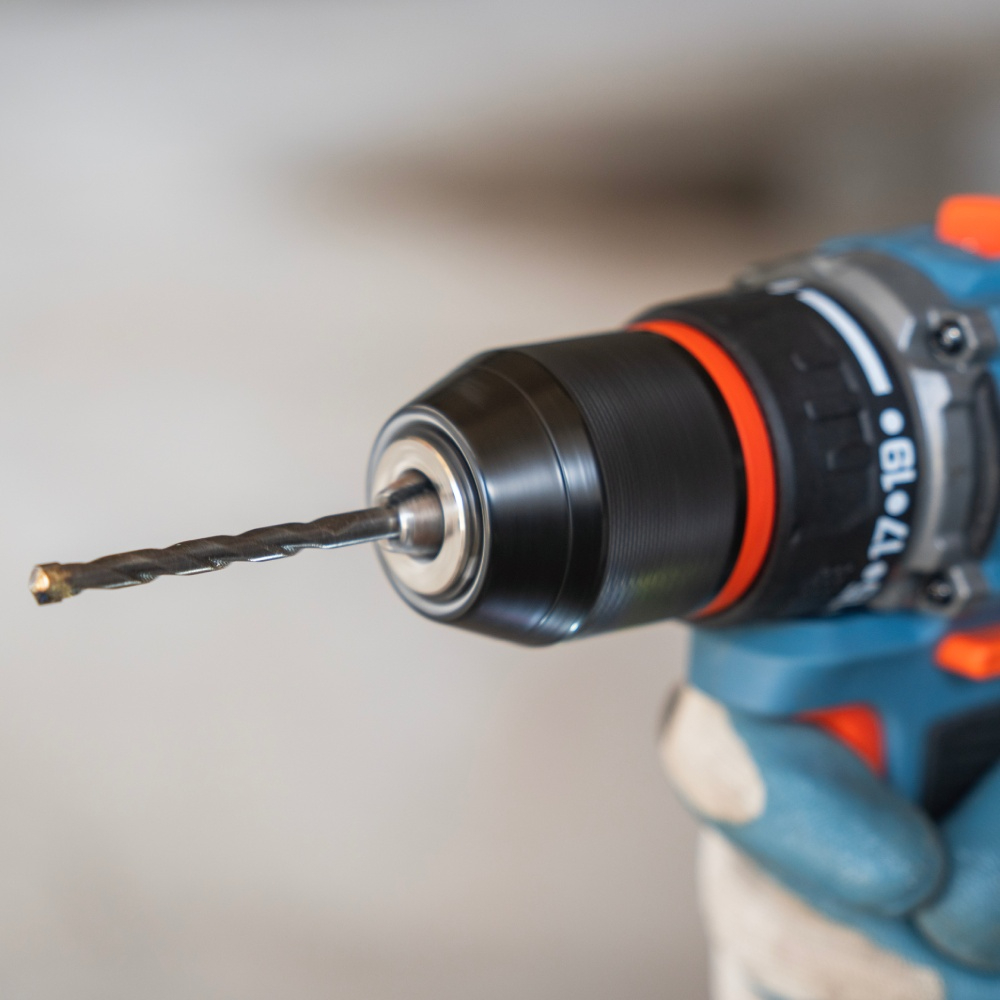

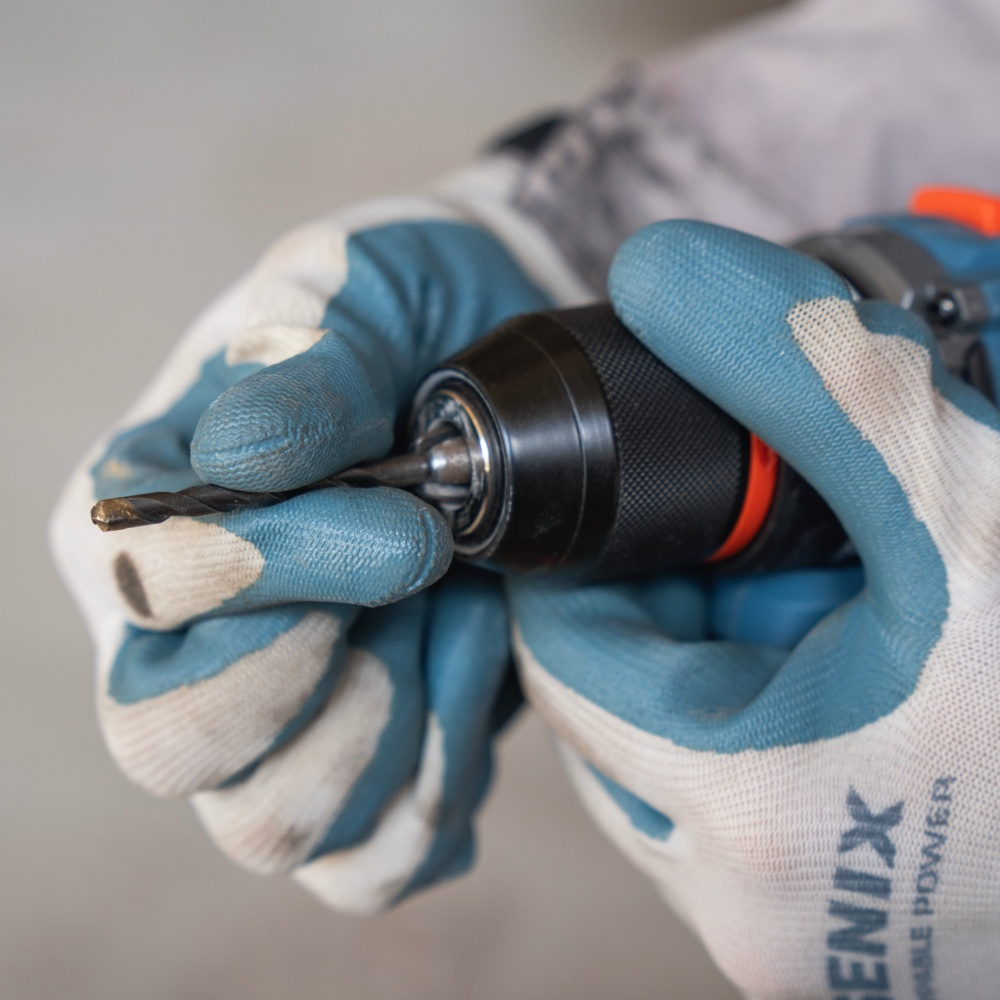

Heavy-Duty 1/2” Metal Chuck - Keyless ratcheting design delivers exceptional bit grip and strength.

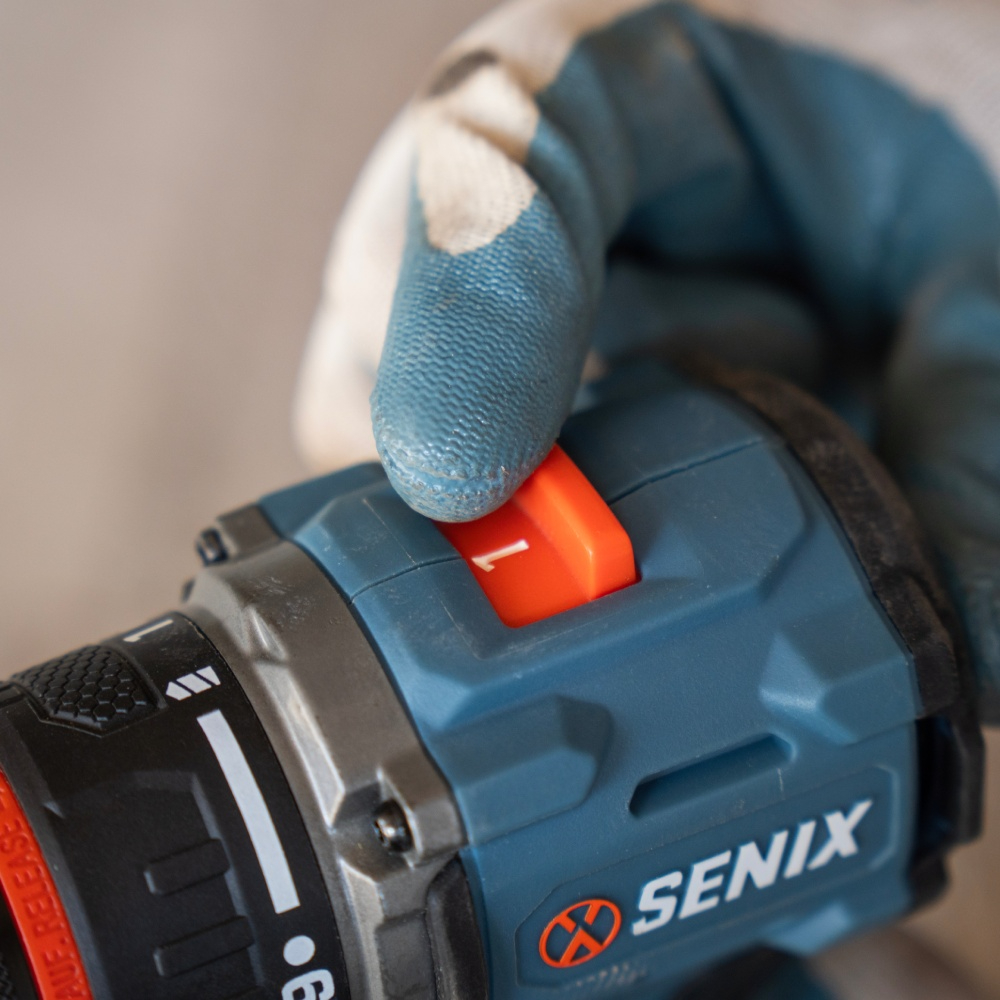

20+1 Position Clutch & 2-Speed Gearbox - Customizable settings for optimal drilling and driving performance.

High-Efficiency Brushless Motor with Hall Sensor - Delivers maximum power, longer run time, and extended tool life.

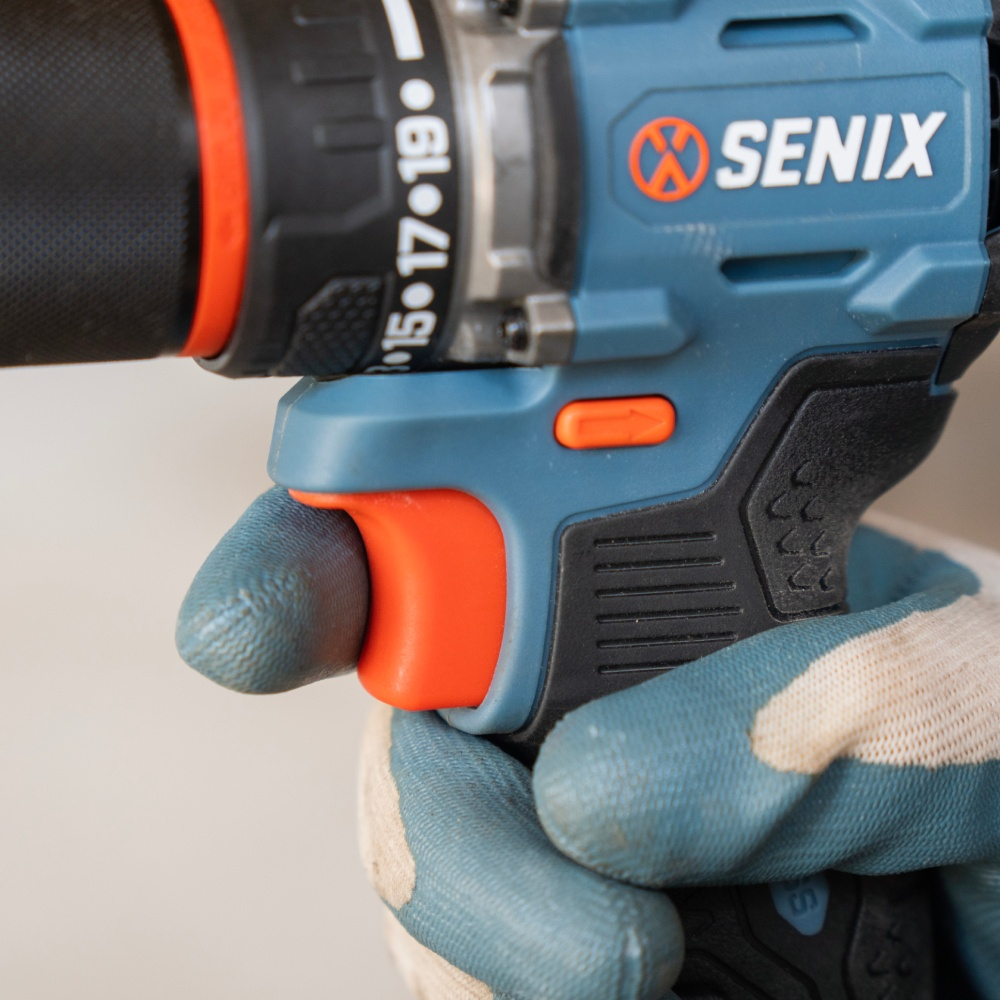

Ergonomic DesignWell-balanced with enhanced grip for better control and comfort.

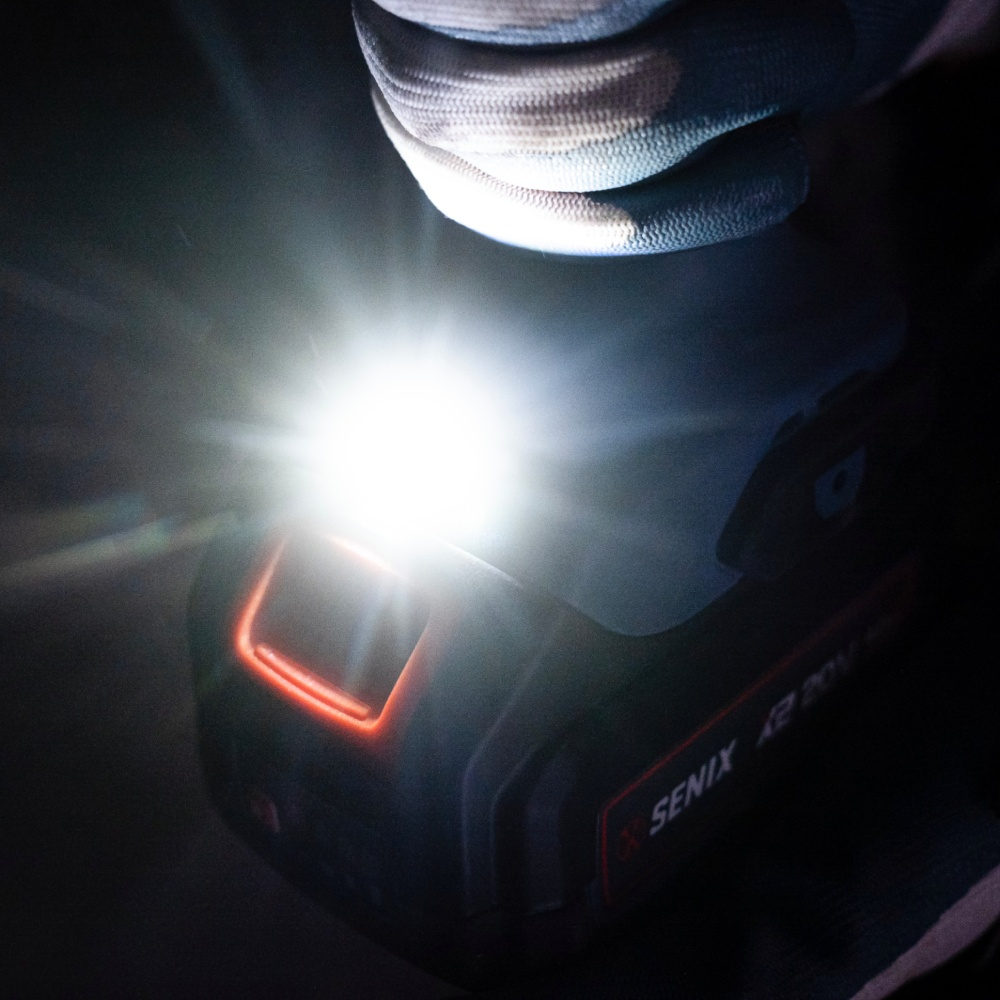

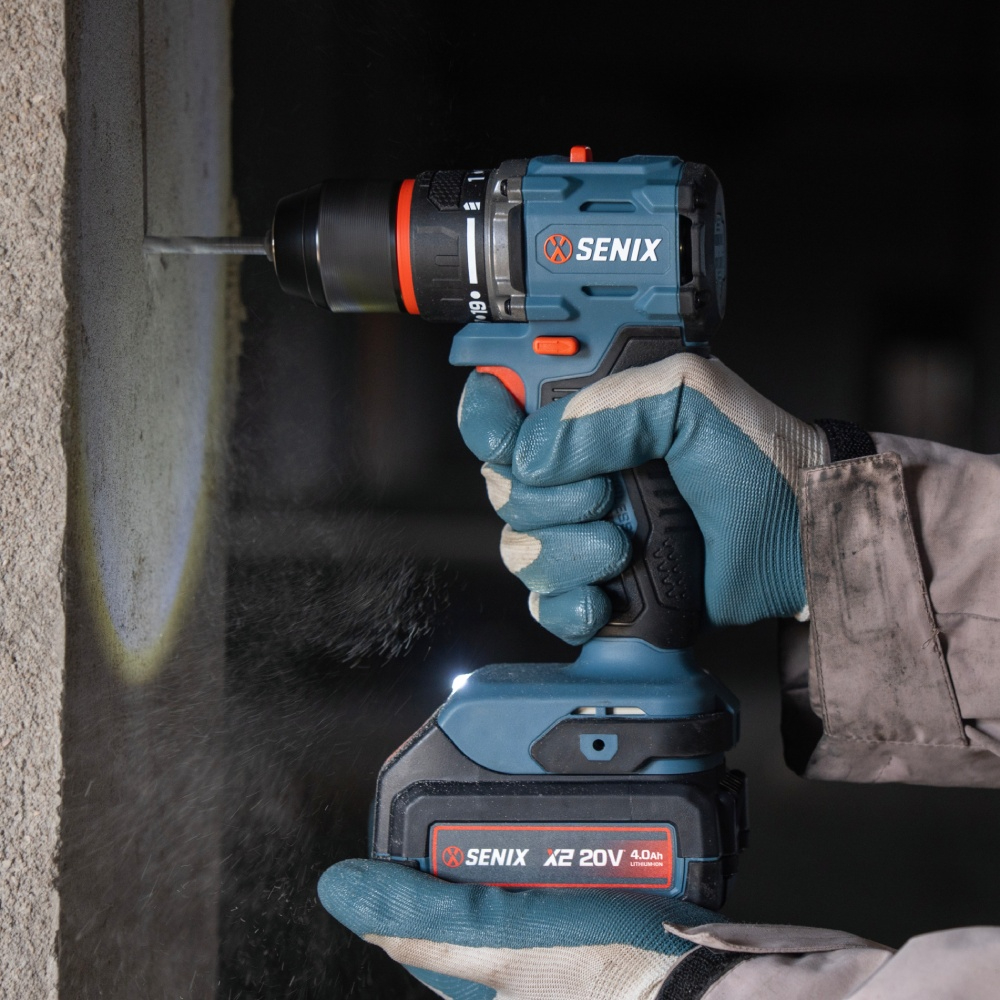

Built-in LED Light - Illuminates workspaces for increased visibility in dark or tight areas.

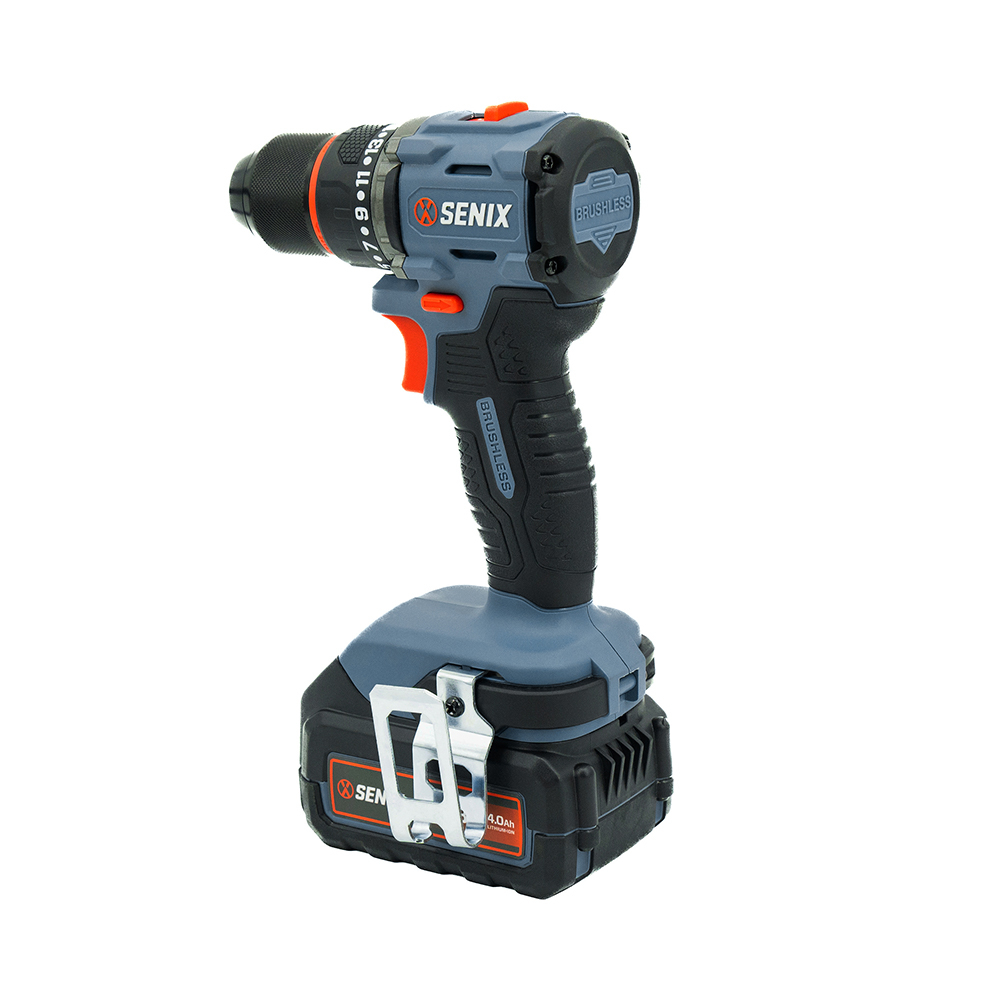

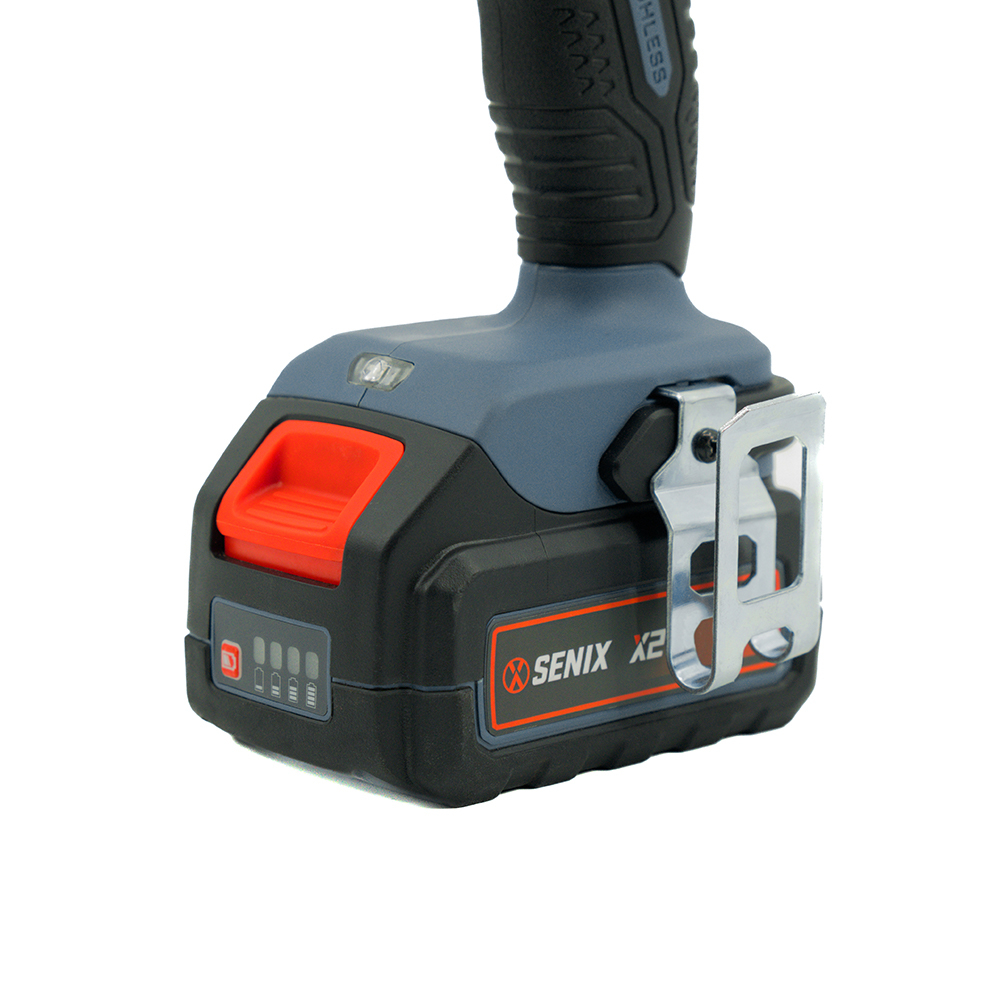

Belt Clip - Mounts on either side of the tool for user convenience.

High-Performance Lithium-Ion Battery Compatibility Longer-lasting and lighter than standard batteries.

TECHNICAL PARAMETERS

Model

PDDX2-M4-EU

Voltage

20V Max DC

MotorType

Brushless

No Load Speed

0-550/0-2200 RPM

Max. Fastening Torque

60Nm

Torque Settings

20+1

Drill Chuck

13mm (1/2 inch)

Drilling Capacity

 Steel: 13mm

 Wood: 34mm

Work Amount

415 pcs M5 x 70mm bolts

on wood per 5Ah battery

Recommended Operating Temperature

-20℃ ~ 40℃

Recommended Storage Temperature

-20℃ ~ 70℃

Certification

CE

Machine Weight (Tool Only)

0.99 kg

Machine Size

142.2mm*74.3mm*198mm

Color Box Size

360mm*180mm*120mm

SUPPORT

  • Product Overview

  • Designed for precision and power in confined spaces, the SENIX 20V Brushless 13mm (1/2'') Compact Drill Driver sets a new standard for lightweight cordless tools. At just 142mm in length and 0.99 kg in weight, it's 17% shorter and 22% lighter than the SENIX M2 Drill—perfect for cabinet work, overhead drilling, or tight corners.

    Equipped with a brushless motor enhanced by a Hall sensor, it delivers up to 60Nm of fastening torque and up to 2200 RPM for smooth, reliable operation. The metal, keyless ratcheting chuck provides secure bit retention and quick changes, while the 20+1 clutch settings offer versatile control across materials. The two-speed gearbox adapts easily from delicate screwdriving to high-speed drilling.

    Its compact body is built with ergonomic precision, offering excellent grip and balance. An integrated LED light ensures optimal visibility in dark areas, and the dual-sided belt clip keeps it accessible on the go. Powered by SENIX’s reliable 20V lithium-ion packs, this compact drill is ideal for wood, metal, and light masonry tasks, delivering up to 415 screws per charge. If you need a drill that's small in size but big on performance, the SENIX Compact Drill Driver is the professional's choice.

  • Usage Scenarios

  • Screwdriving: Suitable for fastening small screws, such as in furniture assembly, appliance repair, and indoor renovations.

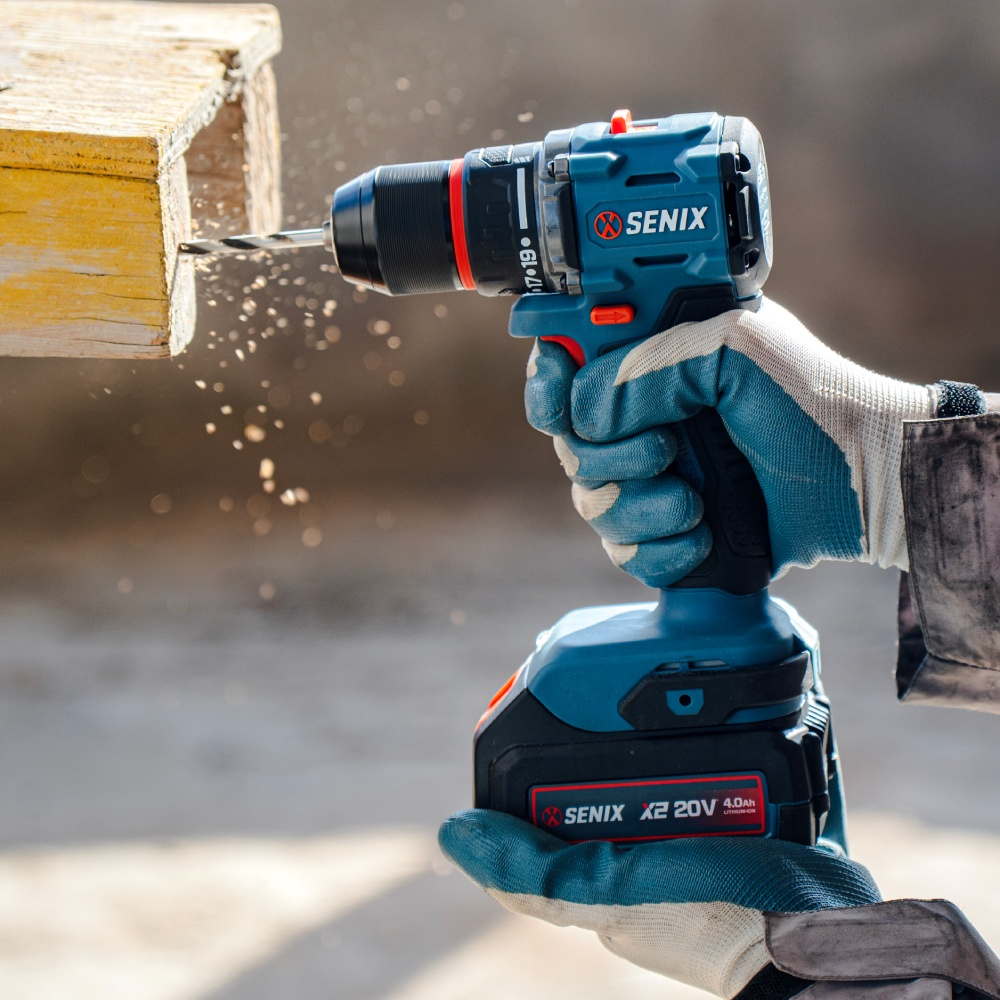

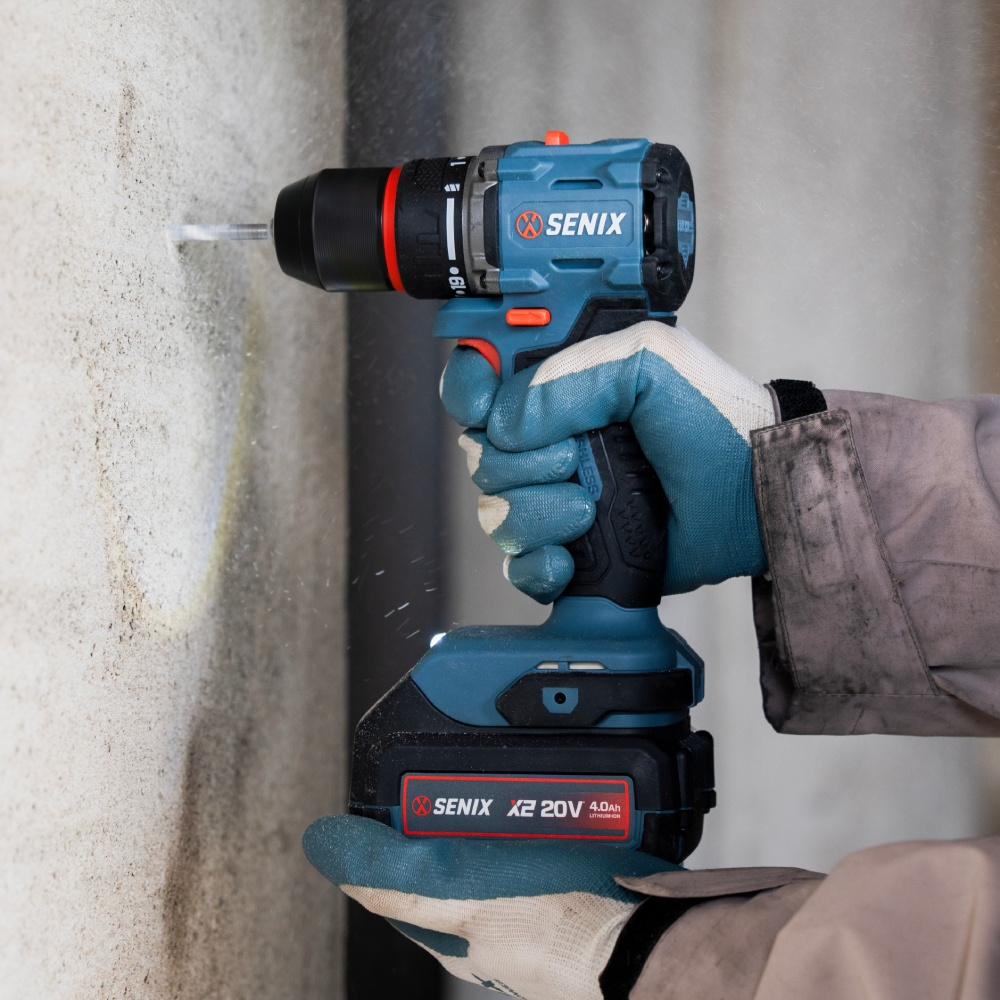

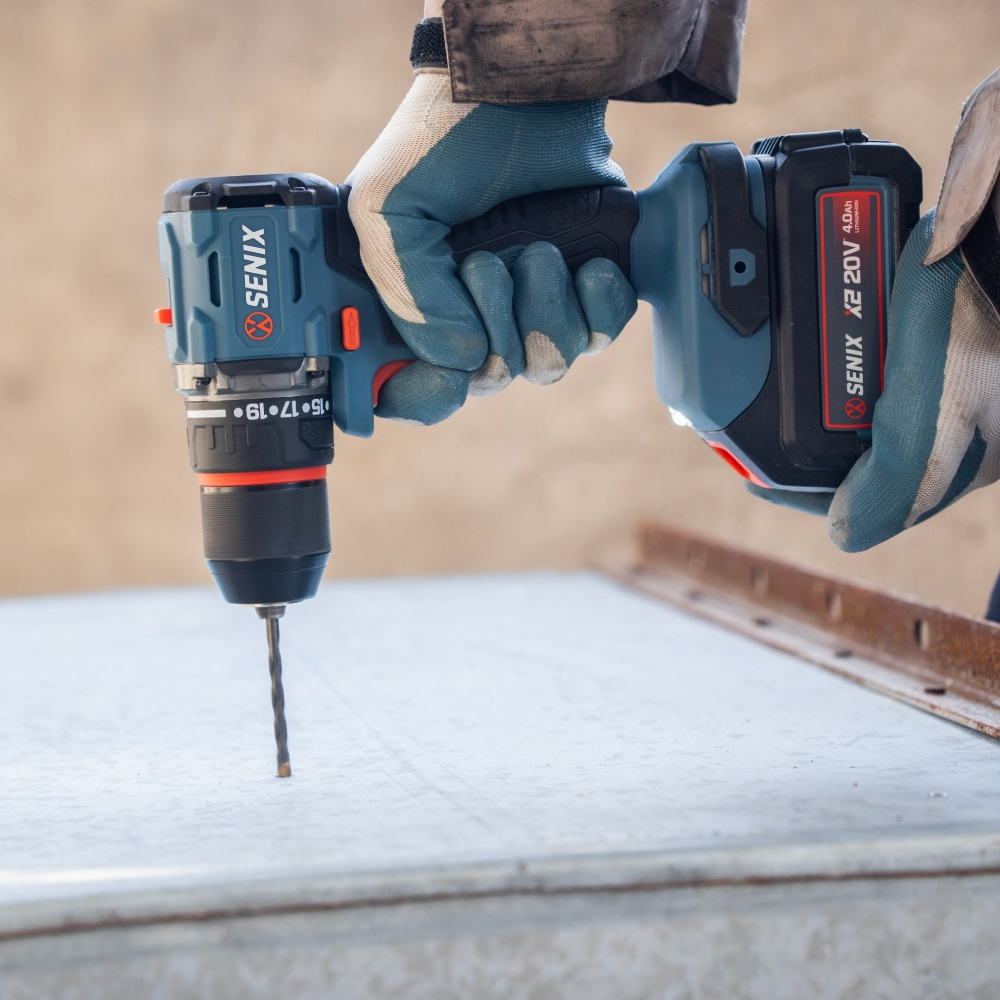

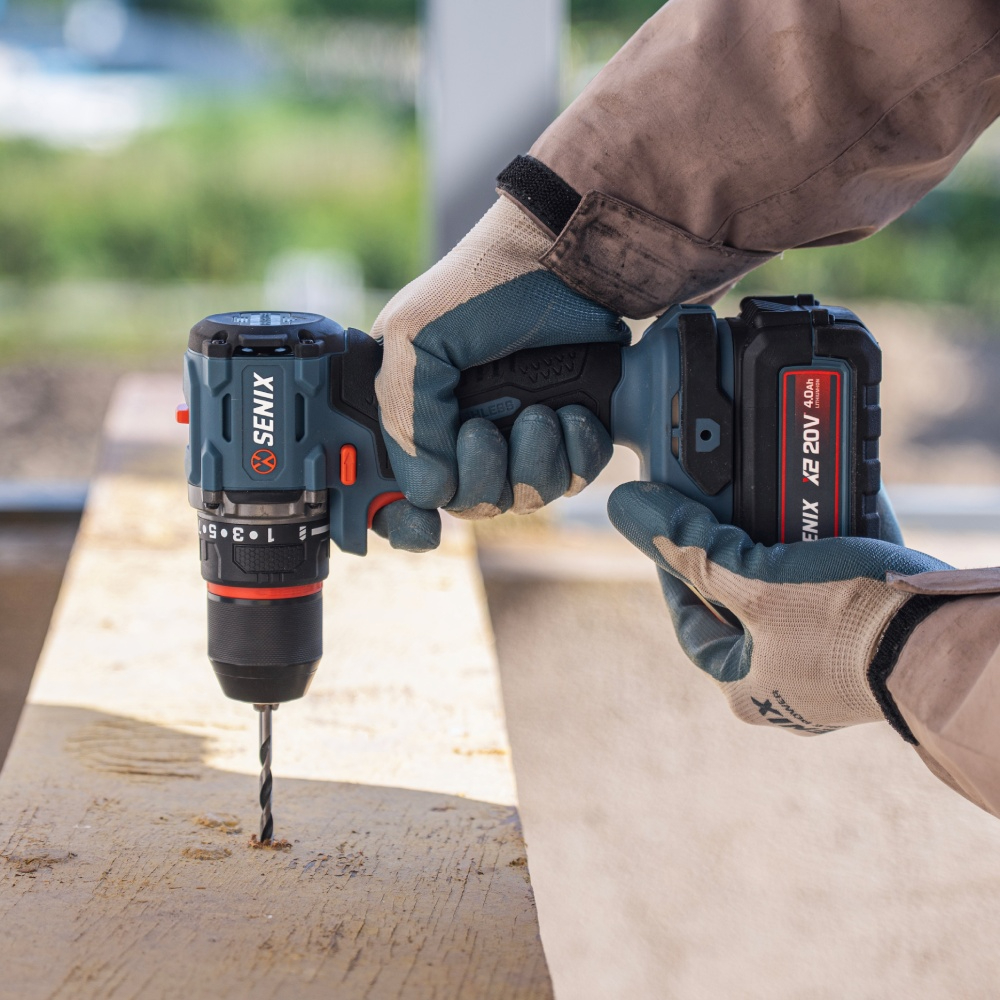

    Drilling: Ideal for drilling small holes in wood, plastic, thin metal sheets, and non-load-bearing walls.

    DIY Projects: Perfect for crafting simple wooden items and installing small decorative pieces.

  • Unrecommended Conditions

  • Drilling Large or Deep Holes: This drill is not designed for high-efficiency large or deep hole drilling.

    Hard Materials: Not suitable for use on hard materials such as concrete or brick walls.

    Prolonged Heavy-Duty Use: Designed primarily for light-duty tasks; extended high-intensity use may cause motor overheating or damage.

    Mixing Applications: Not recommended for mixing putty or cement, which may result in structural damage or deformation of the tool.

  • Warranty Information

  • We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please contact us directly. Our team will provide you with a complete warranty illustration and support as needed.

FREQUENTLY ASKED QUESTIONS

  • Q1: What types of tasks is this drill suitable for?
  • A: The SENIX 20V Compact Drill Driver is ideal for drilling into wood (up to 34mm), steel (up to 13mm), and driving screws. Its compact size makes it perfect for tight spaces and overhead work.

  • Q2: How does the brushless motor benefit me?

  • A: The brushless motor offers higher efficiency, longer runtime, reduced heat, and extended tool life compared to brushed motors. It also requires less maintenance.

  • Q3: Can I use this drill for masonry work?

  • A: No, this model is not intended for masonry. For drilling into concrete or brick, a hammer drill like the SENIX 20V Max Hammer Drill is recommended.

  • Q4: What is the significance of the 20+1 clutch settings?

  • A: The 20+1 clutch lets you precisely control torque for different tasks, preventing screw stripping or overdriving into soft materials.

  • Q5: How long does the battery last on a full charge?

  • A: With a 5Ah battery, the drill can drive approximately 415 M5 x 70mm bolts into wood per charge, depending on material and use.

  • Q6: Can the belt clip be mounted on either side?

  • A: Yes, the belt clip is reversible and can be attached on either side for convenience, whether you're right- or left-handed.
