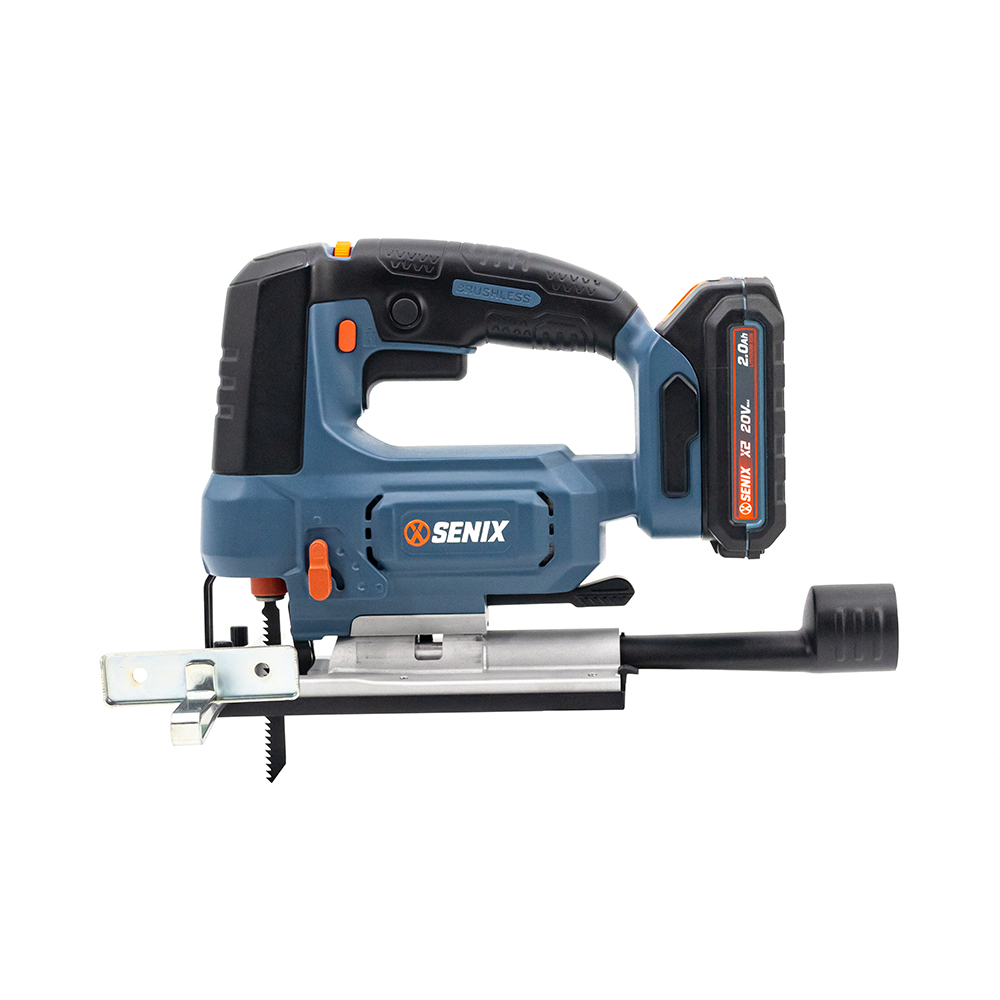

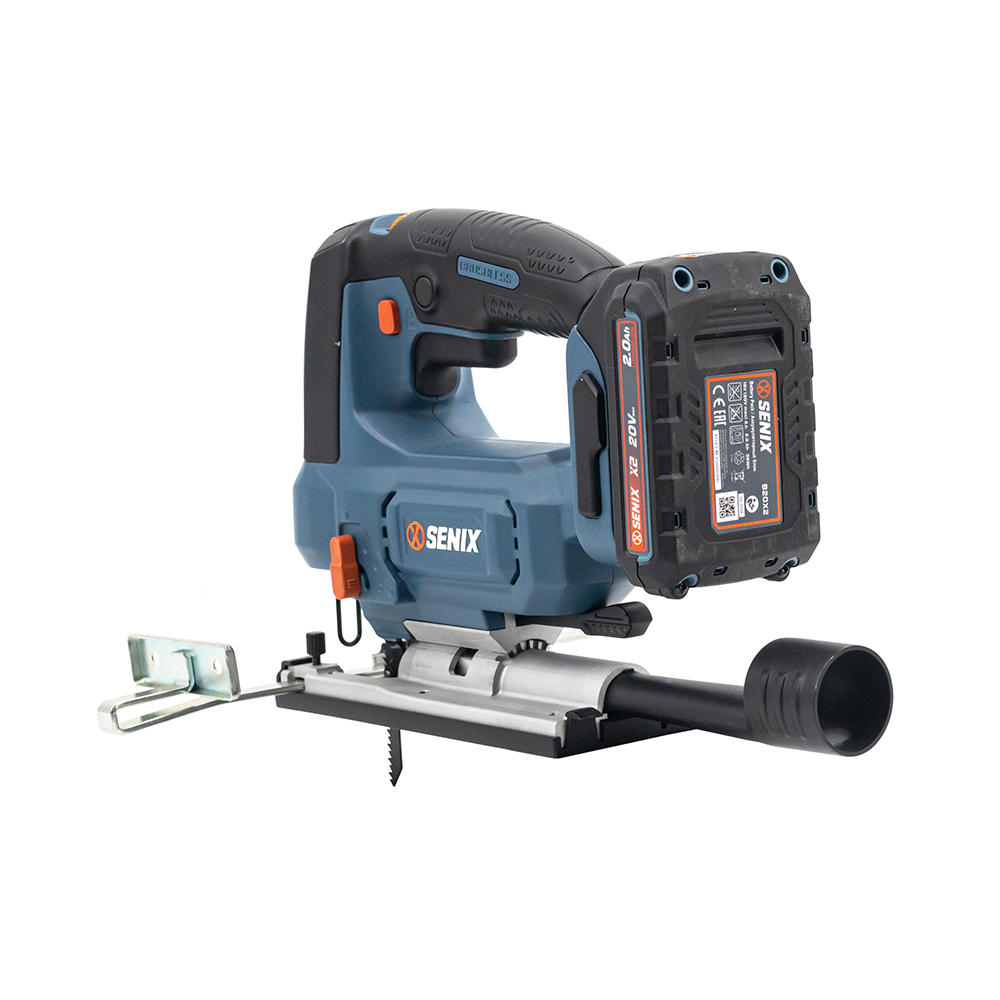

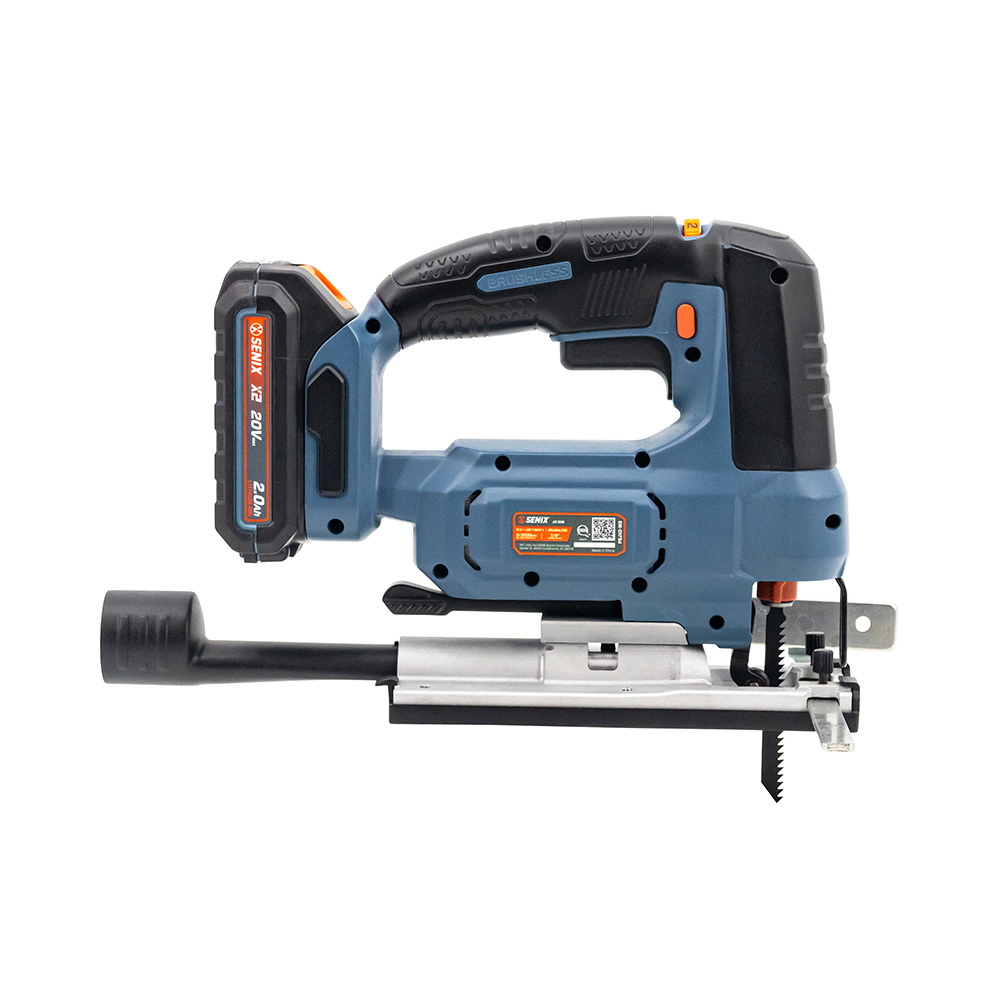

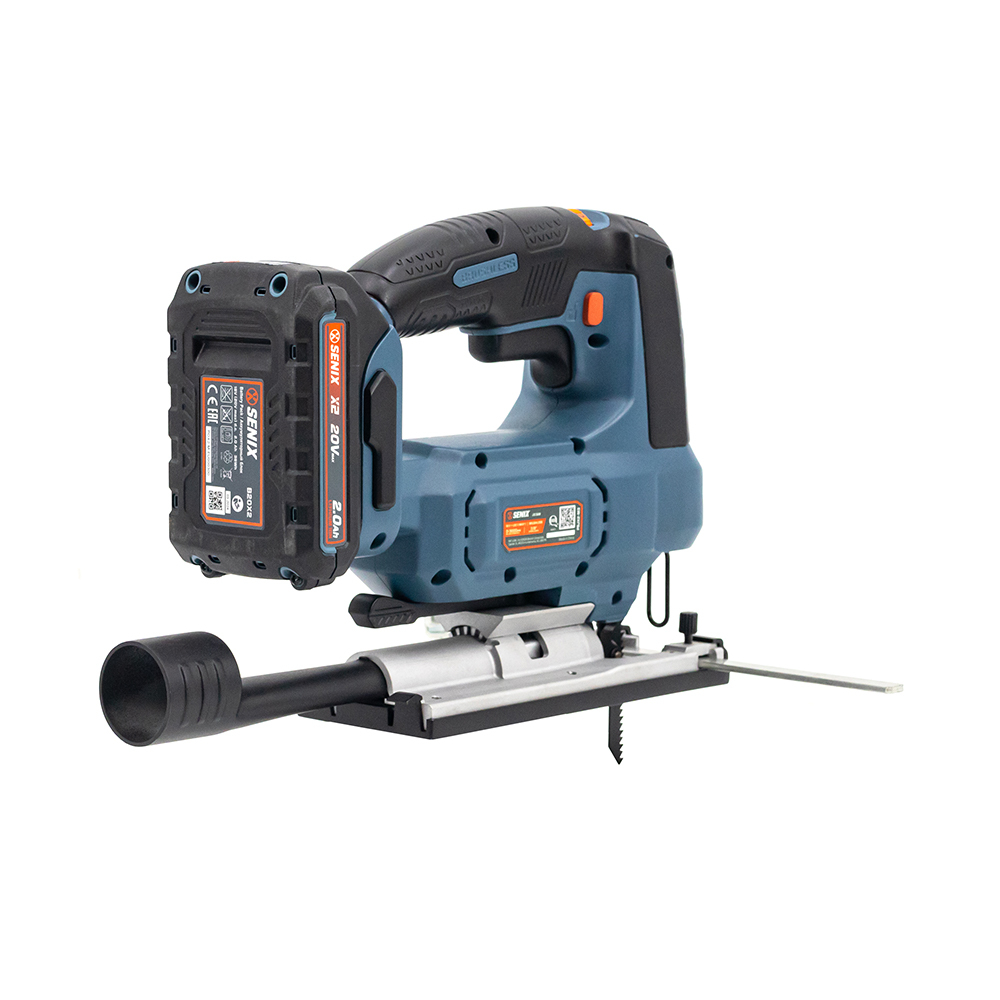

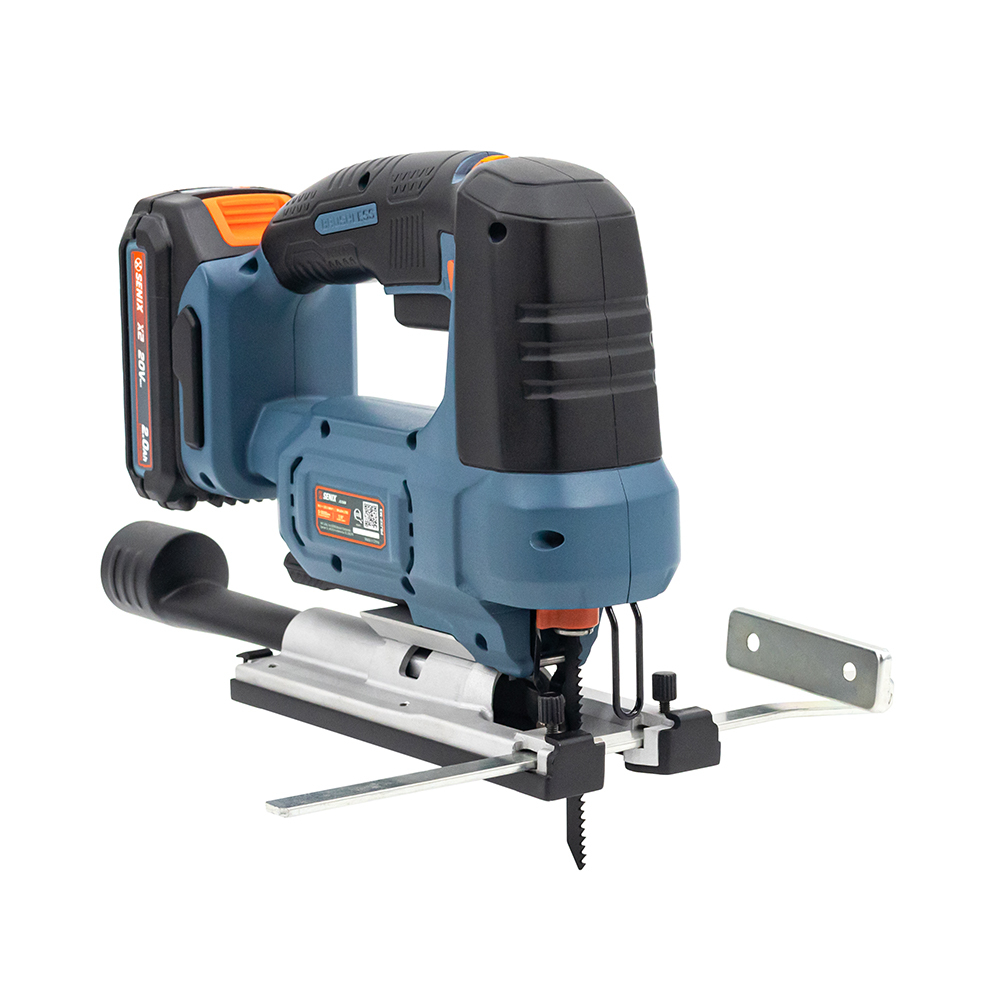

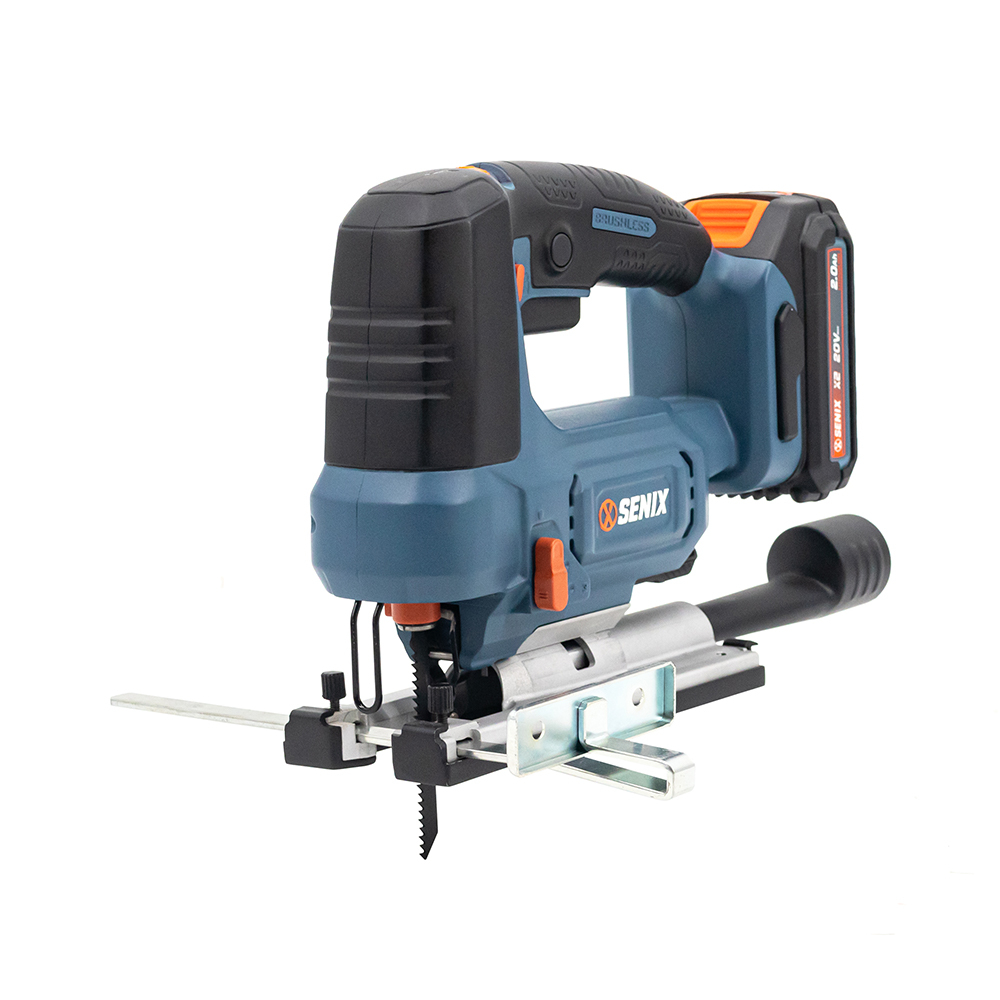

20V Brushless 23mm(7/8'') Jig Saw
PSJX2-M3-EU
(5.0)The SENIX 20V Brushless Jig Saw offers precision and comfort with powerful performance. Featuring a 6-speed dial, 4 orbital modes, LED light, and tool-free blade change, it's ideal for cutting wood, metal, and more—delivering clean, controlled cuts with minimal effort and maximum versatility.

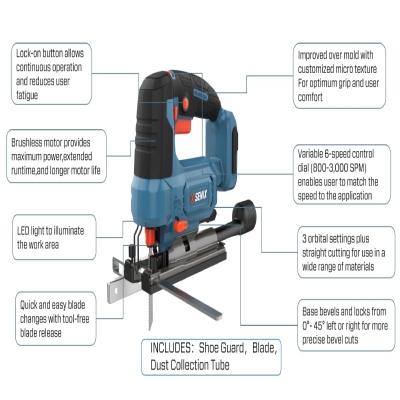

KEY FEATURES
Brushless Motor – Provides maximum power, extended runtime, and longer motor life.
LED Work Light – Illuminates cutting area for enhanced visibility in dim conditions.
Tool-Free Blade Release – Enables fast and easy blade changes without extra tools.

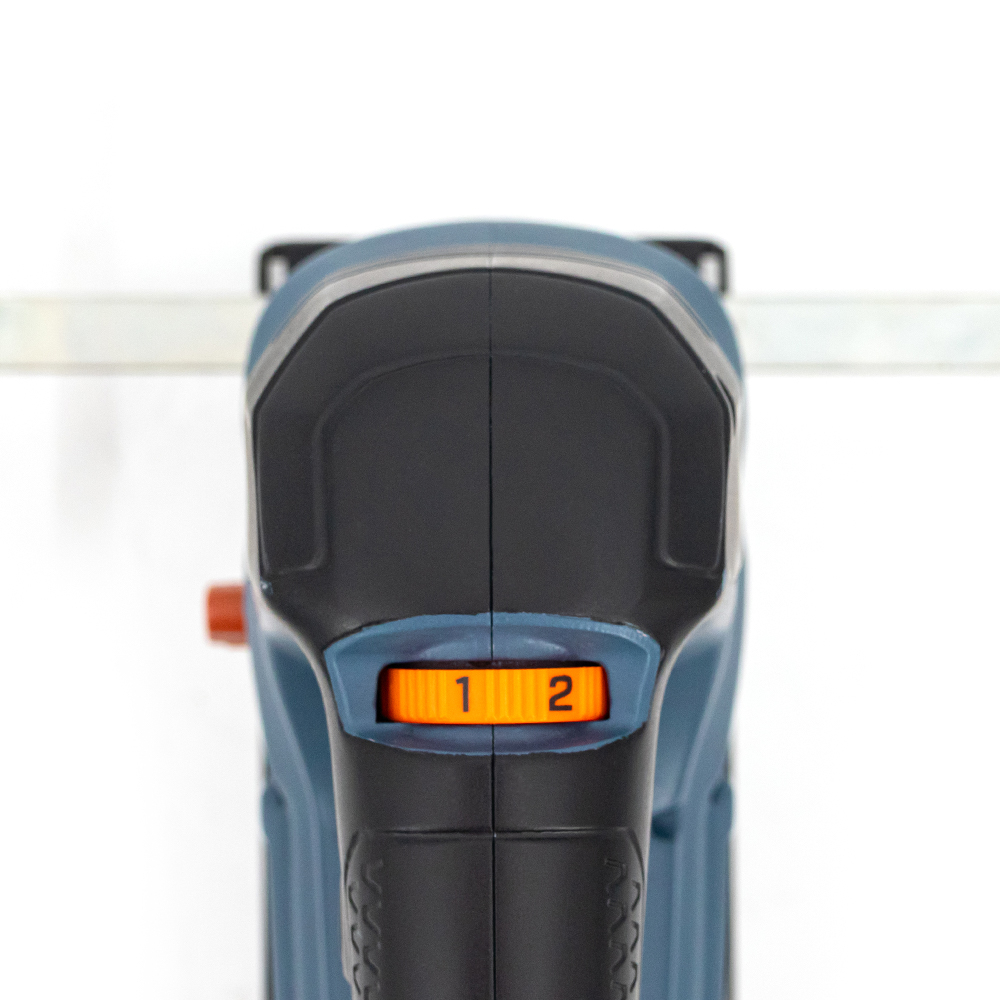

Variable 6-Speed Dial – Adjusts from 800–3000 SPM to suit different materials and tasks.
3 Orbital Settings + Straight Cut – Allows optimized cutting performance across various applications.
0°–45° Bevel Adjustment – Base tilts and locks left or right for accurate angled cuts.
Lock-On Button – Reduces user fatigue during prolonged use by enabling continuous operation.
Ergonomic Overmold Grip – Custom texture ensures a secure and comfortable grip.
Dust Collection Port – Helps keep the workspace clean and improves visibility while cutting.
TECHNICAL PARAMETERS
Model | PSJX2-M3-EU |
Voltage | 20V Max DC |
Motor type | Brushless |
Stroke Length | 23mm(7/8 inch) |
No Load Stroke Rate | 0 - 3000 SPM |
Bevel Capacity | 0-45° |

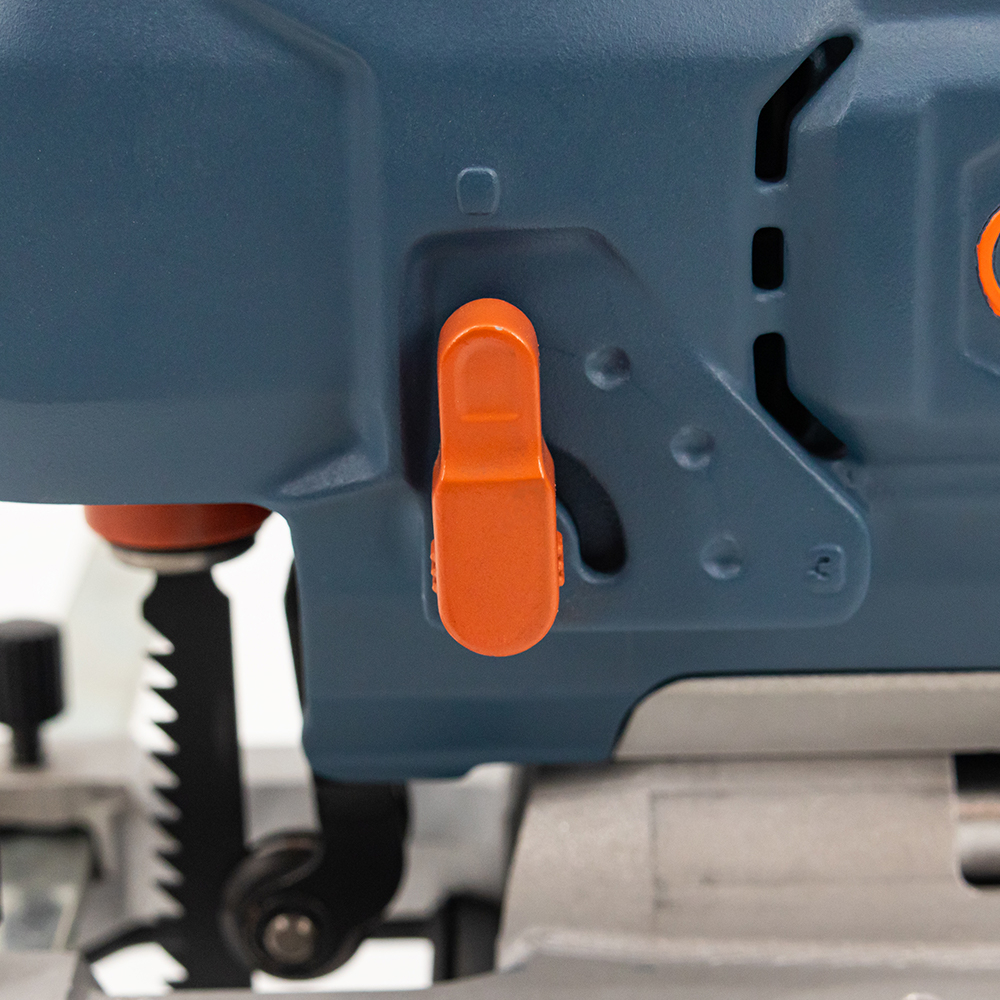

Orbital Action setting | 4-position：0/1/2/3 |
Cutting capacity | Wood: 135mm Steel: 10mm |
Work Amount | Cut 88 pieces of pine wood 200mm wide and 38mm thick with 5Ah battery |
Recommended Operating Temperature | -20℃ ～ 40℃ |
Recommended Storage Temperature | -20℃ ～ 70℃ |
Certification | CE CB |
Machine Weight (Tool Only) | 1.85 kg |
Machine Size | 220*78*200 mm |
Color Box Size | 245*90*215mm |
SUPPORT
Product Overview
The SENIX 20V Brushless 23mm (7/8'') Jig Saw is built for precision, power, and adaptability. Powered by a high-efficiency brushless motor, it delivers a variable 800–3000 SPM stroke rate and a 23 mm stroke length, making it perfect for fast, accurate cuts through wood, metal, and plastics. The four-position orbital setting (0–3) plus straight cutting mode lets users fine-tune performance based on material and speed requirements.
A 6-speed control dial gives you flexibility across job types, while the 0°–45° beveling shoe offers smooth angle adjustments left or right for versatile cuts. Tool-free blade changes are fast and convenient, while the integrated LED work light and dust collection tube help maintain visibility and a clean work area.
Weighing only 1.85 kg, this cordless jigsaw is lightweight yet durable—featuring a comfort-optimized overmold grip and a lock-on button for fatigue-free extended use. Capable of cutting 88 pieces of pine wood (200 × 38 mm) on a 5Ah battery, it’s the perfect tool for demanding tasks in cabinetry, remodeling, and DIY.
Usage Scenarios
Construction Sites: The jigsaw is ideal for use on construction sites, where it can be used to cut curved shapes in materials like pipes and electrical conduits. Its portability and ease of use make it a reliable tool for professionals.
Home Renovation: During home improvement projects, the jigsaw is perfect for cutting curved shapes in trim pieces such as door and window frames, baseboards, and more.
Unrecommended Conditions
Heavy-Duty Straight Cutting: Although the jigsaw can be fitted with straight-cutting blades, it is far less efficient than circular saws or other tools designed specifically for straight cuts. Therefore, it is not recommended for tasks requiring a large volume of straight cutting.
Cutting Heavy Materials: Jigsaws are best suited for cutting wood, metal, plastic, and other soft to medium-density materials. For heavy materials such as steel plates or stone, the cutting capacity and efficiency of a jigsaw may not meet the demands.
Warranty Information
We offer a comprehensive warranty policy tailored to the specific requirements of different countries and regions. Our warranty coverage is designed to ensure customer satisfaction and product reliability across all markets. For detailed information regarding the terms, duration, and service procedures applicable in your location, please get in touch with us directly. Our team will provide you with a complete warranty illustration and support as needed.
FREQUENTLY ASKED QUESTIONS
- Q1: What types of materials can this jig saw cut?
A: The SENIX jig saw is ideal for cutting wood (up to 135mm) and mild steel (up to 10mm). With adjustable speeds and orbital settings, it handles various materials like plastic, plywood, and metal.
Q2: How does the orbital setting help in cutting?
A: The 4-position orbital action allows the blade to move in an elliptical motion, improving cutting speed through wood. Lower settings are better for fine or metal cuts, while higher ones offer faster wood cutting.
Q3: Is the bevel cutting feature easy to use?
A: Yes. The base tilts left or right up to 45° and locks in place, allowing you to make accurate bevel cuts for frames, furniture, and angled joints.
Q4: Can I change blades without tools?
A: Definitely. The tool-less blade clamp lets you swap out blades quickly and safely—no wrench or screwdriver required.
Q5: What does the speed control dial do?
A: The 6-speed variable dial (800–3000 SPM) gives you precise control over blade speed, helping you match the speed to the material and the cut for cleaner results.
Q6: How long does the battery last during use?
A: With a 5Ah battery, you can cut approximately 88 pieces of pine wood (200mm x 38mm)—actual runtime may vary depending on material and usage.
Q7: Is it suitable for beginners or hobbyists?
A: Yes. It's lightweight (1.85 kg), easy to control, and comes with clear-cut features like the LED light, lock-on switch, and orbital settings—perfect for DIYers.
Q8: Does this tool come with accessories?
A: Yes. The jig saw includes a blade, shoe guard, and dust collection tube for cleaner work and safer operation.
