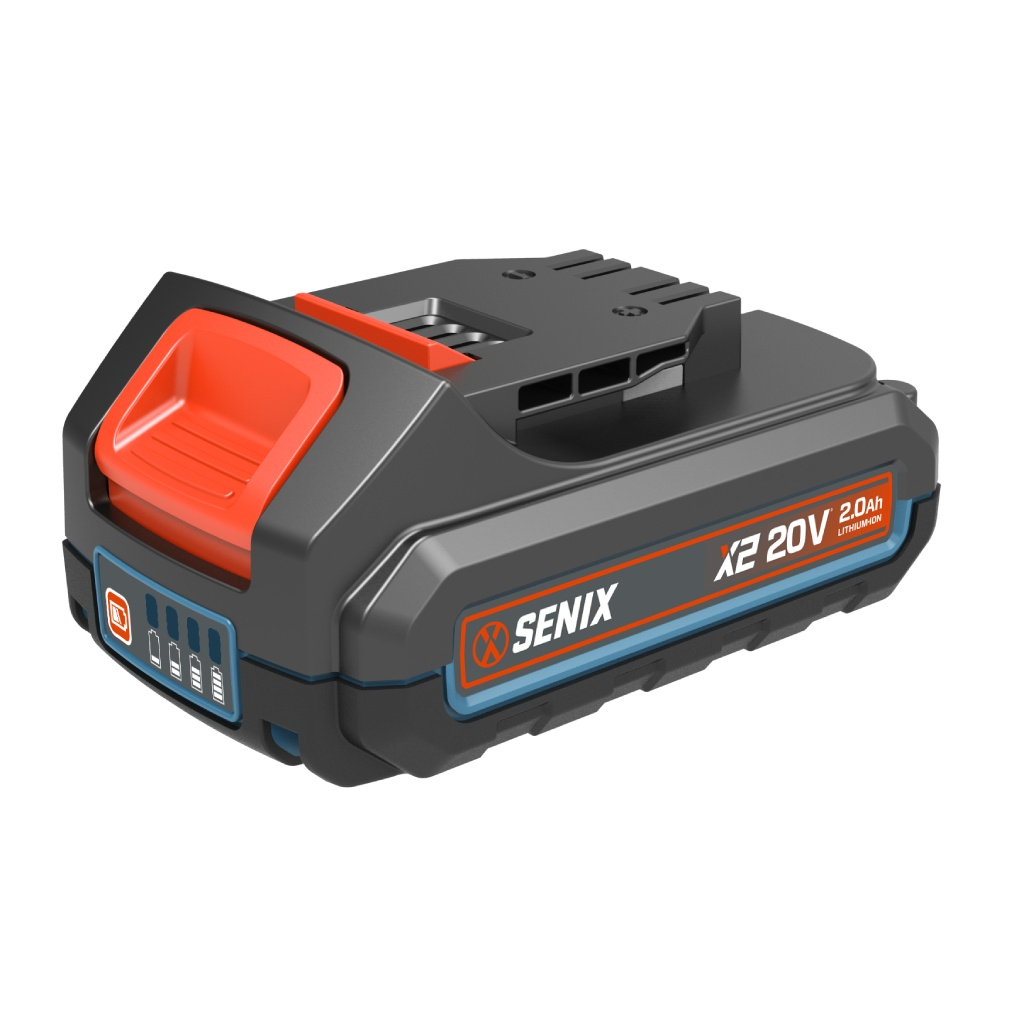

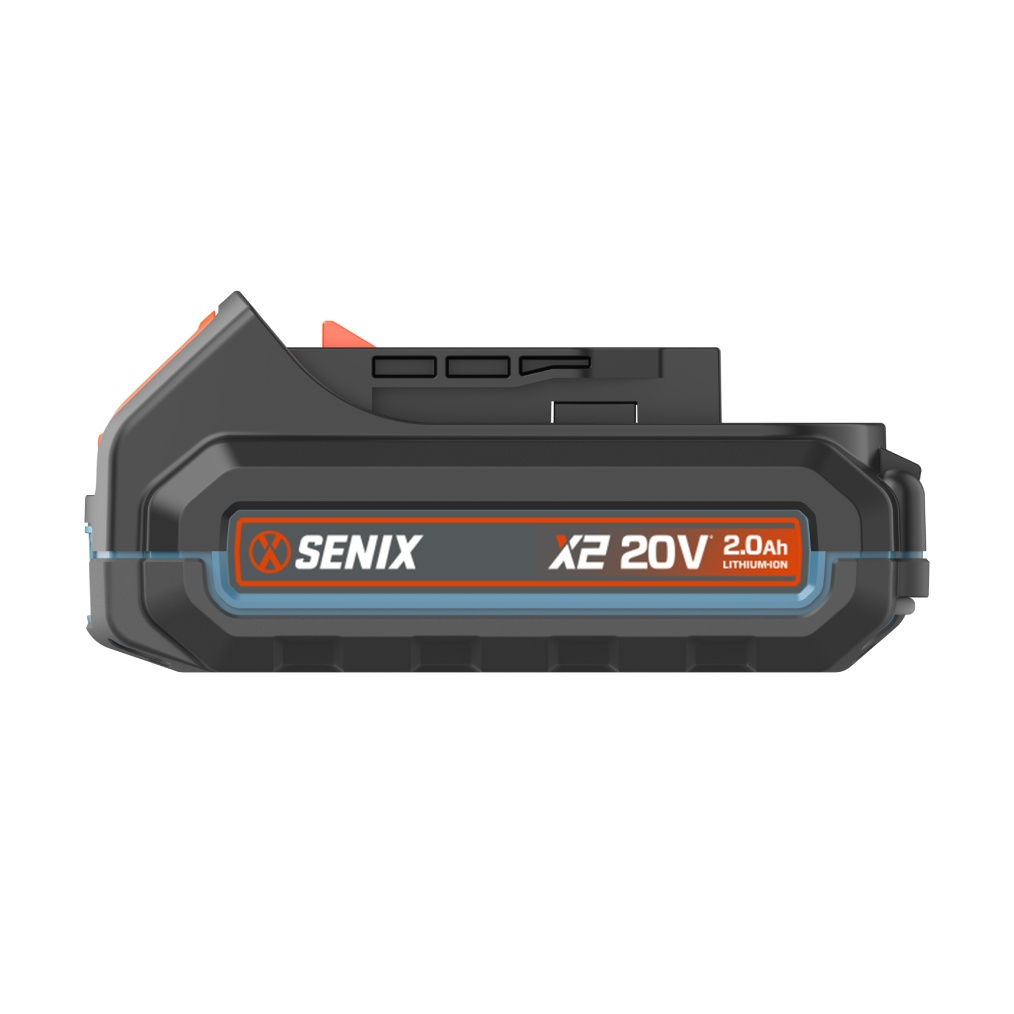

20V 2Ah Lithium-ion Battery

B20X2

(5.0)

SENIX 20V battery offers reliable power in a compact design, available in 2.0Ah capacities. Featuring a power level LED display for easy monitoring and an extreme safety BMS for protection, it ensures both performance and safety. Perfect for efficient, uninterrupted work.

20V 2.0Ah battery
Power Level LED Display
Compact Size
Extreme safety BMS design

Charger		Battery(Ah)
		B20X2	B25X2	B40X2	B50X2	B60X2	B80X2
		2Ah （18650）	2.5Ah （18650）	4Ah （18650）	5Ah （18650）	6Ah （21700）	8Ah （21700）
1.5A Charger	CHX2-L1-EU	80min	95min	160min	190min	250min	330min
2.0A Charger	CHX2	65min	85min	135min	160min	195min	260min
4.0A Charger	CHQX2	35min	45min	65min	85min	105min	140min
6.0A Charger	CHQX2-M-EU	35min	45min	50min	60min	75min	100min
6.0A Dual-port charger-- Charging two batteries at the same time	CHDX2-M-EU	80min	95min	100min	140min	155min	195min
6.0A Dual-port charger-- Charging only one battery	CHDX2-M-EU	40min	50min	55min	70min	85min	110min
Note: The battery pack charging time error is ±5min

KEY FEATURES

TECHNICAL PARAMETERS

Model	B20X2
Voltage	20V Max
Battery Type	Lithium-ion
Rated Capacity	2Ah/ 36 Wh
Machine Weight	0.37kg
Series-parallel system	5S1P
Cell Type	18650
Recommended Ambient Temperature for Charging	41°F~104°F(5°C~40°C)
Optimum Storage Temperature in Use	50°F~80°F(10°C~26°C)
Certification	UN38.3,UL 2595
Machine Size	118.576.453.5mm
