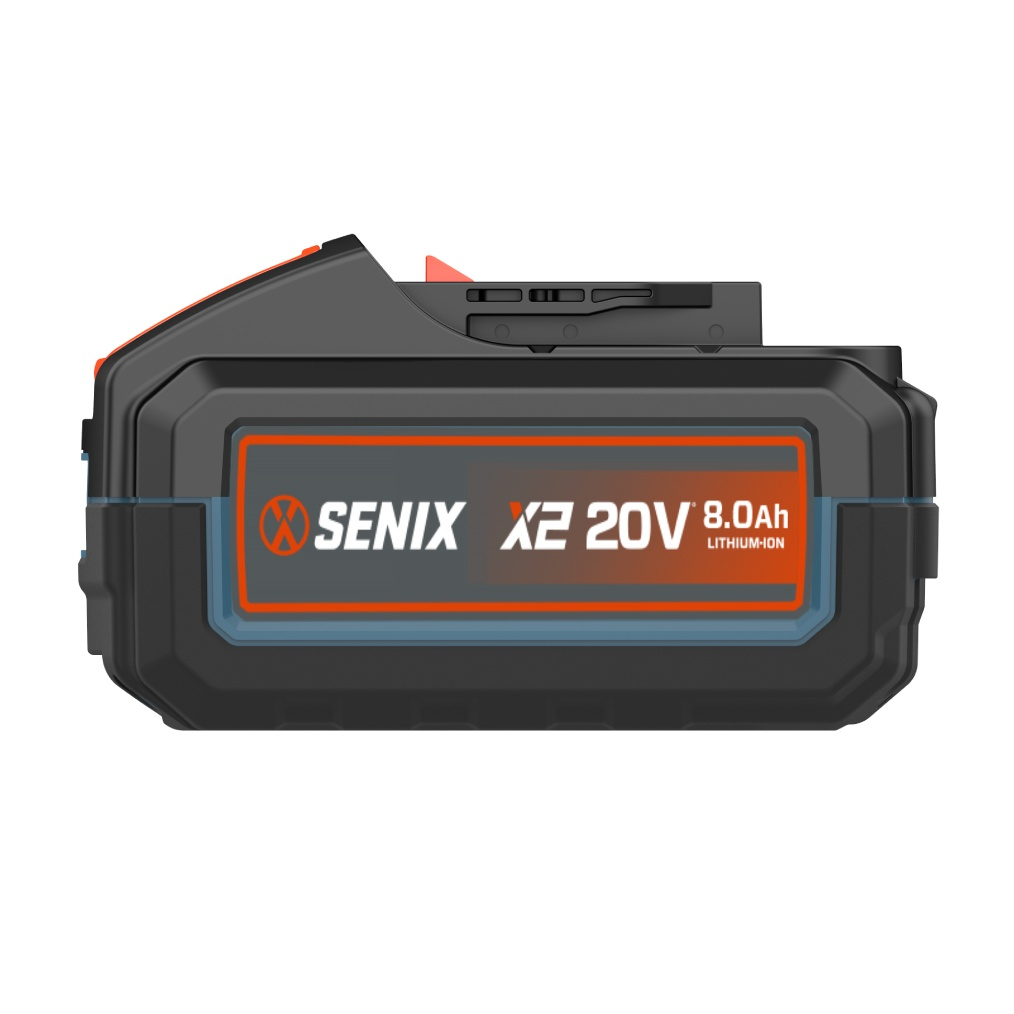

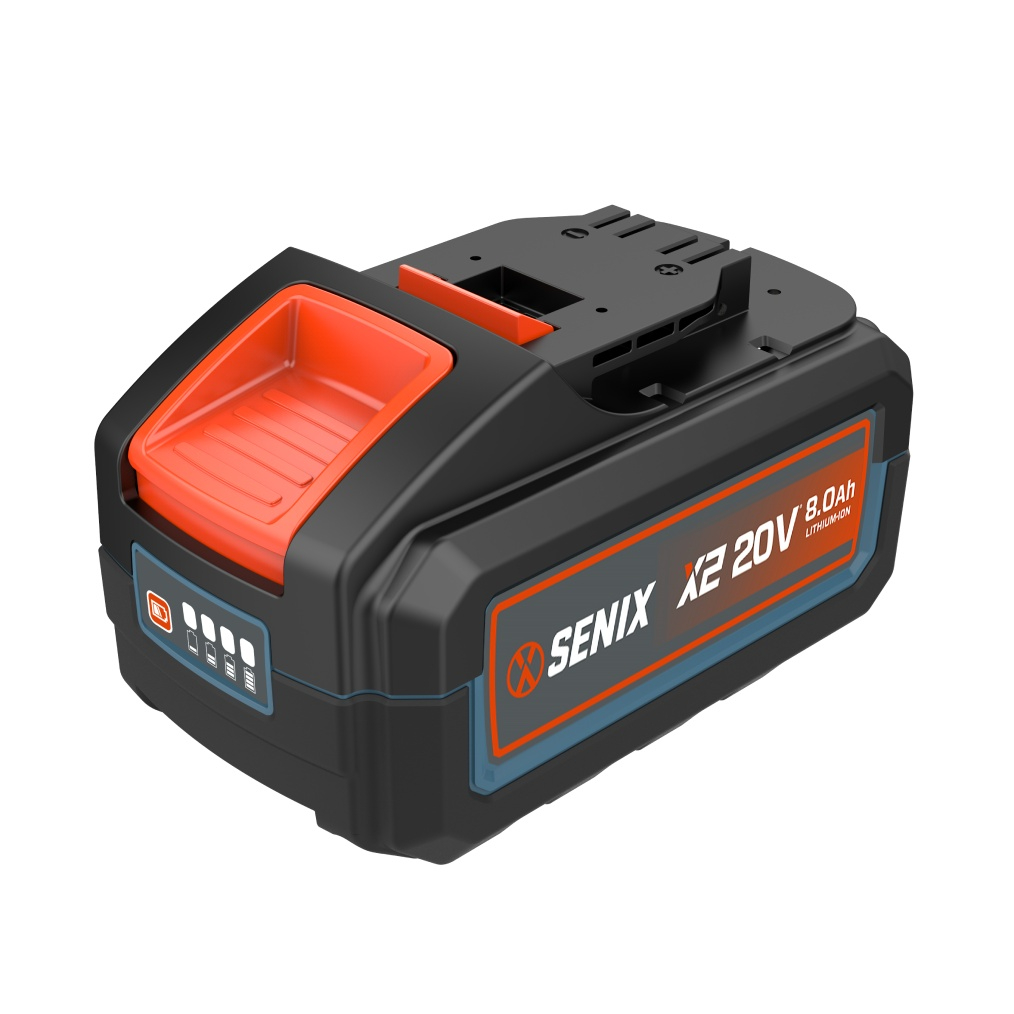

20V 8Ah Lithium-ion Battery

B80X2

(5.0)

SENIX lithium-ion battery provides exceptional power for extended tool use. Featuring a power level LED display, it offers real-time battery tracking. Its compact size ensures easy handling, while the extreme safety BMS design guarantees maximum protection and reliability for long-lasting performance.

20V 8.0Ah battery
Power Level LED Display
Compact Size
Extreme safety BMS design

Charger		Battery(Ah)
		B20X2	B25X2	B40X2	B50X2	B60X2	B80X2
		2Ah （18650）	2.5Ah （18650）	4Ah （18650）	5Ah （18650）	6Ah （21700）	8Ah （21700）
1.5A Charger	CHX2-L1-EU	80min	95min	160min	190min	250min	330min
2.0A Charger	CHX2	65min	85min	135min	160min	195min	260min
4.0A Charger	CHQX2	35min	45min	65min	85min	105min	140min
6.0A Charger	CHQX2-M-EU	35min	45min	50min	60min	75min	100min
6.0A Dual-port charger-- Charging two batteries at the same time	CHDX2-M-EU	80min	95min	100min	140min	155min	195min
6.0A Dual-port charger-- Charging only one battery	CHDX2-M-EU	40min	50min	55min	70min	85min	110min
Note: The battery pack charging time error is ±5min

KEY FEATURES

TECHNICAL PARAMETERS

Model	B80X2
Voltage	20V Max
Battery Type	Lithium-ion
Rated Capacity	8Ah/144Wh
Machine Weight	1.1kg
Series-parallel system	5S2P
Cell Type	21700
Recommended Ambient Temperature for Charging	41°F~104°F(5°C~40°C)
Optimum Storage Temperature in use	50°F~80°F(10°C~26°C)
Certification	UN38.3,UL 2595
Machine Size	142.58582.2mm
